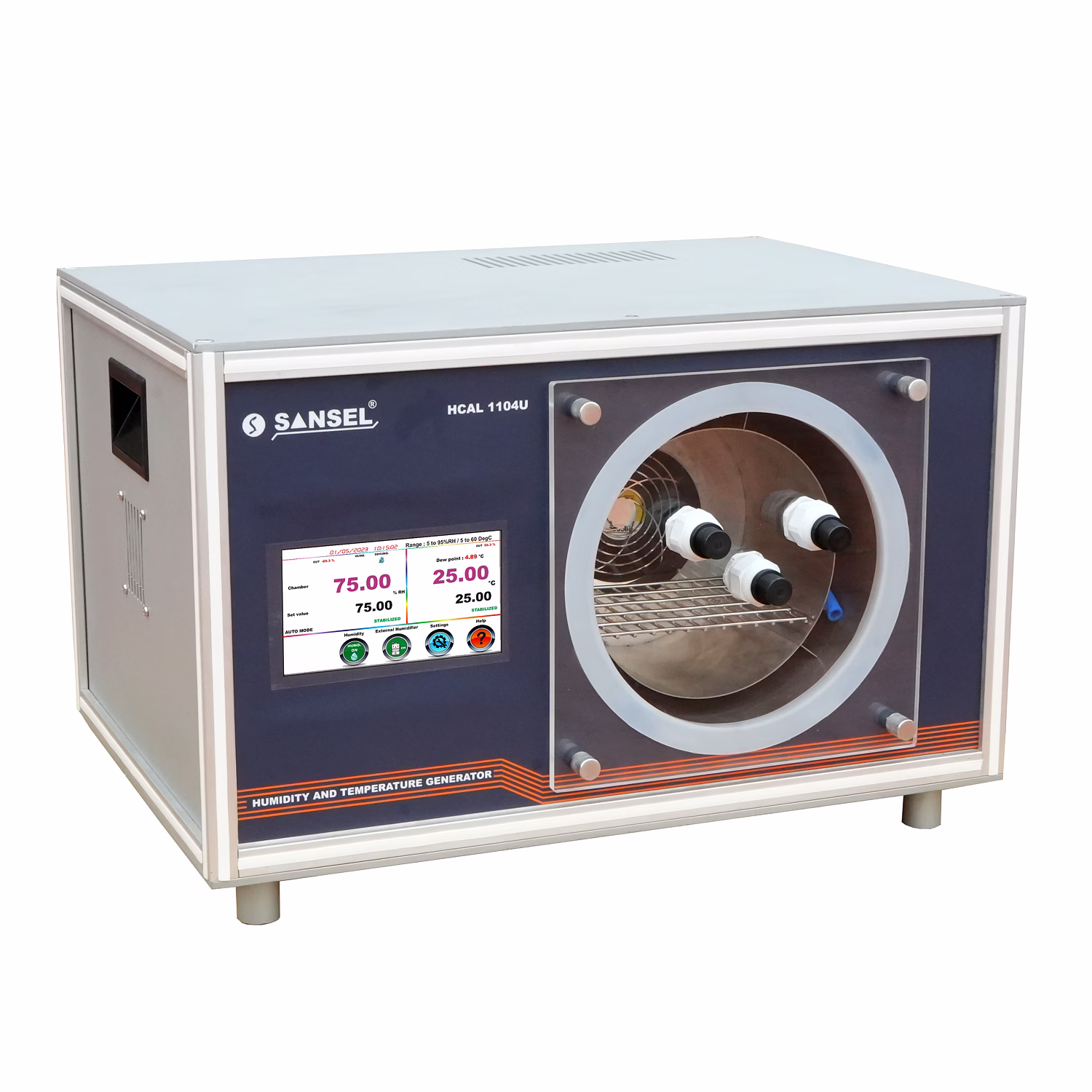

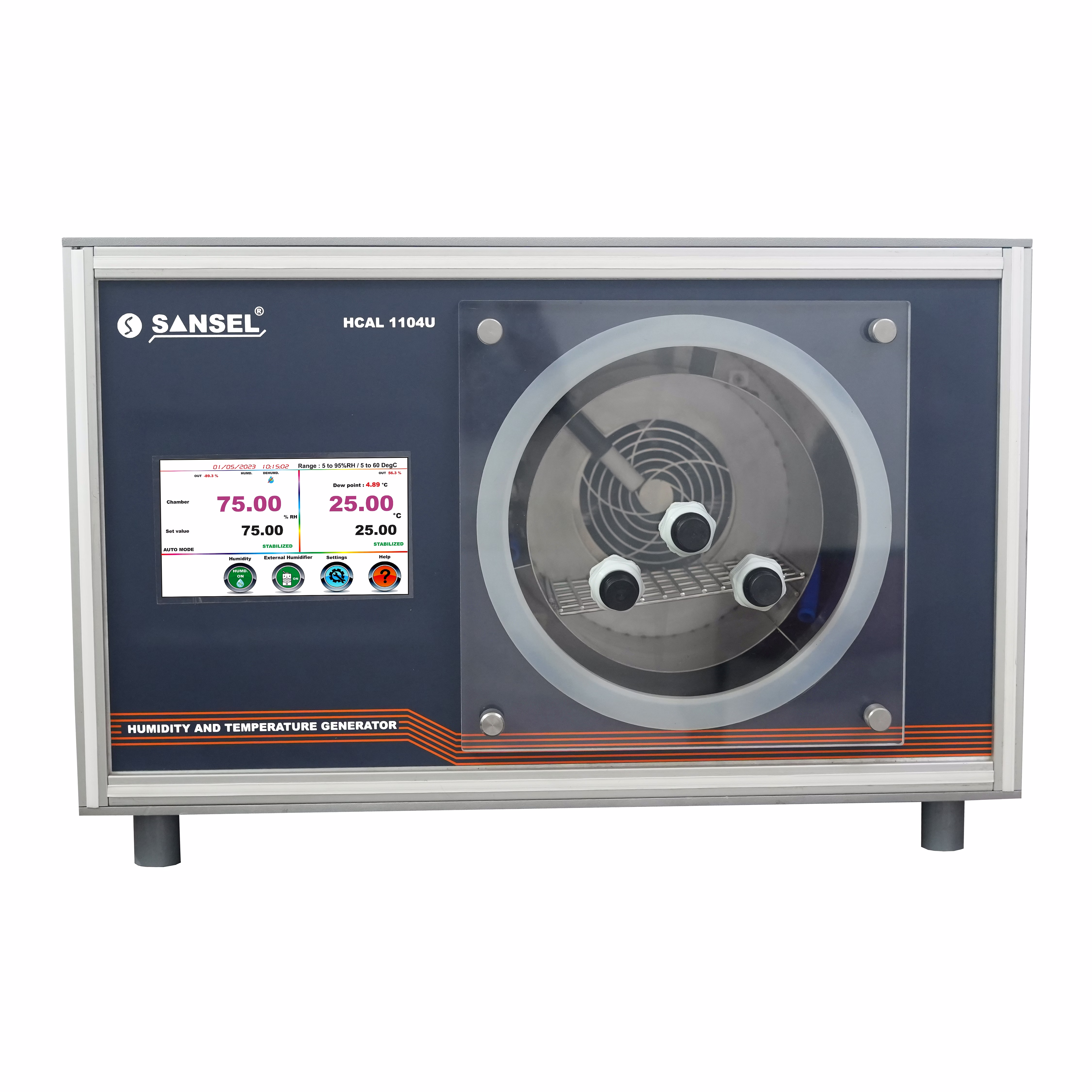

The HCAL 1104U Precision Humidity and Temperature Calibrator is an advanced, metrology-grade device designed for generating a highly stable and uniform controlled environment for humidity and temperature calibration. Featuring a large chamber volume, it efficiently accommodates multiple portable instruments, sensors, transmitters, and data loggers from various manufacturers, making it ideal for rapid and precise calibration. Operating within a wide range of 3% to 95% relative humidity and 5°C to 60°C temperature, it also provides psychrometrically calculated dew point values from -30°C to 45°C. The calibrator utilizes the mixed flow method to produce humidity: employing a desiccant cell for dehumidification and an external humidifier for ease of maintenance and refills. Temperature control is managed via a solid-state Peltier element, enabling efficient heating and cooling. Its 7-inch true-color TFT touch screen offers high-resolution display (0.01% RH / 0.01°C) and intuitive user interaction. Designed for semi-portability and onsite transport, the HCAL 1104U suits both laboratory and field calibration environments. Additionally, the device supports ISO/IEC 17025 accredited calibration certificates and offers optional calibration software for data recording, analysis, and report generation. Enhanced chamber stability and uniformity gradients ensure reliable metrology-level performance across diverse calibration applications.
Key Features
| Features | Description |
|---|---|
| Humidity Range | 3% RH to 95% RH |
| Temperature Range | 5°C to 60°C |
| Dew Point Indication Range | -30°C to 45°C (Psychrometric calculation) |
| Display | 7-inch True Colour TFT Touch Screen |
| Display Resolution | 0.01% RH / 0.01°C |
| Chamber Size | Large volume for multiple device calibration |
| Humidity Generation Method | Mixed flow method using desiccant cell and external humidifier |
| Temperature Control | Solid-state Peltier heating and cooling element |
| Portability | Semi-portable and onsite transportable |
| Calibration Certification | ISO/IEC 17025 Accredited calibration certificate |
| Software | Optional calibration software for data recording and report generation |
| Front Door | Replaceable to suit multi-brand probe and portable indicator calibration |
| Performance | Metrology level stability and uniformity gradient control |
| Maintenance | External humidifier for easy water refilling and maintenance |
| Attributes | Description |
|---|---|
| Humidity Range | 3% RH to 95% RH |
| Temperature Range | 5°C to 60°C |
| Dew Point Range | -30°C to 45°C (psychrometric calculated) |
| Control Stability | Metrology level (high stability and uniformity) |
| Humidity Generation Principle | Mixed flow with desiccant cell and humidifier |
| Temperature Control Technology | Solid state Peltier element for heating and cooling |
| Display Type | 7 inch True Colour TFT Touchscreen |
| Display Resolution | 0.01% RH / 0.01°C |
| Calibration Certificate | ISO/IEC 17025 accredited |
| Portability | Semi portable, suitable for lab and onsite use |
| Software | Optional software for calibration data management and reporting |
| Chamber Size | Large capacity for multiple instruments |
| Front Door | Replaceable for multi-brand probes |
| Maintenance Feature | External humidifier allows easy refilling and minimal downtime |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The HCAL 1104U uses a mixed flow method involving a desiccant cell to dehumidify and an external humidifier to increase humidity, allowing precise control throughout the full range from 3% RH to 95% RH.
Temperature control is achieved via a solid-state Peltier element technology, providing rapid heating and cooling with metrology-level stability.
Yes, its large chamber size accommodates multiple portable instruments, sensors, and transmitters, enabling quick and simultaneous calibration.
Yes, the HCAL 1104U is designed to be semi-portable and onsite transportable, ideal for use in both laboratory and field environments.
An optional calibration software package is available to record data, perform analysis, and generate calibration reports enhancing traceability and documentation.
The calibrator is accompanied by ISO/IEC 17025 accredited calibration certificates ensuring compliance with international calibration standards.
The external humidifier simplifies water refilling and maintenance without opening the chamber, reducing downtime and improving operational convenience.
Brand: sansel
Country Of Origin: India
The HCAL 1104U is a precision generator of controlled Humidity and Temperature environment inside the chamber. It has huge volume of chamber size to perform a rapid and easy calibration of multiple portable instruments, sensors, transmitter, data logger of different manufacturers. The HCAL 1104U is to generate range from 5°C to 60°C / 3% RH to 95% RH and Psychometric Calculated Dew point indication range from -30°C to 45°C. It has an advantage of external Humidifier for easy maintenance and refilling of water, Semi portable and onsite transportable. The HCAL 1104U working in the principle of mixed flow method for generating the Humidity. A desiccant cell is used to De-Humidify the chamber for low Humidity and Humidifier generates high Humidity. A solid state Peltier element is used for heating and cooling the chamber. The HCAL 1104U improved version has metrology level performance in terms of Control stability and uniformity gradients.
7” True colour TFT Touch screen display
Wide range from 3% RH to 95% RH & 5°C to 60°C
Dew point temperature indication range -30°C to 45°C
Display Resolution 0.01%RH / 0.01°C
Improved design to provide metrology level performance in terms of chamber stability and uniformity gradient
Psychometric converted indication of Dew point, Wet bulb temperature etc.,.
Fast raising and Quick settling
Large chamber size
Replaceable front door to suitable for multi brand probe & portable indicator calibration
Semi portable and onsite transportable
Ideal for lab and field calibration
Solid state heating & cooling technology
ISO/IEC 17025 Accredited calibration certificate
Optional calibration software to record, Data analysis & generate calibration reports
