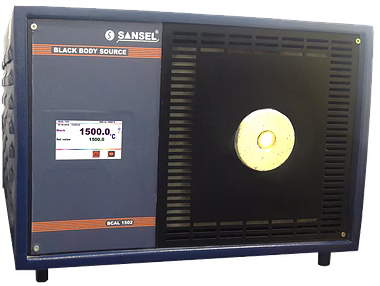

The HIGH TEMPERATURE INFRA RED BLACK BODY CALIBRATOR (MODEL: BCAL 1502) by SANSEL is a precision microcontroller-based temperature calibrator designed specifically for calibrating infrared thermometers and online pyrometers with high accuracy. It generates a true reference temperature utilizing an auto-tune PID control algorithm to provide stable and consistent temperature output in the range of 500°C to 1500°C. Featuring a 4.3-inch true TFT touch screen display, the calibrator allows easy setting and monitoring of both the set and true temperatures with a fine resolution of 0.1°C. Its design incorporates a 30 mm aperture area and ensures excellent radial uniformity of better than ±1% of the reading, making it ideal for accurate focal point calibration of Units Under Calibration (UUC). The BCAL 1502 is portable, rugged, and employs a safe dry calibration method with no liquids involved, ensuring user safety and long-term device reliability. Supplied with an NABL traceable calibration certificate, it meets stringent calibration and quality standards essential for industrial and laboratory applications requiring high temperature calibration accuracy.
Key Features
| Features | Description |
|---|---|
| Temperature Range | 500°C to 1500°C |
| Display | 4.3 inch True TFT Touch Screen |
| Control Algorithm | Auto Tune PID Control Algorithm |
| Temperature Resolution | 0.1°C |
| Temperature Stability | ±1°C |
| Radial Uniformity | Better than ±1% of reading |
| Aperture Size | 30 mm |
| Calibration Certificate | NABL Traceable |
| Portability | Portable and Rugged |
| Calibration Method | Safe Dry Calibration, No liquids involved |
| Attributes | Description |
|---|---|
| Model | BCAL 1502 |
| Type | Infrared Black Body Calibrator |
| Temperature Control | Microcontroller-based with PID Algorithm |
| Display Type | 4.3 inch True TFT Touch Screen |
| Temperature Range | 500°C to 1500°C |
| Temperature Resolution | 0.1°C |
| Stability | ±1°C |
| Radial Uniformity | ±1% of reading |
| Aperture Diameter | 30 mm |
| Calibration Certificate | NABL Traceable |
| Weight | Not specified |
| Dimensions | Not specified |
| Power Supply | Not specified |
| Application | Calibration of Infrared Thermometers, Online Pyrometers |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The BCAL 1502 uses a microcontroller-based auto-tuned PID control algorithm that ensures highly stable and precise temperature output along with excellent radial uniformity, providing a reliable reference temperature necessary for accurate infrared thermometer calibration.
Yes, by aligning the Unit Under Calibration (UUC) to the 30 mm aperture area, the BCAL 1502 offers consistent target temperature, which can be directly compared with the pyrometer reading for precise calibration.
BCAL 1502 utilizes a safe dry calibration process without any liquids involved, reducing hazards and making it portable and rugged for industrial use.
Each BCAL 1502 unit comes with a NABL traceable calibration certificate which guarantees its compliance with recognized national standards for temperature calibration accuracy.
With a 4.3 inch true TFT touch screen, users can easily set and monitor both the true and set temperatures, simplifying the calibration workflow.
Brand: sansel
Country Of Origin: India
“SANSEL” Series BCAL 1502 is a Micro controller Based Precision Temperature Calibrators Generates True Reference Temperature. The Temperature Controller of the Calibrators Uses a Auto Tune PID Control Algorithm. Infra red thermometer & online pyrometer calibration is performed by comparison of the temperature measured by UUC and target temperature indicated by the calibrator or using standard pyrometer. Focus the Unit Under Calibration (UUC) to be Calibrate to the target point given in BCAL 1502. Set the Temperature from the Touch screen display. Both True and set Temperature can be read. When Stabilization Occurs, Simply Read the Temperature and re-Calibrate the UUC.
FEATURES
4.3 inch True TFT display with Touch screen
Range from 500 to 1500°C
Micro Controller Based Linearized High Accuracy
Resolution 0.1°C
Stable to ± 1°C
Radial uniformity better than ± 1 % of reading
Portable, Rugged
No liquid, safe dry calibration
NABL Traceable Calibration Certificate
30 mm Aperture area
