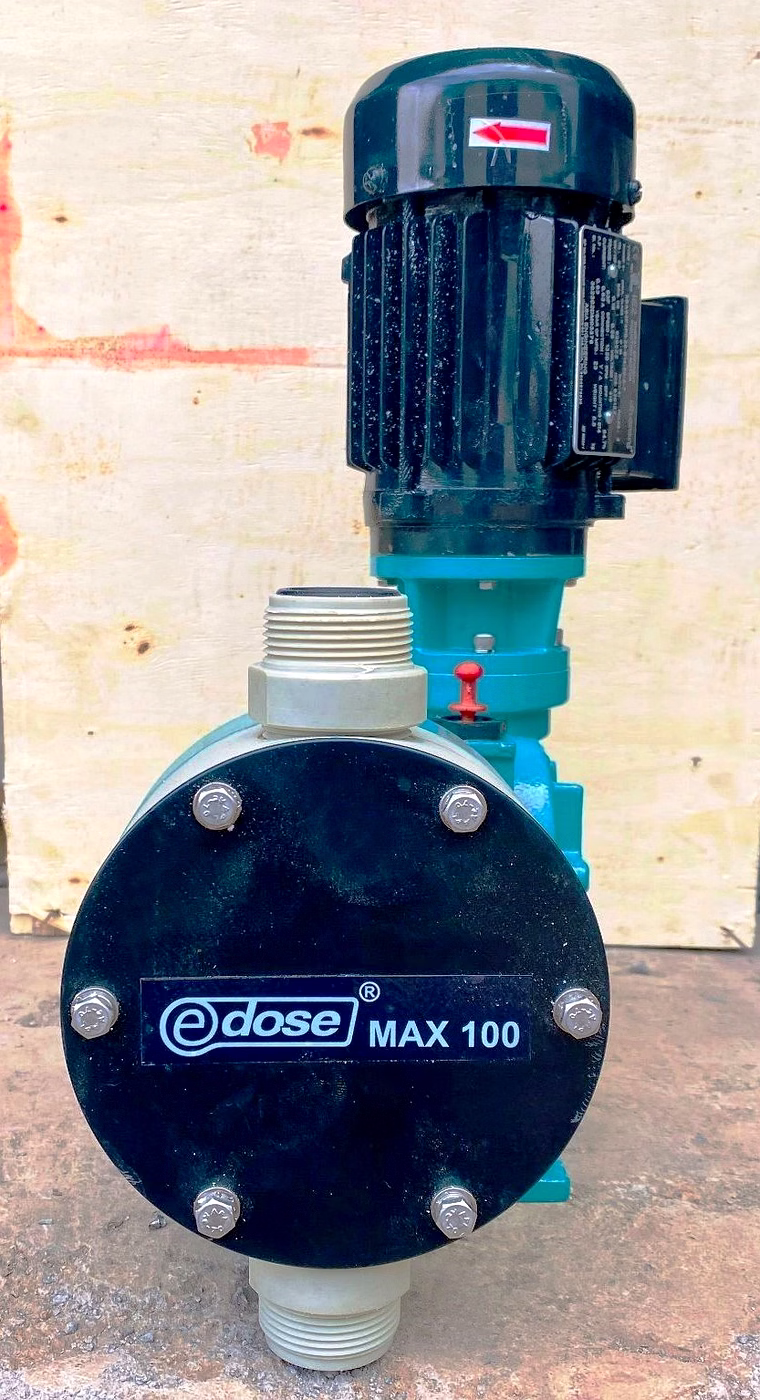

E-Dose Max -100 LPH

Usage/Application:Chemical Dosing

Pump Type:Mechanically Actuated Pump

Suction/Discharge Tubing: Suction Discharge Foot Valve

Power Source:Electric

Material: PP

Voltage:415V

Frequency:50Hz

Discharge Pressure:5kg/cm2

Maximum Discharge Flow:5kg/cm2

Color:Blue

Motor Horsepower:0.25HP

Head:5kg/cm2

Product Weight:15 kgs

Motor Power:0.25HP

Speed:1340 RPM

Power Consumption:415V

Electrical:Three Phase

Dosing Rate:100 LPH

We are wholesalers for Dosing Pump In Mumbai Region.

We have entire range of Dosing pumps like Electronic Dosing pump ,

Mechanically actuated Diaphragm Pumps

Flow Rates Ranging from 50 LPH to 400 LPH pumps

Country of Origin: Made in India

Features

High efficiency PTFE Diaphragm

Compact in size

Zero leakage Design

Oil bath lubrication for all drive components

Suction Lift up to 2.5 MWC.

Available in 25, 50, 100, 200, 300, 400 LPH

Available in PTFE for Sulfuric Acid Applications

Scope Of Supply

Metering Pump

Suction and Discharge Connectors

Suction Filter Cum Foot Valve

Injection / Back Pressure Assembly

Material of Construction

Dosing Head : Polypropylene / Teflon

Diaphragm : PTFE faced Hypalon

NRV Ball : PTFE / Borosilicate

Suction/Discharge Ass. : Polypropylene / Teflon

Injection Valve Assembly : Polypropylene / Teflon

Suction Filter Assembly : Polypropylene / Teflon
