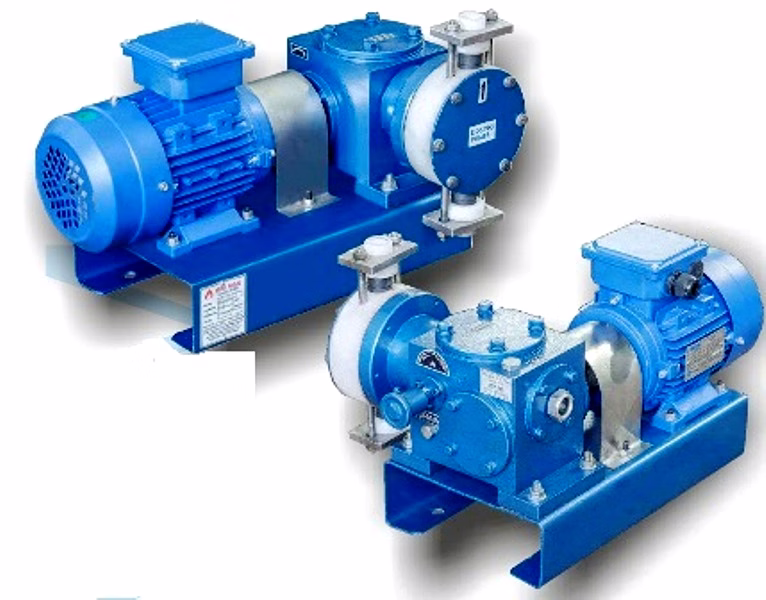

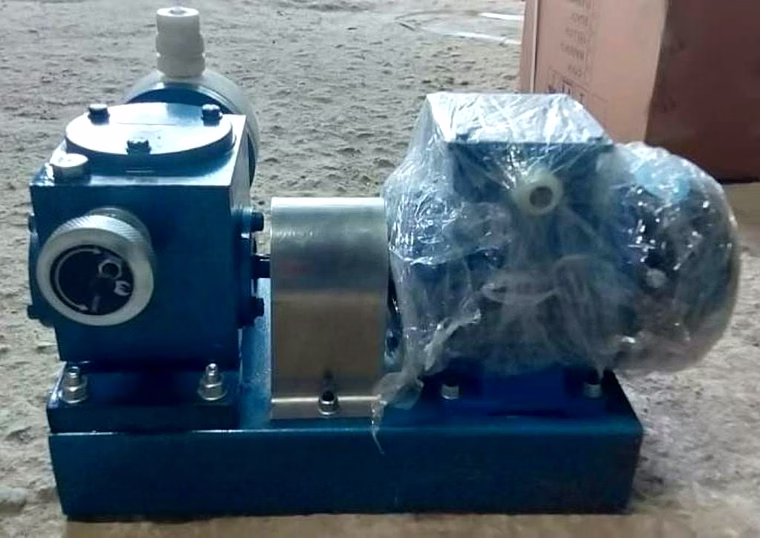

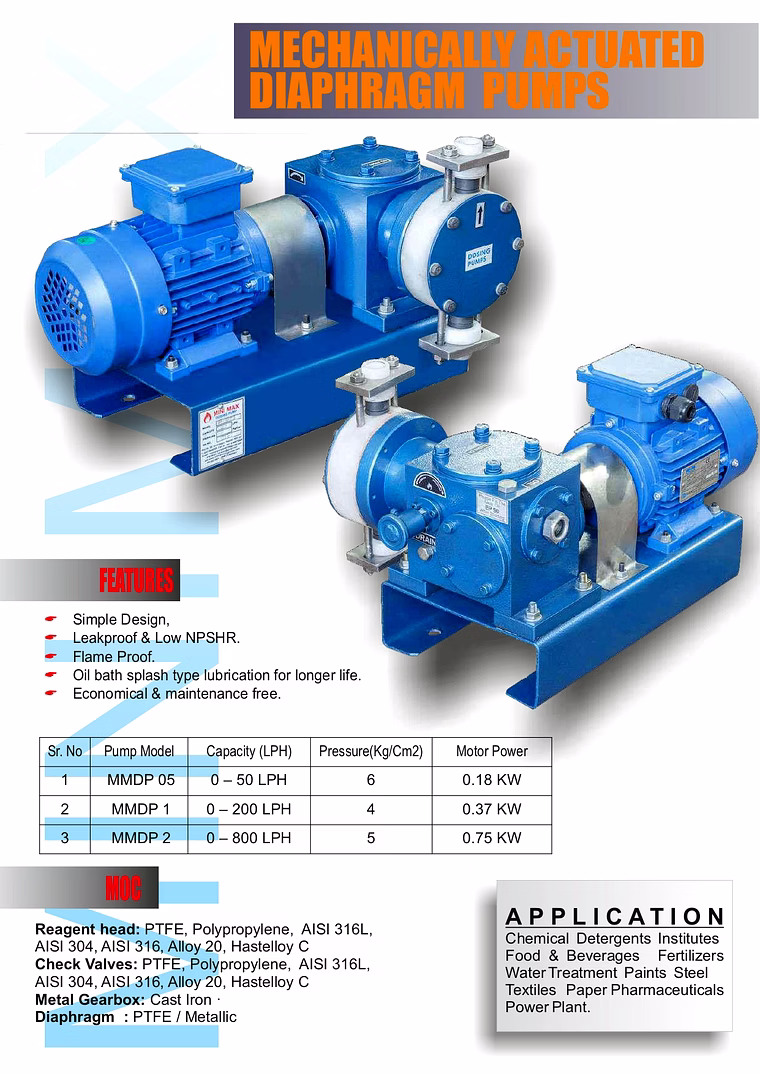

MECHANICAL DIAPHRAGM PUMP

MODEL MMDP .I

Pump flow rate ( Discharge capacity) 0 – 100 LPH

Discharge Pressure 5 kg/cm2

Stroke length 5 mm

SPM /Gear Ratio 100/15 :1

Turn Down Ratio 10 : 1

Efficiency / Accuracy 97% / +_3%

Coupling Type Flexible spider

End connections 1/2” BSP (Female- THREADED)

LUBRICATION OIL SPLASH TYPE

MOC ( Material of construction)- contact parts:- P P

DIAPHRAGM P.T.F.E

LIQUID END P P

NRV SEAT / CAGE P P

NRV BALL P.T.F.E/CERAMIC

Seal NRV PTFE( TEFLON)

NRV SIZE BV-10

WORM WHEEL Phosphorous Bronze

Gear Housing IS210 FG 260 C.I

Pump & drive mounting base M.S.

Coupling guard SS304

Driven ( Motor) DATA SHEET

Phase / Voltas/ Hz 3/ 415 /50 AC

Enclosure / Insulation IP-55, / STD TEFC –IE-2

HP / Kw /RPM 0.5/ 0.37 1440

Mounting / make FOOT/ABB/CGL/BBL/Equivalent

Metering Type Plunger Pumps:

We are instrumental in offering and extensive range of Chemical Dosing Pumps. The offered dosing pumps are appreciated in the market due to its hassle free performance. These dosing pumps are developed by using high-grade material and latest technology with set universal standards. Also, the offered dosing pumps are checked against several parameters of quality so as to assure the flawless deliveries.

Application:

Oil & Gas, Chemical, Detergents, Cosmetics, Food & Beverages,

Fertilizers, Nuclear, Reactors, Water Treatments, ETP & STP, Paints, Steel, Textiles, Paper, Pharmaceutical, Power, Petroleum, Mine, Institutes, Hospitality, Consultancy Agencies.
