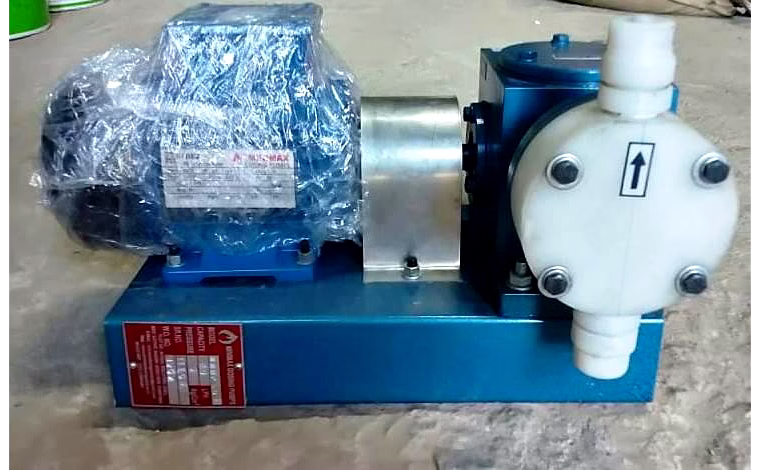

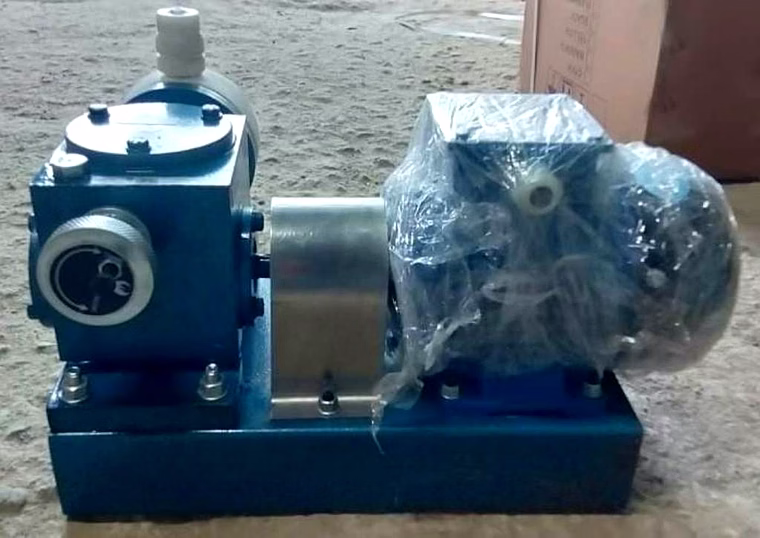

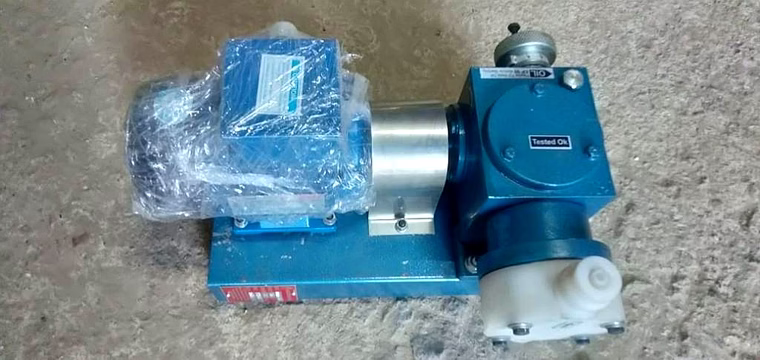

TECHNICAL SPECIFICATION OF MECHANICAL DIAPHRAGM PUMP

metering pump

MODEL MMDP .I

Pump flow rate ( Discharge capacity) 0 – 50 LPH

Discharge Pressure 5 kg/cm2

Stroke length 5 mm

SPM /Gear Ratio 100/15 :1

Turn Down Ratio 10 : 1

Efficiency / Accuracy 97% / +_3%

Coupling Type Flexible spider

End connections 1/2” BSP (Female- THREADED)

LUBRICATION OIL SPLASH TYPE

MOC ( Material of construction)- contact parts:- P P

DIAPHRAGM P.T.F.E

LIQUID END P P

NRV SEAT / CAGE P P

NRV BALL P.T.F.E/CERAMIC

Seal NRV PTFE( TEFLON)

NRV SIZE BV-10

WORM WHEEL Phosphorous Bronze

Gear Housing IS210 FG 260 C.I

Pump & drive mounting base M.S.

Coupling guard SS304

Driven ( Motor) DATA SHEET

Phase / Voltas/ Hz 3/ 415 /50 AC

Enclosure / Insulation IP-55, / STD TEFC –IE-2

HP / Kw /RPM 0.5/ 0.37 1440

Mounting / make FOOT/ABB/CGL/BBL/Equivalent

MECHANICAL DIAPHRAGM PUMP-METERING PUMP

MODEL MMDP .I

Pump flow rate ( Discharge capacity) 0 – 50 LPH

Discharge Pressure 5 kg/cm2

Stroke length 5 mm

SPM /Gear Ratio 100/15 :1

Turn Down Ratio 10 : 1

Efficiency / Accuracy 97% / +_3%

Coupling Type Flexible spider

End connections 1/2” BSP (Female- THREADED)

LUBRICATION OIL SPLASH TYPE

MOC ( Material of construction)- contact parts:- P PMax Flow Rate: 50 LPH

Country of Origin: Made in India

Capacity:50 LPH

Phase:3 Phase

Suction Tube:10 Mtr

Pressure:5 Kg/cm2

We are the leading supplier of Plunger Type Plunger Type Dosing Pump.

Clients can avail the products at best market prices.
