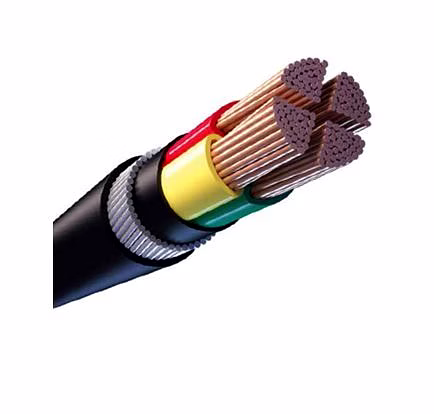

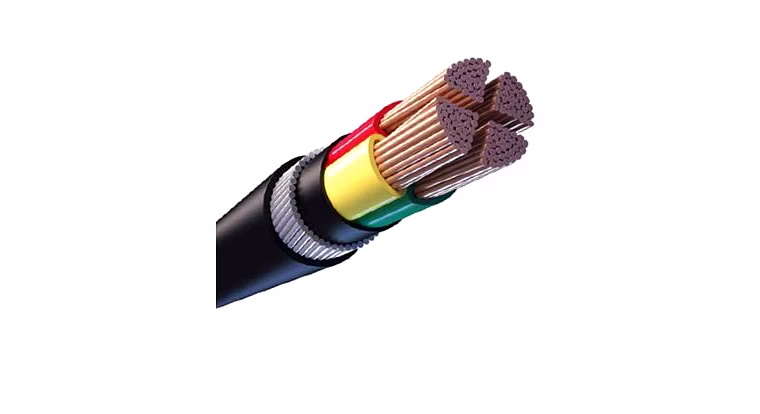

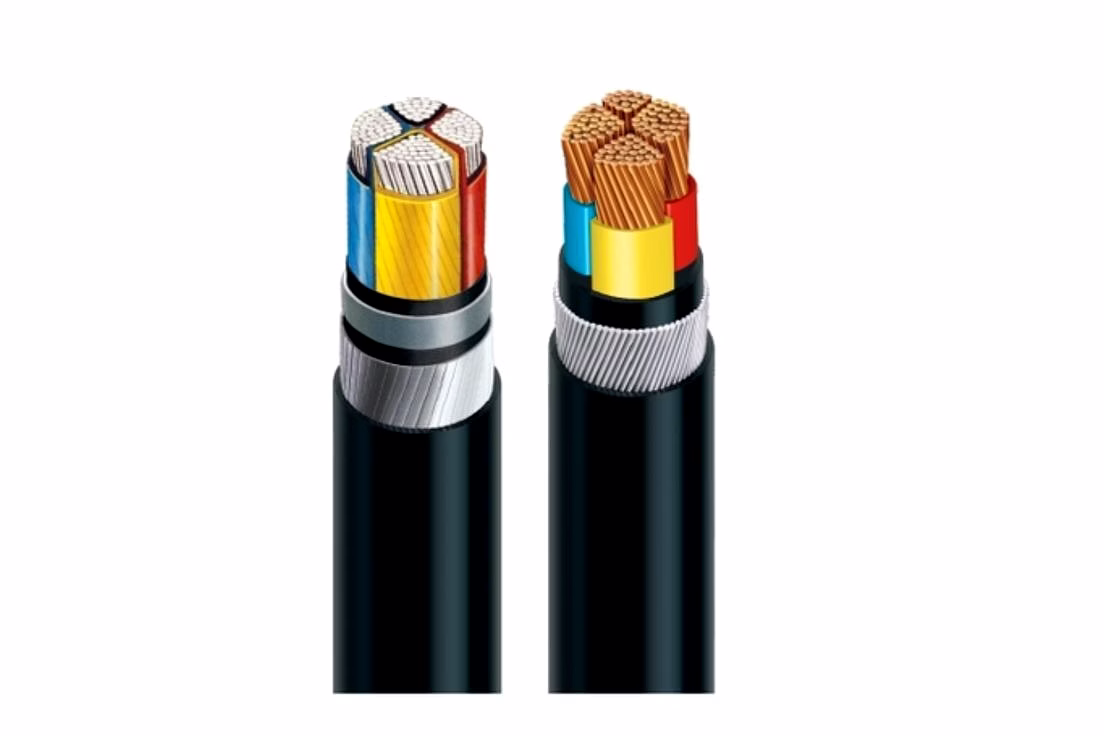

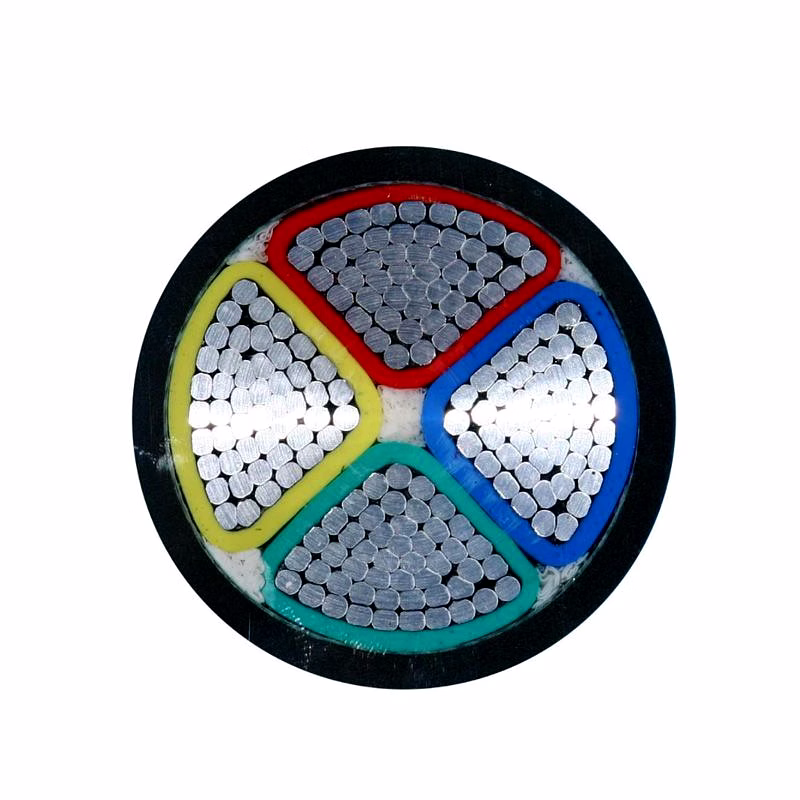

LV POWER & CONTROL CABLES are industrial electrical cables designed for low-voltage power distribution and control wiring in commercial, infrastructure, and plant applications. Built for B2B procurement, these cables are available for wholesale and bulk order supply with factory direct pricing, export-ready packing, and a minimum order quantity of 1 metre. The product supports conductor options in copper (plain or tinned) and aluminium, allowing buyers to specify the right balance of conductivity, corrosion resistance, weight, and cost. Insulation options include XLPE, PVC, HRPVC, and LSZH, while inner and outer sheath materials can be selected from PVC, HRPVC, HDPE, FR, FRLS, and LSZH to suit installation environments where mechanical protection, flame resistance, or low smoke performance is required. This cable range also offers multiple armour constructions, including GS wire, GS strip, Al wire, Al strip, GS tape, Al tape, ATC braid, SS braid, and GS braiding, enabling industrial grade mechanical reinforcement for buried, ducted, or exposed runs. The voltage grade is up to 3.3 kV, making it suitable for low-voltage and selected medium-duty power and control applications. The product range covers conductor sizes up to 1000 sq.mm., power cables up to 5 cores, and control cables up to 61 cores from 0.5 sq.mm. to 6.0 sq.mm. This breadth makes it suitable for panel wiring, machine controls, utility installations, process plants, switchgear, and electrical project supply. Applicable standards include IEC 60502-1, BS 6346, BS 5467, BS 6622, IS 1554-1, and IS 7098-1/2, supporting specification-driven procurement and compliance-based sourcing. Cables are supplied in wooden or steel drums for safe handling, transport, and site storage. Customized cable design is available as per project or customer requirement, and cable accessories can also be ordered when required.
Key Features
| Features | Description |
|---|---|
| Product Type | LV power and control cables |
| Conductor Material | Copper (plain/tinned) or aluminium |
| Insulation Options | XLPE, PVC, HRPVC, LSZH |
| Outer Sheath Options | PVC, HRPVC, HDPE, FR, FRLS, LSZH |
| Armour Options | GS Wire, GS Strip, Al Wire, Al Strip, GS Tape, Al Tape, ATC Braid, SS Braid, GS Braiding |
| Voltage Grade | Up to 3.3 kV |
| Applicable Standards | IEC 60502-1, BS 6346, BS 5467, BS 6622, IS 1554-1, IS 7098-1/2 |
| Packing | Wooden or steel drums |
| Customization | Customized cable design available |
| Attributes | Description |
|---|---|
| Product Title | LV POWER & CONTROL CABLES |
| Store Name | HVH GLOBAL |
| Minimum Order Quantity | 1 Metre |
| Conductor Material | Copper (Plain/Tinned), Aluminium |
| Insulation | XLPE / PVC / HRPVC / LSZH |
| Inner Sheath | PVC / HRPVC / HDPE / FR / FRLS / LSZH |
| Outer Sheath | PVC / HRPVC / HDPE / FR / FRLS / LSZH |
| Armour | GS Wire / GS Strip / Al Wire / Al Strip / GS Tape / Al Tape / ATC Braid / SS Braid / GS Braiding |
| Voltage Grade | Up to 3.3 kV |
| Applicable Standards | IEC-60502-1, BS 6346, BS 5467, BS 6622, IS 1554-1, IS-7098-1/2 |
| Packing | Wooden/Steel Drums |
| Conductor Size Range | Up to 1000 sq.mm. |
| Power Cable Core Range | Up to 5 cores |
| Control Cable Core Range | Up to 61 cores |
| Control Cable Size Range | 0.5 sq.mm. to 6.0 sq.mm. |
| Customization | Customized cable design as per project/customer requirement available |
| Accessories | Cable accessories can be ordered if required |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The cables are available with copper conductor in plain or tinned form, or aluminium conductor, depending on the application and cost-performance requirement.
Insulation options include XLPE, PVC, HRPVC, and LSZH. Inner and outer sheath options include PVC, HRPVC, HDPE, FR, FRLS, and LSZH.
Yes. They are designed for low-voltage power distribution and control wiring in commercial, infrastructure, plant, and project-based industrial applications.
The voltage grade is up to 3.3 kV.
Applicable standards include IEC 60502-1, BS 6346, BS 5467, BS 6622, IS 1554-1, and IS 7098-1/2.
Armour options include GS Wire, GS Strip, Al Wire, Al Strip, GS Tape, Al Tape, ATC Braid, SS Braid, and GS Braiding.
The product range includes conductor sizes up to 1000 sq.mm., power cables up to 5 cores, and control cables up to 61 cores with sizes from 0.5 sq.mm. to 6.0 sq.mm.
They are supplied in wooden or steel drums for safe transport and storage.
Country Of Origin: India
Copper (Plain/Tinned), Aluminium
Copper is the most common conductor due to high conductivity.
Tinned copper resists corrosion.
Aluminium is lighter and cheaper but less conductive than copper.
XLPE/PVC/HRPVC/LSZH
XLPE: Cross-linked polyethylene, excellent for high voltage and heat resistance.
PVC: Standard insulation.
HRPVC: Heat-resistant PVC.
LSZH: Low Smoke Zero Halogen, safer in fire situations.
Protective covering around insulated conductors. Options: PVC, HRPVC, HDPE, FR, FRLS, LSZH.
HDPE: High-density polyethylene, tough and chemical-resistant.
FR/FRLS: Flame retardant, low smoke.
LSZH: Safer in enclosed spaces.
Mechanical protection layer. Options include:
GS Wire/Strip/Tape (Galvanized Steel)
Al Wire/Strip/Tape (Aluminium)
ATC Braid (Annealed Tinned Copper braid)
SS Braid (Stainless Steel braid)
GS Braiding (Steel wire mesh)
Up to 3.3 kV: Suitable for medium-voltage applications.
IEC 60502-1: International standard for power cables with extruded insulation.
BS 6346: PVC-insulated power cables.
BS 5467: XLPE-insulated armoured cables.
BS 6622: Power cables with XLPE insulation for voltages up to 33 kV.
IS 1554-1: Indian Standard for PVC-insulated cables.
IS 7098-1/2: Indian Standard for XLPE-insulated cables (Part 1: up to 3.3 kV, Part 2: up to 33 kV).
Supplied in wooden or steel drums for safe transport and storage.
Conductor size: Up to 1000 sq.mm.
Power cables: Up to 5 cores.
Control cables: Up to 61 cores, ranging from 0.5 sq.mm to 6.0 sq.mm.
