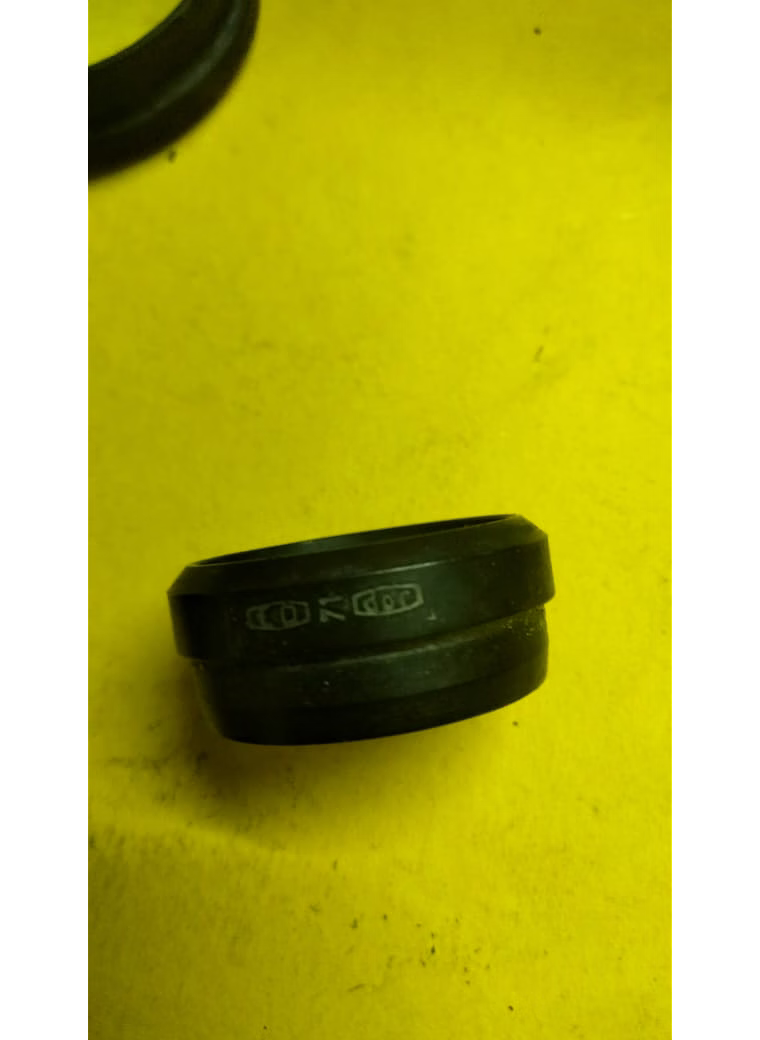

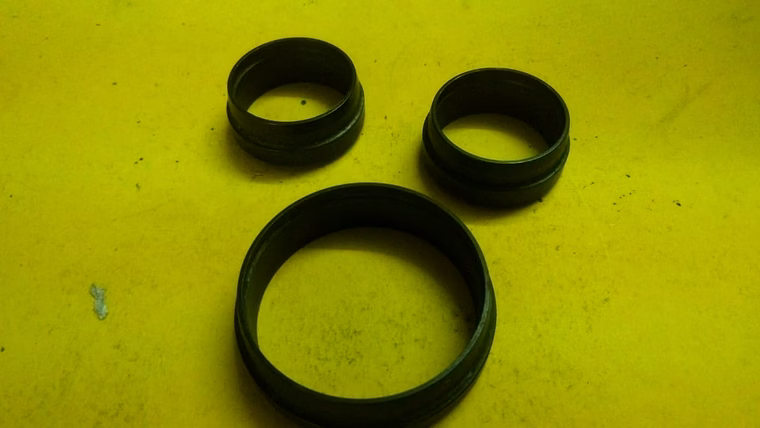

The Hydraulic Ferrule is a precision-engineered, high-performance component designed to secure hydraulic hoses to fittings, ensuring a reliable, leak-proof seal under extreme pressure conditions. Manufactured from durable materials such as carbon steel and stainless steel, these ferrules are essential for reinforcing hose assemblies across diverse industrial applications. Featuring corrosion-resistant coatings like zinc plating and polished finishes, they are compatible with various hydraulic hose types including braided and spiral configurations. With compliance to SAE, DIN, and ISO standards, these ferrules are optimized for use in industries ranging from construction machinery and agricultural equipment to marine, mining, and oil & gas sectors. Available in multiple sizes and customizable options, they are tailored to meet stringent safety and operational requirements, supporting enhanced hose lifespan and system integrity.
Key Features
| Features | Description |
|---|---|
| Material | Carbon steel or stainless steel (304/316) |
| Corrosion Resistance | Zinc plating, phosphate coating, polished stainless steel finish |
| Compatibility | Suitable for braided, spiral, and interlock hydraulic hoses |
| Pressure Range | Withstands 1,000 to over 6,000 PSI |
| Temperature Range | -40°C to +100°C (application dependent) |
| Standards Compliance | Meets SAE J516/J517, DIN EN 853-857, ISO 12151 standards |
| Size Range | Fits hose inner diameters from 1/8" to 2"; customizable sizing available |
| Application Areas | Construction, agriculture, mining, oil & gas, marine, manufacturing |
| Crimping Requirements | Requires hydraulic crimping machine with compatible dies for secure installation |
| Attributes | Description |
|---|---|
| Type of Hose Compatibility | Braided (1 or 2-wire), Spiral (4 or 6-wire), Interlock |
| Material Grades | Carbon Steel (optional zinc plating), Stainless Steel 304/316 |
| Finish Options | Zinc plating (Cr3+, Cr6+), Phosphate coating, Polished stainless steel |
| Operating Pressure | 1,000 to 6,000+ PSI depending on configuration |
| Temperature Operating Range | -40°C to +100°C |
| Size Availability | 1/8" to 2" ID hose sizes, OEM custom sizes available |
| Installation Method | Hydraulic crimping with precision dies |
| Certifications | RoHS / REACH compliant on request |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the hydraulic ferrules are specifically designed to be compatible with various hose types including 1 or 2-wire braided hoses and 4 or 6-wire spiral hoses, ensuring a secure connection.
Hydraulic ferrules come in carbon steel with optional zinc plating (Cr3+ or Cr6+), phosphate coatings, and polished stainless steel grades 304 and 316, suitable for corrosive environments.
Yes, they comply with major international standards such as SAE J516/J517, DIN EN 853-857, and ISO 12151 to guarantee safety and compatibility.
Depending on the hose and ferrule type, the hydraulic ferrules can withstand working pressures ranging from 1,000 PSI up to and exceeding 6,000 PSI.
Yes, hydraulic ferrules can be custom-sized beyond the standard 1/8” to 2” hose ID range to meet specific OEM design and application requirements.
Installation requires a hydraulic crimping machine equipped with the appropriate dies to achieve the precise crimp diameter critical for safety and performance.
Brand: elpar
Country Of Origin: India
hydraulic ferrule is a precision-engineered component used in hydraulic hose assemblies to secure the hose to a fitting, ensuring a leak-proof, high-pressure seal. Typically made from carbon steel or stainless steel, ferrules are crimped over the outer cover of a hydraulic hose and fitting during assembly. They are essential for maintaining the integrity, safety, and performance of hydraulic systems.
Key Features:
Made from durable materials (carbon steel, stainless steel)
Designed for high-pressure hydraulic applications
Corrosion-resistant coatings available (e.g., zinc plating)
Compatible with various hose types (e.g., braided, spiral)
Ensures secure and leak-free hose connections
Applications:
Construction equipment
Agricultural machinery
Industrial hydraulic systems
Mining and drilling operations
Marine and offshore equipment
Standards & Compatibility:
Compatible with SAE, DIN, and ISO standards
Available in multiple sizes and configurations
hydraulic ferrule is a critical component used in hydraulic hose assemblies to provide a secure and reliable connection between the hose and the hose fitting. It plays a vital role in reinforcing hose connections, preventing leaks, and withstanding extreme pressure and vibration.
Materials & Construction
Common Materials:
Carbon Steel: Standard material with optional zinc-plating for corrosion resistance.
Stainless Steel (304/316): Ideal for corrosive environments such as marine or chemical processing.
Finish Options:
Electroplated zinc (Cr3+ or Cr6+)
Phosphate coating
Polished stainless steel
Types of Ferrules
Ferrules are manufactured to suit different types of hoses:
Braided Hose Ferrules – for 1 or 2-wire braided hoses
Spiral Hose Ferrules – for 4- or 6-wire spiral hoses
Interlock Ferrules – for high-pressure applications with special fittings
Skive / Non-skive Ferrules – depending on whether the outer hose cover is removed before crimping
Technical Specifications
Working Pressure:
Ranges from 1,000 to 6,000+ PSI depending on hose and ferrule type
Temperature Range:
Typically from -40°C to +100°C (may vary based on hose material and application)
Size Range:
Available for hoses from 1/8” to 2” ID
Custom sizing available for OEMs
Crimping Requirements:
Requires hydraulic crimping machine with appropriate die sets
Accurate crimp diameter is essential for safety and performance
Applications
Hydraulic ferrules are used across a wide range of industries where fluid power is essential:
Agriculture: Tractors, harvesters, sprayers
Construction: Excavators, loaders, cranes
Mining: Rock drills, loaders, hydraulic jacks
Oil & Gas: Rigs, offshore platforms, hydraulic fracturing equipment
Manufacturing: Presses, automation lines, injection molding machines
Benefits
Provides strong mechanical grip and sealing performance
Prevents hydraulic fluid leakage under high pressure
Reduces the risk of hose blow-off or system failure
Extends hose service life when properly installed
Supports compliance with international safety standards
Standards Compliance
Hydraulic ferrules are typically manufactured in accordance with:
SAE J516 / J517
DIN EN 853–857
ISO 12151
RoHS / REACH compliant materials when required
