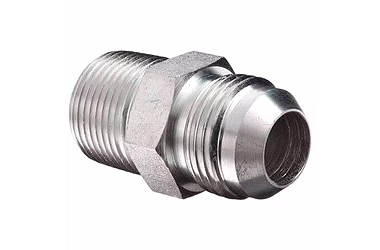

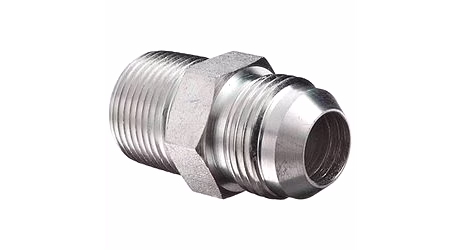

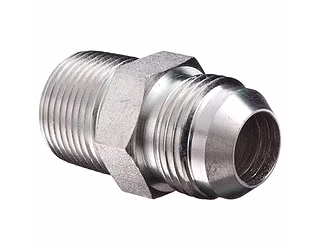

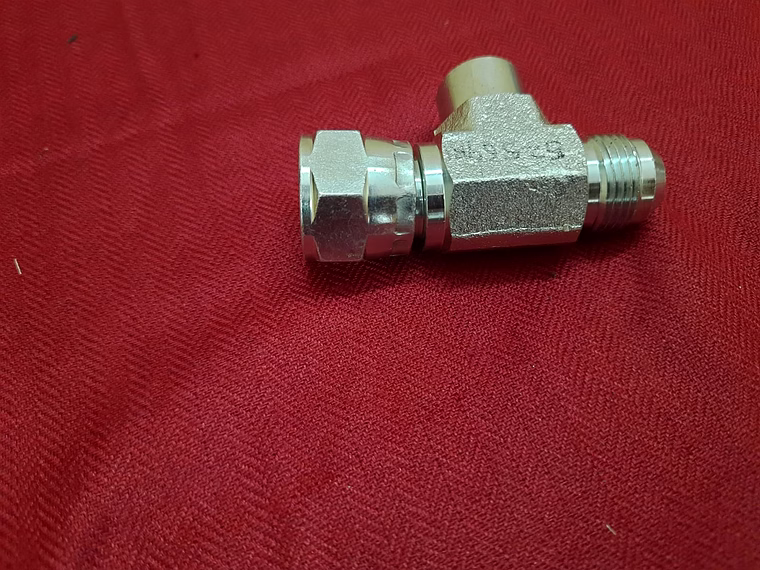

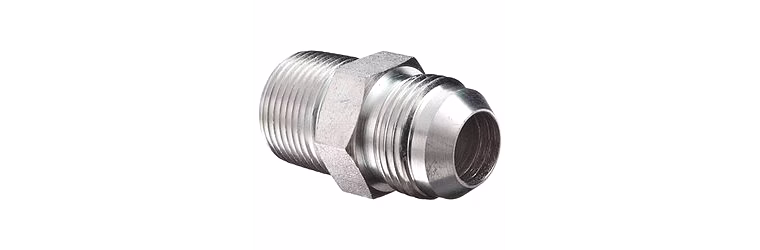

JIC Fittings are precision-engineered hydraulic connectors designed to ensure leak-proof, high-pressure fluid connections in diverse industrial applications such as agriculture, construction, automotive, and manufacturing. These fittings feature a standardized 37° flare seating surface in accordance with SAE J514 and MIL-F-18866 norms, providing superior metal-to-metal sealing for enhanced durability and reliability. Manufactured with stringent CNC machining processes and available in robust materials such as carbon steel, stainless steel, and brass, these fittings withstand pressures typically up to 5,000 PSI, depending on material and size. Our comprehensive range covers sizes from 1/8" to 2" (dash sizes -2 to -32) and includes varied configurations such as male, female, elbow, tee, and union, aligning with DIN 2353 and ISO 8434 standards. Additionally, customized JIC fittings are available, catering to specific hydraulic system requirements. Designed to resist vibration and mechanical stress, these fittings guarantee consistent, reusable connections, enhancing hydraulic system performance and maintenance efficiency.
Key Features
| Features | Description |
|---|---|
| Flare Angle | 37° metal-to-metal flare seating for leak-proof connections |
| Standards Compliance | SAE J514, MIL-F-18866, DIN 2353, ISO 8434 |
| Material Options | Carbon Steel, Stainless Steel, Brass |
| Pressure Rating | Up to 5,000 PSI depending on material and size |
| Size Range | 1/8" to 2" (dash sizes -2 to -32) |
| Thread Type | Unified Fine Thread (UNF) per SAE standards |
| Configurations Available | Male, Female, Elbow, Tee, Union, and customized fittings |
| Manufacturing Process | CNC precision machining ensuring accuracy and durability |
| Application Suitability | Ideal for agriculture, construction, automotive, and manufacturing hydraulics |
| Reusability and Vibration Resistance | Designed for repeated use with excellent vibration and mechanical stress resistance |
| Attributes | Description |
|---|---|
| Standard | SAE J514 / MIL-F-18866 / DIN 2353 / ISO 8434 |
| Flare Angle | 37° |
| Pressure Rating | Up to 5,000 PSI dependent on size and material |
| Material | Carbon Steel, Stainless Steel, Brass |
| Size Range | From 1/8" (dash size -2) to 2" (dash size -32) |
| Thread Type | Unified Fine Thread (UNF) |
| Configurations | Male, Female, Elbow, Tee, Union, Customized |
| Manufacturing Process | CNC Machining |
| Surface Treatment | Optional plating/coating available on request |
| Compatibility | Works seamlessly with standard hydraulic tubes and hoses |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Our JIC fittings are available in carbon steel, stainless steel, and brass, allowing selection based on pressure requirements and corrosion resistance.
Yes, our JIC fittings comply with SAE J514 and DIN 2353 standards, ensuring full compatibility with standard hydraulic tubes and hoses.
Absolutely. We offer customized CNC machined JIC fittings tailored to specific dimensions and designs per customer requirements.
Depending on the material and size, our JIC fittings can typically handle pressures up to 5,000 PSI.
Yes, the 37° metal-to-metal flare design along with precision machining ensures leak-proof connections that withstand vibration and mechanical stress.
Brand: elpar
Country Of Origin: India
JIC (Joint Industry Council) fittings are high-performance hydraulic connectors featuring a 37° flare seating surface. Designed to provide leak-proof, high-pressure connections, JIC fittings are widely used in fluid power applications across industries such as agriculture, construction, automotive, and manufacturing.
Made from durable materials like carbon steel, stainless steel, or brass, JIC fittings are ideal for both low- and high-pressure systems. Their standardized design (per SAE J514) ensures easy compatibility, reusability, and resistance to vibration and mechanical stress. Available in a variety of configurations—male, female, elbow, tee, union, and more—JIC fittings offer flexibility and reliability in hydraulic system design and maintenance.
We are manufacturer, Supplier and Exporter of various JIC Fttings precisely manufactured on CNC machine, we manufacture JIC Fttings as per DIN 2353/ISO 8434 standard, we also manufacture customized JIC Fttings.
Technical Specifications
Standard: SAE J514 / MIL-F-18866
Flare Angle: 37° (used to create a metal-to-metal seal)
Pressure Rating:
Typically up to 5,000 PSI for steel fittings
Pressure depends on fitting size and material
Size Range:
Common sizes: 1/8” to 2” (dash sizes: -2 to -32)
Thread types: UNF (Unified Fine Thread) per SAE standards
