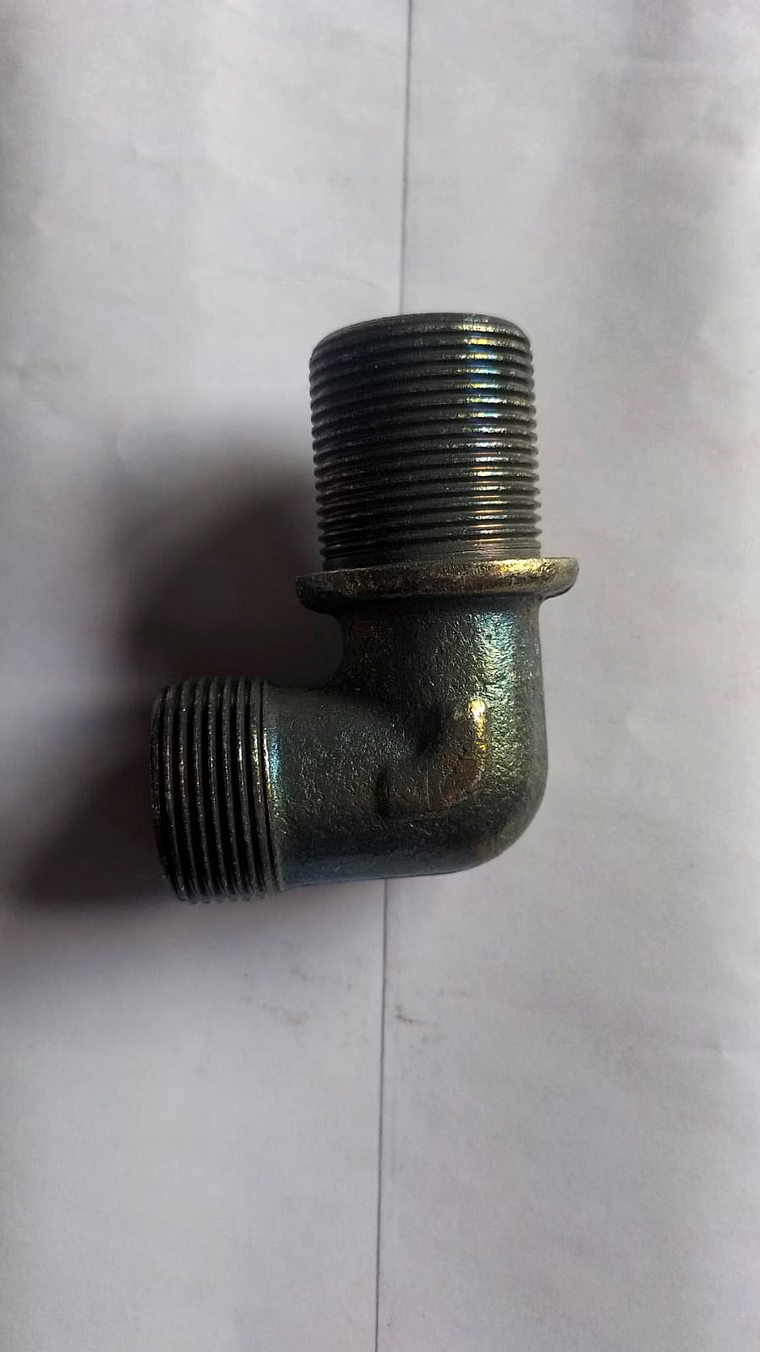

The Bulkhead Elbow is a precision-engineered 90-degree pipe fitting specifically designed for applications requiring a secure and leak-proof passage through bulkheads, walls, or panels. Featuring a robust bulkhead-style body complete with a locknut and sealing washer, this elbow ensures a stable and tight installation, making it ideal for fluid and gas lines in demanding hydraulic, pneumatic, and industrial environments. Available in multiple thread types including BSP, NPT, JIC, compression, and push-to-connect formats, and crafted from materials such as brass, stainless steel, carbon steel, nylon, or plastic, the Bulkhead Elbow guarantees wide compatibility and superior durability. Sizes range from 1/8" to 1" (and metric equivalents), with pressure ratings up to 6000 psi based on material selection, affirming its suitability for high-pressure and high-reliability applications. Manufactured per DIN 2353/ISO 8434 standards, this product can also be customized to meet specific client requirements. Its design allows safe directional changes while maintaining system integrity through panel penetrations, commonly used in hydraulic circuits, pneumatic control setups, fuel and coolant lines, and instrumentation equipment.
Key Features
| Features | Description |
|---|---|
| Connection Type | 90-degree elbow with bulkhead mounting |
| Thread/Port Options | BSP, NPT, JIC, compression, push-to-connect |
| Material Options | Brass, stainless steel, carbon steel, nylon, plastic |
| Sizes Available | 1/8" to 1" (or metric equivalents) |
| Seal Type | O-ring or sealing washer for leak-free mounting |
| Pressure Rating | Up to 6000 psi depending on material and type |
| Mounting Components | Includes locknut and sealing washer for secure installation |
| Compliance Standards | Manufactured as per DIN 2353 and ISO 8434 |
| Customization | Available customized bulkhead elbow manufacturing |
| Attributes | Description |
|---|---|
| Standard | DIN 2353 / ISO 8434 |
| Angle | 90 degrees |
| Thread Types | BSP, NPT, JIC, Compression, Push-to-Connect |
| Pressure Range | Up to 6000 psi (material dependent) |
| Material Variants | Brass, Stainless Steel, Carbon Steel, Nylon, Plastic |
| Size Range | From 1/8" to 1" or metric equivalents |
| Seal Type | O-ring or sealing washer |
| Installation | Bulkhead mounting with locknut and sealing washer |
| Applications | Hydraulic systems, Pneumatic control panels, Fuel and coolant lines, Process instrumentation |
