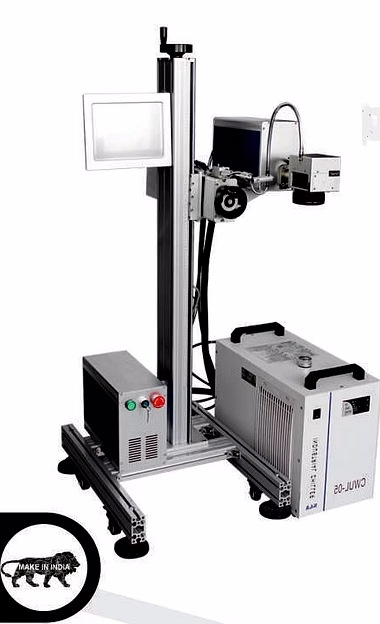

The EtchON Fly-Mark Type UV Laser Marking Machine (model ULM507) is a specialized industrial-grade UV laser engraver designed for high precision and durable marking on a wide range of materials including metals, glass, and non-metals. Featuring a 3W UV laser source with options to upgrade to 5W or 10W, this table-type laser marking system utilizes a 355nm pumped UV laser to achieve finer focus spots and superior marking resolution compared to conventional infrared laser systems. Equipped with a high-speed and precise scanning system, the machine ensures fast and accurate marking processes. The sealed laser head protects the optical chamber from contamination, enhancing machine longevity and reliability. Designed for seamless integration into production or assembly lines, the controller is split from the laser beam module, which is mounted on a movable trolley platform for flexible operation. This machine applies a narrower pulse width that reduces thermal effects during marking, preventing deformation or burn on sensitive materials. The UV laser’s higher absorption rate on metals and glass results in clearer, more beautiful markings with minimal heat-affected zones. Safety is prioritized with an integrated safety shield to block harmful UV radiation, protecting operators during use. The system features an efficient professional water-cooling and air-cooling combination that ensures optimal operating temperatures in a compact design. Additionally, the machine operates with low energy consumption, produces no consumables waste, and offers maintenance-free, reliable operation suitable for industrial manufacturing environments demanding high-quality laser marking.
Key Features
| Features | Description |
|---|---|
| Laser Source Power | 3W UV laser, upgradable to 5W and 10W |
| Wavelength | 355nm pumped UV laser |
| Marking Precision | High-speed scanning system for precise and speedy marking |
| Material Compatibility | Effective on metal, glass, and various non-metal materials |
| Thermal Impact | Narrow pulse width minimizes heat affected zone, preventing material deformation and burn |
| Cooling System | Professional water-cooled and air-cooled water circulation system |
| Safety Features | Equipped with safety shield to isolate UV radiation |
| Machine Configuration | Table-type with split controller and movable trolley platform for laser beam |
| Operation | Maintenance-free, low failure rate, low energy consumption |
| Optical Protection | Sealed laser head prevents contamination of optical chamber |
| Attributes | Description |
|---|---|
| Model | ULM507 |
| Laser Type | UV Laser (355nm) |
| Laser Power Options | 3W standard, upgradeable to 5W or 10W |
| Marking Area | Table type suitable for production/assembly lines (exact dimensions depend on configuration) |
| Scanning System | High-speed galvanometer scanner |
| Cooling Method | Water cooling combined with air cooling |
| Safety Compliance | Laser safety shield to block UV radiation |
| Machine Type | Fly-mark type UV laser marking machine |
| Controller | Split type controller on movable trolley |
| Energy Consumption | Low energy consumption |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the EtchON Fly-Mark ULM507 model supports upgrades from the standard 3W UV laser source up to 5W or 10W according to the marking requirements.
Absolutely. The 355nm UV laser wavelength ensures higher absorption by metals and glass, delivering finer and more durable markings compared to infrared lasers.
The machine uses a professional water-cooling combined with air-cooled water circulation system to maintain optimal laser temperature, preventing overheating and enabling continuous operation.
Yes, the machine includes a dedicated safety shield that effectively isolates harmful purple UV radiation to protect the operator during marking.
Yes, the laser marker is designed with a split-type controller and mounted laser beam on a movable trolley platform, facilitating easy integration into production or assembly lines.
Country Of Origin: India
Industrial laser engraving is rapidly growing industry in the world. Particularly because there is virtually no limit to the number of materials that can engraved whether you are using metal or non-metal. The operation is simple, lifelong maintenance – free, and the failure rate of the laser marking is low.
