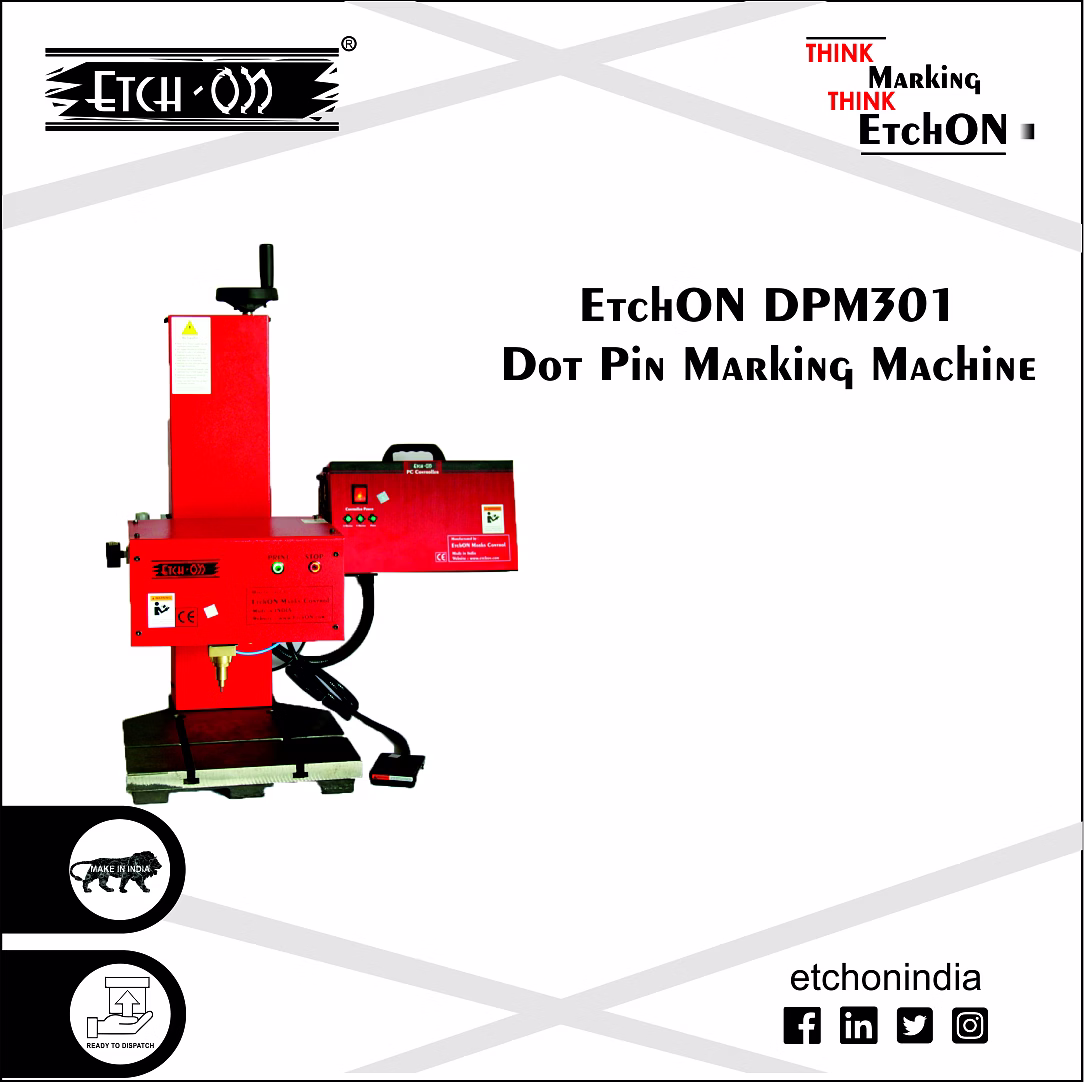

The EtchON DPM301 Dot Pin Marking Machine PC Based (Export Series) is a precision industrial marking solution designed for versatile applications involving metal and non-metal materials. Featuring a 150*100 mm working area and a 300 mm customizable working height, this PC-based machine enables detailed marking on small to light metal or plastic workpieces. Widely used for name plates, automobile components, cylinders, machining, casting parts, and bearings, the EtchON DPM301 delivers superior marking quality with support for both line and dot engraving using multiple font styles. It offers flexible marking orientations including linear, angular, radial, inverted, and mirror options. Compatibility with popular design file formats such as .PLT, .SLG, and .DWG ensures seamless integration with AutoCAD and Corel Draw software. The machine runs on Windows 98, XP, and Windows 7 (32 bit) operating systems, making it accessible and efficient. Built with a modular aluminium casing for rapid heat dissipation and featuring genuine FESTO and SMC components, the marking head ensures reliability and precision. The control buttons adhere to IP65 standards, offering resistance to oil and dust, complemented by an auto-lubrication facility for enhanced operational longevity. This robust and customizable dot pin marking machine is ideal for businesses seeking an export-grade industrial marking device that combines durability, versatility, and high marking accuracy.
Key Features
| Features | Description |
|---|---|
| Working Area | 150*100 mm |
| Working Height | 300 mm (customizable as per customer requirement) |
| Machine Type | PC Based Dot Pin Marking Machine |
| Marking Types Supported | Line and Dot engraving |
| Material Compatibility | Metal and Non-Metal (small and light pieces) |
| Supported File Formats | .PLT, .SLG, .DWG (from AutoCAD or Corel Draw) |
| Marking Orientations | Linear, Angular, Radial, Inverted, Mirror |
| Operating System Compatibility | Windows 98, XP, Win7 (32 bit) |
| Marking Head Components | Genuine FESTO and SMC |
| Build Material | Modular Aluminium Casing with fast heat dissipation |
| Button Ratings | IP65 - oil and dust resistant |
| Additional Features | Auto Lubrication Facility |
| Application Areas | Name plates, automobile components, cylinders, machining parts, castings, bearings |
| Attributes | Description |
|---|---|
| Model | DPM301 Export Series |
| Marking Area | 150 mm x 100 mm |
| Maximum Workpiece Height | 300 mm, customizable |
| Marking Technology | Dot Pin |
| Controller | Column mounted PC-based controller |
| Supported Fonts | Multiple font types |
| File Format Support | .PLT, .SLG, .DWG |
| Operating System Support | Windows 98, XP, Windows 7 (32 bit) |
| Casing Material | Aluminium (modular) |
| Marking Head Components | FESTO, SMC |
| Button Protection Rating | IP65 |
| Lubrication | Auto Lubrication Facility |
| Machine Color | Industrial grey (customizable) |
| Power Requirements | As per manufacturer specifications (typically 220V AC) |
| Weight | Approx. 50-60 kg (varies with customizations) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the EtchON DPM301 supports marking orientations such as radial and angular, allowing it to mark on curved and irregular surfaces effectively.
Yes, the EtchON DPM301 offers customizable working height options beyond the standard 300 mm to accommodate taller workpieces as per customer requirements.
The machine supports .PLT, .SLG, and .DWG file formats, which can be exported from AutoCAD and Corel Draw software for seamless importation.
Yes, the machine features a modular aluminium casing for fast heat dissipation and IP65 rated buttons that are oil and dust resistant, enhancing durability in industrial environments.
The machine is compatible with Windows 98, Windows XP, and Windows 7 (32 bit) operating systems.
The machine includes an auto lubrication facility to ensure smooth operation and reduce wear on moving components, requiring less frequent manual maintenance.
Country Of Origin: India
• Industrial marking and engraving are rapidly growing industry in the world. Particularly because there is virtually no limit to the number of materials that can be marked or engraved whether you are using metal or non-meta
