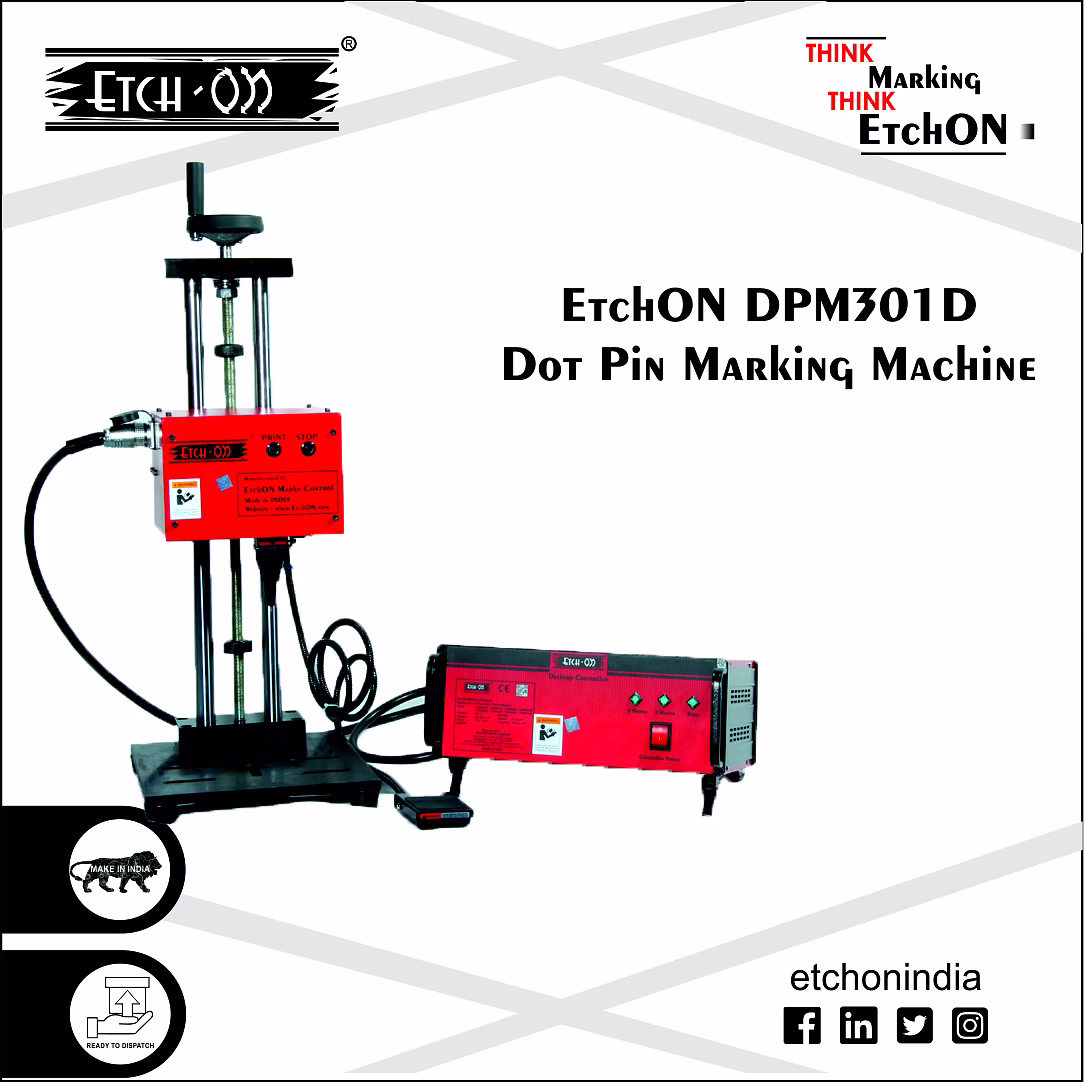

The EtchON DPM301D Dot Pin Marking Machine from the Domestic Series is a precision industrial marking solution designed for engraving and marking a wide range of materials, especially metals and plastics, with exceptional accuracy. Featuring a 100x100 mm working area and a customizable working height up to 300 mm, this PC-based dot pin marking machine caters specifically to small and light workpieces. Its portable PC-based controller facilitates ease of operation and integration, offering compatibility with multiple fonts and supporting both line and dot engraving styles. The machine excels in marking applications such as nameplates, automobile parts, cylinders, machining components, castings, and bearings, producing high-quality marks that include logos, alphanumeric characters, serial numbers, graphs, dates, and more. It supports various marking orientations such as linear, angular, radial, inverted, and mirror markings. Additionally, it accepts graphic files in .PLT, .SLG, and .DWG formats commonly generated by AutoCAD and Corel Draw, compatible with Windows 98, XP, and Windows 7 (32-bit). Constructed with a modular aluminium casing, it ensures durability and efficient heat dissipation for consistent performance. This versatile marking machine is ideal for industrial settings requiring precise, permanent, and customizable identification and traceability marking on diverse small-scale metal or plastic components.
Key Features
| Features | Description |
|---|---|
| Working Area | 100 x 100 mm |
| Maximum Working Height | Up to 300 mm (customizable) |
| Controller Type | Portable PC-based controller |
| Marking Methods | Dot and Line engraving |
| Supported Marking Orientations | Linear, Angular, Radial, Inverted, Mirror |
| Supported File Formats | .PLT, .SLG, .DWG (AutoCAD, Corel Draw compatible) |
| Font Support | Multiple font types for alphanumeric marking |
| Compatible OS | Windows 98, XP, Windows 7 (32 Bit) |
| Material Compatibility | Metals and plastics |
| Construction | Modular aluminum casing with efficient heat dissipation |
| Application Areas | Nameplates, automobile components, cylinders, machining parts, castings, bearings |
| Attributes | Description |
|---|---|
| Model | DPM301D |
| Series | Domestic Series |
| Working Area Dimensions | 100 x 100 mm |
| Maximum Working Height | 300 mm (customizable) |
| Marking Technology | Dot Pin Marking |
| Controller | PC-based, portable |
| Engraving Types | Dot and Line |
| Supported Marking Types | Logos, alphanumeric, serial numbers, dates, graphs |
| Supported File Formats | .PLT, .SLG, .DWG |
| Operating System Compatibility | Windows 98, XP, Windows 7 (32 Bit) |
| Machine Construction | Modular aluminum casing |
| Heat Dissipation | Fast heat liberation design |
| Suitable for | Small and light metal or plastic workpieces |
| Marking Orientations Supported | Linear, Angular, Radial, Inverted, Mirror |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
While the DPM301D is primarily designed for flat or slightly curved surfaces due to its dot pin technology and 100x100 mm working area, it can handle minor curvature if the workpiece fits within the working height limit of 300 mm and is securely fixed.
Yes, the EtchON DPM301D supports customization of the working height beyond the standard 300 mm based on customer requirements, subject to agreement with the manufacturer.
Yes, the PC-based controller software allows batch processing with customized serial numbers, dates, and other alphanumeric data for automated marking sequences.
Marking patterns can be designed using AutoCAD or Corel Draw and imported in .PLT, .SLG, or .DWG formats, fully compatible with the DPM301D.
Yes, the DPM301D is specifically suited for marking on small and light metallic as well as plastic components, providing durable and clear marks on both material types.
The portable PC controller supports Windows 98, XP, and Windows 7 (32 Bit) operating systems, enabling compatibility with legacy industrial PCs.
Country Of Origin: India
Industrial marking and engraving are rapidly growing industry in the world. Particularly because there is virtually no limit to the number of materials that can be marked or engraved whether you are using metal or non-metal.
