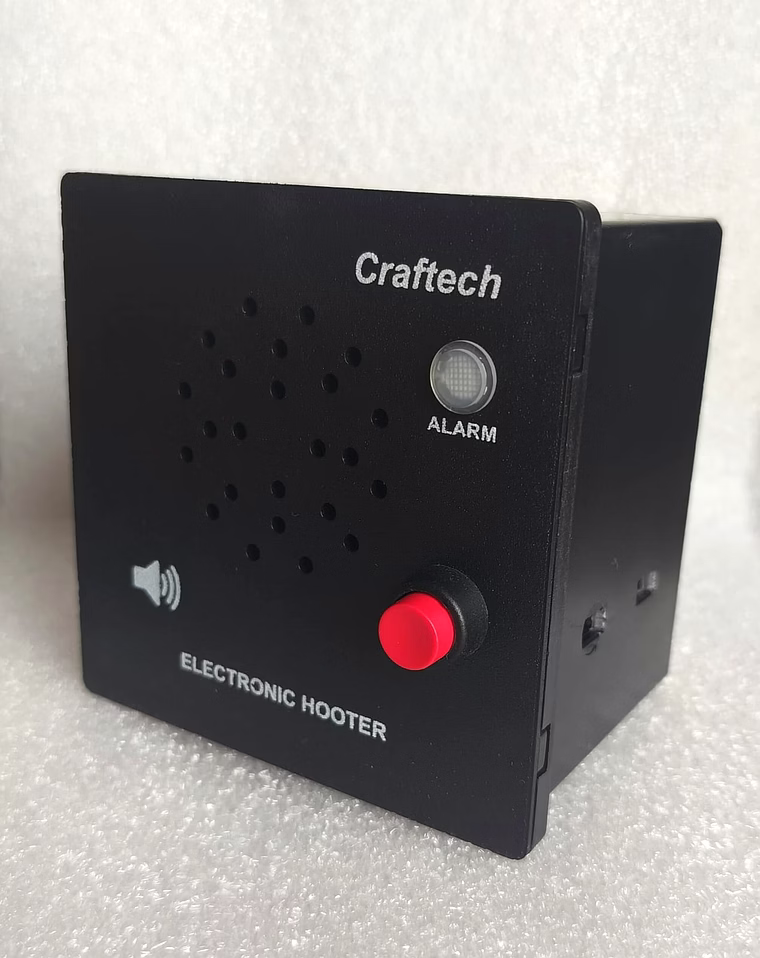

The Electronic Hooter 96 x 96mm is an essential alarm solution for various industries, designed to provide reliable and high-performance audio notifications for fault indication. This compact device, featuring a bright LED indicator and high audible sound output, ensures that alerts are clearly communicated in any environment. The Hooter is designed for flush mounting within a standard 96x96 mm panel cutout, making it an ideal choice for control panels and machinery where space efficiency is key. With a wide operating voltage range, low current consumption, and multiple voltage options available, this device adapts easily to your specific requirements.
Key Features
| Features | Description |
|---|---|
| Bright LED Fault Indication | Easily visible alerts to indicate malfunctions and faults. |
| Mounting Type | Flush mounting on 96x96 mm panel cutout. |
| Compact Size | Designed for space-constrained applications. |
| Wide Operating Voltage Band | Operates between 24-230 V AC/V DC. |
| Low Current Consumption | Efficient energy use with a max current of 80 mA. |
| High Audible Sound Output | Sound level of 110 dB @ 1 meter. |
| Environmental Protection | IP 40 rated for effective protection against dust. |
| Termination Type | Uses combicon connectors for reliable connections. |
| Attributes | Description |
|---|---|
| Mounting | Flush Mounting |
| Dimension | Bezel – 96 mm x 96 mm, Depth – 65 mm |
| Mounting Hole Cut out | 92 mm x 92 mm |
| Housing Material | ABS |
| Weight | 70 grams |
| Max Environmental Protection | IP 40 |
| Termination | Combicon Connectors |
| Recommended Terminal screw Tightening Torque | 1.25 Nm |
| Electrical Operating Voltage | 24-230 V AC/V DC and 230 VAC |
| Voltage Variation | +/- 10% of Nominal Supply Voltage |
| Accept Button | Front and Rear for Remote Switch |
| Current | 80 mA (Max) |
| Sound Level | 110 dB @ 1 meter +/- 10 dB |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Electronic Hooter produces a high sound output level of 110 dB at 1 meter, ensuring clear alerts.
It has a bezel dimension of 96 mm x 96 mm and requires a mounting cut-out of 92 mm x 92 mm.
The housing of the Electronic Hooter is made of durable ABS plastic.
Yes, the Hooter includes Accept buttons on both the front and rear for remote switch capability.
The device weighs 70 grams, making it lightweight and easy to install.
Brand: craftech
Country Of Origin: India
Features:
Bright LED Fault Indication
Flush mountable on Panel 96x96 mm Panel cutout
Compact Size
Wide Operating Voltage Band
Low Current Consumption
High Audible sound output
Available in Multiple Voltage range
Specifications:
Mounting: Flush Mounting
Dimension: Bezel – 96 mm X 96 mm, Depth – 65 mm
Mounting Hole Cut out: 92 mm X 92 mm
Housing Material: ABS
Weight: 70 Gms Max
Environmental Protection: IP 40
Termination: Combicon Connectors
Recommended Terminal screw Tightening Torque: 1.25 Nm
Electrical Operating Voltage: 24-230 V AC/V DC and 230 VAC
Voltage Variation: +/- 10% of Nominal Supply Voltage
Accept Button: Front and Rear for Remote switch
Current: 80 mA (Max)
Sound Level: 110 dB @ 1 meter +/- 10 dB
