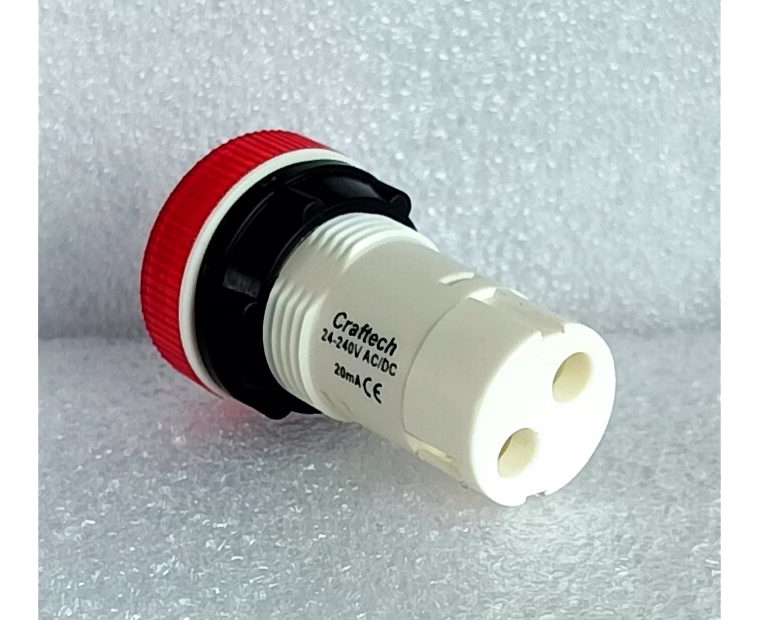

The 22.5 mm LED Indication Lamps are a versatile and compact lighting solution, ideal for various industrial applications. Designed with an optically enhanced lens and a press-fit design, these lamps ensure optimal light diffusion and visibility. With low current consumption and a wide voltage range, they cater to different electrical standards, making them suitable for numerous settings. The touch-safe screw terminal connections and multiple color options (Red, Yellow, Blue, Green, Amber, and White) add to their functional appeal. Built to last, these lamps are housed in a durable nylon material and come with protection against low voltage and polarity issues. Their impressive service life of up to 100,000 hours at rated voltage at 25 degrees Celsius ensures a long-lasting performance, providing reliability and reducing maintenance costs for users.
Key Features
| Features | Description |
|---|---|
| Optically Enhanced Lens | Ensures optimal light diffusion for enhanced visibility. |
| Press Fit Lens Design | Allows easy installation while maintaining secure fit. |
| Compact Size | Ideal for applications where space is limited. |
| Multiple Voltage Range | Available in various AC and DC voltages for flexibility. |
| Low Current Consumption | Energy-efficient operation, helps reduce electricity costs. |
| Touch-Safe Screw Terminal Connection | Eliminates electrical hazards during installation. |

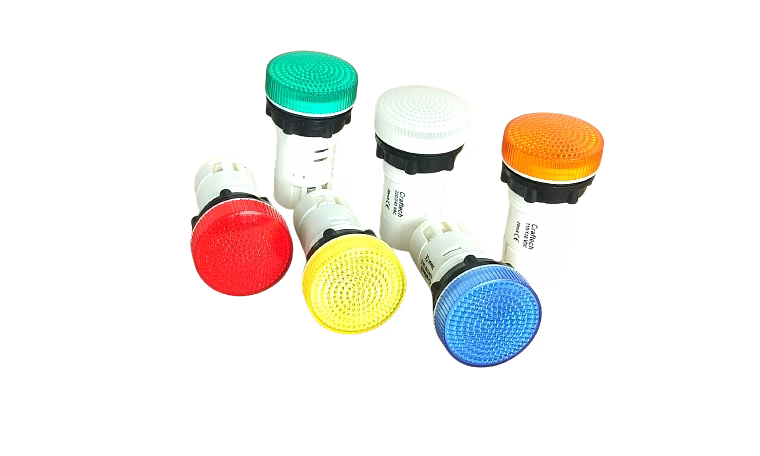

| Color Variants | Available in colors: Red, Yellow, Blue, Green, Amber, & White. |
| Attributes | Description |
|---|---|
| Lens Fitment | Press Fit Lens |
| Lens Type | Refracted Lens |
| Lens Material | Polycarbonate |
| Housing Material | Nylon |
| Gasket Material | Silicon |
| Length Inside Panel | 36 mm |
| Termination | Steel Alloy Screw with Captive Washer, Cu-Ni Plated |
| Recommended Terminal Screw Tightening Torque | 1.25 Nm |
| Available AC Voltages | 5, 12, 24, 30, 48, 60, 110/120, 220/240, 380, 415 |
| Max Current (AC) | 20mA |
| Available DC Voltages | 5, 12, 24, 48, 110/120, 220/240, 320 |
| Max Current (DC) | 20mA |
| Low Voltage Glow Protection | Activates at 18 V |
| Polarity Protection | Protection for DC Lamps |
| Flash Rate | 1-2 Hz Fixed (For Flashing LED Lamps) |
| Burning Hours / Service Life | 100,000 Hrs at 25°C, at rated voltage |
| Degree of Protection | IP 54, IP 65 - Front, IP20 - Rear |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
These lamps are suited for various industrial environments due to their IP 54 and IP 65 ratings, providing resistance against dust and moisture.
The lamps feature a press fit lens design, allowing for easy and secure installation into panel cut-outs.
These lamps have an impressive operational life of up to 100,000 hours at rated voltage under normal conditions.
Yes, the lamps feature touch-safe screw terminal connections that eliminate electrical hazards during installation.
Yes, the 22.5 mm LED Indication Lamps are available in both AC and DC voltages, making them highly flexible for various applications.
Brand: craftech
Country Of Origin: India
Features:
Optically Enhanced Lens
▪ Press Fit Lens Design
▪ Compact Size
▪ Multiple Voltage Range
▪ Low Current Consumption
▪ Touch -Safe Screw Terminal connection
▪ Available in Colors : Red, Yellow, Blue, Green, Amber, & White
Specifications:
Lens Fitment: Press Fit
Lens type: Refracted
Lens Material: Polycarbonate
Housing Material: Nylon
Gasket Material: Silicon
Length inside panel: 36 mm
Termination: Steel Alloy Screw With Captive Washer, Cu-Ni Plated
Recommended Terminal screw Tightening Torque: 1.25 Nm
Available in Voltages: ACV – 5, 12, 24, 30, 48, 60, 110/120, 220/240, 380,415, Current Max 20mA
DCV – 5, 12, 24, 48, 110/120, 220/240, 320
Current: Max 20mA
Low voltage glow protection at: 18 V
Polarity Protection: Polarity Protection for DC Lamps
Flash Rate: 1-2 Hz Fixed (For Flashing LED Lamps)
Burning Hours / Service Life @ 250C , at rated voltage 100000 Hrs
Degree of Protection: IP 54, IP 65 - Front, IP20 - Rear
