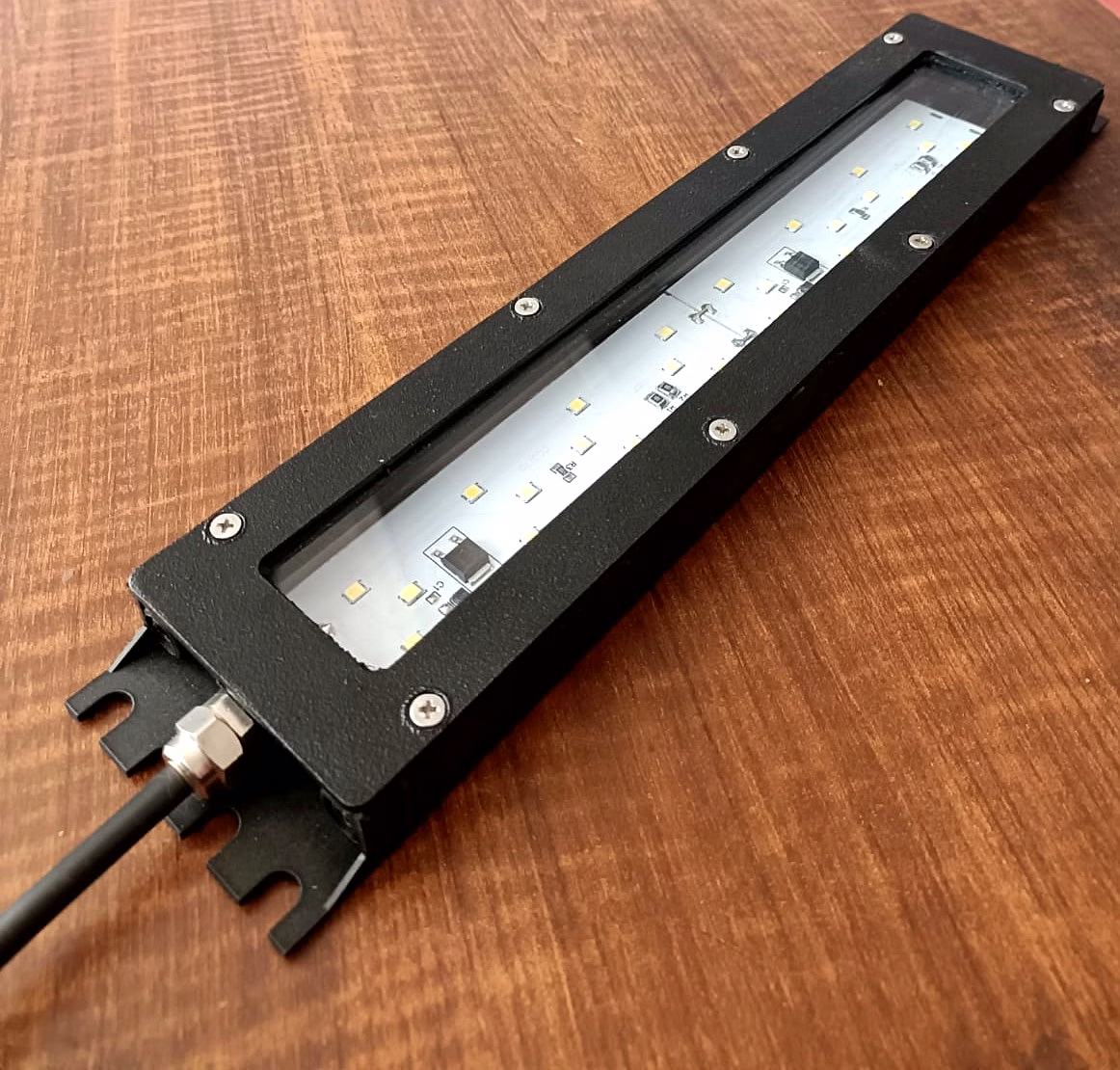

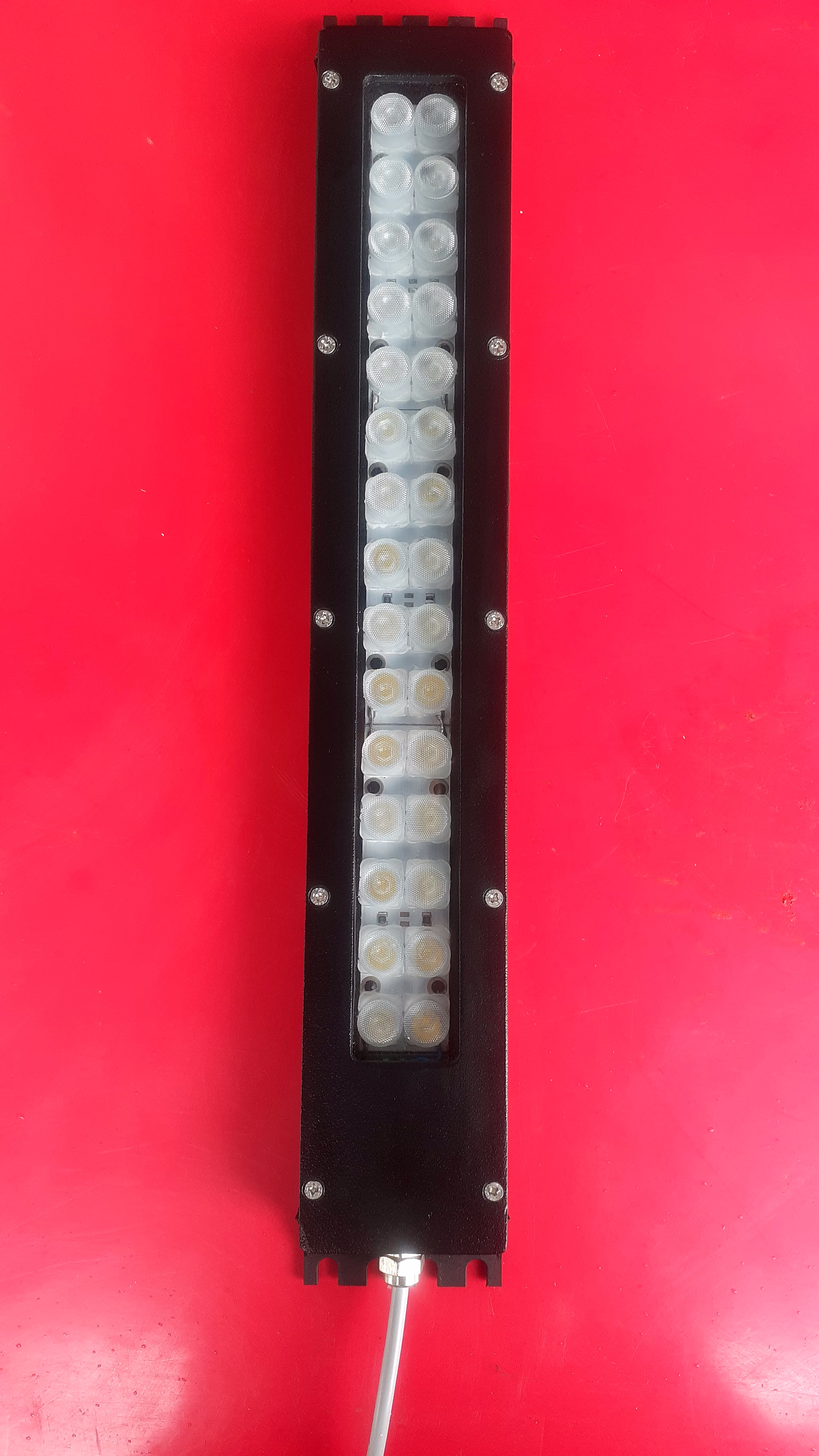

The SMLL Series Machine LED Light is a high-performance lighting solution specifically designed for industrial applications such as heavy-duty CNC and VMC machines, boiler machines, and various special purpose machines. Built with a robust 6063 grade aluminum body and featuring frosted 4 mm thick glass, this LED light ensures durability and reliability in harsh environments. With options for a lens or no lens, the SMLL light provides versatility in lighting arrangements. The compact design allows for easy installation and optimal adjustments with the integrated tilting bracket, making it a perfect solution for targeted illumination. Engineered for superior performance, this LED light operates efficiently at both 24 VDC and 240 VAC and offers a luminous output of up to 1200 lumens, providing excellent visibility in workspace conditions. Its IP67 protection grade guarantees that it withstands dust and moisture, promoting longevity and consistent performance, even in extreme temperatures ranging from -20 to +65 degrees Celsius.
Key Features
| Features | Description |
|---|---|
| Body Construction | Aluminium Body 6063 grade |
| Glass Thickness | Frosted glass 4 mm thickness |
| Lens Options | Available with Lens and without lens |
| Installation | Compact and easy to install |
| Adjustability | Light position can be adjusted with tilting bracket |
| Attributes | Description |
|---|---|
| LED Colour Temperature | 6500 K |
| Light Beam Angle & CRI | 40°, CRI > 80 |
| Available in Wattages | 7W, 14W, 21W |
| Input Voltage | 24 VDC with Polarity & 240 VAC with External Adapter |
| Rated Current | 600 mA (Max) |
| Lumens Output | 1200 lm at 1 Mt Height +/- 5% |
| Protection Grade | IP67 |
| Luminaire Light Yield | 110-120 Lumens / Watt |
| Operating Temperature | -20 to +65 Degrees Celsius |
| Installation Method | Fixed by screws M5/M6 X 30mm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The SMLL LED Light is specifically designed for heavy-duty CNC/VMC machines, boiler machines, and various special purpose machines.
The SMLL LED Light operates efficiently within a temperature range of -20 to +65 degrees Celsius.
The SMLL LED Light can be installed easily by fixing it with screws M5/M6 X 30mm.
The SMLL LED Light produces a luminous output of up to 1200 lumens at a height of 1 meter, with a variance of +/- 5%.
Yes, the SMLL LED Light has an IP67 protection grade, making it resistant to dust and moisture.
Country Of Origin: India
Features:
1. Aluminium Body 6063 grade
2. Frosted glass 4 mm thickness
3. LED Light available with Lens and without lens
4. Compact and easy to install.
5. Light position can be adjusted with tilting bracket..
Application:
Heavy Duty CNC/VMC Machines, Boiler Machines, Special Purpose Machines and many more
Technical Specifications:
LED Colour Temperature: 6500 K
Light Beam Angle & CRI: 40° LED Lens, CRI > 80
Available in Wattages: 7W, 14W, 21W
Input Voltage: 24 VDC with Polarity & 240 VAC with External Adapter
Rated Current: 600 mA (Max)
Lumens Output: 1200 lm at 1 Mt Height +/- 5%
Protection Grade: IP67
Luminaire Light Yield: 110-120 Lumens / Watt
Operating Temp: -20 to +65 Degrees Celsius
Installation: Fixed by screws M5/M6 X 30mm
