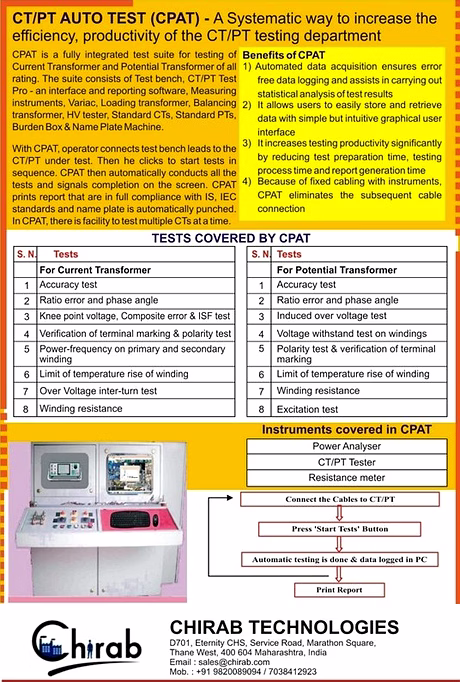

The CT PT Test Bench is a specialized electrical testing equipment designed for the precise and efficient testing of Current Transformers (CTs) and Potential Transformers (PTs). This instrument is essential for power utilities, electrical laboratories, and transformer manufacturers to ensure the accuracy, reliability, and performance of CTs and PTs. It allows for comprehensive testing, including burden testing, ratio verification, polarity checks, and phase angle measurements. The test bench supports various voltage and current ratings, accommodating a wide range of transformers, and is built with high safety standards, user-friendly interface, and robust construction for stable operation. Its advanced measurement capabilities help detect faults, prevent equipment failures, and maintain system integrity in electrical power systems.
Key Features
| Features | Description |
|---|---|
| Application | Testing of Current Transformers (CT) and Potential Transformers (PT) |
| Measurement Capabilities | Burden test, ratio verification, polarity, phase angle measurement |
| Voltage Range | Supports multiple rated voltages up to 110 kV (depending on model) |
| Current Range | Handles various CT primary and secondary current ratings |
| Safety Features | Built-in protective relays and insulation to ensure operator safety |
| User Interface | Digital display with easy-to-use controls and data logging capability |
| Construction | Rugged and durable frame designed for industrial environments |
| Portability | Compact design with optional wheels for easy relocation within lab or site |
| Power Supply | Operates on standard industrial power supply (e.g., 230V/50Hz) |
| Accuracy | High precision measurement with error margins within industry standards |
| Attributes | Description |
|---|---|
| Model Type | CT PT Test Bench Standard/Advanced |
| Input Voltage | Up to 110 kV (model dependent) |
| Current Testing Range | 0.1 A to 100 A (depending on CT rating) |
| Measurement Accuracy | ±0.1% or better |
| Display Type | LCD/LED digital display |
| Data Output | USB/RS232 for data export and analysis |
| Dimensions | Approx. 1000 mm × 700 mm × 1200 mm |
| Weight | Around 80-100 kg depending on configuration |
| Safety Compliance | Complies with IEC and IS standards for electrical safety |
| Operating Temperature | -10 °C to 50 °C |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the CT PT Test Bench supports high voltage testing up to 110 kV, depending on the model specification.
Yes, it features digital display and supports data output via USB or RS232 ports for logging and analysis.
The CT PT Test Bench complies with relevant IEC and Indian Standards (IS) for electrical safety, ensuring safe operations.
It offers high precision testing with measurement accuracies within ±0.1%, suitable for professional transformer testing needs.
Yes, it has a durable frame and optional portability features making it suitable for use in labs and onsite power utility environments.
