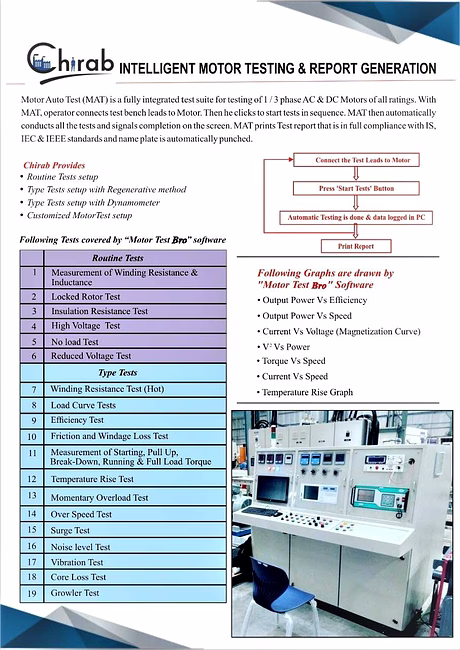

Chirab Technologies presents the Motor Testing and Report Generation Software designed specifically for integrated motor test laboratories that handle LT, MV, and HV AC & DC motors. This software facilitates comprehensive testing of various motor types including Induction, Synchronous, Permanent Magnet Synchronous Motors (PMSM), and Brushless DC (BLDC) motors. Fully compatible with automated data acquisition from test instruments, the software streamlines the process by automatically generating detailed test reports adhering to international and Indian standards such as IS 15999-2-1, IEC 60034-2-1, and IEEE 112. The solution supports a wide array of routine and type motor tests encompassing insulation resistance, no load conditions, winding resistance, surge and high voltage tests, vibration, torque measurements, harmonics, partial discharge, efficiency, temperature rise, and many more. It is tailored to enhance productivity, accuracy, and compliance in motor testing labs established or commissioned worldwide by Chirab Technologies.
Key Features
| Features | Description |
|---|---|
| Automatic Data Acquisition | Seamless data capture from connected motor test instruments |
| Automated Test Report Generation | Generates detailed, standard-compliant motor test reports automatically |
| Standards Compliance | Ensures testing meets IS 15999-2-1, IEC 60034-2-1, IEEE 112 standards |
| Motor Types Supported | LT, MV, HV AC & DC motors including Induction, Synchronous, PMSM, and BLDC |
| Test Types Supported | Supports both routine and type tests such as insulation resistance, torque, vibration, and efficiency |
| Load Test Capability | Facilitates no load and load tests with comprehensive test parameter monitoring |
| Global Deployment | Used in multiple countries with lab integration and commissioning by Chirab |
| User Interface | Designed for ease of operation by laboratory professionals with detailed data visualization |
| Attributes | Description |
|---|---|
| Compatible Motor Categories | LT, MV, HV AC & DC Motors |
| Supported Motor Types | Induction, Synchronous, PMSM, BLDC |
| Test Standards Compliance | IS 15999-2-1, IEC 60034-2-1, IEEE 112 |
| Test Types | Routine tests and Type tests including insulation resistance, surge test, partial discharge, noise level test, and more |
| Report Generation | Automatic, standardized, printable, and exportable reports |
| Data Acquisition Method | Automatic integration with test instruments |
| Deployment Type | Installed software for integrated motor test laboratories |
| Supported Tests - Routine | Insulation resistance, no load loss/current, winding resistance, high voltage, surge, vibration, starting torque |
| Supported Tests - Type | Full load loss/current, C-Tan delta, partial discharge, rated torque, harmonics, temperature rise, ELCID, efficiency, overspeed, momentary overload |
| User Base | Motor test laboratories, manufacturers, research centers |
| Report Formats Available | Digital (PDF/Excel) and print-ready |
| Language Support | English |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the software supports testing of LT, MV, HV classes for both AC and DC motors including Induction, Synchronous, PMSM, and BLDC motors.
Yes, it automatically generates test reports compliant with IS 15999-2-1, IEC 60034-2-1, and IEEE 112 standards.
Absolutely, the software is designed to facilitate both no load and load tests with automatic data acquisition from connected instruments.
The software supports a comprehensive range including insulation resistance, surge, partial discharge, temperature rise, vibration, torque tests, efficiency, harmonics and more.
Yes, reports can be exported in digital formats like PDF and Excel, and can be printed for offline documentation.
Country Of Origin: India
Chirab Technologies is the leader is setting up an Integrated Motor Test Laboratories for testing of LT, MV and HV AC & DC motors. The Induction / Synchronous / PMSM / BLDC motors can be tested using the test labs offered by us. The test Labs offered by us can be for No Load and Load tests. The integrated Test Labs supplied and commissioned in many countries by Chirab.
Automatic Data Acquisition from Test Instruments
Automatic Test Report Generation
Compliance with Standards
• IS 15999-2-1
• IEC 60034-2-1
• IEEE 112
Routine Tests
Insulation Resistance Test
No load loss and no-load current
Starting torque test
Winding Resistance Test
High Voltage Test
Surge Test
Vibration test
Type Tests
Full load loss & full load current
C- Tan delta test
Rated torque test at rated speed
Partial discharge test
Measurement of Break-down & Running Torque
Harmonics
Pull up torque test
RSO test
Temperature Rise Test
ELCID test
Efficiency Test
Over Speed Test
Over frequency test
Friction And Windage Losses
Momentary Overload Test@ 160%
Reduced Voltage Test
Noise level test
Core Loss Test
