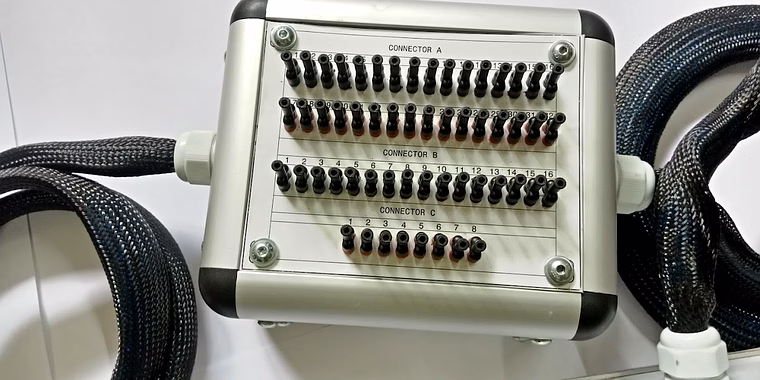

A breakout box is an essential electrical testing and diagnostic tool designed to provide easy access to individual wires within a cable or connector for troubleshooting, testing, and signal monitoring purposes. This device serves as an interface allowing technicians and engineers to isolate, monitor, and inject signals into circuits without disturbing the overall wiring setup. Ideal for use in telecommunications, networking, broadcast, and industrial automation sectors, the breakout box enhances efficiency by simplifying complex wiring configurations. It typically features multiple ports or connectors with breakout leads that correspond to individual wires, enabling detailed analysis and quick fault detection. Its rugged construction ensures reliability and durability in professional environments where precise electrical diagnostics are critical for maintenance and system validation.
Key Features
| Features | Description |
|---|---|
| Functionality | Provides accessible breakout points for individual wires within cables/connectors |
| Application | Used for electrical testing, signal monitoring, troubleshooting, and diagnostics |
| Compatibility | Supports various cable types such as DB connectors, RJ45, Ethernet, or custom harnesses |
| Port Configuration | Multiple breakout leads or ports corresponding to each wire within the cable |
| Build Quality | Rugged and durable construction suitable for industrial and technical environments |
| Portability | Compact and lightweight design for ease of use onsite or in lab settings |
| Safety | Isolates test signals to prevent equipment damage and ensure accurate measurements |
| Attributes | Description |
|---|---|
| Input Connector Types | DB9, DB15, DB25, RJ45, or custom configurations based on model |
| Output Leads | Individual test leads with clip-on or banana plug terminations for easy access |
| Operating Voltage | Supports low voltage signals typically up to 250V AC/DC |
| Material | High-grade ABS plastic housing with shielded leads |
| Lead Length | Typically 15cm to 30cm per lead depending on model |
| Weight | Approx. 200-500 grams depending on configuration |
| Dimensions | Varies by model; commonly compact sizes around 10cm x 7cm x 3cm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The breakout box supports common connector types such as DB9, DB15, DB25, RJ45, and can be customized for specific cable configurations depending on the model.
This breakout box is designed for low voltage signals up to 250V AC/DC; it is not suitable for high voltage testing beyond this range.
The breakout box provides individual access points to wires allowing technicians to inject or monitor signals without disconnecting or altering the original cable setup, thus preserving circuit integrity.
Yes, it features rugged ABS plastic housing and shielded leads to withstand demanding industrial and technical environments.
Depending on the model, the leads can be fixed or detachable; most common models feature fixed leads with clip-on or banana plug ends for secure connections.
