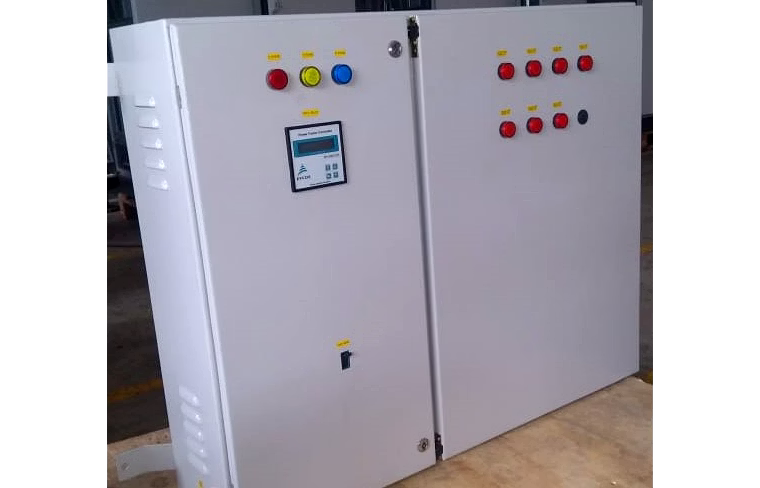

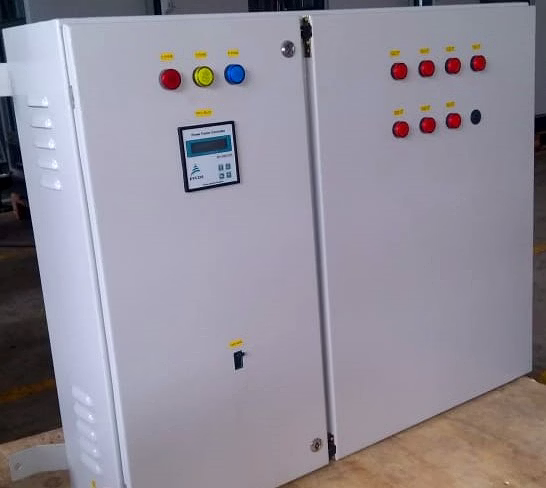

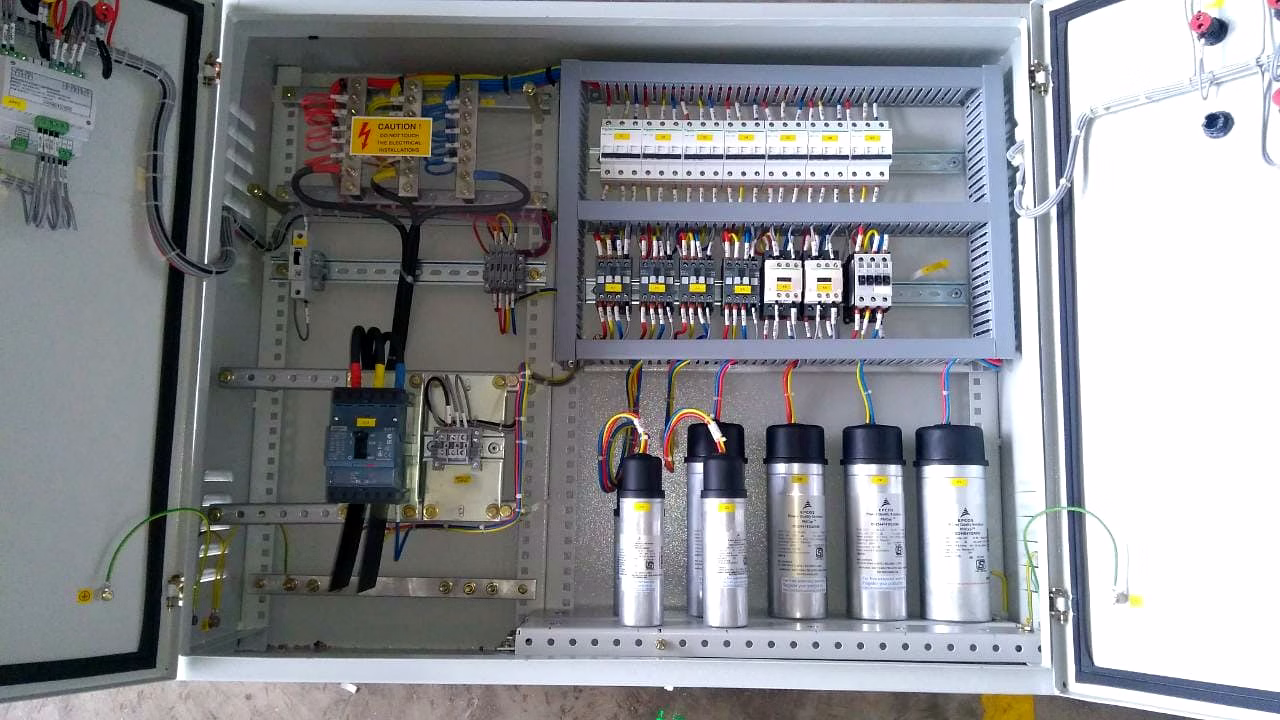

The APFC Panel (Automatic Power Factor Control Panel) is an essential electrical panel used for improving power factor in industrial and commercial electrical systems. Designed to automatically manage and regulate the power factor by switching capacitor banks, this APFC panel enhances energy efficiency, reduces electricity costs, and ensures the stability of electrical networks. It is equipped with a microcontroller or relay-based control system that monitors the power factor in real-time and adjusts the capacitance dynamically. Ideal for factories, manufacturing units, and large commercial buildings, the APFC panel helps in minimizing reactive power consumption and prevents penalties charged by electricity boards for low power factor. The panel features durable construction for long-term performance under harsh environments and is compatible with standard power supply configurations. Installation and maintenance are straightforward, making it a practical solution for power factor correction and energy optimization.
Key Features
| Features | Description |
|---|---|
| Automatic Power Factor Correction | Monitors and adjusts power factor in real-time using capacitor banks |
| Control System | Microcontroller or relay-based control ensures precise power management |
| Energy Efficiency | Reduces reactive power consumption and electricity costs |
| Construction | Rigid, durable metal enclosure suitable for industrial environments |
| Compatibility | Works with various voltage levels and electrical system configurations |
| User Interface | Easy-to-read display for monitoring power factor and system status |
| Installation | Compact design allows for easy installation and integration |
| Maintenance | Designed for low maintenance with accessible capacitor banks |
| Protection Features | Includes overload, short circuit, and phase failure protection |
| Applications | Suitable for factories, manufacturing units, commercial buildings |
| Attributes | Description |
|---|---|
| Voltage Rating | 415V AC, Three Phase |
| Frequency | 50Hz |
| Power Factor Range | 0.8 lagging to unity |
| Capacitor Bank Capacity | Variable, as per customization (typically 5 kVAR to 150 kVAR) |
| Controller Type | Microcontroller based / Relay based |
| Enclosure Material | CRCA Metal Sheet |
| Protection | Overload, short circuit, phase failure |
| Operating Temperature | -10°C to +55°C |
| Display Type | Digital LED/LCD for power factor and current monitoring |
| Mounting | Wall-mounted or free-standing as per model |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The capacitor bank capacity is variable and customizable, typically ranging from 5 kVAR to 150 kVAR, based on site requirements.
Yes, the APFC panel uses a microcontroller or relay-based control system to monitor the power factor continuously and adjust capacitor banks automatically.
The panel includes overload protection, short circuit protection, and phase failure protection to ensure safe operation.
Yes, the panel is housed in a durable CRCA metal sheet enclosure designed to withstand tough industrial conditions.
Yes, its design allows for easy integration into new or existing electrical systems, making it suitable for retrofit applications.
Country Of Origin: India
