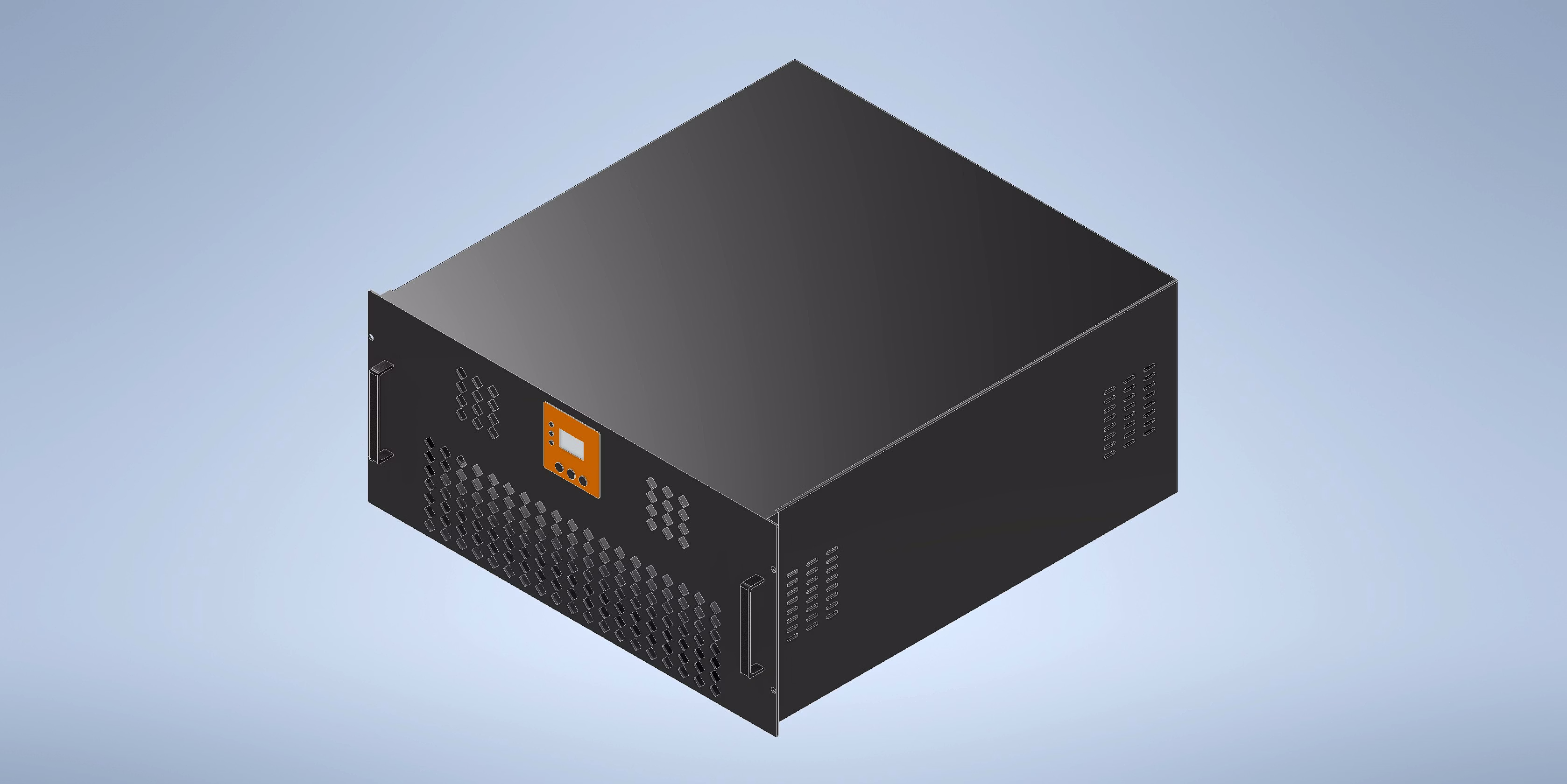

ValBrid's Automatic Harmonic Filter (AHF) is an advanced active harmonic mitigation solution designed to significantly reduce total harmonic distortion (THDi and THDv) at the source in industrial and commercial electrical systems. Employing real-time IGBT-based shunt filtering technology, the AHF injects counter-phase currents to neutralize specific harmonic orders such as the 5th, 7th, and 11th, effectively improving power quality. Its modular and stackable design with intermediate current increments allows for precise sizing tailored to current demand and facilitates easy future expansion as electrical loads increase. By minimizing harmonic distortion, it protects critical electrical assets including transformers, motors, and cables from excessive heating and premature aging, while also stabilizing sensitive equipment such as variable frequency drives (VFDs), programmable logic controllers (PLCs), and instrumentation to reduce nuisance trips and production interruptions. The AHF supports businesses in complying with IEEE-519 harmonic standards at the Point of Common Coupling (PCC), thereby helping avoid potential penalties and audits. Additional features include remote monitoring capabilities for power factor, total harmonic distortion, and load unbalance, enabling condition-based maintenance and data-driven commissioning. Ideal for heavy non-linear load environments such as manufacturing plants, steel mills, data centers, and commercial facilities with fluctuating demand, ValBrid’s AHF offers a robust solution for improving energy efficiency, extending equipment lifespan, and ensuring process stability under dynamic load conditions.
Key Features
| Features | Description |
|---|---|
| Technology | Real-time IGBT-based shunt filtering for active harmonic cancellation |
| Harmonic Orders Filtered | Selective filtering of 5th, 7th, 11th harmonic orders and others |
| Modular Design | Stackable architecture with intermediate current steps for exact sizing and scalability |
| Power Quality Improvement | Reduces THDi and THDv to protect assets and enhance waveform quality |
| Compliance Support | Ensures IEEE-519 compliance at the PCC to avoid penalties |
| Load Adaptability | Fast control loops adapt filtering to variable, dynamically changing industrial loads |
| Equipment Protection | Reduces overheating and extends lifespan of motors, transformers, and cables |
| Process Stability | Minimizes nuisance tripping in drives, PLCs, and instrumentation |
| Hybrid Ready | Compatible with static var generators (SVG) and detuned capacitor banks without resonance issues |
| Remote Monitoring | Enables tracking of power factor, THD, and unbalance for condition-based maintenance |
| Attributes | Description |
|---|---|
| Input Voltage Range | According to plant electrical system specifications |
| Current Rating | Modular units with intermediate steps to match load currents precisely |
| Harmonics Targeted | 5th, 7th, 11th, and selected higher order harmonics |
| Filtering Method | Active shunt filtering via IGBT technology |
| Control System | Fast dynamic control loops with selective order filtering |
| Compliance Standards | IEEE-519 for harmonic limits at Point of Common Coupling |
| Installation | Modular and stackable for easy installation and future expansion |
| Monitoring Interface | Remote monitoring of power factor, THD, and load unbalance |
| Compatibility | Works alongside SVGs and detuned capacitor banks in hybrid systems |
| Applications | Heavy non-linear loads in manufacturing, steel, data centers, commercial buildings |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
ValBrid's AHF features fast control loops and selective harmonic order filtering that dynamically adjust current injection in real-time to effectively cancel harmonic distortion as load conditions change.
Yes, the AHF uses a modular, stackable design with intermediate current steps allowing precise initial sizing and easy future capacity expansion without complete system replacement.
The AHF is hybrid-ready and can operate seamlessly alongside static var generators (SVG) or detuned capacitor banks while avoiding parallel resonance issues, ensuring system stability in mixed compensation setups.
The AHF reduces total harmonic distortion at the point of common coupling (PCC), helping industrial facilities meet IEEE-519 harmonic limits, thus avoiding penalties and ensuring power quality compliance.
It supports remote monitoring of power factor, harmonic distortion levels (THD), and unbalance currents, facilitating data-driven commissioning and condition-based maintenance strategies.
Country Of Origin: India
The ValBrid Automatic Harmonic Filter (AHF) provides instant harmonic mitigation to protect electrical assets, improve process stability, and ensure compliance with international standards. By reducing THDi/THDv at the source, it extends equipment lifespan, minimizes downtime, and supports efficient operations across industrial and commercial facilities.
