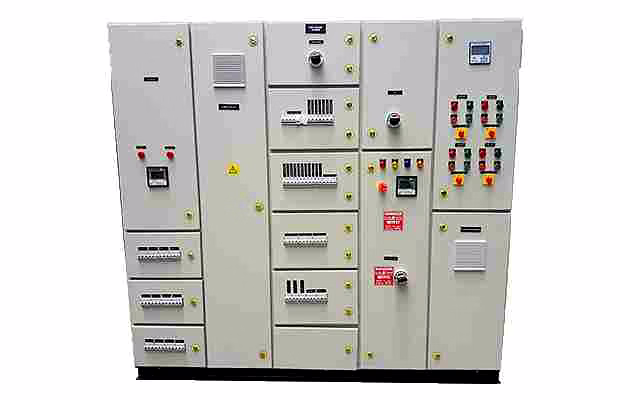

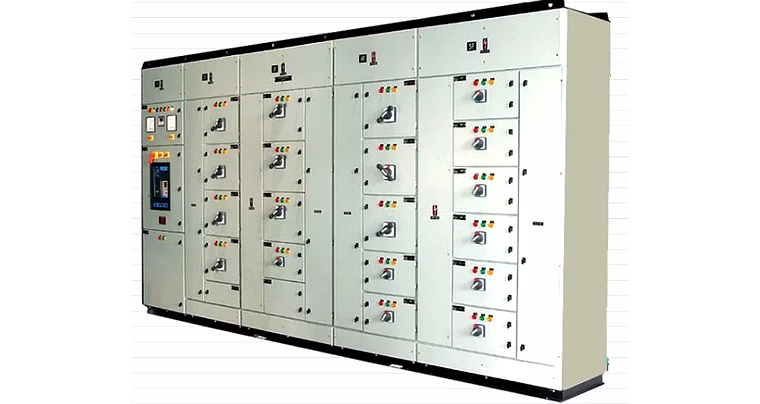

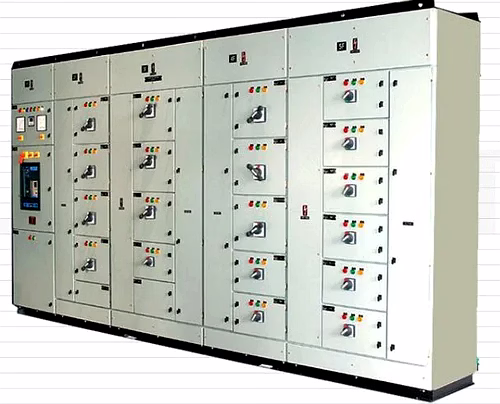

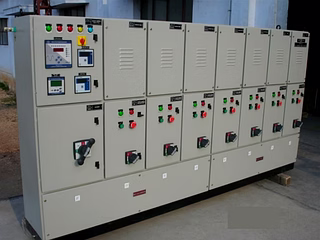

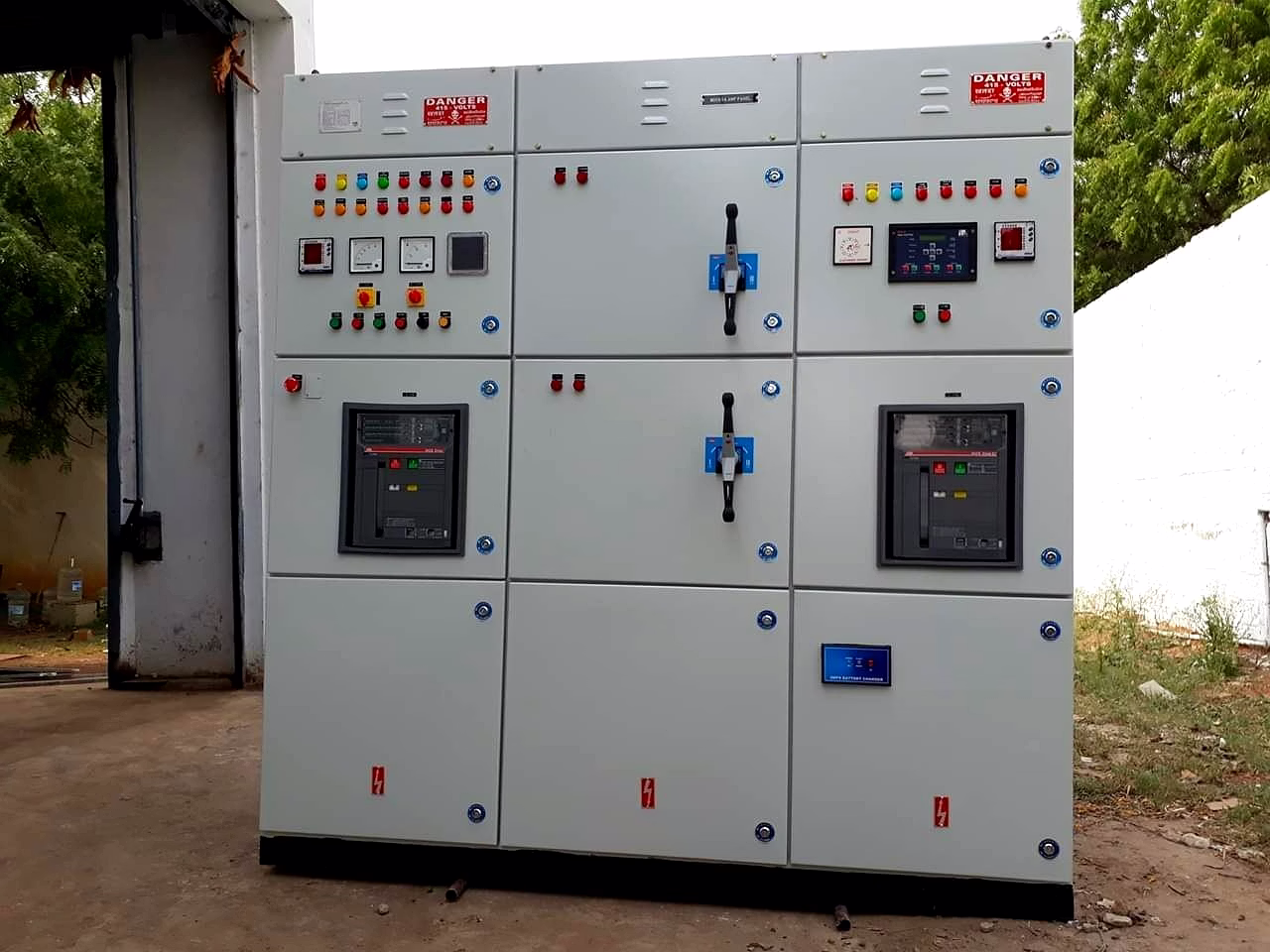

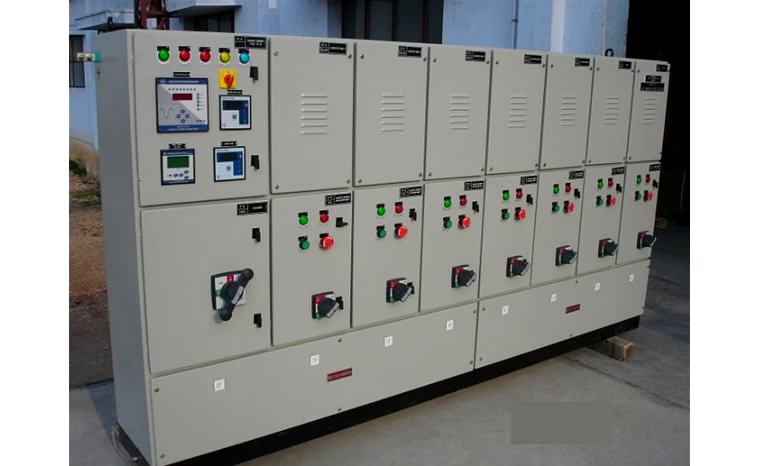

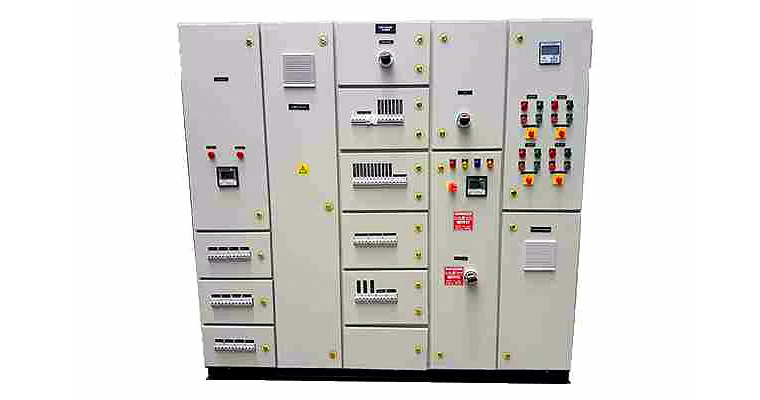

The PDB/PDB WITH APFC is a compact and efficient Power Distribution Board integrated with an Automatic Power Factor Correction (APFC) unit, designed for industrial and commercial electrical systems. This device not only ensures streamlined power distribution across multiple circuits but also actively manages power factor correction to enhance energy efficiency, reduce electricity costs, and improve the lifespan of electrical components. Equipped with robust insulation, easy-to-install modular design, and compatibility with various electrical setups, the PDB/PDB WITH APFC is ideal for optimizing power systems in manufacturing plants, commercial buildings, data centers, and other high-load applications. This product supports automatic capacitor switching based on real-time load demands, ensuring optimal correction without manual intervention, thereby minimizing power losses and electrical disturbances.
Key Features
| Features | Description |
|---|---|
| Integrated Power Distribution and APFC | Combines power distribution with automatic power factor correction in one compact unit |
| Automatic Capacitor Switching | Automatically switches capacitors based on load for efficient power factor management |
| Modular Design | Allows easy installation and maintenance with detachable components |
| Robust Insulation | High-quality insulation materials ensure safety and durability |
| Compatibility | Works with standard industrial and commercial electrical systems |
| Energy Efficiency | Improves overall energy consumption by maintaining a high power factor |
| Load Monitoring | Incorporates real-time load monitoring for adaptive power factor correction |
| Compact Size | Space-saving design suitable for installation in limited spaces |
| Reduced Electrical Losses | Minimizes energy loss through optimized power factor correction |
| Improved Equipment Lifespan | Reduces strain on electrical components and extends operational life |
| Attributes | Description |
|---|---|
| Input Voltage | 380V/415V, 3-phase AC |
| Frequency | 50/60 Hz |
| Power Factor Range | 0.8 lagging to 0.95 leading |
| Maximum Current Capacity | Up to 100 Amperes (depending on model) |
| Capacitor Bank Capacity | Configurable up to 100 kVAR |
| Operating Temperature | -10°C to 50°C |
| Mounting Type | Wall-mounted or panel-mounted |
| Protection | Overload protection, short circuit protection, and thermal cut-off |
| Control System | Microcontroller-based automatic control with LCD display |
| Standards Compliance | IEC 60831, IS 13947 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The unit can adjust the power factor from 0.8 lagging to 0.95 leading automatically through its capacitor switching mechanism.
Yes, the modular design and standard mounting options allow easy integration into most industrial and commercial electrical panels.
The built-in microcontroller continuously monitors the load and switches capacitor banks on or off to maintain the desired power factor without manual intervention.
The standard operating temperature range is -10°C to 50°C and requires proper enclosure protection for outdoor applications to ensure durability.
It includes overload protection, short circuit protection, and thermal cut-off to safeguard the device and connected equipment.
