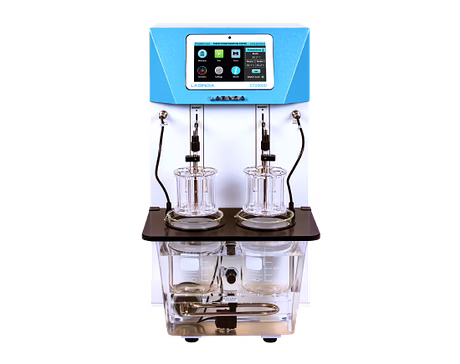

The Tablet Disintegration Tester - Dual Drive (model DT2000D) is a sophisticated pharmaceutical laboratory instrument designed for precise disintegration testing adhering to USP, IP, BP, and other stringent pharmacopoeial standards. Featuring a 7-inch high-resolution color capacitive touch screen with interactive user software, this advanced tester allows simultaneous analysis of two different tablet or capsule sample types using its dual basket and dual drive mechanism, wherein each basket is independently driven and timed. Capable of handling varied tablet forms including plain, coated, and gelatin capsules, the unit supports test customization with programmable temperature control (ambient +5 to 55°C) and programmable test durations, ensuring versatility for both research and production quality control environments. The machine includes essential safety features such as audible and visual alerts for low water levels and an illuminated acrylic water bath for clear visibility during testing. It is equipped with external temperature sensors, capacity for extensive report storage with timestamp, and supports external printer and PC connectivity for streamlined documentation. This highly reliable and user-friendly tester assures reproducible, accurate disintegration results to maintain pharmaceutical compliance and optimize product quality processes.
Key Features
| Features | Description |
|---|---|
| Display | 7-inch high-resolution capacitive touch screen color display with interactive user interface |
| Drive Mechanism | Dual individual drives and timers for two baskets allowing simultaneous testing |
| Compliance | Conforms to USP, IP, BP, and other major pharmacopoeia requirements |
| Sample Types | Supports normal, plain, coated tablets and gelatin capsules |
| Temperature Control | Programmable temperature range from ambient +5°C to 55°C with ±0.2°C accuracy |
| Water Bath | Moulded acrylic illuminated water bath with low water level audible and visible alarms |
| Test Reports | Extensive inbuilt SD card storage for practically unlimited dated and timestamped reports |
| User Management | Supports 1 admin and 50 users with selectable rights |
| Connectivity | Centronics parallel port for printers and RS232C-2 serial interface for PC connectivity |
| Safety & Convenience | Park out facility for basket post run completion and external temperature sensors for individual beakers |
| Attributes | Description |
|---|---|
| Drive Type | Dual Drive with individual timers for each basket |
| Dip Speed | 30 ±1 dips per minute (DPM) |
| Stroke Length | 55 ±2 mm |
| Waterbath Temperature Range | Ambient +5 to 55°C |
| Waterbath Temperature Accuracy | ±0.2°C |
| Waterbath Circulation | Immersion pump system |
| Beaker Volume | 1000 ml |
| Basket Capacity | Two baskets each with: 2×6 test positions USP Type A (10 mesh), optional 40 mesh; 2×3 test positions USP Type B/Bolus 3 basket; and 2×1 test positions USP Type B/Bolus 1 basket |
| Fluted Disk Quantity | 6 per basket for USP Type A |
| Test Mode | Programmable time up to 99:59 (HH:MM) |
| Number of Methods | 100 programmable test methods |
| Report Storage | Built-in SD card |
| Printer Connectivity | Centronics Parallel Port compatible with dot matrix and deskjet printers |
| PC Connectivity | RS232C-2 Serial Interface |
| Power Requirement | 230 VAC / 50 Hz, 325 W |
| Operating Conditions | Indoor use, temperature ambient to 45°C, humidity 20%-80%, altitude up to 2000 m |
| Dimensions (W x D x H) | 330 x 345 x 580 mm |
| Shipping Weight | 22 kg |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the dual drive and dual basket setup with individual timers allow simultaneous testing of two different tablet or capsule types.
Yes, it is designed to meet specifications of USP, IP, BP, and other pharmacopoeias ensuring standardized disintegration tests.
Yes, the DT2000D supports external temperature sensors for individual beakers to ensure precise temperature monitoring.
It supports one admin and up to 50 users with multiple rights selection options for controlled access and operation.
The instrument comes with a Centronics parallel port for dot matrix/desk jet printers and an RS232C-2 serial interface for PC connectivity.
The system provides both audible and visible alerts when water levels in the bath fall below the safety threshold.
Yes, the tester has built-in SD card storage that allows practically unlimited test report storage with date and time stamps.
Brand: labindia
Country Of Origin: India
Salient Features:
7" Colour High-resolution display with touch screen interface & user interactive software.
Designed to meet specifications of USP, IP, BP, and other Pharmacopoeias.

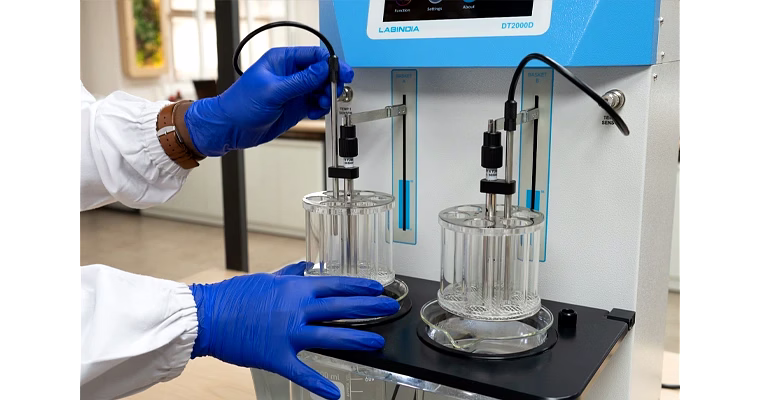

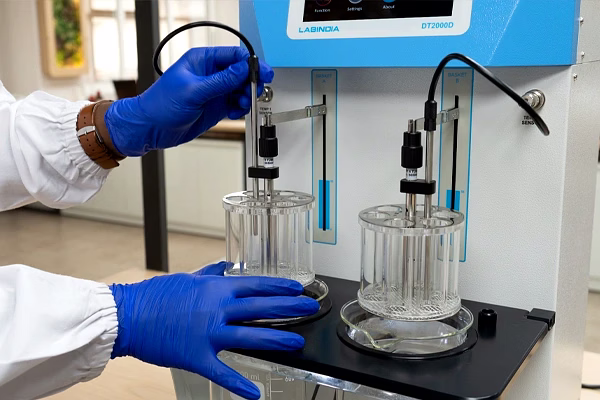

DT2000D features a dual timer (baskets will have individual timers) and a dual drive (each basket is driven by an individual drive).
Designed for production and quality control of normal, plain, coated tablets & gelatin capsules.
Provision to identify disintegrated tablets with laser-marked numbers on the basket assembly.
Allows two different sample types to be analyzed simultaneously.
Capable of dual basket run completion.
Practically unlimited test reports with date & time stamp.
External temperature sensors available for individual beakers.
Disintegration time for individual tablets can be recorded.
Programmable Temperature & Time settings.
Park out facility for basket after run completion.

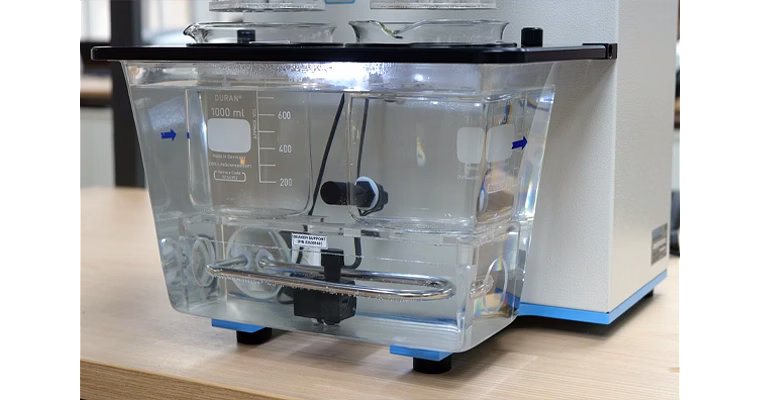

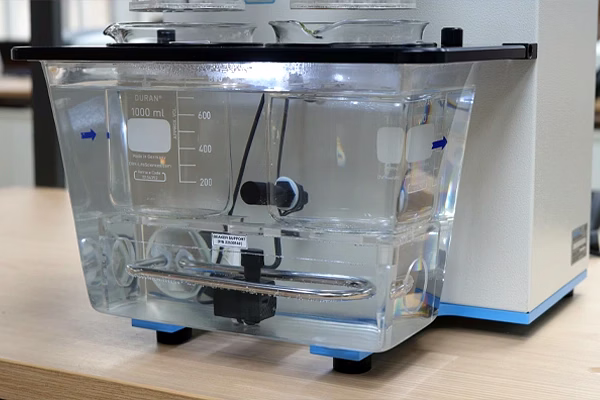

Moulded acrylic water bath with illumination for visibility.
Low water level audible and visible alert for safety.
Specifications:
Drive Dual Drive for 2 baskets with individual timer
Dip Speed: 30, ±1 DPM
Stroke Length: 55, ±2 mm
Waterbath Temperature Range: Ambient +5 to 55°C
Waterbath Temperature Accuracy: ±0.2°C
Waterbath Circulation: Immersion Pump
Beaker Volume: 1000 ml
Basket: - 2×6 test positions (10 mesh) USP type A (Optional 40 mesh)
- 2×3 test positions (10 mesh) USP type B/ Bolus 3 Basket
- 2×1 test positions (10 mesh) USP type B/ Bolus 1 Basket
Fluted Disk: 6 per basket for USP type A
Test Mode: Programmable Time up to 99:59 (HH:MM); Display Format 99:59:59
Display: 7" Capacitive touch screen colour display
User Management: 1 admin, 50 users with multiple rights selection
Number of Methods: 100 test methods
Report Storage Built-in SD Card
Printer Connectivity: Centronics Parallel Port for Dot matrix/desk jet printer
Serial Interface: RS232C-2 for PC Connectivity
Power Requirement: 230 VAC / 50 Hz, 325 W
Environmental Operating Conditions: a) Indoor use
b) Temp: Ambient to 45°C
c) Humidity: 20% to 80%
d) Altitude: up to 2000m
Dimensions (Approx.): 330 x 345 x 580 mm (W x D x H)
Shipping Weight (Approx.): 22 kg
