Evantlis Engineering specializes in manufacturing and exporting high-quality strut channel systems and accessories, designed to provide robust structural support in various industrial applications.

Our products are crafted from durable materials such as galvanized steel and stainless steel, ensuring longevity and resistance to corrosion. These systems are ideal for supporting electrical conduits, HVAC installations, piping systems, and more.

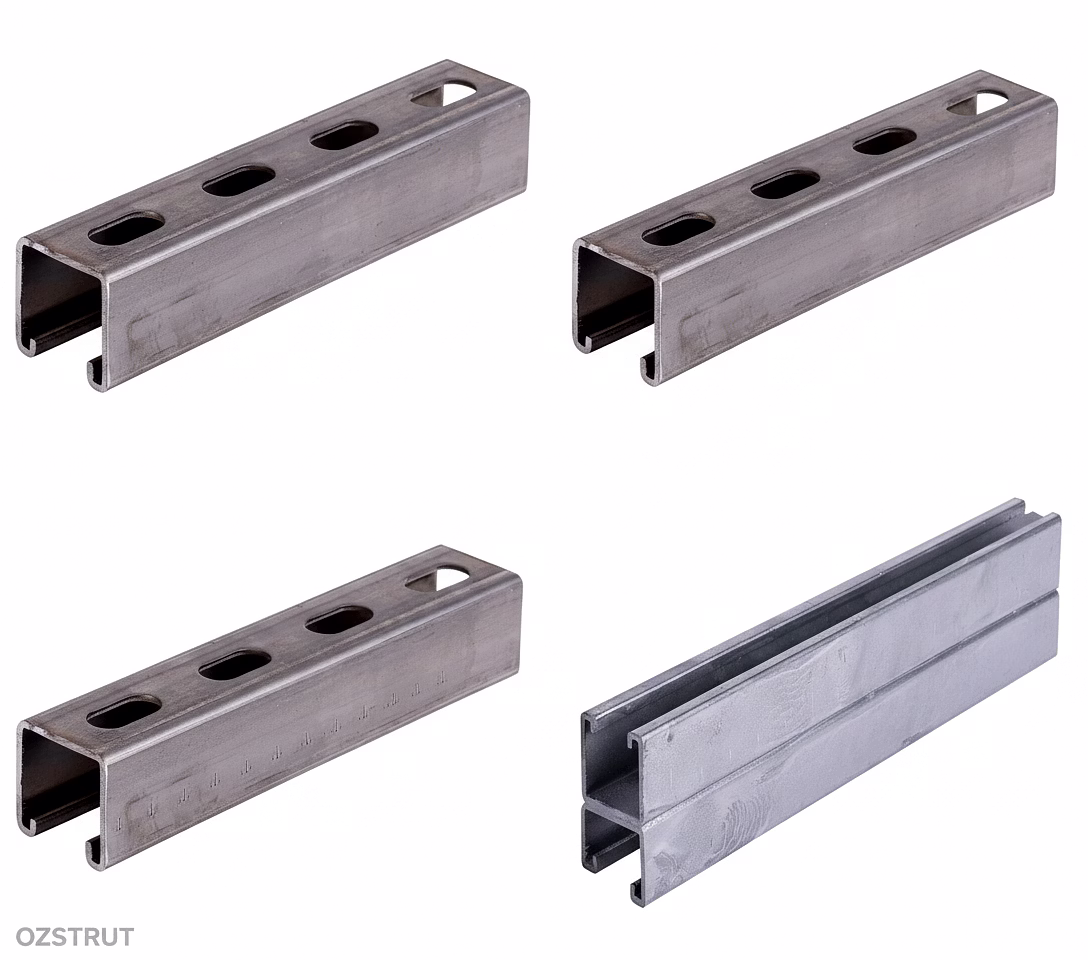

Strut Channel Systems

Overview:

Strut channels, also known as Unistrut or metal framing systems, are versatile structural components used to mount, brace, support, and connect lightweight structural loads. They are commonly utilized in the construction and electrical industries for supporting wiring, plumbing, or mechanical components such as air conditioning or ventilation systems.

Key Features:

Materials: Available in galvanized steel and stainless steel.

Dimensions: Standard sizes include 1-5/8" x 1-5/8" (41mm x 41mm), with variations in depth and width to suit specific applications.

Hole Patterns: Options include solid, slotted, and half-slot channels, allowing for flexible mounting and adjustments.

Finishes: Channels come with various finishes such as powder coating, epoxy coating, or natural finishes for enhanced durability and corrosion resistance.

Applications:

Electrical Conduit Support: Mounting EMT, rigid, and IMC conduits.

HVAC Systems: Supporting ductwork and ventilation components.

Piping Systems: Bracing and securing pipes in industrial settings.

Solar Panel Mounting: Providing a stable framework for solar installations.

Racking and Shelving: Creating customizable storage solutions in warehouses and industrial facilities.

Standards Compliance:

Manufactured to meet or exceed industry standards set by organizations such as the Metal Framing Manufacturers Association (MFMA).

Compliance with ASTM and ISO standards ensures consistent quality and performance.

Strut Accessories

Overview:

To complement our strut channel systems, we offer a wide range of accessories designed to enhance the functionality and versatility of the installations.

Key Accessories:

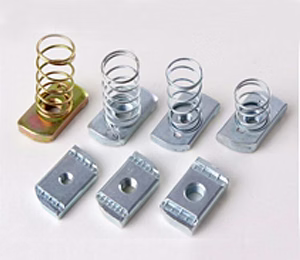

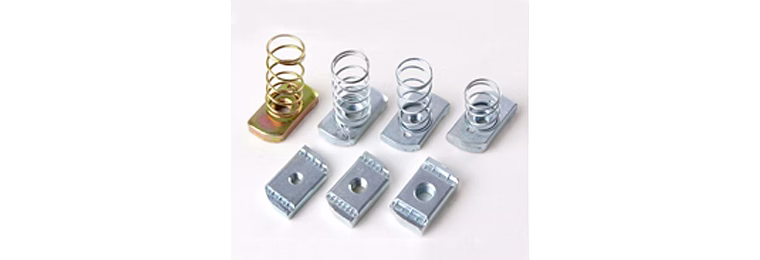

Channel Nuts: Available in various sizes and materials, including steel and stainless steel, to securely fasten components to the strut channels.

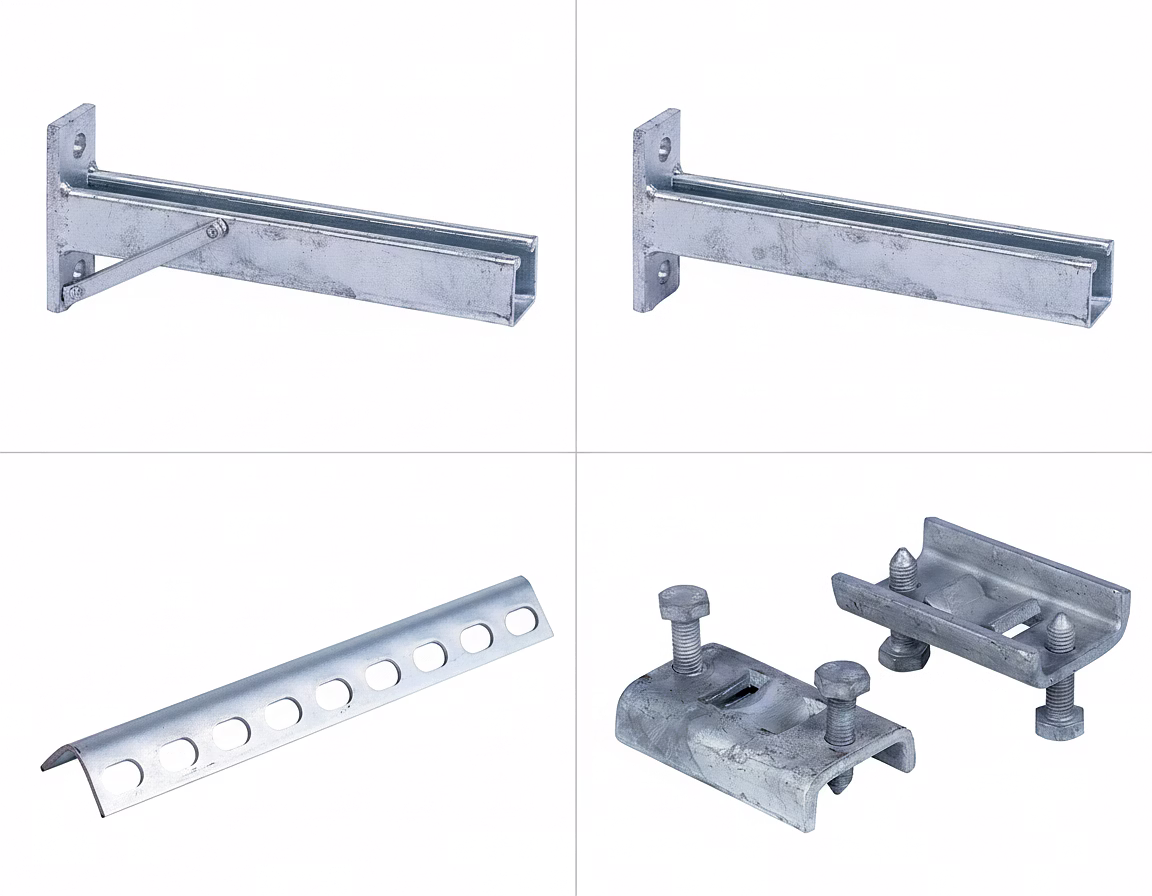

Brackets and Fittings: A comprehensive selection of brackets, angle fittings, and splice plates to facilitate the construction of frames and supports.

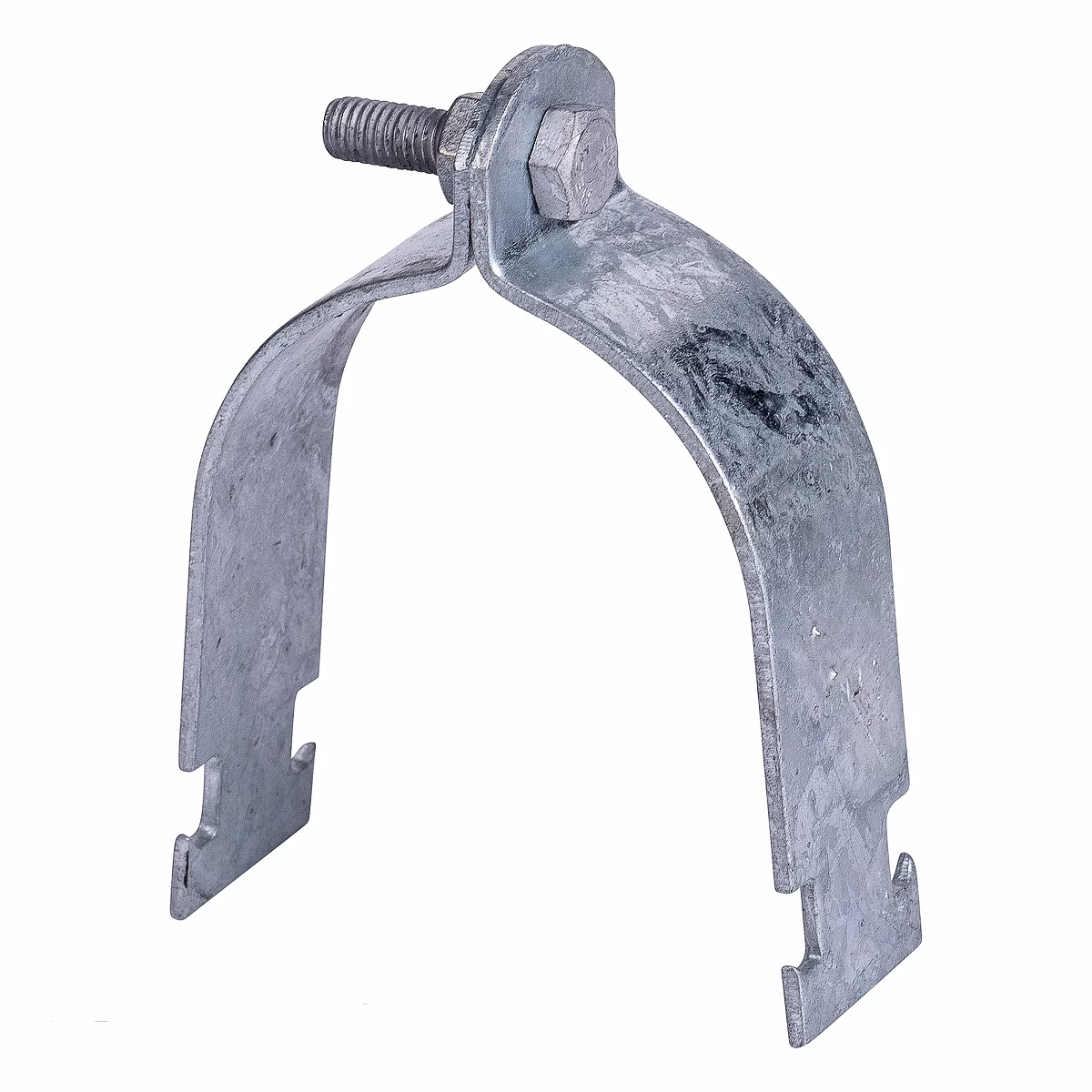

Hangers and Clamps: Essential for suspending and securing pipes, conduits, and other systems from the strut framework.

End Caps and Covers: Provide a finished appearance and protect the open ends of the channels from debris and moisture.

Mounting Hardware: Includes bolts, washers, and other fasteners necessary for the assembly of strut systems.

Material Specifications:

Steel: ASTM A36, A1011, A653, and A1011 Grade 33 SS for structural components.

Stainless Steel: ASTM A240, Type 304 and Type 316 for corrosion-resistant applications.

Cast Iron: Grey Cast Iron, ANSI/ASTM A48, Class #20 for specific applications requiring high strength.

Customization Options:

Pre-Cut Lengths: Channels and accessories can be supplied in custom lengths to meet project requirements.

Surface Finishes: Options include hot-dip galvanizing, powder coating, and anodizing for enhanced durability.

Pre-Assembly: Components can be pre-assembled into kits to streamline the installation process.
