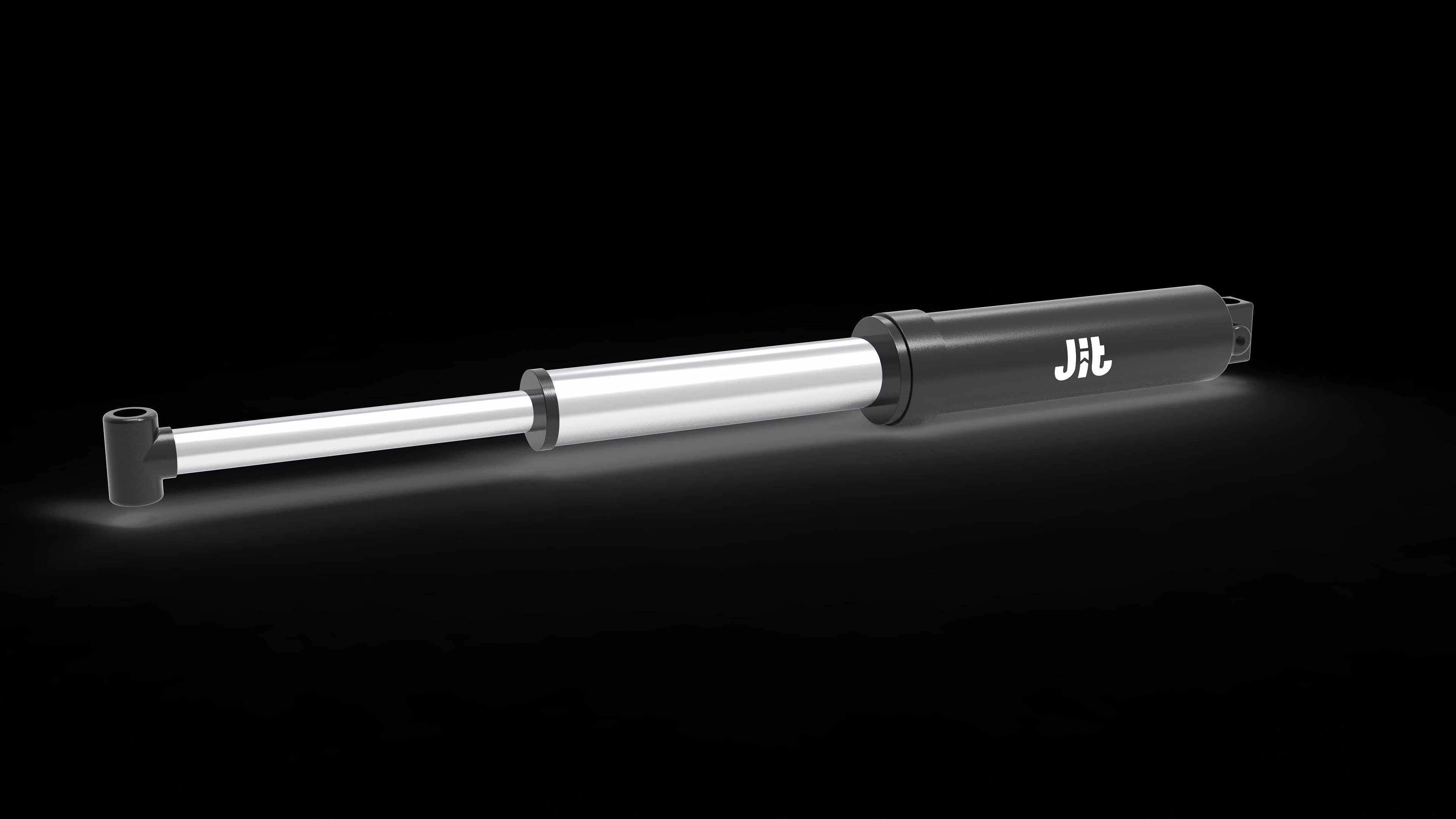

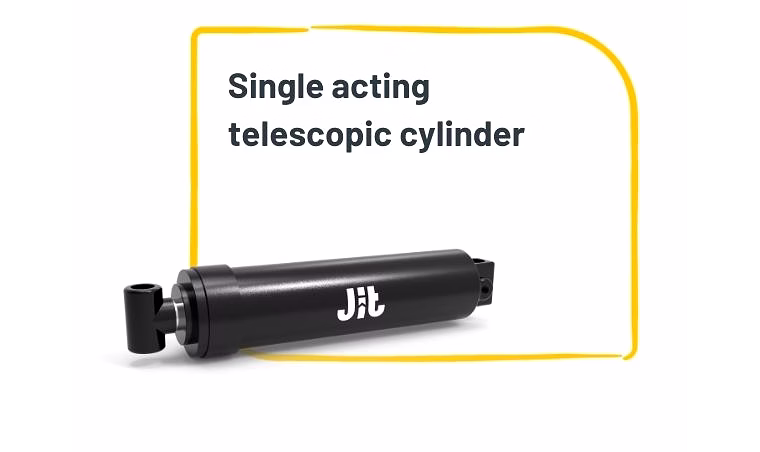

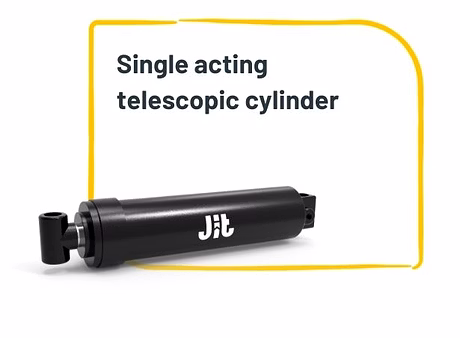

The Single Acting Telescopic Cylinder is a high-performance hydraulic actuator designed specifically for vertical lifting applications requiring long strokes in compact spaces. Featuring a multi-stage telescopic design, it offers an extended stroke length while maintaining a minimal collapsed height, making it ideal for applications such as dump trucks, tippers, hydraulic lifting platforms, and agricultural machinery. The cylinder operates on a single-acting principle, utilizing hydraulic pressure to power extension, while retraction is assisted by gravity or external loads, resulting in energy-efficient and reliable operation. Constructed from high-grade steels such as ST52 and EN8, with chrome-plated piston rods, the cylinder ensures excellent corrosion resistance and durability under heavy-duty use. The robust sealing system sourced from industry leaders like Hallite or Parker guarantees leak-proof performance at working pressures up to 250 bar. Versatile mounting options including trunnion, clevis, and cross-tube enable customized installation compatibility across diverse machinery. This cylinder is engineered for minimal maintenance and long service life, serving as an optimal solution for industries requiring efficient vertical lifting where hydraulic retraction is unnecessary or impractical.
Key Features
| Features | Description |
|---|---|
| Telescoping Multi-Stage Design | Enables long stroke lengths with a compact retracted size |
| Single Acting Operation | Hydraulic extension with gravity or load-assisted retraction |
| Compact Closed Height | Fits into space-constrained vertical lifting applications |
| Heavy-Duty Construction | High-grade ST52 or EN8 steel tubes with chrome-plated piston rods |
| Sealing System | High-performance seals from Hallite or Parker ensure leak-proof operation at pressures up to 250 bar |
| Mounting Options | Trunnion, Clevis, Cross-tube for versatile installation |
| Operational Pressure | Supports hydraulic pressures up to 250 bar |
| Applications | Ideal for dump trucks, tippers, hydraulic lifts, agriculture, refuse vehicles |
| Attributes | Description |
|---|---|
| Cylinder Type | Single Acting Telescopic Hydraulic Cylinder |
| Stroke Length | Customizable as per requirement, long strokes enabled by multi-stage design |
| Maximum Operating Pressure | 250 bar |
| Material of Tubes | High-strength ST52 or EN8 steel |
| Piston Rod Finish | Chrome-plated for corrosion and wear resistance |
| Sealing System | High-performance seals from Hallite or Parker |
| Retraction Mechanism | Gravity or load weight assisted |
| Mounting Styles | Trunnion, Clevis, Cross-tube, Flange |
| Typical Applications | Dump trucks, tippers, hydraulic lifting platforms, agricultural and construction machinery, refuse vehicles |
| Maintenance | Minimal maintenance required |
| Operation Mode | Powered extension, gravity retraction |
| Construction | Multi-stage nested tubes for compactness and long stroke |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The cylinder uses high-grade steel materials such as ST52 or EN8 for the tubes, complemented with chrome-plated piston rods to provide excellent strength, corrosion resistance, and durability suitable for heavy-duty applications.
Retraction is achieved through gravity or the load's own weight, requiring no hydraulic pressure. This gravity-assisted retraction simplifies the design and improves energy efficiency, particularly suitable for vertical applications like dump trucks and lifting platforms.
The cylinder supports multiple mounting options including trunnion, clevis, and cross-tube mounts, allowing versatile installation across different machinery and equipment configurations.
The cylinder is designed to operate reliably at hydraulic working pressures up to 250 bar, ensuring sufficient force output for demanding lifting and tipping operations.
Yes, the telescopic multi-stage design allows for customization of stroke length, enabling long strokes while maintaining a compact retracted dimension to fit space-constrained installations.
Typical industries include construction, agriculture, refuse collection, and transportation sectors that require efficient vertical lifting, such as dump trucks, tippers, hydraulic lifts, and farm equipment.
The sealing system utilizes high-quality seals from reputable manufacturers like Hallite or Parker, ensuring leak-proof operation and maintaining hydraulic pressure integrity at working pressures up to 250 bar, which enhances cylinder reliability and service life.
Country Of Origin: India
The Single Acting Telescopic Cylinder is a compact, high-stroke hydraulic actuator designed for vertical applications. It uses hydraulic pressure to extend and relies on gravity or load weight to retract. Its telescopic design allows long stroke lengths within a short retracted envelope, making it ideal for dump trucks, tippers, and lifting platforms where space-saving and efficient force output are required.
This cylinder features a multi-stage, nested tube construction, allowing it to deliver an extended stroke while minimizing retracted length. Made from high-strength materials like ST52 or EN8 steel, the cylinder includes a chrome-plated piston rod for added corrosion and wear resistance. The single-acting mechanism is simple, reliable, and energy-efficient, as hydraulic force is required only for extension. The retraction is achieved through external forces such as gravity or payload weight. Typical applications include dump trucks, hydraulic lifts, agricultural equipment, refuse vehicles, and more. It comes with versatile mounting options (clevis, flange, trunnion) and supports standard or custom stroke lengths. The sealing system, typically sourced from Hallite or Parker, ensures leak-proof operation under working pressures up to 250 bar. Designed for minimal maintenance and long service life, this cylinder is a preferred solution for heavy-duty lifting where downward force is not hydraulically powered.
Applications:
