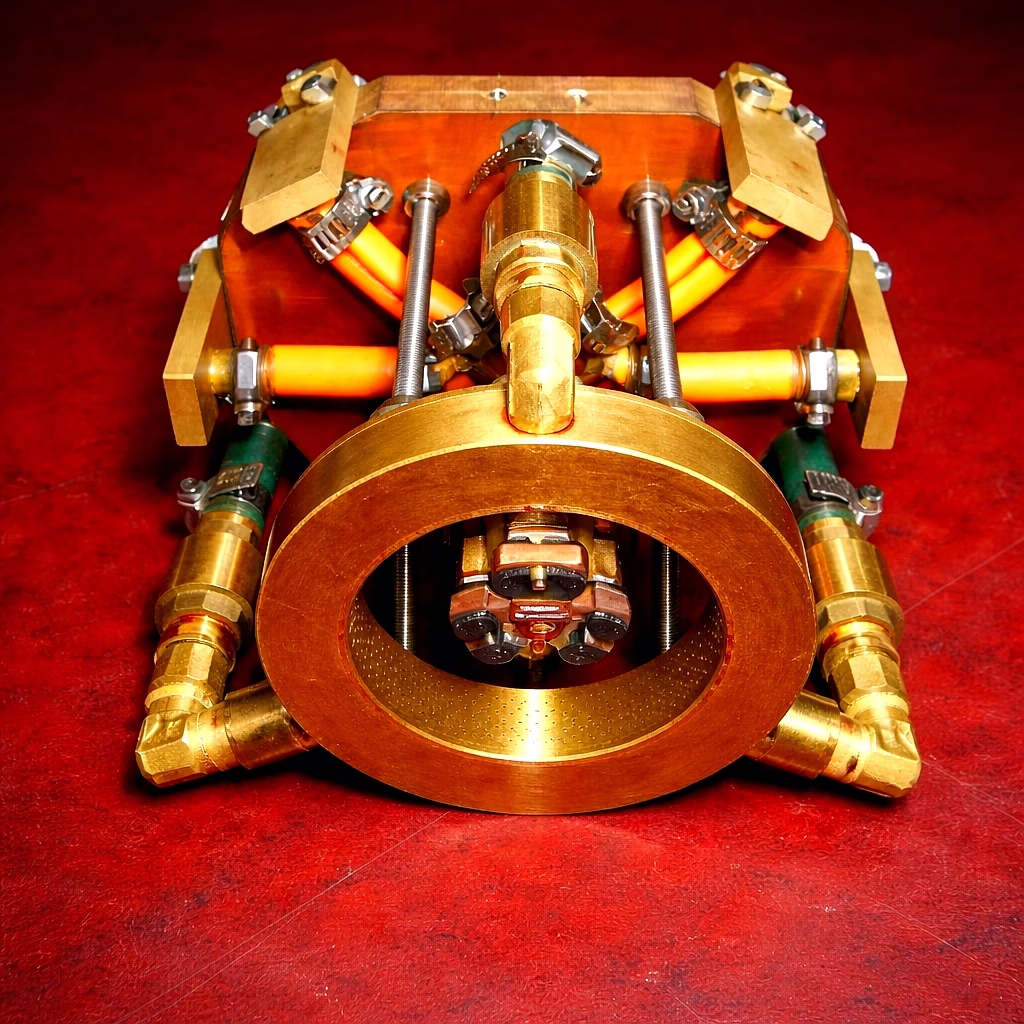

The Scanning Bell Induction Hardening Coil with Quench is a custom-designed copper heat treatment coil built for scan hardening of bell-profile components that require a controlled heating band followed by rapid quenching. This coil is intended for progressive induction hardening applications where the heat zone must move precisely along the component surface to achieve a repeatable case pattern and consistent surface hardening. Developed for industrial heat treatment operations, this scanning bell induction coil is especially suitable for parts with bell-shaped or profile-based geometries where standard fixed coils may not deliver the required heat distribution. The scanning/traverse hardening process allows the heating band to travel in a controlled manner over the workpiece, making it ideal for long or contoured components that need localized hardening along a specific path. The integrated or follow-up quench arrangement supports immediate cooling after the heated zone, helping to form the desired hardened layer and improving process control in production environments. This makes the coil suitable for heat treatment lines, replacement projects, tooling updates, and application-specific hardening systems. Built as a custom component, the coil can be matched to the workpiece drawing, machine frequency, connection style, cooling arrangement, and quench requirement before final fabrication. Its copper conductor construction provides the conductivity needed for induction heating operations, while the water-cooled design supports thermal stability during repeated industrial use. For B2B buyers looking for a scanning induction hardening coil for bell-profile parts, this product offers a specialized solution for precise heat band control, progressive hardening, and quench-supported surface treatment in demanding manufacturing and maintenance applications.
Key Features
| Features | Description |
|---|---|
| Product Type | Scanning Bell Induction Hardening Coil with Quench |
| Application | Scan hardening of bell-profile components |
| Heating Method | Progressive scanning / traverse hardening |
| Quench Support | Designed for follow-up or integrated quenching |
| Customization | Custom-built for application-specific fit |
| Construction Material | Copper conductor |
| Cooling Type | Water-cooled design |
| Use Case | Industrial heat treatment, replacement, and tooling projects |
| Attributes | Description |
|---|---|
| Product Name | Scanning Bell Induction Hardening Coil with Quench |
| Brand | TECH SUKRATU |
| Category | Induction Coils |
| Application | Scan hardening of bell-profile components with precise heating band and follow-up quench |
| Heating Process | Scanning / traverse induction hardening |
| Quench Arrangement | Integrated or follow-up quench; exact setup to be confirmed |
| Material | Copper conductor; exact grade to be confirmed |
| Cooling | Water-cooled; exact arrangement to be confirmed |
| Customization | Available as per workpiece drawing and process requirement |
| Compatibility | Can be matched to machine frequency and application requirement |
| MOQ | 1 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It is designed for scan hardening of bell-profile components where the heating band must move progressively along the workpiece, followed by quenching for surface hardening.
Quench support allows the heated zone to cool rapidly after induction heating, helping form the required hardened case and improving process consistency.
Yes, it is intended to be customized based on the workpiece drawing, profile geometry, heating zone, and machine setup.
Yes, the coil supports scanning or traverse hardening where the heating band moves progressively over the component.
Buyers should confirm the workpiece drawing, target heating zone, machine frequency, connection style, cooling arrangement, and quench requirement.
Yes, it is suitable for industrial heat treatment lines, replacement projects, and application-specific tooling requirements.
The product is noted as a copper conductor coil, though the exact material grade and construction should be confirmed before final order.
Brand: tech sukratu
Country Of Origin: India
This copper scanning bell induction hardening coil is engineered for repeatable surface hardening where controlled case depth and narrow heat-affected zones are critical. It is specified for batch and line-level hardening of gearwork and similar rotational parts where uniformity and repeatability drive production yield.
Engineered for automotive gear hardening, this scanning bell coil suits applications requiring consistent case depth across involute profiles. The coil geometry and scanning profile reduce thermal gradients and minimize dimensional drift. It integrates with conveyor or rotary indexing lines for staged processing and with PLC systems for repeatable cycle control.
Share required workpiece dimensions, target case depth or HRC, throughput requirements and material grade to receive a tailored engineering proposal and timeline. Provide cycle-time expectations and quench medium preferences for accurate system sizing.
