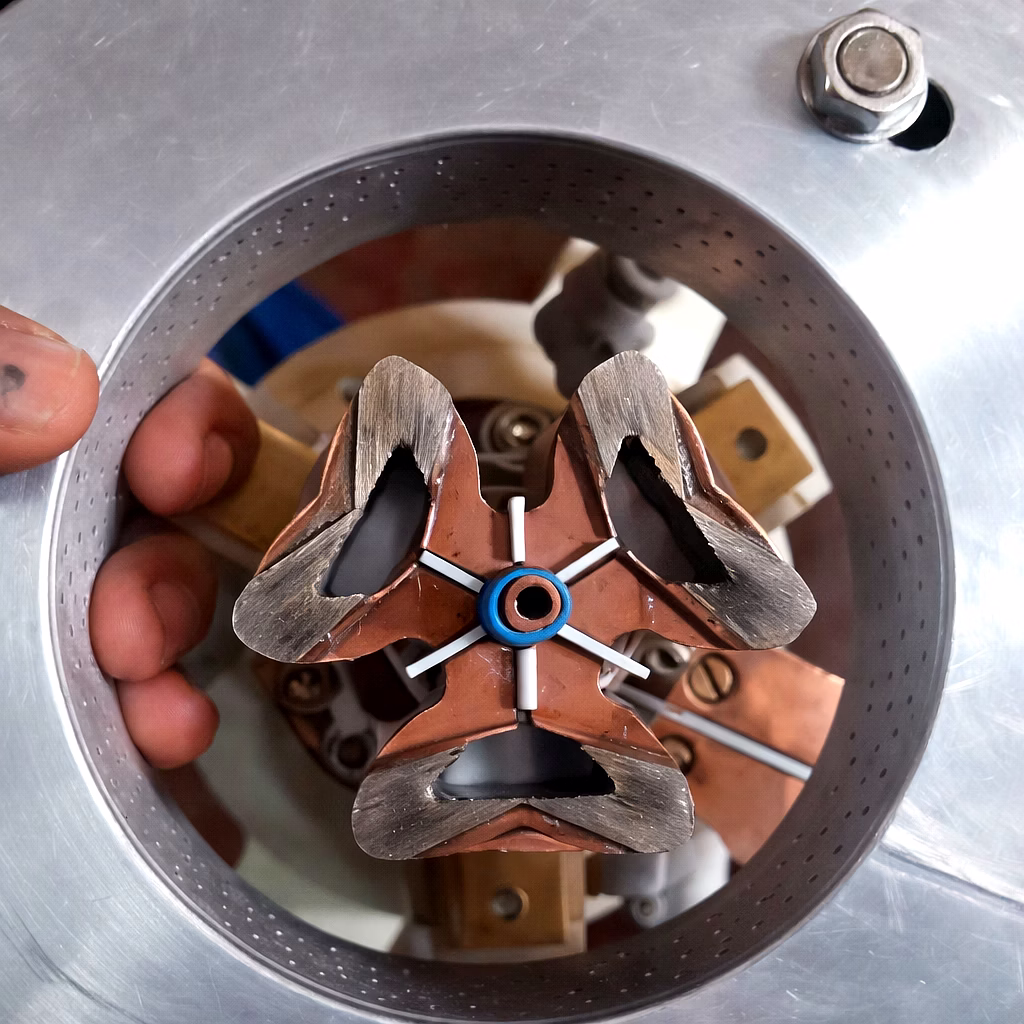

The Quench Ring for Bell Coil by Tech Sukratu is a custom copper heat treatment accessory designed for spray quenching of heated zones immediately after induction heating with a bell coil. Built for industrial hardening processes, this quench ring helps ensure controlled cooling so the hardened layer develops consistently around the target area. This product is especially useful in applications where repeatable case pattern control, precise thermal management, and geometry-specific fit are critical. It is suited for induction hardening lines, heat treatment systems, replacement coil projects, and tooling setups that require quench integration as part of the final process design. As a custom application-specific component, the quench ring can be matched to the part profile, machine frequency, connection style, cooling arrangement, and process requirement before final system approval. Buyers evaluating a quench ring for bell coil should verify the workpiece drawing, heating zone, and quench requirements to ensure the correct fit and performance. For B2B buyers in heat treatment and induction hardening, this product supports consistent surface hardening, controlled cooling after heating, and integration into production environments where accuracy and repeatability matter. It is a specialized induction coil accessory intended for industrial use and export-ready procurement.
Key Features
| Features | Description |
|---|---|
| Application | Spray quenching of heated zones following induction heating with a bell coil |
| Design Fit | Custom-built around the target part geometry for process-specific hardening requirements |
| Process Control | Supports repeatable heating and case pattern control |
| Industrial Use | Suitable for heat treatment lines, replacement projects, and tooling requirements |
| Compatibility | Can be matched to machine frequency and application requirement before final setup |
| Quench Integration | Configured for cooling directly after the heated zone |
| Attributes | Description |
|---|---|
| Product Type | Quench Ring for Bell Coil |
| Brand | Tech Sukratu |
| Category | Induction Coil Accessories |
| Application | Spray quenching after induction heating |
| Material | Copper conductor (exact material to be confirmed) |
| Cooling | Water-cooled arrangement (to be confirmed) |
| Customization | Application-specific fit subject to final requirement confirmation |
| Quench Setup | Integrated or following quench arrangement (to be confirmed) |
| Machine Compatibility | Can be matched to machine frequency and application need |
| Usage Environment | Industrial heat treatment and induction hardening systems |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It delivers spray quenching to the heated zone immediately after induction heating so the hardened layer forms consistently around the target area.
The ring is intended to be built around the target part geometry so cooling is concentrated where the hardening pattern is needed.
Yes, it is suitable for industrial heat treatment lines and replacement coil or tooling requirements where application-specific fit is required.
Buyers should confirm the workpiece drawing, heating zone, machine frequency, connection style, and cooling arrangement to ensure correct application fit.
The listing notes copper conductor as the typical material, but the exact material should be confirmed before ordering.
Yes, it is designed to support repeatable heating and case pattern control in industrial hardening applications.
Brand: tech sukratu
Country Of Origin: India
This quench ring is a precision accessory for bell-type induction hardening coils. It is engineered to deliver consistent quench coverage immediately after induction heating. The ring reduces thermal shock and aids dimensional control on axially symmetric parts such as gears and rings.
The quench ring is used with bell coils for gear, bearing race and ring hardening where rapid, repeatable quenching is required. Its segmented nozzle array enables directional quench to limit distortion on critical diameters. It can be integrated with closed-loop quench recirculation systems and automated valve control for repeatability in batch or inline operations.
Provide bell coil interface dimensions, quench medium, desired cooling curve and part geometry to get a detailed quench ring design and delivery schedule. Include retrofit constraints if adapting to existing equipment.
