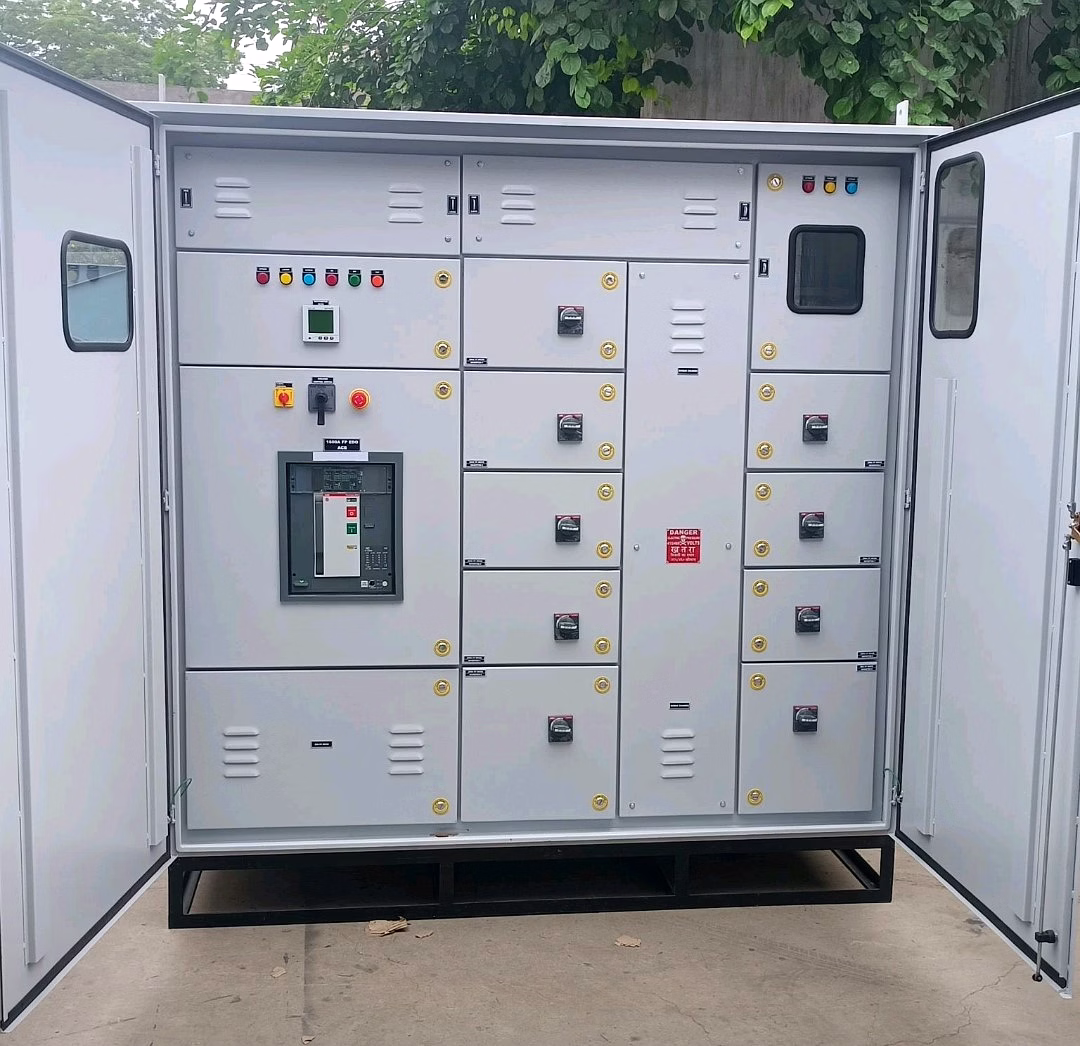

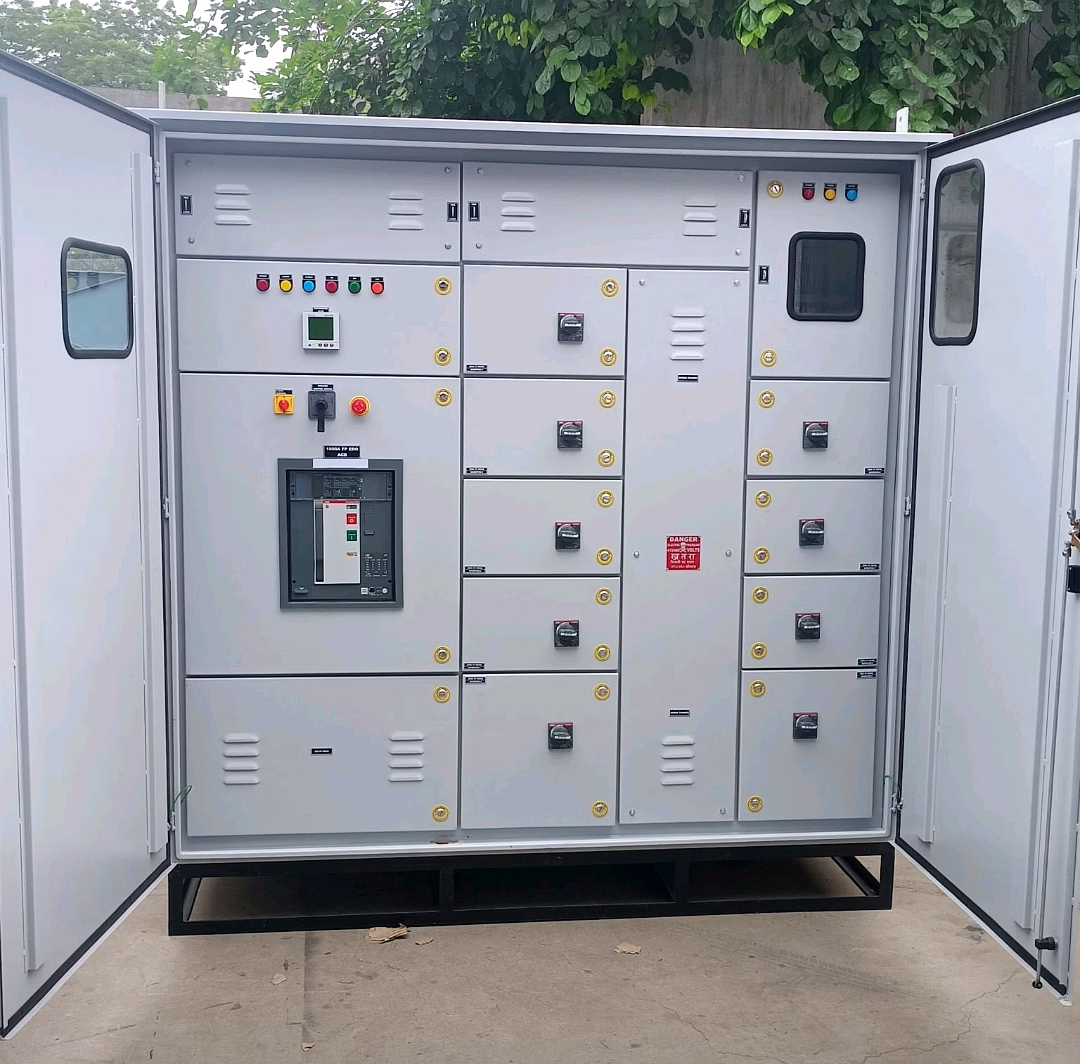

The Power Control Center (PCC) Panel serves as the central hub in electrical power distribution systems, providing a comprehensive control and protection solution for major power circuits. Specifically designed to accommodate outputs from generators or transformers, the PCC panel integrates essential power circuit components such as circuit breakers, busbars, potential transformers (PTs), current transformers (CTs), and insulators. These components collectively ensure reliable power control, distribution, and safety by facilitating efficient breaker operations, accurate measurement, and robust protection. The PCC also incorporates advanced protection circuits aimed at safeguarding critical equipment, including transformers, motors, and generators, against electrical faults. The panel effectively distributes output power through feeders to downstream Motor Control Center (MCC) panels, making it an indispensable element in industrial and commercial electrical power management setups. Customizable to meet specific load and protection requirements, the PCC panel is engineered for durability, safety, and operational excellence in medium to large-scale electrical installations.
Key Features
| Features | Description |
|---|---|
| Primary Function | Centralized control and protection of major electrical power circuits from generators or transformers. |
| Key Components | Circuit breakers, busbars, potential transformers (PTs), current transformers (CTs), insulators. |
| Protection Capabilities | Safeguards transformers, motors, and generators through integrated protection circuits. |
| Power Distribution | Distributes power output to Motor Control Center (MCC) panels via feeders. |
| Application | Used in industrial, commercial, and power plant electrical distribution systems. |
| Customization | Panels are custom-built to meet specific power load and protection requirements. |
| Safety Elements | Equipped with isolators and protective devices to enhance operational safety. |
| Attributes | Description |
|---|---|
| Voltage Rating | Typically designed for medium voltage levels (e.g., 415 V to 11 kV) |
| Current Rating | Varies based on application; commonly ranges from 100 A to several kA |
| Material | Constructed using high-quality metal enclosures with insulated busbars |
| Circuit Breaker Type | Air circuit breakers (ACB) or molded case circuit breakers (MCCB) |
| Protection Relays | Includes Overcurrent, Earth fault, and Differential protection relays |
| Standards Compliance | Manufactured in accordance with IEC 61439-2 and IS standards |
| Installation | Wall-mounted or floor-mounted, depending on site requirements |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the PCC panels are designed to be customizable to accommodate different voltage ratings from 415 V up to 11 kV and varying current capacities as per the specific industrial application.
The PCC panel typically incorporates protection relays including overcurrent, earth fault, and differential relays to ensure comprehensive protection for transformers, motors, and generators.
The output power from the PCC panel is distributed to MCC panels via feeders, which are essentially cables or bus ducts configured to reliably transmit electrical power downstream.
Yes, PCC panels are manufactured following IEC and Indian IS standards like IEC 61439-2, ensuring compliance with Indian electrical safety and regulatory requirements.
PCC panels commonly use air circuit breakers (ACB) and molded case circuit breakers (MCCB) depending on the load and protection requirements.
PCC is a short form of Power Control Center. This is a heart of the control circuit. The output of the generators or transformers is given to PCC. The major power circuit equipments will be installed in this panel. It consists of circuit breakers, Busbar, PTs (Potential Transformer), CTs (Current Transformer), insulators etc. Major protection circuits will be installed in this panel to protect transformers, Motors, Generators etc. The output Power from the PCC panel will be distributed to MCC panels via feeders.
