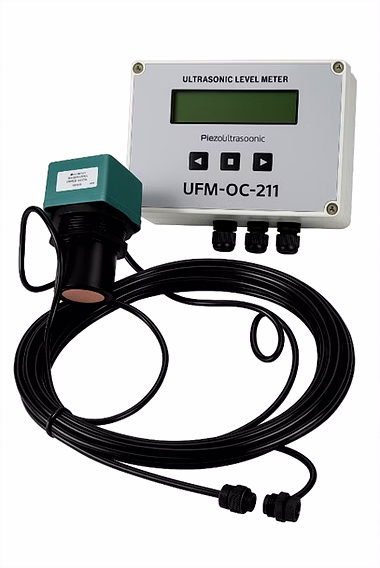

The Open Channel Flow Meter is a precision instrument designed to measure water flow in open channels such as canals, weirs, and effluent treatment plants. Equipped with advanced ultrasonic or radar sensor technology, this flow meter provides highly accurate, real-time flow measurement within a wide range of 0.1 liters per second up to 9999 cubic meters per second. It supports multiple communication outputs including 4-20mA, RS485, Modbus, or customized communication protocols to seamlessly integrate with industrial control and monitoring systems. The display features an easy-to-read LCD screen with a totalizer, enabling total flow measurement over time. This meter is compatible with various channel types, including V-notch, Parshall, and rectangular channels, making it versatile for a wide range of hydraulic engineering and water management applications. Its rugged design and smart solution framework offer reliable and maintenance-friendly operation in harsh outdoor environments where precise flow data is critical for operational efficiency and compliance.
Key Features
| Features | Description |
|---|---|
| Measurement Range | 0.1 liters/second to 9999 cubic meters/second |
| Sensor Type | Ultrasonic or Radar sensor options |
| Output Signals | 4-20mA, RS485, Modbus protocol, Customized communication protocols |
| Display | LCD screen with digital totalizer for cumulative flow display |
| Channel Compatibility | Supports V-notch, Parshall, and Rectangular channel types |
| Application | Ideal for canals, weirs, and effluent water treatment plants |
| Accuracy | High precision measurement suitable for environmental and industrial monitoring |
| Installation Environment | Outdoor and industrial use with rugged sensor housing |
| Customization | Supports custom output protocol for integration flexibility |
| Attributes | Description |
|---|---|
| Measurement Range | 0.1 l/s to 9999 m³/s |
| Output Interfaces | 4-20mA analog, RS485 serial, Modbus, customizable |
| Display Type | LCD with totalizer counter |
| Compatible Channel Types | V-notch, Parshall flumes, rectangular channels |
| Sensor Technology | Ultrasonic or radar sensors for non-contact flow measurement |
| Power Supply | Typically 24V DC (specify during order) |
| Operating Temperature Range | -10°C to 60°C |
| Ingress Protection | IP65 or higher (depending on model) |
| Material | Corrosion-resistant housing suitable for outdoor installation |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The meter supports measurement in V-notch, Parshall, and rectangular channel types, making it suitable for various canal and weir configurations.
Yes, in addition to standard outputs like 4-20mA, RS485, and Modbus, the meter can be configured for customized communication agreements to integrate with specific industrial systems.
It measures flow rates from as low as 0.1 liters per second up to 9999 cubic meters per second, suitable for small streams to large-scale canal flows.
Users can choose between ultrasonic sensors and radar sensors, both non-contact and reliable for accurate flow measurement in open channels.
Yes, the flow meter features a rugged, corrosion-resistant housing typically rated at IP65 or higher, ensuring durability in outdoor and industrial environments.
Country Of Origin: India
Smart Solutions for Open Flow.
Used for canals, weirs, and effluent plants with ultrasonic or radar sensors.
Technical Specs:
• Measurement Range: 0.1l/s - 9999 m3/s
• Output: 4-20mA, RS485, Modbus Agreement or Customised Agreement
• Display: LCD with totalizer
• Channel Types: V-notch, Parshall, Rectangular
