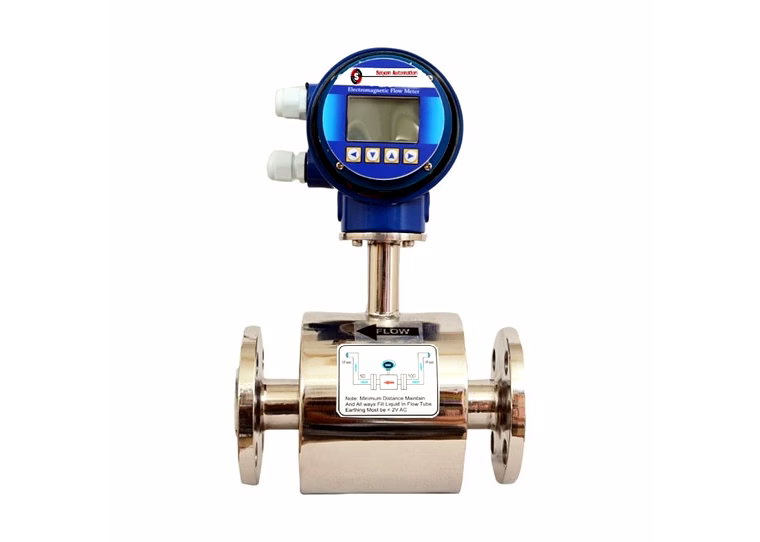

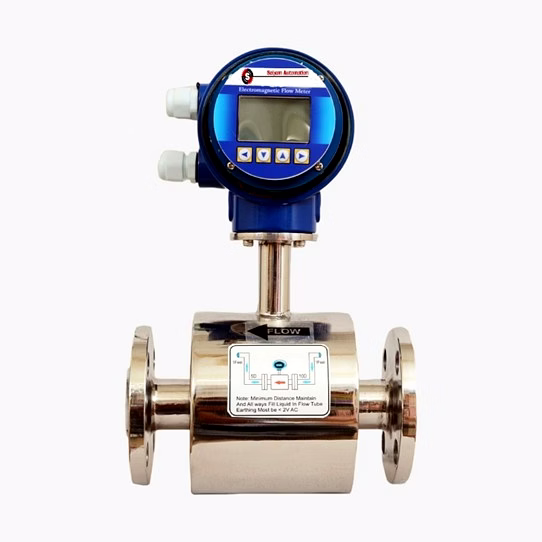

The Electromagnetic Flow Meter (Mag Meter) is a precision instrument designed for accurate measurement of conductive liquid flow rates including water, acids, and slurries. Featuring advanced electromagnetic induction technology based on Faraday's Law, it delivers highly reliable and maintenance-free operation due to its lack of moving parts. Its sensor housing is available in MS, SS 304, or SS 316 materials, ensuring robust performance and corrosion resistance in diverse industrial environments. The meter supports a wide range of line sizes from DN10 to DN600, making it adaptable for various pipeline applications. Integrated output options include 4-20mA, pulse signals, and RS485 Modbus communication for seamless integration with industrial control systems. Optional battery operation is available for remote or power-sensitive installations. The Electromagnetic Flow Meter is designed with IP65 or IP67 ingress protection rating, offering durability and suitability for harsh operating conditions. Its lining options such as PTFE, Rubber, or PFA further enhance its chemical resistance and longevity, making it the ideal solution for water treatment, chemical processing, slurry monitoring, and food industry applications. Easy to install and maintain, this mag meter provides optimal accuracy and reliable flow measurement critical for process optimization and quality control in industrial workflows.
Key Features
| Features | Description |
|---|---|
| Measurement Principle | Electromagnetic induction based on Faraday's Law |
| Suitable Liquids | Conductive liquids such as water, acids, slurries |
| Line Size Range | DN10 to DN600 |
| Sensor Housing Material | MS / Stainless Steel 304 / Stainless Steel 316 |
| Output Signals | 4-20mA, Pulse, RS485 Modbus |
| Power Supply | 85-265V AC / 24V DC; Optional Battery Operated |
| Ingress Protection | IP65 standard, IP67 optional |
| Lining Materials | PTFE / Rubber / PFA |
| Maintenance | No moving parts - minimal maintenance required |
| Installation Types | Flanged, Wafer, Insertion (varies by model) |
| Attributes | Description |
|---|---|
| Measurement Range | Suitable for various flow velocities depending on pipe diameter |
| Accuracy | Typically ±0.5% to ±1% of reading |
| Output Types | Analog 4-20mA, Digital Pulse, RS485 Modbus communication |
| Power Consumption | Low power with optional battery operation |
| Operating Temperature | Dependent on sensor housing and lining; typically up to 130°C with PTFE lining |
| Installation Environment | Indoor/outdoor, IP65/IP67 rated for protection against dust and water |
| Communication Protocol | Modbus RTU over RS485 (optional) |
| Process Pressure | Varies with sensor housing and lining; consult specific model for exact ratings |
| Signal Output Range | Corresponds linearly to flow velocity with low signal noise |
| Flow Tube Lining Options | PTFE for chemical resistance, Rubber for general purpose, PFA for high purity applications |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Electromagnetic Flow Meter offers PTFE, Rubber, and PFA lining options. PTFE lining is highly resistant to aggressive chemicals and is suitable for acidic and corrosive liquids. Rubber lining is generally used for water and slurries providing good abrasion resistance. PFA lining provides high purity and excellent chemical resistance particularly useful in food and pharmaceutical processes.
Yes, there is an optional battery-operated version of the Electromagnetic Flow Meter. This is advantageous in remote installations without reliable mains power, portable flow measurement needs, or in hazardous locations where wiring may be restricted.
The meter supports 4-20mA analog output and digital pulse output for basic control systems. Additionally, it supports RS485 Modbus communication protocol, allowing seamless integration into modern SCADA and industrial automation platforms.
The standard meter has an IP65 rating protecting against dust and low-pressure water jets, suitable for many indoor and outdoor industrial environments. An optional IP67 version provides protection against temporary immersion in water, making it suitable for harsh outdoor or washdown conditions.
The meter measures flow velocity through electromagnetic induction, generating a voltage proportional to flow rate without any mechanical moving components. This eliminates wear and tear, reduces maintenance, and maintains consistent accuracy over time.
Country Of Origin: India

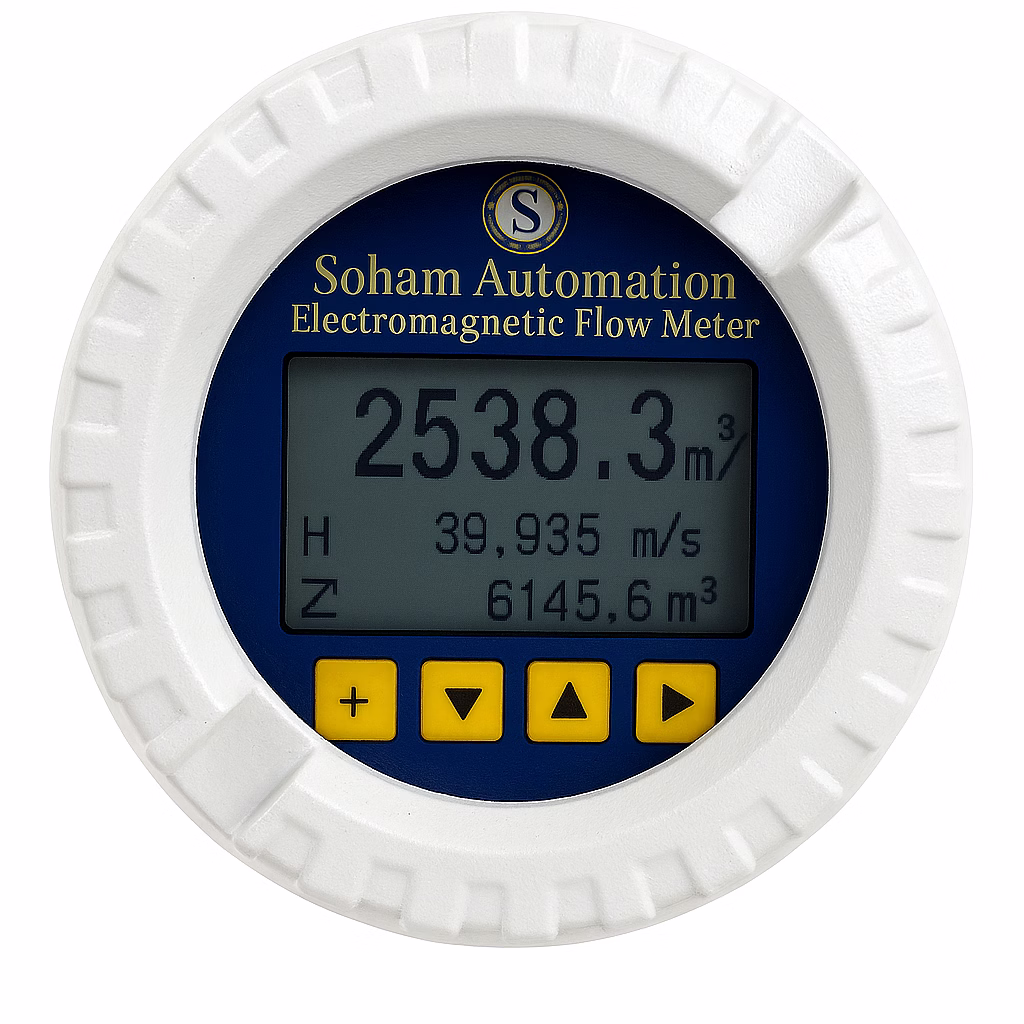

An electromagnetic flow meter (magmeter) is a highly accurate and reliable device used to measure the flow rate of conductive liquids such as water, chemicals, and slurries. It operates on Faraday's Law of Electromagnetic Induction, generating a voltage signal proportional to the flow velocity. With no moving parts and minimal pressure drop, magmeters are ideal for applications in water treatment plants, chemical processing, and food industries. They offer excellent durability, low maintenance, and are resistant to corrosion and wear. Electromagnetic flow meters are available in flanged, wafer, and insertion types, and often come with digital displays and communication options.
