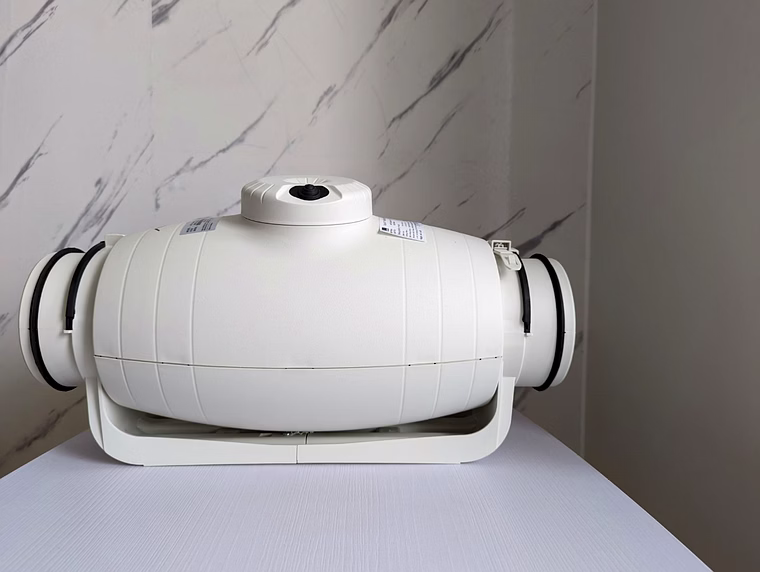

The MTD Silent Inline Mixed Flow Fan is an ATEX certified ventilation solution specifically engineered for industrial and commercial settings that require both high-performance airflow and noise reduction. Constructed with durable plastic material, it features a uniquely designed internal skin that directs sound waves efficiently towards the sound-absorbent material, significantly reducing operational noise. This fan is equipped with rubber gaskets on both inlet and outlet to effectively absorb vibrations, ensuring smoother and quieter operation. Its modular body design allows for easy dismantling and maintenance. The connection box is rotatable 360°, allowing flexible and convenient power cable installation even in tight spaces. Ideal for applications where space constraints exist, such as installations inside false ceilings, the fan's low-profile form factor maximizes installation versatility. It operates on a speed-controllable 230V-50Hz motor with two selectable speeds, IP44 rated for water and dust protection. The motors are Class B insulated with ball bearings and integrated safety thermal overload protection to ensure reliable and safe long-term operation. Additionally, the external terminal box benefits from an IP55 rating, providing superior protection against dust and water ingress, making the MTD Silent Inline Mixed Flow Fan a robust and reliable choice for varied industrial ventilation requirements.
Key Features
| Features | Description |
|---|---|
| Certification | ATEX Certified for explosive atmospheres |
| Material | Durable plastic housing with sound-directing internal skin |
| Noise Reduction | Sound-absorbent lining and rubber gaskets on inlet and outlet for vibration absorption |
| Motor Type | Speed controllable 230V-50Hz two-speed motor |
| Ingress Protection | Motor IP44, External terminal box IP55 |
| Motor Insulation Class | Class B with ball bearings |
| Thermal Protection | Safety thermal overload protection integrated in motor |
| Design | Low-profile for compact installation in limited spaces such as false ceilings |
| Connection Box | 360° rotatable connection box for flexible power cable installation |
| Maintenance | Body is dismantlable for easier maintenance |
| Attributes | Description |
|---|---|
| Voltage | 230V |
| Frequency | 50Hz |
| Number of Speeds | Two speed motor |
| Housing Material | Plastic |
| Certification | ATEX |
| Motor Protection Rating | IP44 |
| External Terminal Box Protection | IP55 |
| Motor Insulation Class | Class B |
| Bearing Type | Ball bearings |
| Thermal Protection | Safety thermal overload |
| Installation Type | Inline, suitable for false ceilings and limited spaces |
| Connection Box Rotation | 360 degrees |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the fan is ATEX certified, making it suitable for use in potentially explosive atmospheres as per industrial safety standards.
Yes, the connection box can rotate 360 degrees allowing flexible power cable connections even in confined or hard-to-reach installation sites.
It has a sound-directing internal skin combined with sound-absorbent lining and rubber gaskets on the inlet and outlet to considerably reduce sound and vibration during operation.
Yes, the motor has safety thermal overload protection, Class B insulation, ball bearings for durability, and IP44 protection for dust and splashing water, while the terminal box is IP55 rated for enhanced protection.
Yes, its low-profile design and compact size make it ideal for installation in spaces where height or room is limited, such as false ceilings.
Country Of Origin: India
ATEX Certified Fan
Manufactured in plastic material, with a specifically designed internal skin to direct the sound waves in the right angle for them to be captured by the sound-absorbent material.
Fitted with rubber gaskets on the inlet and outlet to absorb vibrations, a body that can be dismantled
Connection box can be rotated 360deg, to facilitate easy connection of the power cable.
The low profile of the MTD Silent fans makes them the most effective solution for installations where the space of installation is limited such as false ceilings
Speed controllable 230V-50Hz motor, of two speed motors. IP 44.
Motors are Class B, with ball bearings and safety thermal overload protection
IP 44. External terminal box IP 55.
