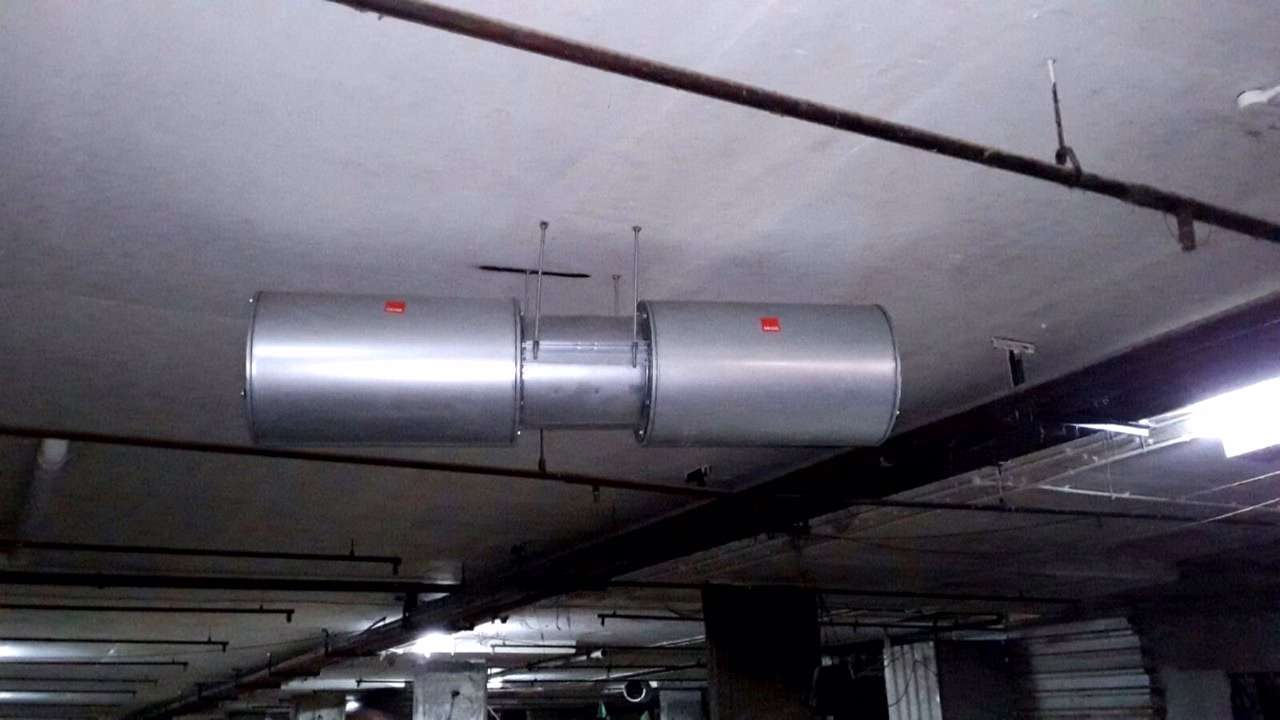

The Axial Jet Fan is designed for efficient airflow in industrial and commercial applications. Constructed with a durable double flanged casing made from mild steel or galvanized steel, it ensures robust performance and long-lasting durability. The impeller is crafted from lightweight yet strong aluminum, enhancing fan efficiency and reliability. The fan casing's mild steel components are protected with a zinc-rich primer and polyester powder coating, or alternatively, a galvanized finish, to provide superior corrosion resistance. Equipped with totally enclosed Class 'F' or 'H' motors, the axial jet fan guarantees operational safety and longevity, with a minimum IP54 protection rating to prevent dust and water ingress. Motor starting methods are optimized with DOL starting for motors up to 2.2kW and star/delta starting for motors 3.0kW and above, catering to different power requirements. The unit primarily operates as a uni-directional fan, but reversible flow options are available on request. The fan includes a silencer with an outer galvanized steel casing and an inner perforated steel casing, utilizing glass fiber absorption material for superior noise reduction to ensure quieter operation. An inlet bell-mouth design facilitates smooth airflow entry, enhancing aerodynamic efficiency. The fan is supplied with a standard 2D silencer; however, custom silencer lengths can be produced to match unique acoustic or performance needs.
Key Features
| Features | Description |
|---|---|
| Construction Material | Double flanged casing in mild steel or galvanized steel |
| Impeller Material | Aluminium |
| Coating/Finish | Zinc rich primer with polyester powder coating or galvanized finish |
| Motor Type | Totally enclosed Class 'F' / 'H' motors with minimum IP54 protection |
| Motor Starting Method | DOL starting for motors ≤ 2.2kW, star/delta starting for motors ≥ 3.0kW |
| Flow Direction | Uni-directional standard; reversible options available on request |
| Silencer Construction | Outer galvanized steel sheet and inner galvanized perforated steel sheet |
| Noise Reduction | Glass fiber absorption filler material for excellent acoustic performance |
| Inlet Design | Bell-mouth inlet for smooth airflow |
| Silencer Options | Standard 2D silencer with customizable length available |
| Attributes | Description |
|---|---|
| Casing Type | Double flanged |
| Impeller | Aluminum |
| Material Finish Options | Zinc rich primer + polyester powder coating / Galvanized finish |
| Motor Class | Class 'F' or 'H' |
| Motor Protection Rating | IP54 minimum |
| Motor Power Range | Up to 2.2kW with DOL starting; 3.0kW and above with star/delta starting |
| Flow Direction | Uni-directional standard; reversible on request |
| Silencer Material | Galvanized steel outer casing and perforated inner casing |
| Noise Absorption | Glass fiber |
| Silencer Length | Standard 2D; customizable upon request |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Axial Jet Fan motors come with a minimum IP54 protection rating ensuring protection against dust ingress and water spray.
Yes, the standard model is uni-directional, but reversible flow fans are available on request to suit different application needs.
The impeller is made of aluminum for lightweight efficiency, while the casing is double flanged and made of mild or galvanized steel for durability.
Yes, the fan includes a silencer made of galvanized steel with glass fiber absorption material as a filler to provide excellent noise reduction.
Standard units come with a 2D silencer, but custom lengths can be supplied to meet specific acoustic or performance requirements.
Motors up to 2.2kW use direct online (DOL) starting, while motors 3.0kW and above employ star/delta starting for reduced electrical stress.
Country Of Origin: India
Fan
Construction
Double flanged casing is produced in mild steel or galvanized steel. Impeller is made of Aluminum.
Finish
Zinc rich primer and polyester powder coating or galvanized finishing are available for all mild steel parts.
Motors
Totally enclosed Class 'F'/ 'H' motors with a min. IP54 protection are fitted as standard. Motors up to 2.2kW are supplied with DOL starting, motors 3.0kW and
above are with star/delta starting.
Flow Direction
Uni-directional, reversible fan is available upon request.
Silencer
Outer casing made of galvanized steel sheet and inner casing made of galvanized steel perforated sheet.
Inlet bell-mouth provided for smooth airflow. .
Glass fiber as absorption filler material to achieve excellent acoustic performance.
Each model is available with 2D silencer as standard. Non- standard length to meet special performance requirement can be supplied upon request.
