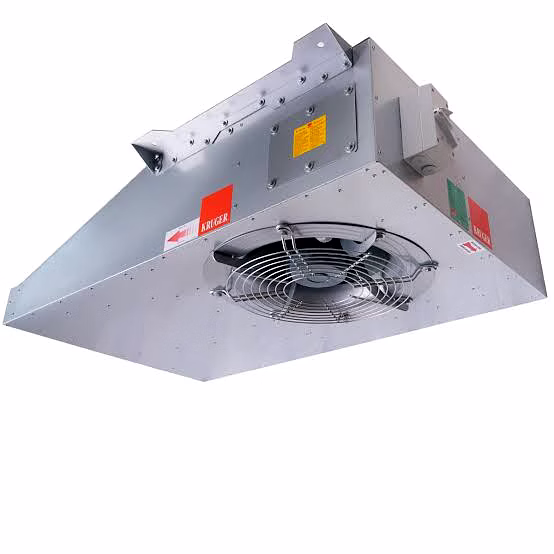

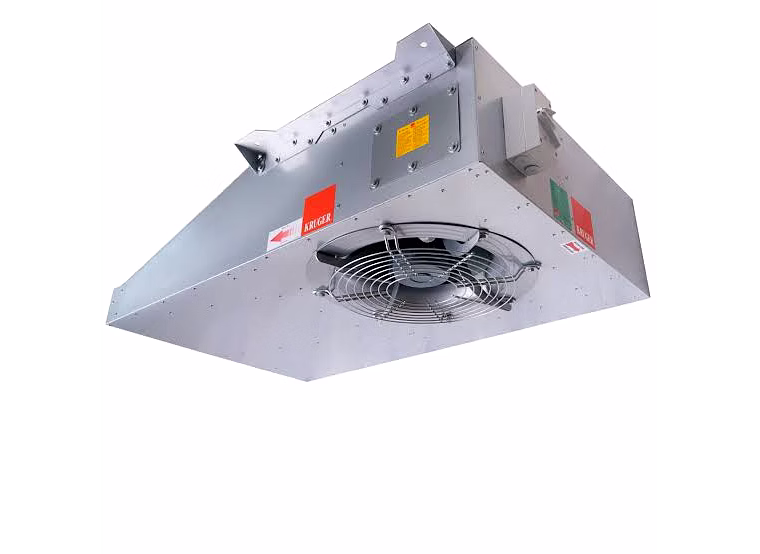

The Centrifugal Jet Fan is a robust ventilation solution designed specifically for environments with low headroom, such as car parks. Its compact design allows for installation in tight spaces without compromising performance. Constructed with a galvanized sheet steel casing and equipped with a centrifugal backward curved wheel made from mild steel coated with durable polyester paint, this jet fan ensures longevity and resistance to harsh conditions. It offers a high volume flow rate and long throw distance while maintaining low noise levels, optimizing both air quality and comfort. Maintenance is made easy thanks to its thoughtfully engineered structure. The fan includes an inlet guard and is mounted using two sturdy brackets, ensuring secure installation. Tested rigorously according to BS EN 12101-3:2002 standards for smoke extraction at temperatures of 200°C, 250°C, 300°C, and 400°C for up to 2 hours, and certified by TUV SUD PSB, it meets stringent safety and performance requirements. The motors used vary based on application; all general ventilation motors are IP55 rated, Class F insulated, and totally enclosed non-ventilated (TENV), while motors designated for smoke exhaust systems employ Class H insulation and are high-temperature rated, maintaining performance under extreme conditions. A 60 Hz motor option is also available upon request to cater to different grid frequencies, making this centrifugal jet fan an adaptable and reliable choice for industrial and commercial ventilation needs.
Key Features
| Features | Description |
|---|---|
| Compact Design | Ideal for car parks with low headroom; saves space without sacrificing airflow. |
| High Volume Flow Rate | Capable of delivering large airflow volumes for effective ventilation. |
| Low Noise Level | Engineered to operate quietly, enhancing comfort in enclosed environments. |
| Material | Galvanized sheet steel casing with polyester-painted mild steel wheel for durability. |
| Mounting | Includes two mounting brackets for secure installation. |
| Safety Certification | Tested under BS EN 12101-3:2002 and TUV SUD PSB certified for smoke extraction. |
| Operating Temperature Range | General ventilation: -20°C to +55°C; Smoke exhaust: up to 400°C for 2 hours. |
| Motor Specifications | General ventilation motors IP55, Class F insulation, TENV; Smoke exhaust motors IP55, Class H insulation, TENV. |
| Inlet Protection | Supplied with an inlet guard to prevent foreign object ingress. |
| 60 Hz Motor Availability | Optional 60 Hz motor provided upon request for compatibility with various power systems. |
| Attributes | Description |
|---|---|
| Fan Casing Material | Galvanized Sheet Steel |
| Impeller Type | Centrifugal Backward Curved Wheel |
| Impeller Material & Finish | Mild Steel with Polyester Paint |
| Mounting Method | Two Mounting Brackets |
| Inlet Guard | Included |
| Compliance Standard | BS EN 12101-3:2002 F200, F300 & F400 |
| Certification | TUV SUD PSB |
| Operating Temperature (General Ventilation) | -20°C to +55°C |
| Operating Temperature (Smoke Exhaust) | 200°C, 250°C, 300°C, or 400°C for 2 hours |
| Motor Insulation Class (General Ventilation) | Class F |
| Motor Insulation Class (Smoke Exhaust) | Class H |
| Motor Enclosure | Totally Enclosed Non-Ventilated (TENV) |
| Motor Protection Rating | IP55 |
| Frequency Option | 50 Hz standard, 60 Hz available on request |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The centrifugal jet fan is tested and certified according to BS EN 12101-3:2002 standards for smoke extraction at F200, F300, and F400 ratings, and it holds the TUV SUD PSB certification ensuring compliance with stringent safety and performance criteria.
Yes, the fan is rated for smoke exhaust operation at temperatures of 200°C, 250°C, 300°C, and 400°C for up to 2 hours, making it suitable for high temperature exhaust situations.
Absolutely, the fan features a compact design optimized specifically for car parks and other locations with low headroom.
General ventilation motors have Class F insulation, while smoke exhaust motors are built with Class H insulation to withstand higher temperatures.
Yes, while the standard motor runs at 50 Hz, a 60 Hz motor option is available upon request to suit various power supply systems.
Country Of Origin: India
Features
• Compact design, especially suitable for car park with low head room.
• Large volume flow rate, long throw distance, low sound level.
• Easy maintenance.
Fan
• Galvanized sheet steel casing supplied with two mounting brackets.
• Centrifugal backward curved wheel in mild steel with polyester paint .
• Supplied with inlet guard.
• Tested in accordance with BS EN 12101-3:2002 F200, F300 & F400 ertified TUV SUD PSB.
Operating Temperature
• General ventilation: -20°C to +55°C.
• Smoke exhaust system : 200°C, 250°C, 300°C or 400°C - 2 hrs
Motor
• General ventilation:
All motors are IP55, Class F insulation, Totally Enclosed Non-Ventilated (TENV).
• Smoke exhaust system:
All motors are IP55, Class H insulation, Totally Enclosed Non-Ventilated (TENV) High Temperature Rated
Motor (200°C, 250°C, 300°C or 400°C - 2 hrs, TUV SUD PSB certified).
Upon Request
• 60 Hz motor is available upon request.
