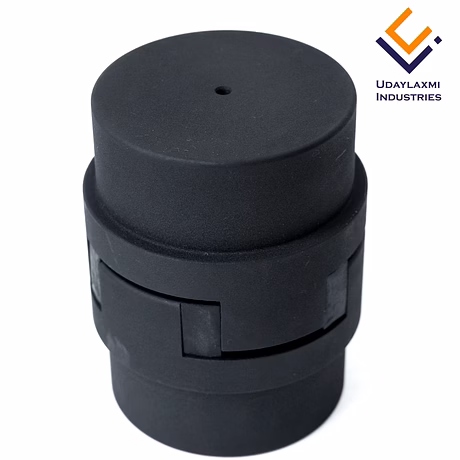

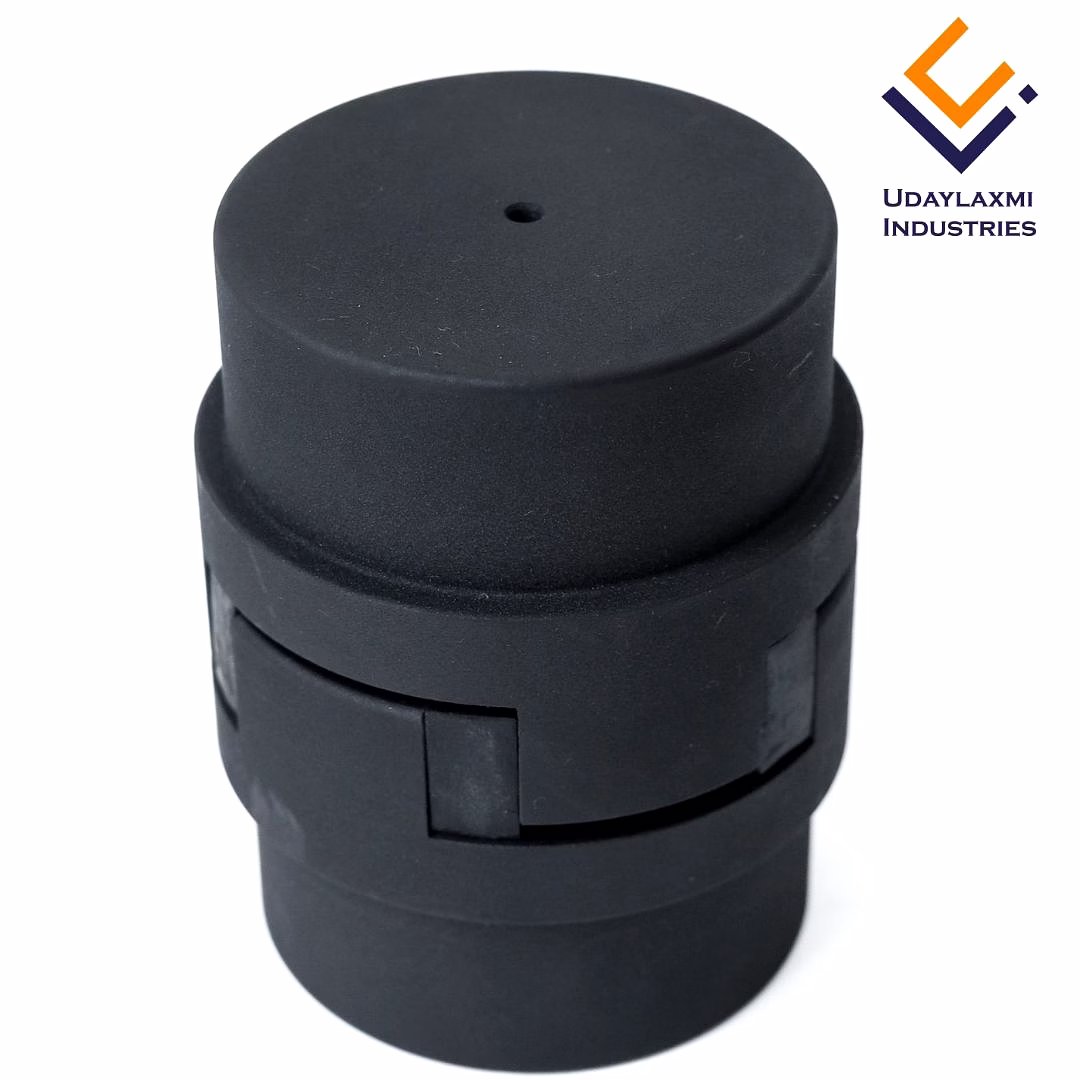

The L-100 Type Jaw Flex Coupling is a robust mechanical component designed for reliable torque transmission between two shafts while accommodating misalignment. This coupling features a jaw-type design with an elastomeric spider insert, effectively absorbing shocks and vibrations, thus protecting connected equipment from undue stress and wear. Ideal for industrial applications, the L-100 model ensures efficient power transfer with minimal backlash. Its compact and durable construction makes it suitable for use in pumps, compressors, blowers, and various drive systems requiring flexible shaft connections. The coupling is engineered for easy installation and maintenance, providing optimal performance in heavy-duty operations.
Key Features
| Features | Description |
|---|---|
| Type | Jaw Flex Coupling |
| Model | L-100 |
| Torque Transmission | Reliable and efficient power transfer |
| Misalignment Handling | Accommodates angular, parallel, and axial misalignment |

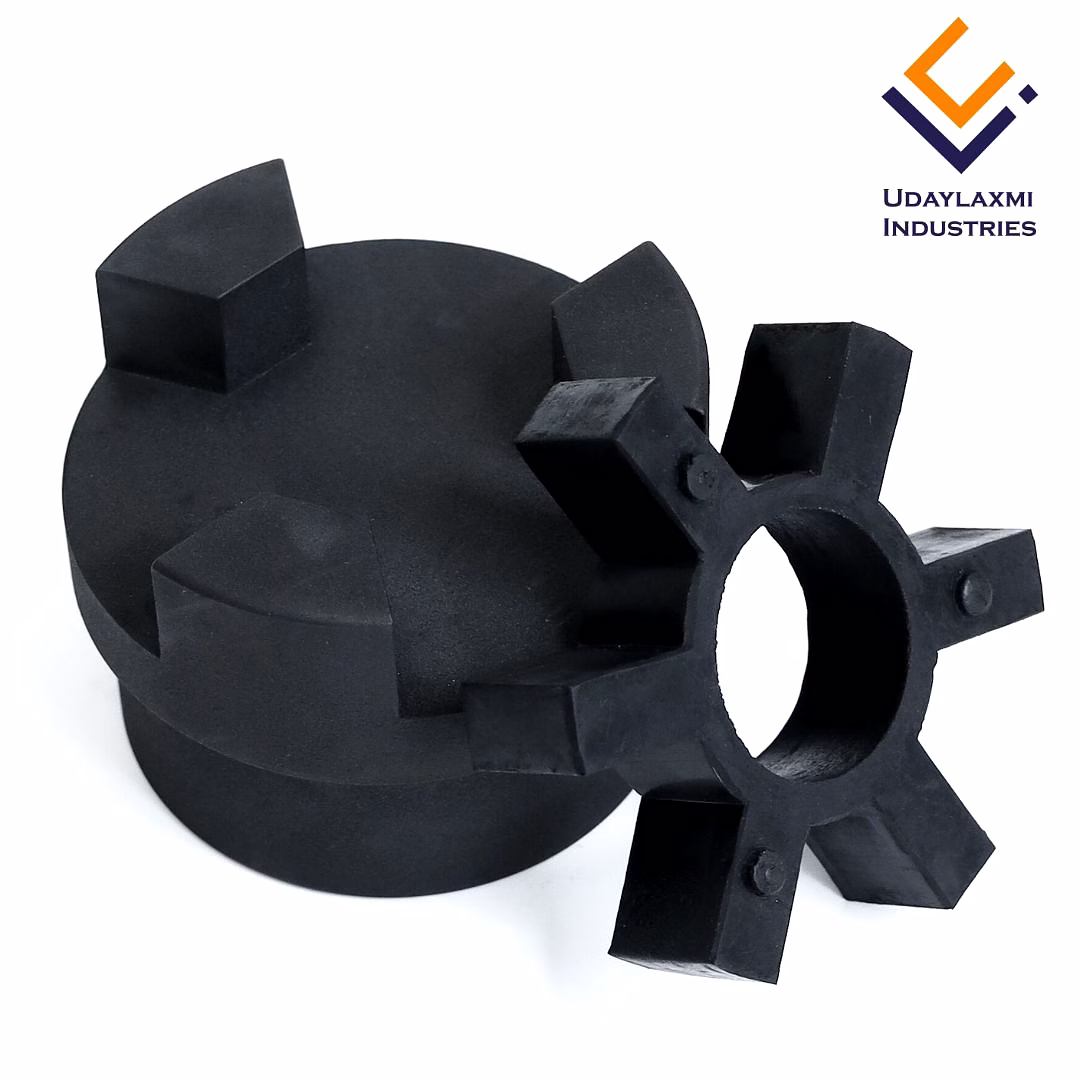

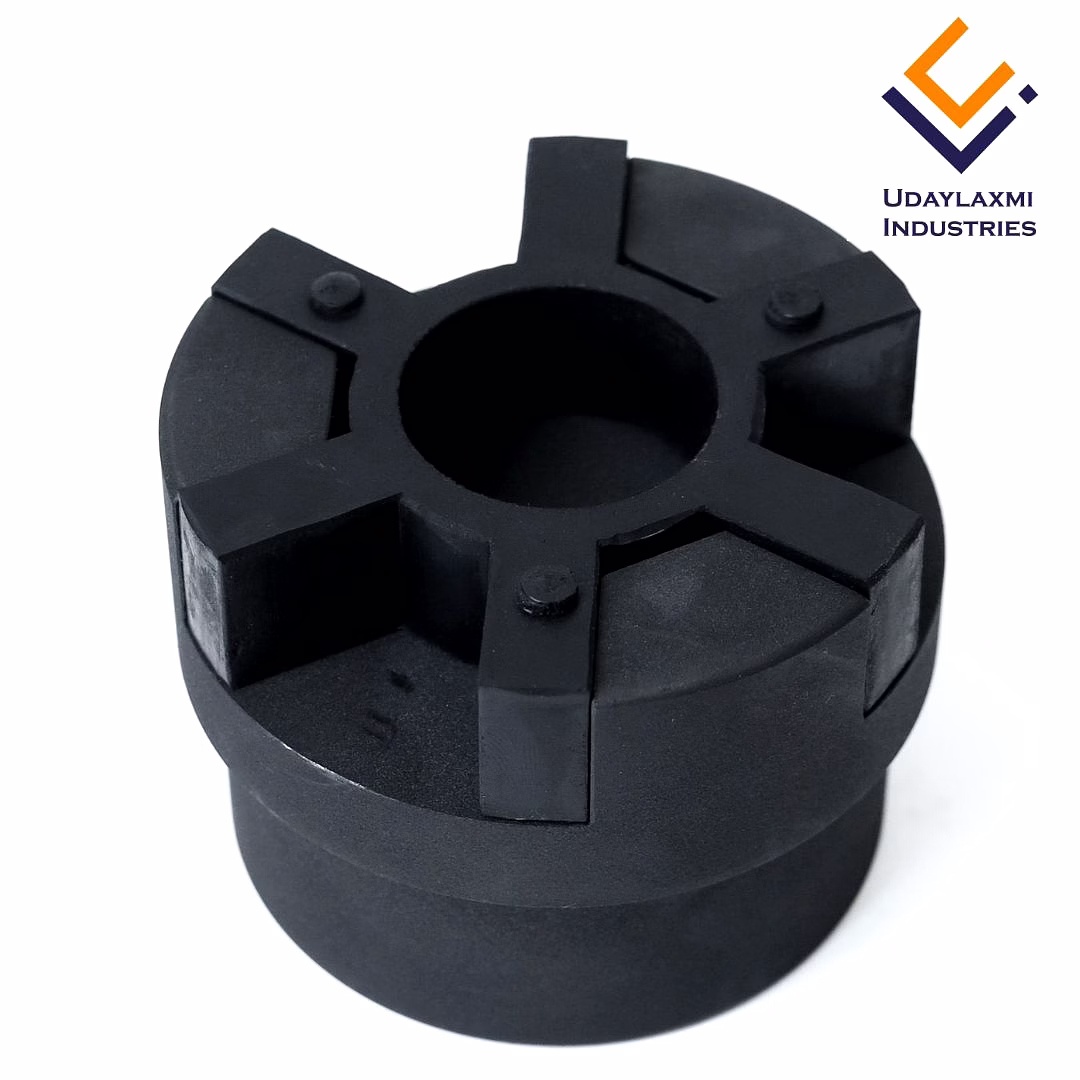

| Shock Absorption | Elastomeric spider insert dampens vibrations and shocks |

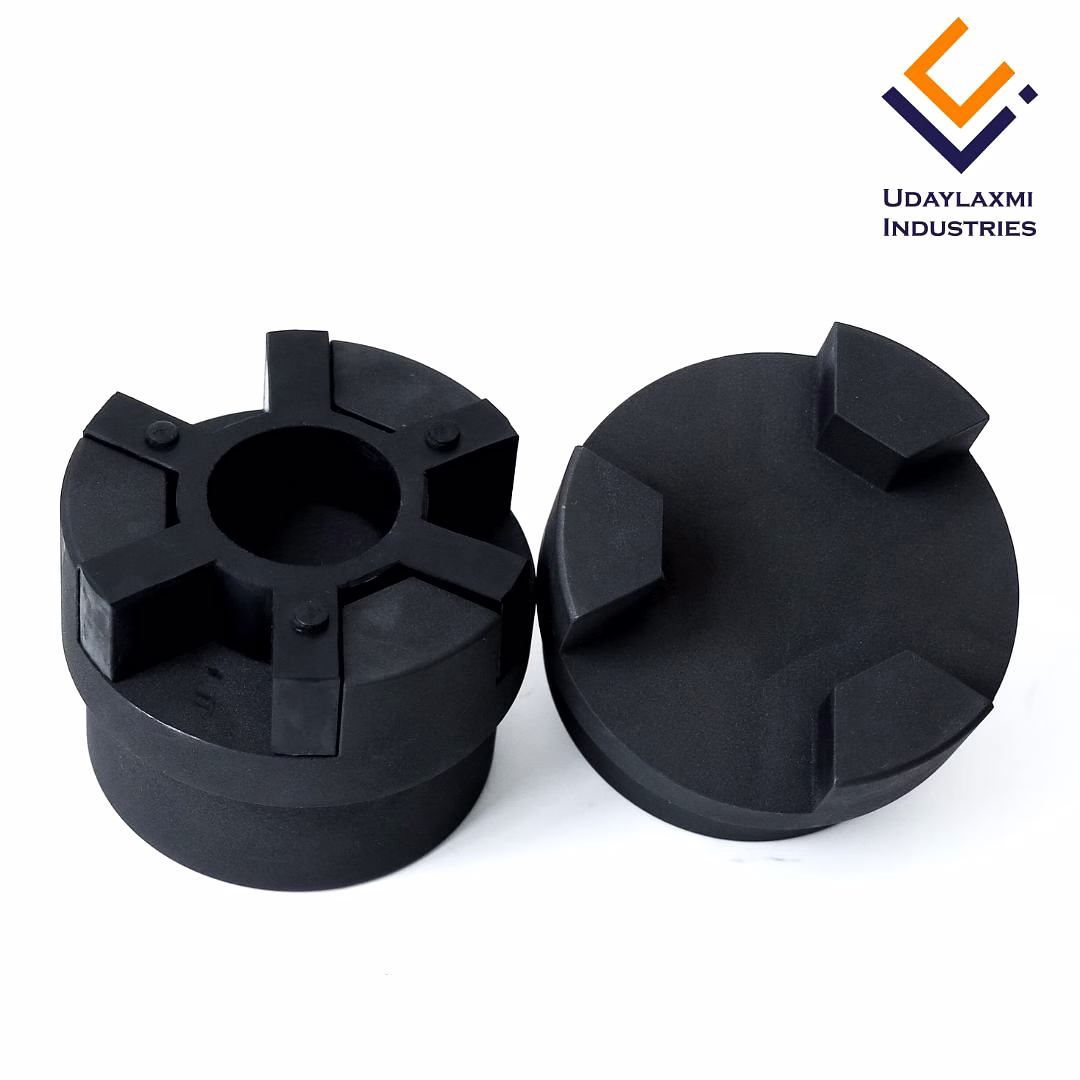

| Material | High-strength cast iron hubs with synthetic rubber spider |
| Installation | Simple assembly and maintenance-friendly design |
| Application | Suitable for pumps, compressors, blowers, and industrial machinery |
| Durability | Corrosion-resistant and wear-resistant construction |

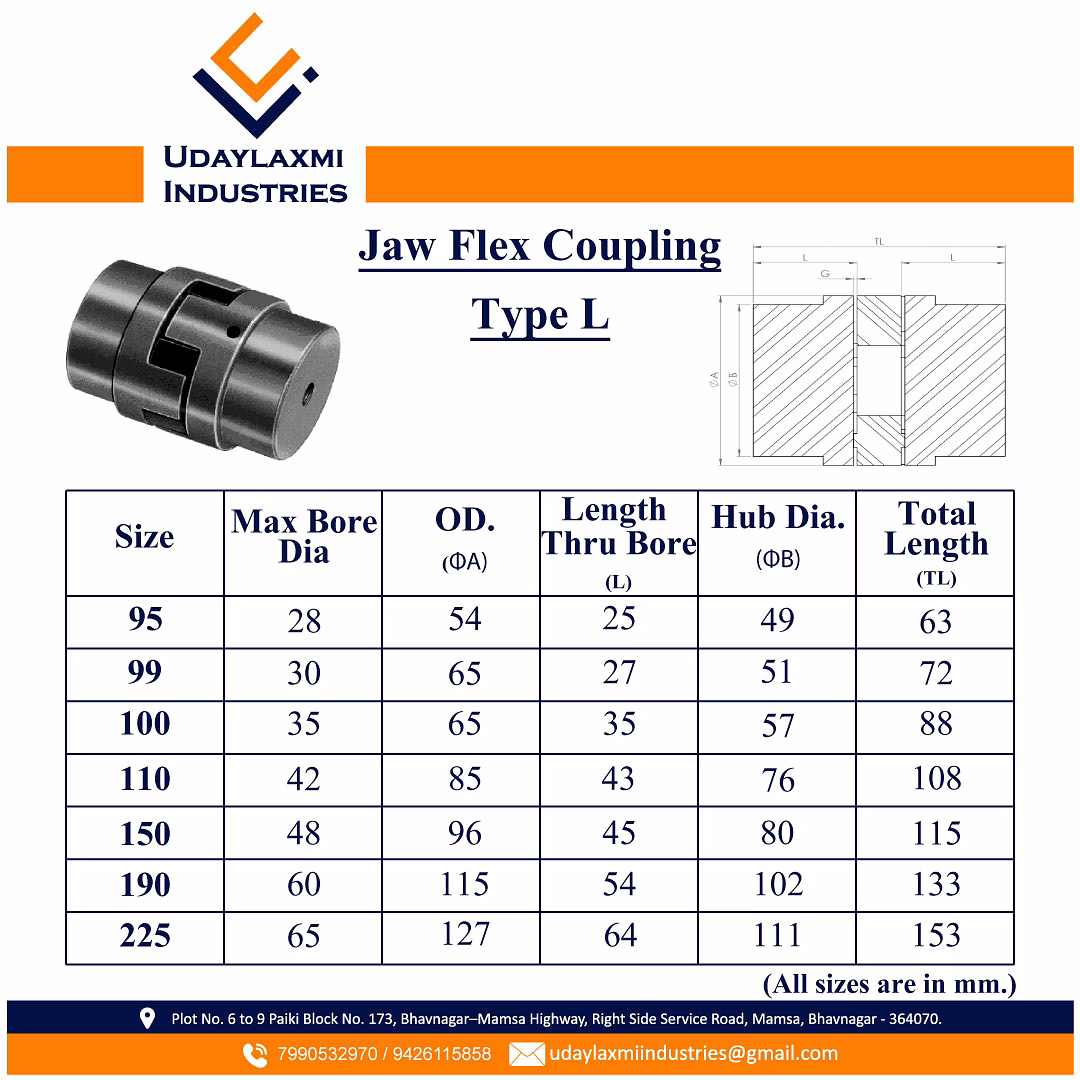

| Size | L-100 specified size for industrial shaft connections |
| Attributes | Description |
|---|---|
| Bore Diameter Range | 10mm to 55mm (customizable on request) |
| Maximum Torque Capacity | Up to 250 Nm |
| Maximum RPM | Up to 3000 RPM |
| Misalignment Tolerance | Angular up to 3°, parallel up to 0.8mm, axial up to 0.5mm |
| Operating Temperature Range | -30°C to +100°C |
| Weight | Approx. 2.5 kg (varies with bore size) |
| Finish | Powder coated or natural finish available |
| Compliance Standards | Manufactured as per ISO 14691 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The L-100 jaw flex coupling can handle a maximum torque of up to 250 Nm, making it suitable for medium-duty industrial applications.
Yes, it accommodates angular misalignment up to 3°, parallel misalignment up to 0.8mm, and axial misalignment up to 0.5mm, which helps reduce stress on connected equipment.
The hubs are made from high-strength cast iron, and the spider insert is constructed from synthetic rubber to provide shock absorption and flexibility.
Yes, the standard bore diameter range is 10mm to 55mm, but custom bore sizes can be accommodated upon request.
This coupling is widely used in industries with pumps, compressors, blowers, and various other industrial machinery requiring flexible and reliable shaft connections.
Country Of Origin: India
