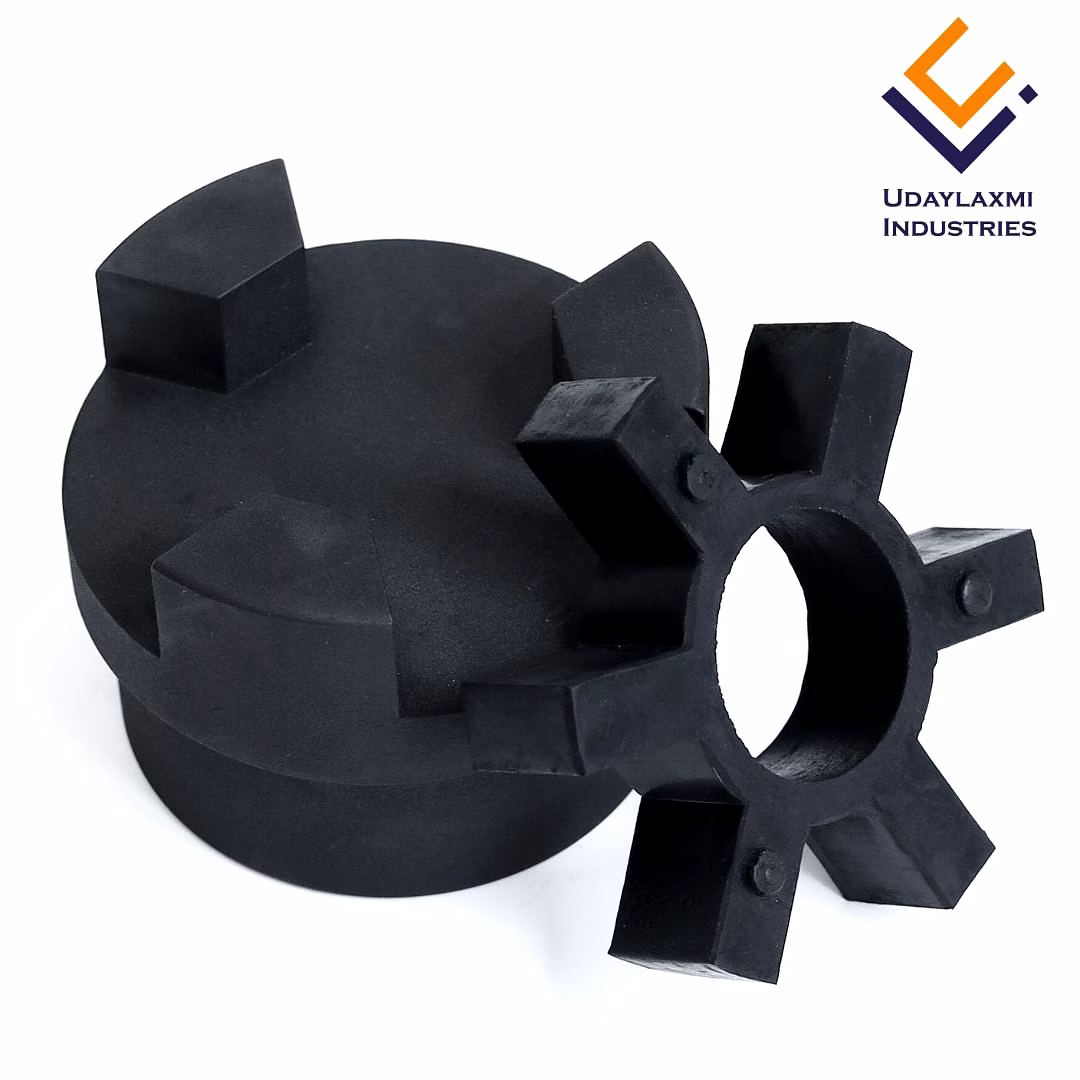

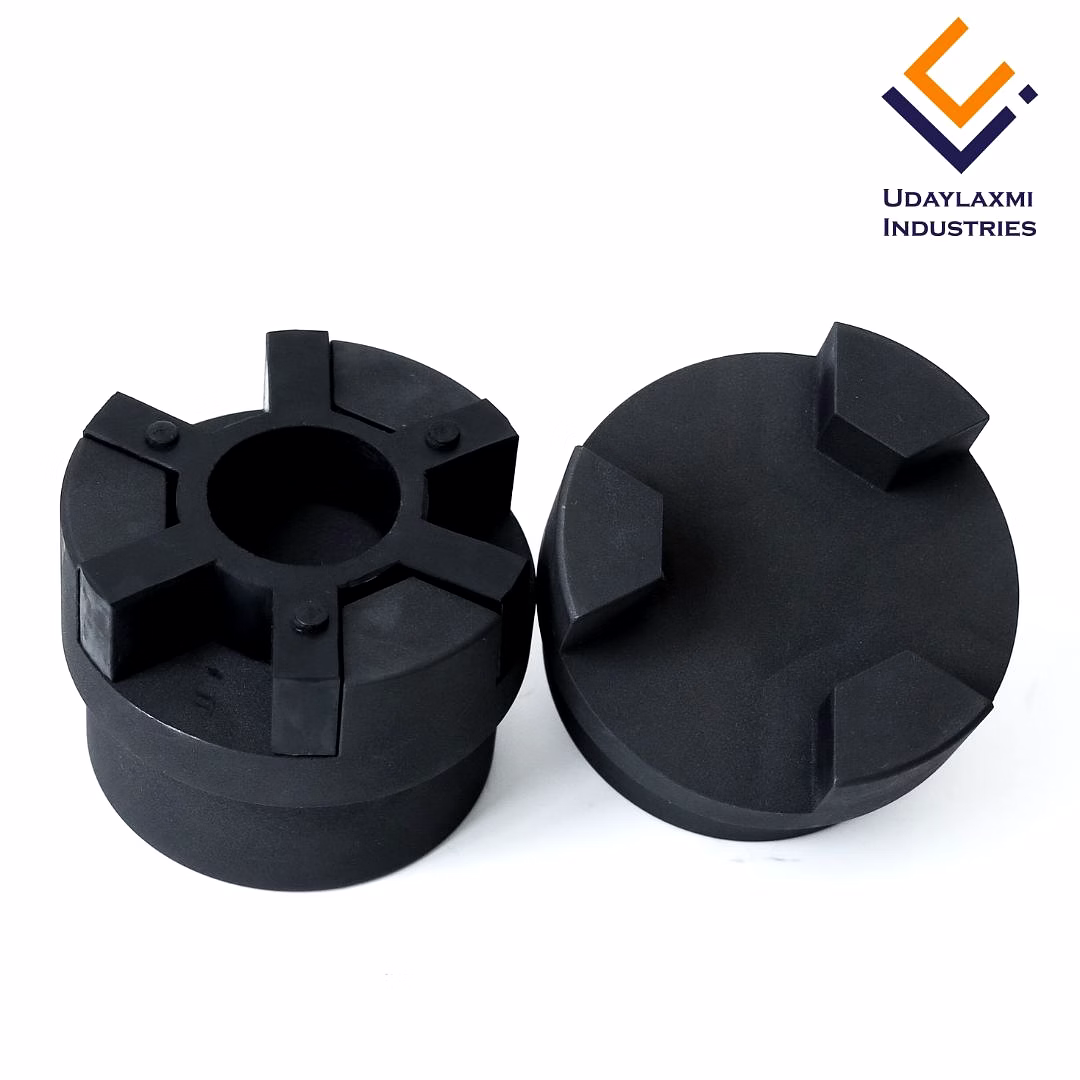

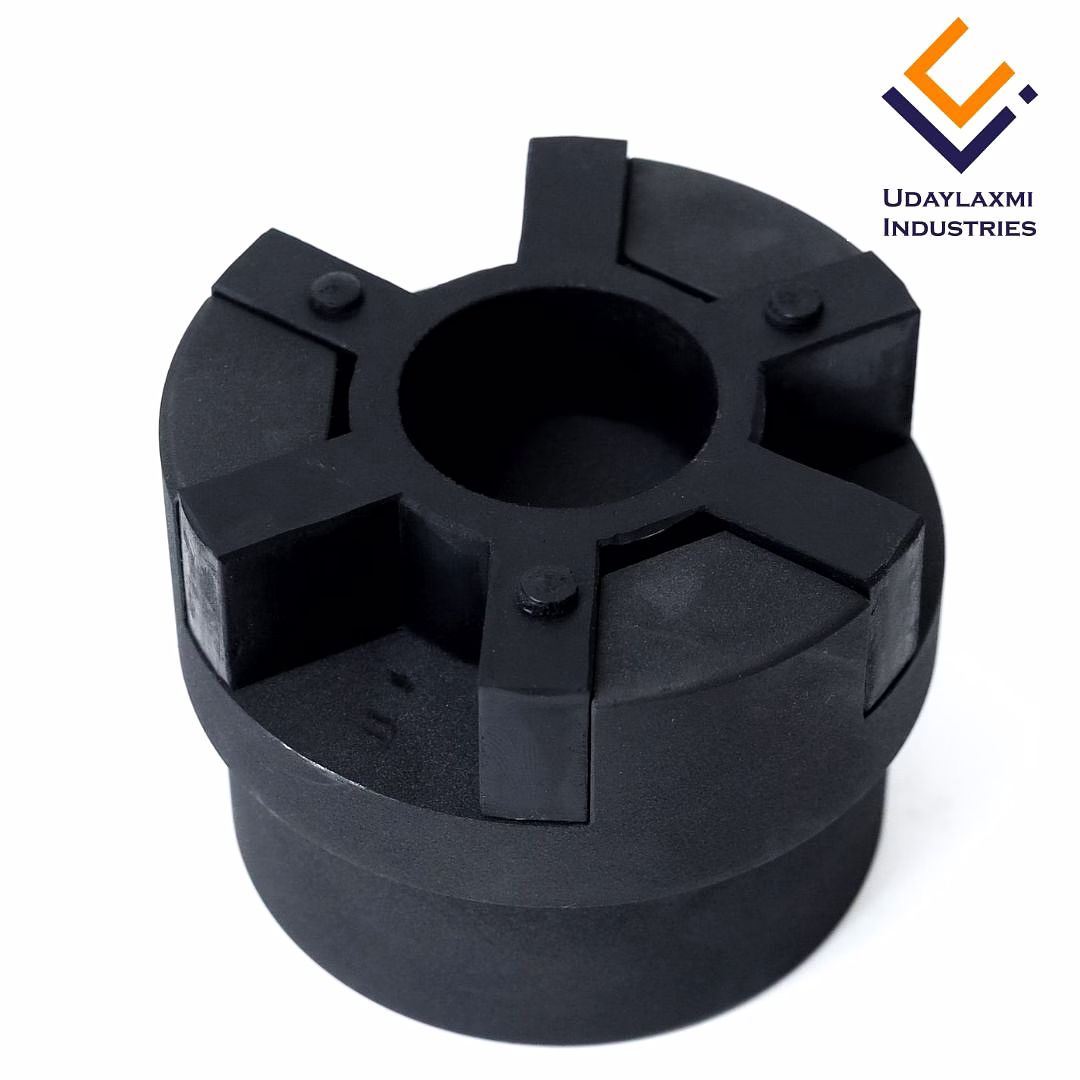

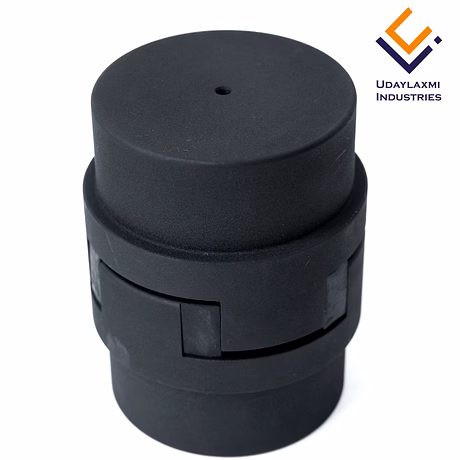

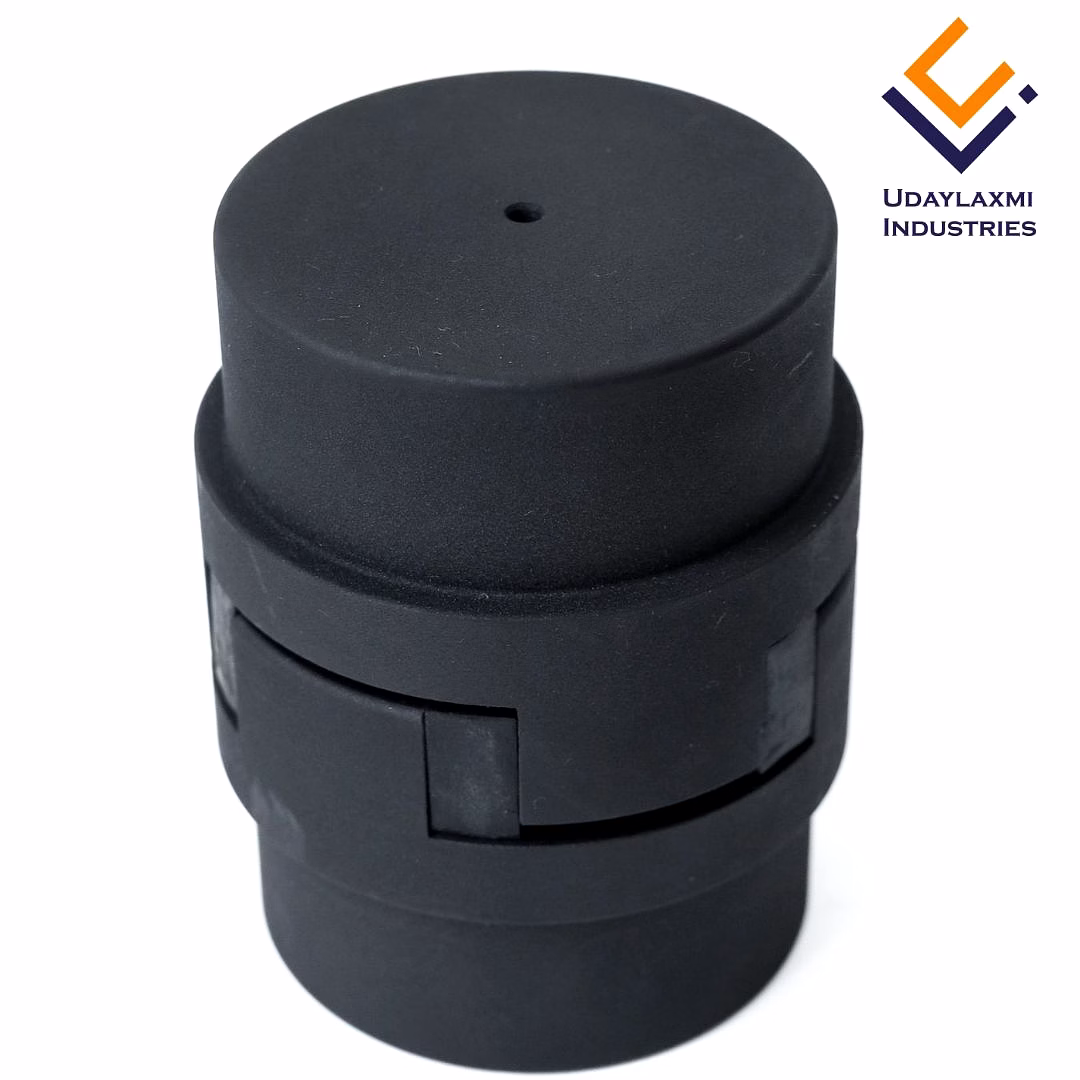

The L-099 Type Jaw Flex Coupling is a precision-engineered mechanical component designed to transmit torque between two shafts while accommodating misalignment and reducing vibration. This coupling consists of two metal hubs connected by an elastomeric spider element, which absorbs shock and minimizes wear on connected machinery. Ideal for industrial applications, the L-099 Type Jaw Flex Coupling offers reliable, maintenance-friendly performance in power transmission systems. Its flexibility helps protect motors, pumps, and compressors from misalignment stresses, thereby increasing equipment longevity and operational efficiency.
Key Features
| Features | Description |
|---|---|
| Material | High-strength alloy steel hubs with durable elastomeric spider |
| Design Type | Jaw type flexible coupling |
| Torque Capacity | Designed for medium to high torque transmission |
| Misalignment Compensation | Accommodates angular, parallel, and axial misalignment |
| Vibration Dampening | Elastomeric element absorbs shocks and reduces vibration |
| Maintenance | Low maintenance with easy assembly and disassembly |
| Operating Temperature Range | -20°C to +80°C |
| Application | Suitable for motors, pumps, compressors, conveyor systems |
| Mounting Type | Bolt-on hubs with precision machined bores |
| Standards Compliance | Manufactured in accordance with industrial coupling standards |
| Attributes | Description |
|---|---|
| Product Model | L-099 |
| Coupling Type | Jaw Flex Coupling |
| Bore Diameter | Customizable, typically ranging from 10 mm to 50 mm |
| Overall Length | Approximately 150 mm |
| Weight | Varies depending on bore size, approximately 2-3 kg |
| Material Composition | Alloy steel hub, flexible elastomer spider |
| Maximum RPM | Up to 3000 RPM |
| Torque Rating | Up to 500 Nm |
| Color | Metallic hub with black elastomeric spider |
| Operating Environment | Industrial environments with moderate temperature and dust exposure |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the elastomeric spider element in the L-099 coupling allows it to accommodate angular, parallel, and axial misalignment, protecting connected equipment from stress.
The L-099 coupling requires low maintenance due to its robust design; regular inspection of the elastomeric spider for wear is recommended, and replacement when signs of deterioration appear.
Yes, bore sizes for the L-099 Type Jaw Flex Coupling can be customized according to the shaft dimensions, typically ranging from 10 mm to 50 mm.
It is designed to handle torque up to 500 Nm, making it suitable for medium to high power industrial applications.
Yes, it supports speeds up to 3000 RPM, suitable for many motor and pump driven systems.
Country Of Origin: India
