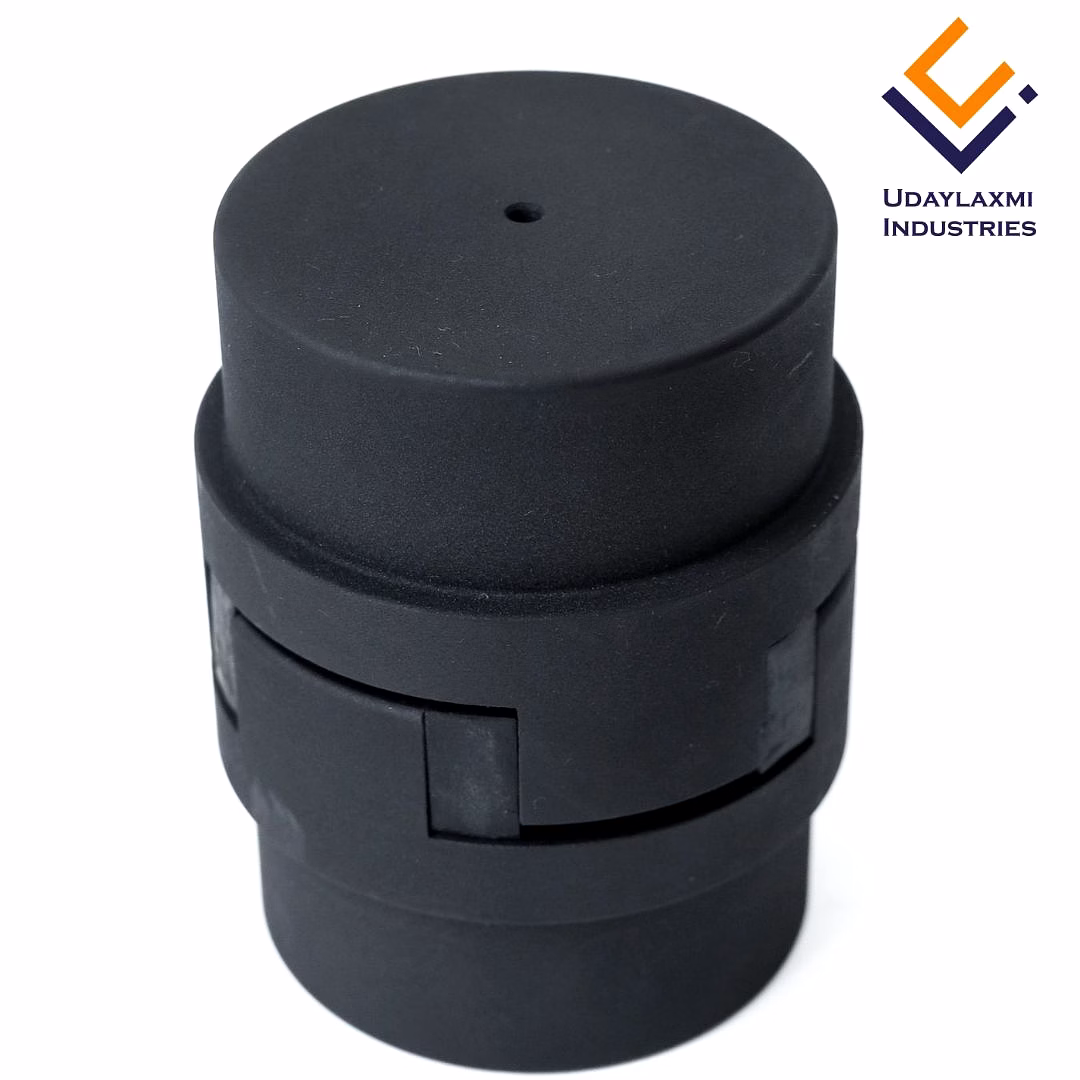

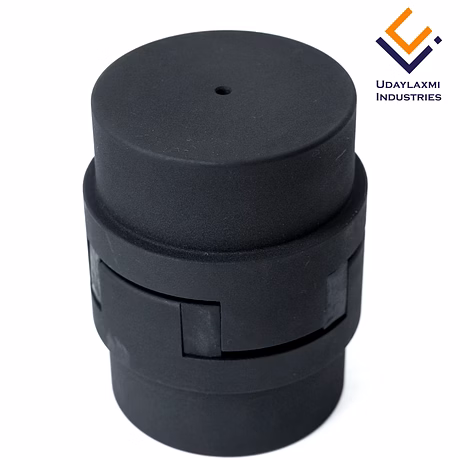

The L-075 Jaw Flex Coupling is a robust mechanical component designed to transmit torque between two shafts while accommodating misalignment and reducing vibration. Engineered with high-grade materials, the L-075 model provides excellent durability and reliability in industrial applications such as manufacturing machinery, conveyors, and pumps. This coupling features jaw-type spider elements that absorb shocks and prevent damage to connected equipment, enhancing the operational lifespan of driving mechanisms. It offers easy installation and maintenance, making it an optimal choice for engineers seeking efficient and long-lasting shaft connection solutions in heavy-duty or moderate load environments.
Key Features
| Features | Description |
|---|---|
| Coupling Type | Jaw Flex Coupling |
| Model Number | L-075 |
| Material | High-strength steel alloy for hubs; elastomer spider element |
| Torque Transmission Capacity | Suitable for moderate to heavy industrial loads |
| Misalignment Handling | Accommodates angular, parallel, and axial misalignment |
| Shock Absorption | Elastomer spider element reduces vibrations and shocks |
| Installation | Simple hub assembly with keyway slots and set screws |
| Maintenance | Minimal maintenance required due to durable materials |
| Operating Temperature Range | -30°C to 100°C |
| Usage | Ideal for pumps, conveyors, compressors, and general machinery |
| Attributes | Description |
|---|---|
| Outer Diameter | 75 mm |
| Bore Size Range | 10 mm to 25 mm |
| Hub Width | 20 mm |
| Spider Material | NBR (Nitrile Butadiene Rubber) |
| Balance Grade | G6.3 (ISO Standard) |
| Weight | Approx. 1.2 kg |
| Finish | Phosphated and painted for corrosion resistance |
| Max RPM | Up to 3000 RPM |
| Compliance Standards | ISO 14691, DIN 740 part 4 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The L-075 Jaw Flex Coupling supports bore sizes ranging from 10 mm up to 25 mm, accommodating a variety of shaft diameters.
Yes, the L-075 Jaw Flex Coupling is designed to accommodate angular, parallel, and axial misalignments, making it suitable for applications where shaft alignment is imperfect.

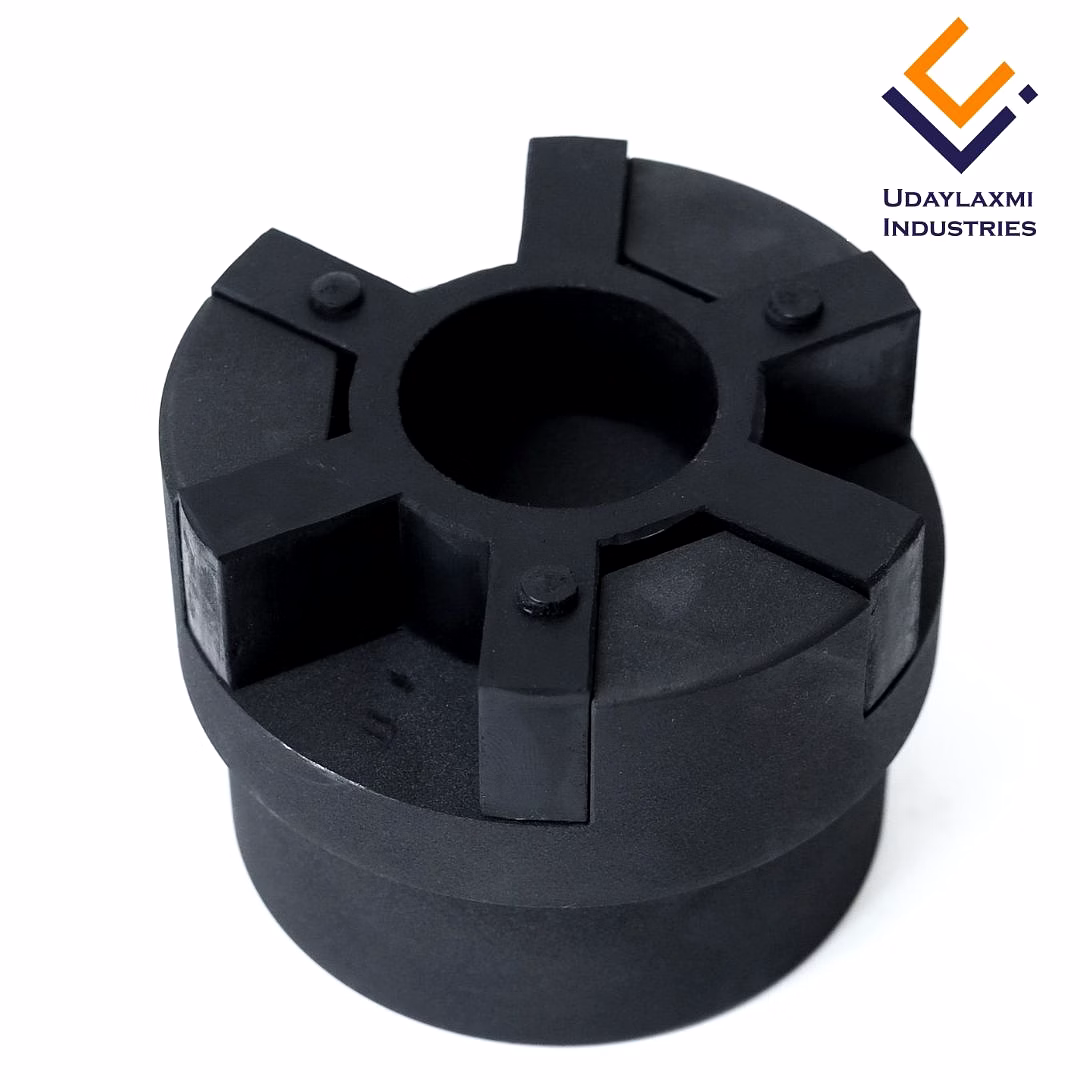

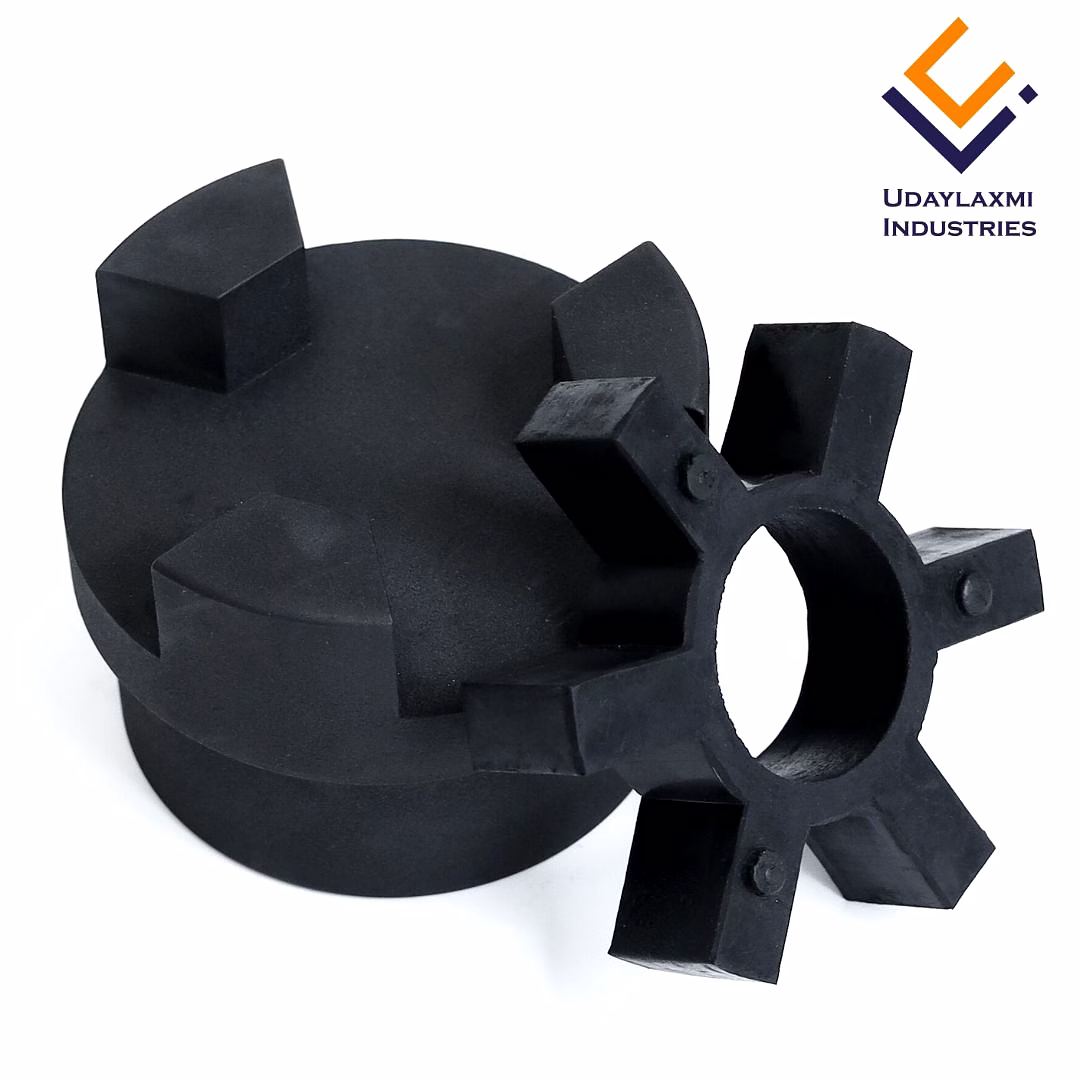

The elastomer spider element is made from NBR (Nitrile Butadiene Rubber), providing excellent shock absorption and wear resistance.
The L-075 coupling is rated for speeds up to 3000 RPM, appropriate for most moderate industrial machinery.
Due to its durable steel hub and elastomer spider construction, the L-075 coupling requires minimal maintenance; periodic inspection for wear and replacement of the elastomer element if damaged is recommended.
Country Of Origin: India
