The DSSE-N7 ICU Ventilator is a state-of-the-art, microprocessor-controlled respiratory support system designed for adult, pediatric, and infant patients in critical care settings. Engineered for precision and flexibility, it offers invasive and non-invasive ventilation modes such as Assist Control (PC, VC, PRVC), SIMV, APRV, CPAP, and high-flow oxygen therapy. With adaptive bias flow exceeding 3 L/min and maximum airway pressure of 119 cmH₂O, it ensures optimal respiratory assistance customized to patient needs. Advanced monitoring parameters including PiP, Pplat, Pmean, dynamic compliance, and work of breathing provide clinicians with real-time, accurate patient data. The integrated 15” LCD touchscreen facilitates intuitive navigation through a comprehensive suite of ventilatory settings including tidal volume, PEEP, inspiratory pressures, and apnea monitoring. Connectivity is seamless with WiFi, LTE capability, RS-232C ports, USB data transfer, and Ethernet supporting HL7 protocol, enabling remote updates and integration within hospital networks. Key safety features encompass physiological, technical, and failsafe alarms such as airway pressure safety, circuit disconnection, and oxygen/gas pressure alerts. Complementary accessories like smart humidifiers and medical air compressors enhance respiratory therapy effectiveness. The DSSE-N7 is powered by a robust 200–240 V AC supply with 4-hour battery backup, adaptable to demanding ICU environments. Its comprehensive data logging with up to 240 hours of backup ensures thorough patient history tracking and operational oversight, making it an indispensable solution for modern intensive care units requiring high-performance, reliable respiratory support.
Key Features
| Features | Description |
|---|---|
| Patient Range | Adult, Pediatric, Infant |
| Ventilation Modes | Assist Control (PC, VC, PRVC), SIMV (PC/VC/PRVC) + PS, APRV, PS/CPAP, VS-VC, VS-PRVC, NIV/PS, DualPAP, HFOT |
| Max Airway Pressure | 119 cmH₂O |
| Bias Flow | >3 L/min Adaptive |
| Communication Interfaces | WiFi, LTE (optional), 4 x RS-232C, 2 x USB, Ethernet (HL7) |

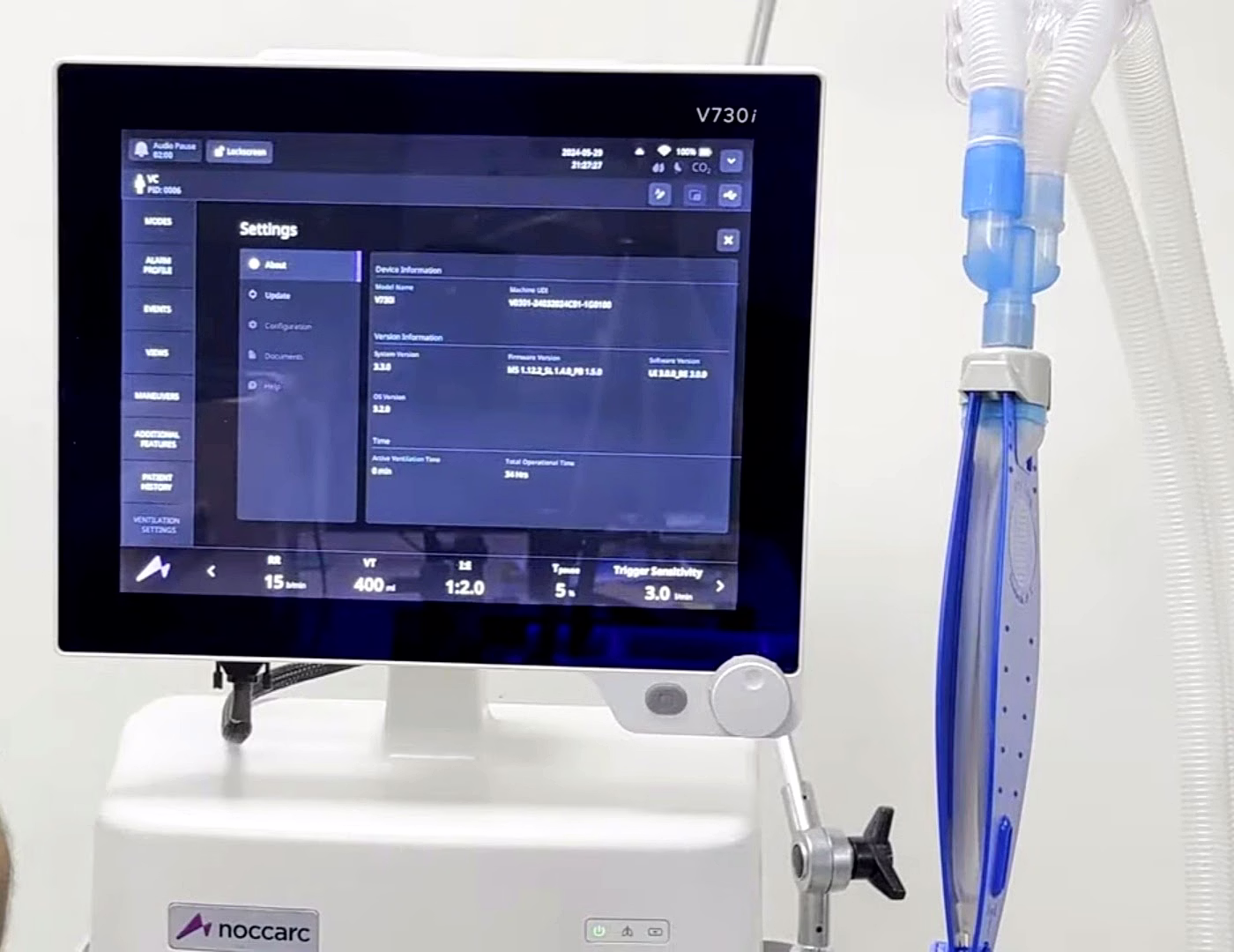

| Display | 15-inch LCD Touchscreen with Pressure, Flow, Volume loops |
| Battery Backup | 4 Hours |
| Alarm Types | Physiological, Technical, Failsafe |
| Data Storage | Up to 240 Hours Technical, Physiological, Operational Logs |
| Gas Supply Pressure | 280–600 kPa (2.8–6.0 bar / 41–87 psi) |
| Attributes | Description |
|---|---|
| Inspiratory Flow Range | 0 to 240 L/min |
| Pressure Trigger | Flow and Pressure triggered |
| Tidal Volume Range | Adult: 100–4000 ml, Pediatric: 15–350 ml |
| PEEP / EPAP Range | 1–50 cmH₂O |
| Respiratory Rate | Adult: 4–100 bpm, Pediatric: 4–150 bpm |
| FiO2 Range | 21–100% |
| I:E Ratio | 1:10 to 10:1 |
| Screen Type | 15-inch LCD Touchscreen |
| Operating Temperature | +10 to +40 °C |
| Humidity Range | 15% to 95% (Non-Condensing) |
| Power Supply | 200–240 V AC, 1 A, 50–60 Hz |
| Battery Backup Duration | 4 Hours |
| Weighting Parameters Monitored | PiP, Pplat, Pmean, MVi, MVe, VTi, VTe, Flow, RR, Auto PEEP, Compliance, Work Of Breathing, P0.1, NIF, RSBI |
| Connectivity Protocol | HL7 via Ethernet |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the DSSE-N7 supports multiple invasive modes including Assist Control, SIMV, APRV, and non-invasive modes such as NIV/PS, DualPAP, and HFOT, providing versatile respiratory care options.
Absolutely. It features WiFi, LTE (optional), RS-232C ports, USB, and Ethernet supporting HL7 protocol, enabling seamless integration with hospital IT systems and real-time data sharing.
The ventilator includes physiological, technical, and failsafe alarms such as high airway pressure, tidal volume limits, circuit disconnection, oxygen pressure alerts, battery status, and occlusion detection for enhanced patient safety.
It provides up to 4 hours of battery backup to ensure continuous respiratory support during power interruptions or patient transport within the hospital.
Yes, the ventilator supports over-the-air (OTA) updates via WiFi, allowing seamless firmware upgrades without manual intervention, ensuring up-to-date features and security.
It is designed to support adult, pediatric, and infant patients with tailored ventilation parameters, ensuring precise and safe respiratory management across all age groups.
Yes, optional accessories such as smart humidifiers, servo humidifiers, and medical air compressors are available to complement the ventilator and optimize respiratory therapy.
Brand: noccarc
Country Of Origin: India
DSSE-N7
General Ventilation Specifications
Parameter Specifications
Patient Range Adult / Pediatric / Infant
Bias Flow Adaptive (>3 L/min)
Gas Delivery System Microprocessor Controlled Valves
Max. Airway Pressure 119 cmH₂O
Trigger Type Flow and Pressure
Inspiratory Flow Range 0 to 240 L/min
Communication & Connectivity
Feature Specifications
WiFi Yes
LTE Optional
RS-232C Ports 4 x RS-232C
USB 2 x USB (Data Transfer)
Ethernet 1 x HL7
OTA Updates Yes (via WiFi, no manual intervention)
Smart Features
Feature Specifications
Request a Callback Yes (via on-screen button)
Ventilation Modes
Invasive Modes
• Assist Control: PC, VC, PRVC
• Advanced: SIMV (PC/VC/PRVC) + PS, APRV
• Support: PS/CPAP, VS-VC, VS-PRVC
Non-Invasive Modes
• NIV/PS, DualPAP, HFOT
Maneuvers & Assessments
Parameter Specifications
Static Assessment Inspiratory / Expiratory Hold
O₂ Boost Yes
Suction Support Yes
NIF Yes
P0.1 Yes
Ventilation Settings & Parameters
Parameter Specifications
VT Adult: 100–4000 ml, Pediatric: 15–350 ml
PEEP, EPAP 1–50 cmH₂O
Pinsp / PS abv PEEP 0–120 cmH₂O
PS abv Phigh / Plow 0–120 cmH₂O
Phigh 8–120 cmH₂O
Plow 1–18 cmH₂O
IPAP 0–120 cmH₂O
RR Adult: 4–100 bpm, Pediatric: 4–150 bpm
Thigh / Tlow 0.2–30 sec
FiO₂ 21–100%
Apnea 1–60 s
I:E 1:10 to 10:1
Tpause / Trise 0–30% / 0–20%
Trigger Sensitivity Flow: 0–10 L/min, Pressure: 0 to -10 cmH₂O
Flow Rate 1–100 L/min
Flow Slope 0–100%
End Insp / Sync Window 1–70% / 10–50%
Ti / Max Flow / MVe* Calculated based on controlled values
7. Monitored Parameters
Parameter Specifications
PiP / Pplat / Pmean 1–120 cmH₂O
MVi / MVe / MVe sp 0–60 L/min (Adult & Pediatric)
VTi / VTe Adult: 100–4000 ml, Pediatric: 10–350 ml
Flowee / RR / RR sp 0–120 L/min / 1–120 bpm
Ti / Te 0–60 s
Auto PEEP 0–50 cmH₂O
Cstat / Cdyn 0–300 ml/cmH₂O
WOBpat / WOBvent 0–100 J
E 3–1000 cmH₂O/l
P0.1 / NIF 0–120 cmH₂O
RSBI 0.25–4000 b/min/l
TV:PBW / TV:BW 0–60 ml/kg
8. Display Features
Feature Specification
Screen 15” LCD Touchscreen
Waveforms Pressure, Flow, Volume
Loops Pressure–Flow, Flow–Volume, Volume–Pressure
Loop Referencing 3 Referencing Loops
9. Accessories (Optional)
Item Availability
Servo Humidifier Optional
Smart Humidifier Optional
Medical Air Compressor Optional
10. Alarm Types
Physiological Alarms
• Airway Pressure (High)
• Tidal Volume / RR / PEEP / FiO₂ / Flow Rate / Expiratory Minute Volume (High/Low)
• Leakage, Circuit Disconnection (Yes)
• Pressure Limitation Restriction (High/Low)
Technical Alarms
• Oxygen/Air/Gas Pressure (High/Low)
• Battery Status, Humidifier Errors, Running on Battery (Yes)
Failsafe Alarms
• Airway Pressure Safety, Occlusion Detected (Yes)
11. Data Storage & Export
Item Specification
Logs Technical, Physiological, Operational, Patient History
Data Backup Up to 240 hours
12. Gas Supply
| Inlet Gas Pressure | 280–600 kPa / 2.8–6.0 bar / 41–87 psi
13. Power & Operating Conditions
Power Supply 200–240 V AC, 1 A, 50–60 Hz
Battery Backup 4 Hours
Temperature Range +10 to +40 °C
Humidity 15% to 95% (Non-Condensing)
