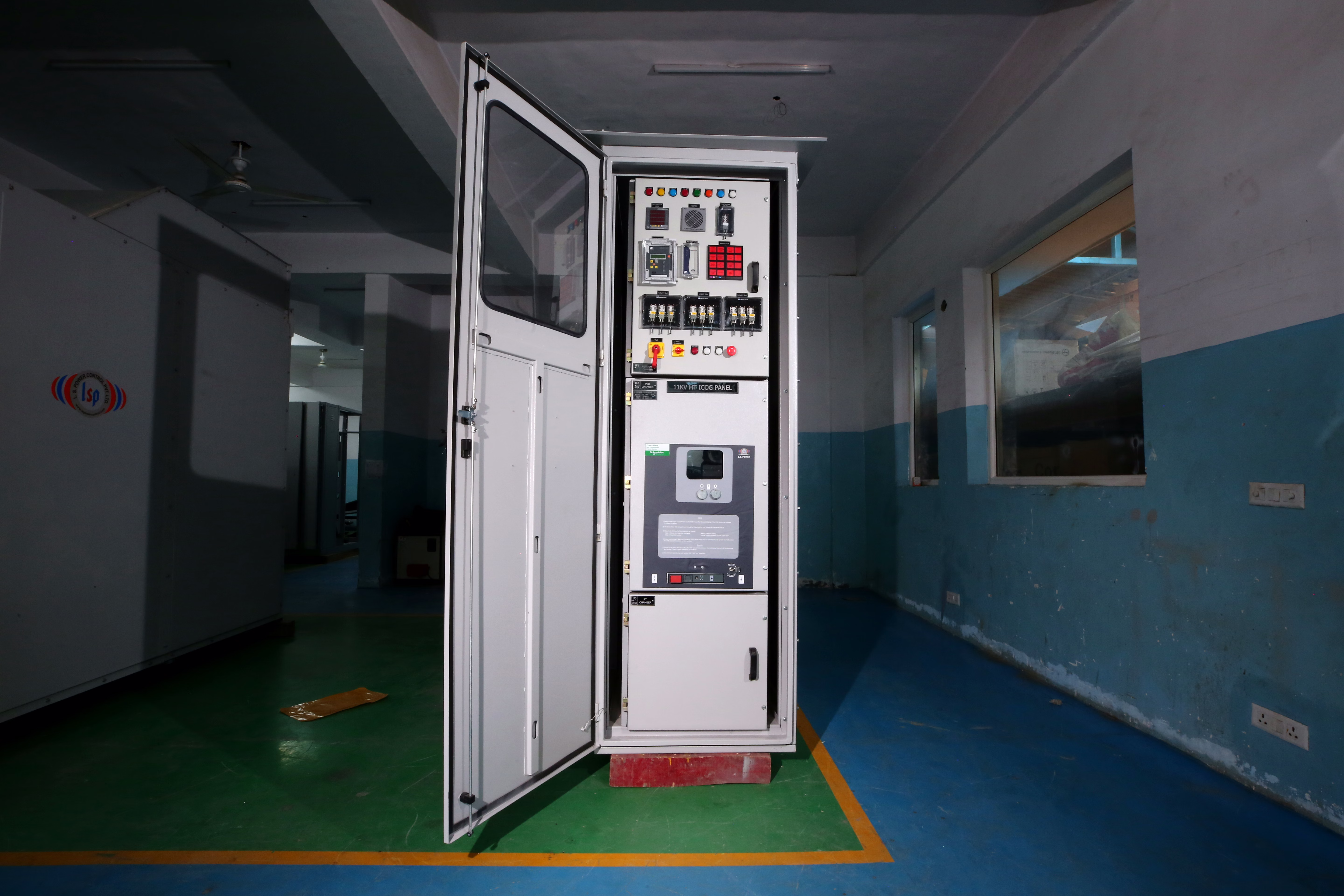

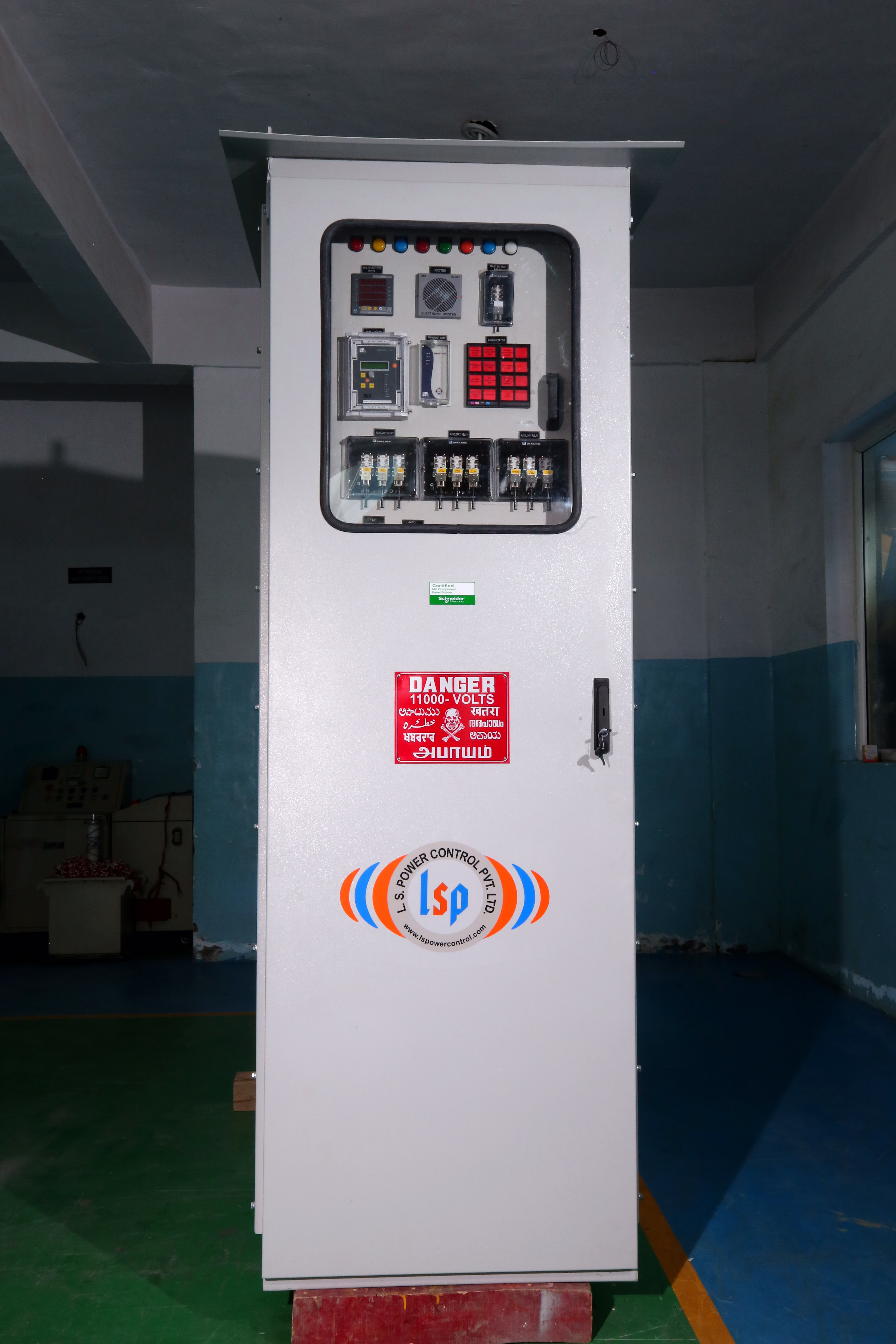

The HT PANEL 11 KV (630 Amp) is an industrial-grade high tension electrical panel designed for the efficient management and distribution of 11kV voltage power systems. It provides a robust and safe interface for receiving high voltage power and distributing it via multiple feeders, essential for substations, industrial setups, and commercial complexes. Equipped with either aluminum or copper busbars, and available in both indoor and outdoor configurations, this panel system caters to versatile electrical network requirements. The panel integrates vacuum or SF6 circuit breakers for high-reliability switching and protection against electrical faults, along with advanced protective relays monitoring earth faults and thermal overloads. Comprehensive metering devices embedded in the panel facilitate real-time tracking of voltage, current, power factor, and energy consumption, ensuring continual system optimization and safety compliance. This product is designed to meet rigorous industrial standards and is crucial for stable power distribution, system protection, and operational efficiency in high voltage power applications in the 11kV range with a maximum current handling capability of 630 Amps.
Key Features
| Features | Description |
|---|---|
| Voltage Rating | 11kV |
| Current Capacity | 630 Amps |
| Busbar Material Options | Aluminum (Al) and Copper (Cu) |
| Panel Type | Indoor and Outdoor configurations available |
| Circuit Breakers | Vacuum Circuit Breakers (VCB) or SF6 Circuit Breakers |
| Protection Mechanisms | Protective relays monitoring earth faults, overheating, and overloads |

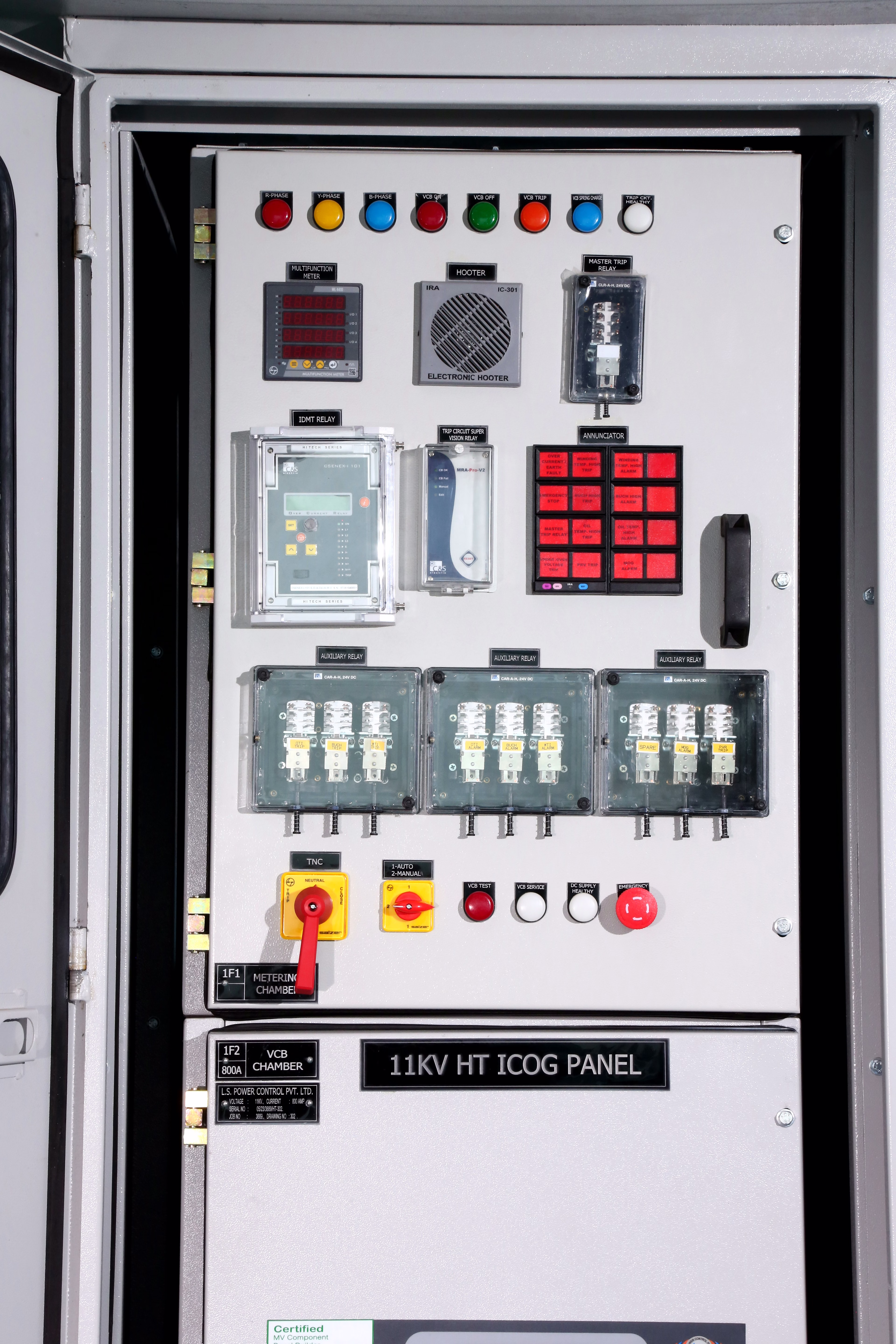

| Metering | Voltage, current, power factor, and energy consumption meters included |
| Application | Substations, industrial plants, commercial buildings |
| Enclosure | Metal enclosure with robust construction for durability and safety |
| Attributes | Description |
|---|---|
| Rated Voltage | 11kV |
| Rated Current | 630 Amps |
| Busbar Material | Available in Aluminum and Copper |
| Mounting Type | Indoor (ICOG Panel Board) and Outdoor types |
| Circuit Breaker Type | Vacuum or SF6 |
| Protection Relays | Earth fault, overcurrent, over-temperature relays included |
| Metering Devices | Voltage, current, power factor, energy meters |
| Panel Dimensions | Customized as per client requirements |
| Standards Compliance | Designed as per IEC/IS electrical standards |
| Application Areas | Industrial, Commercial, Substation Power Distribution |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

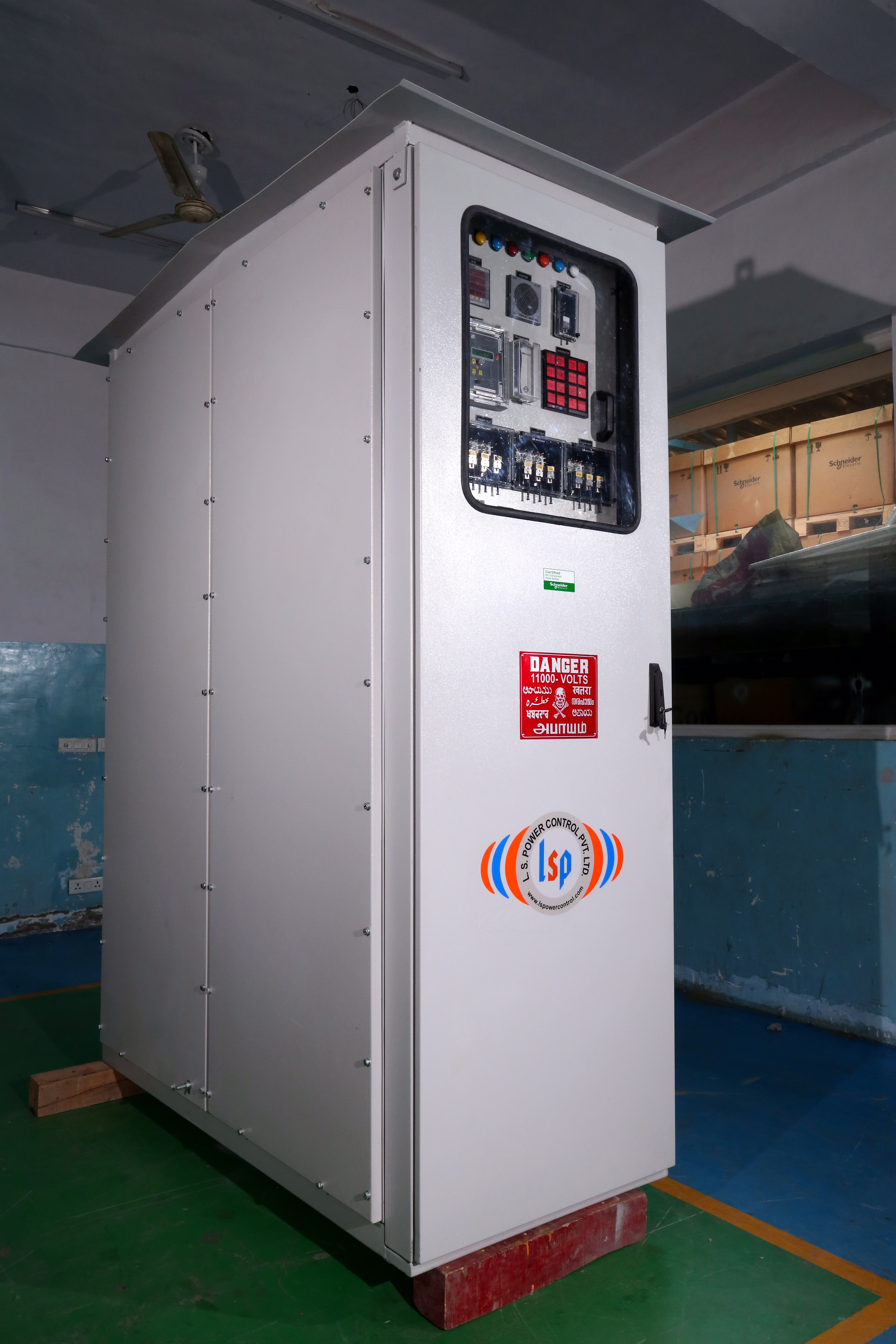

The indoor HT panels are designed with enclosures suitable for controlled environments inside buildings, ensuring protection against dust and moisture indoors. Outdoor HT panels have ruggedized enclosures with enhanced sealing and corrosion resistance to withstand harsh weather conditions and environmental factors.
Copper busbars offer higher conductivity and better thermal performance, ideal for heavy-duty or critical applications, whereas aluminum busbars provide a cost-effective and lighter alternative with sufficient performance for standard industrial uses.
Yes, the HT panel can be equipped with either vacuum circuit breakers or SF6 circuit breakers depending on the client's preference and application requirements, providing flexibility in fault current interruption and switching.

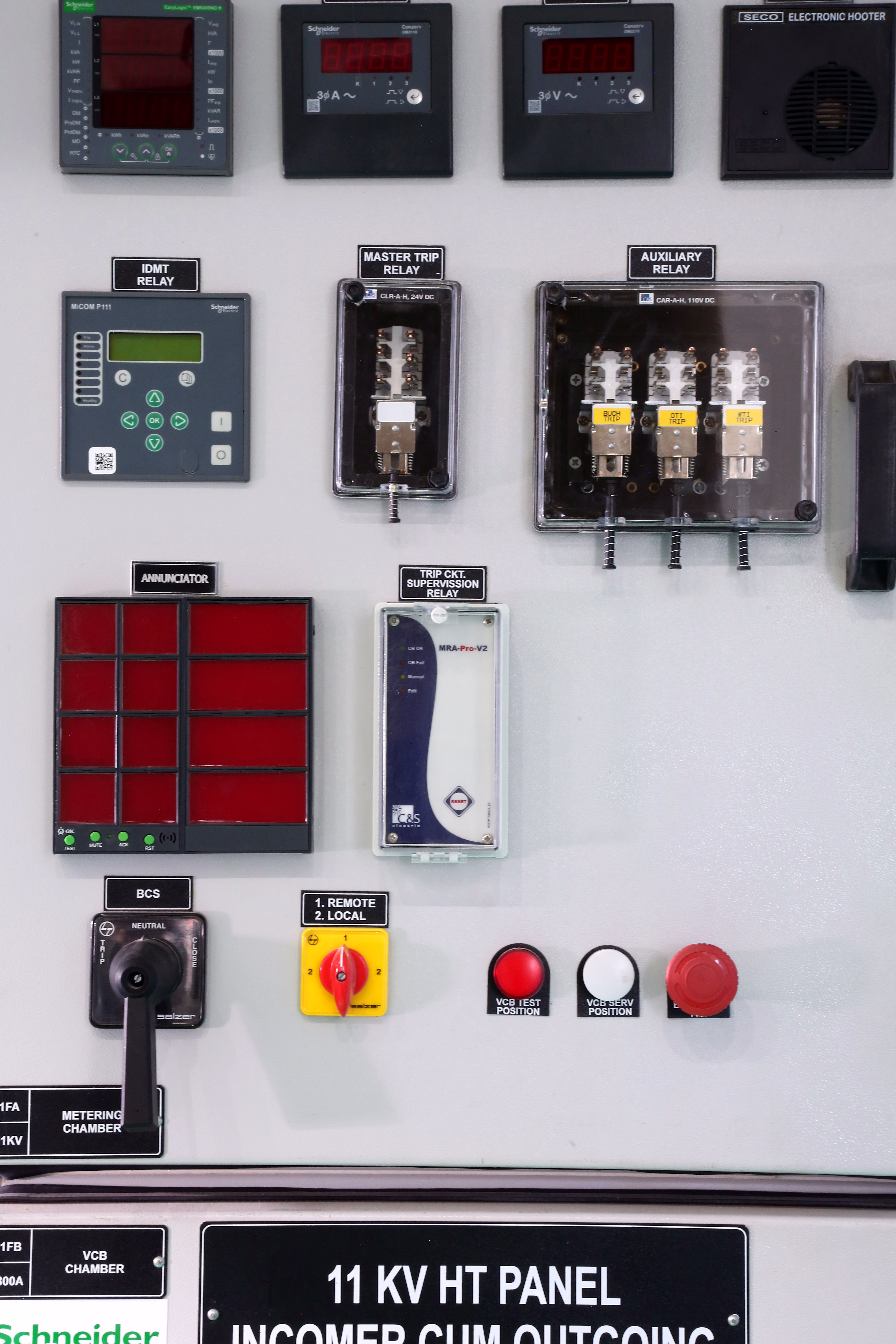

The panel includes protective relays that monitor critical parameters such as earth faults, thermal overloads, and short circuits, which trigger safety shutdowns or alarms to prevent damage to the electrical system and connected equipment.
Yes, the HT panel design is customizable and can include additional or specialized metering devices for voltage, current, power factor, or energy to meet specific operational monitoring needs.
Country Of Origin: India
11kV High Tension (HT) panel is a critical component in electrical distribution systems, designed to manage and distribute high voltage electricity safely. It typically consists of a metal enclosure housing various components such as circuit breakers, relays, and metering devices.
Key Features
Power Distribution: The panel receives electrical supply at 11kV and distributes it through outgoing feeders to transformers or other distribution panels.
Circuit Breakers: Usually equipped with vacuum circuit breakers (VCB) or SF6 circuit breakers, these devices facilitate safe switching operations and protect against overloads and short circuits.
Protection Mechanisms: It includes protective relays that monitor conditions like earth faults and overheating, ensuring the system's safety
.
Metering: Various meters measure parameters such as voltage, current, power factor, and energy consumption to ensure efficient operation.
Applications
11kV HT panels are commonly used in substations, industrial plants, and commercial buildings, providing reliable power distribution while ensuring safety and operational efficiency.
S. No. Particulars Qty. Amount (INR)
1 11KV HT ICOG PANEL BOARD (INDOOR TYPE) WITH AL.BUSBAR 1 387079
2 11KV HT ICOG PANEL BOARD (INDOOR TYPE) WITH CU. BUSBAR 1 412898
3 11KV HT ICOG PANEL BOARD (OUTDOOR TYPE) WITH CU. BUSBAR 1 440618
4 11KV HT ICOG PANEL BOARD (OUTDOOR TYPE) WITH AL.BUSBAR 1 414799
