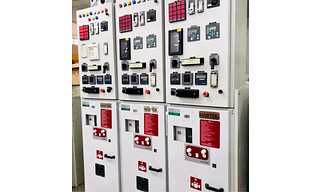

Medium Voltage Switchboard up to 33kV for B2B power distribution, built for control and protection of potential transformers, capacitor feeders, and motor feeders. Draw-out breaker and PT construction supports safer maintenance routines, while IEC 62271-200:2011 compliance and SCADA monitoring suit structured utility and industrial switchgear procurement.

• Draw-out type breakers and PTs for safer isolation during maintenance and replacement work.
• Control and protection functions for PT circuits, capacitor feeders, and motor feeder applications.
• SCADA-ready centralized monitoring support for coordinated substation and plant supervision.
• Mimic display for clear front-panel status indication during routine operating procedures.
• Top or bottom cable entry options to align with site routing and termination preferences.
• Compact, lightweight panel construction suited to installations with restricted space and handling limits.
• IEC 62271-200:2011 compliant switchgear build for safety and standardization requirements.

• Operational voltage rating: 12 kV / 36 kV class medium voltage switchboard assembly.
• Current ratings available: 630A, 800A, 1250A, 2000A, 2500A, 3150A.
• 3-phase, 50 Hz configuration aligned to common medium voltage distribution networks.
• Degree of protection: IP5X enclosure rating for dust ingress control in switchboard rooms.
• Busbar options in aluminium and copper for conductivity and specification matching.
• Control voltage choices: 24VDC, 110VDC, or 220VDC for panel control circuits.
• Standard colour finish: Siemens Grey RAL 7032 for uniform switchroom appearance.
• Coating thickness: 80–120 microns for specified surface protection requirements.
• Maximum temperature rise: 40°C over ambient 45°C operating conditions.

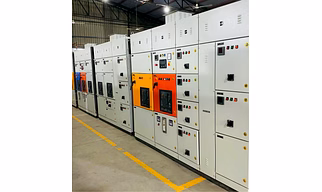

Low Voltage Switchboard for industrial and commercial power distribution, used for system control and coordinated electrical panel operations. IEC 61439 compliant construction supports structured LV switchgear procurement, while fixed or drawable configurations allow flexible installation and maintenance across facility power management systems.

• IEC 61439 compliant low voltage switchgear assembly aligned with recognized electrical distribution standards.
• Fixed and drawable panel configurations allowing maintenance access and adaptable switchgear layouts.
• SCADA and Ethernet EMS compatibility for centralized monitoring and facility energy supervision.
• Mimic display with LED indicators or semaphore signaling for operational status visibility.
• Top and bottom cable entry options supporting flexible routing during electrical installation.
• Bus chamber with safety barriers supporting controlled separation of energized bus sections.
• Front and back panel access facilitating installation, inspection, and maintenance procedures.

• Operational voltage range: 24V / 110V / 230V AC/DC and 690V AC system capability.
• Protection rating: IP5X enclosure for indoor environments and IP6X option for outdoor installations.
• Busbar material options: aluminium and copper for project specification alignment.
• Standard finish colours: Siemens Grey RAL 7032 and RAL 7035.
• Surface coating thickness: 80–120 microns protective coating.
• Panel configuration type: fixed and drawable switchboard arrangements.
• Category: Low Voltage Switchboard panel for system control applications.

Busbar Trunking system used for high-capacity electrical power distribution between switchboards and connected equipment. IEC 61439 compliant construction supports structured installation across industrial and commercial facilities, while engineered thermal management helps maintain stable current transfer under demanding operational conditions.

• Solid termination connection between equipment and switchboards or between switchboard assemblies.
• Thermal design supporting heat dissipation, temperature control, and stable current transfer.
• Silver plated joints assisting consistent electrical contact across trunking sections.
• Integral earth arrangement supporting grounding continuity throughout the trunking system.
• Rectangular and square housing formats supporting structured installation layouts.
• Indoor and outdoor duty configuration for facility and infrastructure electrical routing.
• IEC 61439 compliant bus duct construction aligned with switchgear integration requirements.

• Current rating range: 800A to 5000A aluminium busbars.
• Current rating range: 630A to 6000A copper busbars.
• Ingress protection options: IP4X, IP5X, and IP6X enclosure ratings.
• Housing material: electro-galvanized steel 1.5mm–2mm or aluminium wrap-around housing.
• Insulation class rating: Class B insulation system.
• Busbar material options: aluminium or copper conductor systems.
• Standard color finish: Siemens Grey RAL 7032 and RAL 7035.

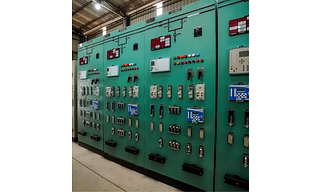

Control Relay Panel used for monitoring, control, and protection functions in high-voltage power systems up to 220 kV. Structured panel design supports organized substation and industrial control integration, while SCADA connectivity and mimic display interfaces assist operators with clear operational supervision and coordinated system management.

• Control and relay panel architecture supporting monitoring and protection functions in electrical substations and industrial facilities.
• SCADA-enabled centralized monitoring supporting supervisory control within grid and plant automation environments.
• Mimic display interface with LED indicators or semaphore signaling for operational status visibility.
• Spacious cable termination area supporting organized wiring and simplified maintenance access.
• Simplex and duplex enclosure options supporting redundancy or expanded relay configurations.
• Bottom cable entry configuration assisting structured cable routing in control room installations.
• Panel layout adaptable for future extension or additional control circuits when system upgrades are required.

• Operational voltage capability: 11kV, 33kV, 66kV, 132kV, and 220kV electrical systems.
• Degree of protection: IP5X enclosure protection for indoor control panel environments.
• Control voltage options: 24VDC, 110VDC, and 220VDC control circuits.
• Standard panel color: Siemens Grey RAL 7032 and RAL 631.
• Surface coating thickness: 80–120 microns protective coating.
• Panel dimensions configurable according to project or customer requirements.
• Category classification: Control and Relay Panel for high-voltage electrical control systems.

SCADA & Automation system used for centralized monitoring and control of electrical substations and power distribution networks. Supervisory Control and Data Acquisition architecture enables operators to manage multiple substations from a single control hub while accessing operational data and automation modules remotely.

• Centralized supervisory control supporting monitoring of multiple substations from a single operational hub.
• Remote access capability enabling operators to interact with control modules across distributed electrical systems.
• Standard automation protocol compatibility supporting integration with diverse substation equipment.
• Power monitoring interface providing operational visibility into electrical distribution networks.
• Custom SCADA configuration allowing system design to align with project automation requirements.
• Data acquisition architecture supporting collection and visualization of operational system data.
• Automation system supporting coordinated supervision of electrical infrastructure environments.

• Category classification: SCADA and automation system for substation monitoring.
• Function type: Supervisory Control and Data Acquisition platform.
• Application scope: electrical substations and power distribution facilities.
• Control architecture: centralized monitoring from a single supervisory hub.
• Remote communication support through standard automation protocols.
• Designed for integration with industrial and utility electrical infrastructure.
• Solution approach: customizable SCADA configuration based on project requirements.

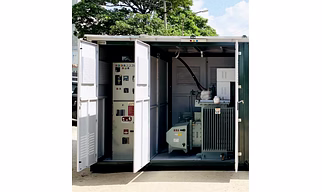

Packaged Substation integrating medium voltage switchgear, a distribution transformer, and a low voltage switchboard within a single enclosure. Structured compartmental design supports organized power distribution installations, while compact construction assists facilities requiring efficient space use and simplified electrical infrastructure deployment.

• Integrated enclosure housing MV switchgear, transformer, and LV switchboard in segregated safety compartments.
• Package substation design supporting power distribution systems operating between 12kV and 36kV.
• Compatible with hermetically sealed oil transformers or cast resin dry type transformer configurations.
• VCB or RMU options available for the medium voltage switching section.
• Natural ventilation configuration supporting passive cooling of internal electrical equipment.
• Compact installation format suited to locations where electrical room space is limited.
• Outdoor or indoor duty options allowing deployment across varied facility environments.

• Operating voltage range: 12kV to 36kV packaged substation system.
• Transformer capacity support: up to 3 MVA distribution transformers.
• Ambient operating temperature rating: 40°C ±2.
• Enclosure protection rating: IP2X external housing protection.
• MV and LV compartment protection rating: IP5X.
• Busbar material options: copper or aluminium conductors.
• Surface coating thickness: 50–100 microns protective finish.
• Standard finish color: Siemens Grey RAL 7032.
• Applicable standard: IEC 62271 compliant construction.
• Rated power frequency withstand voltage: 28 / 50 kV rms.
