GAYREX® Sodium Silicate Mortar is a high-performance refractory mortar specially formulated to resist severe corrosive environments involving oxidizing acids and high temperatures up to 800°C. This sodium silicate-based cement is uniquely engineered to offer exceptional resistance against acids, acidic salts, alcohols, grease, fats, mineral oils, and alkalis, making it ideal for harsh industrial applications. Primarily designed for use with acid-resisting bricks and tiles, GAYREX® Mortar is widely utilized in critical areas such as reaction vessels, storage tanks, neutralization pits, drains, and floors across industries including steel manufacturing, dyestuff production, metal finishing, thermal power plants, fertilizers, petrochemicals, food processing, beverages, breweries, and dairies. It serves versatile functions including bedding and jointing for acid-resistant bricks and tiles, as well as joint filling and bedding in refractory linings like RCC chimneys. The mortar comes as a two-component system, mixed on-site to ensure optimal working consistency and strong bonding characteristics. Tested and compliant with IS 4832 Part 1 standards, GAYREX® Mortar delivers high compressive, flexural, and bond strengths while maintaining low absorption rates, aligned with international export quality for reliable industrial usage worldwide.
Key Features
| Features | Description |
|---|---|
| High Temperature Resistance | Resists temperatures up to 800°C |
| Chemical Resistance | Resistant to oxidizing acids, acids, acidic salts, alcohols, grease, fats, mineral oils, and alkalis |
| Compressive Strength | 150-165 kg/cm² at 7 days |
| Bond Strength | Minimum 5 kg/cm² at 15 days |
| Flexural Strength | 40-45 kg/cm² at 7 days |
| Absorption of Toluene | Maximum 15-18% by weight |
| Application Type | Bedding and jointing mortar for acid-resistant bricks/tiles |

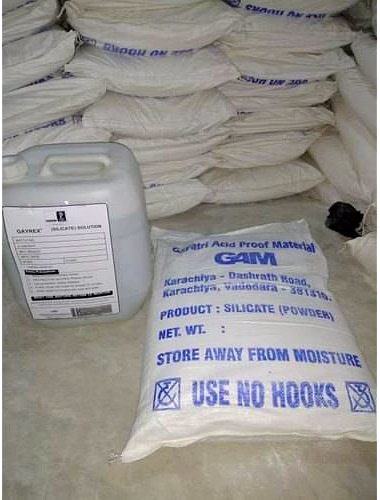

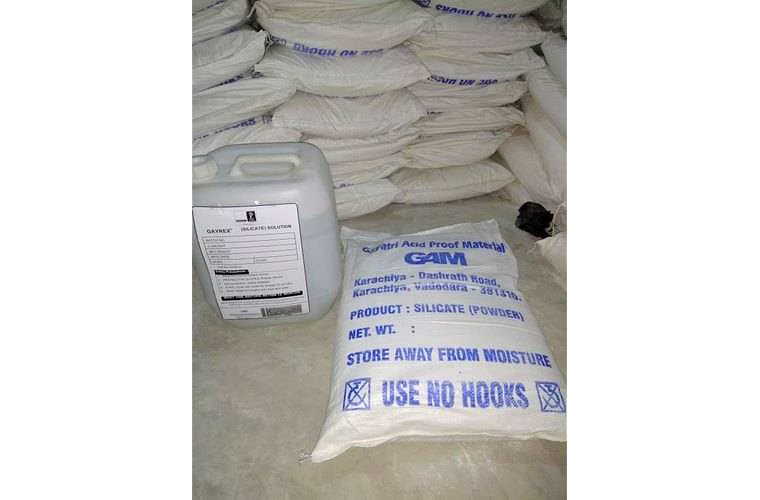

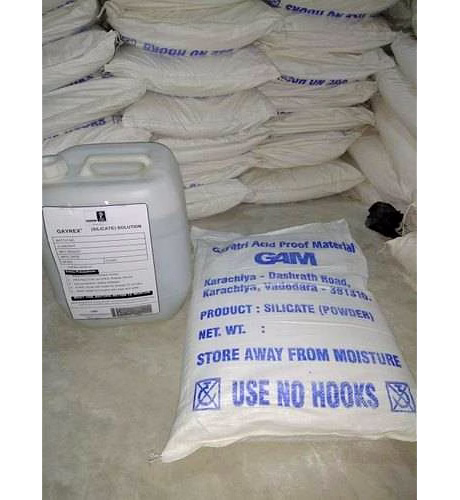

| Packaging | Two-part system - liquid sodium silicate solution and powder filler |
| Compliance | Tested as per IS 4832 Part 1 and international export standards |
| Industry Usage | Ideal for steel, chemical, thermal power, fertilizer, petrochemical, food & beverage industries |
| Attributes | Description |
|---|---|
| Brand | Gayatri |
| Product Type | Sodium Silicate Based Refractory Mortar |
| Temperature Resistance | Up to 800°C |
| Working Time | 20 to 25 minutes at 27±2°C |
| Mix Ratio | 1 part liquid sodium silicate solution to 2.5-3 parts powder filler |
| Compressive Strength (7 Days) | 150-165 kg/cm² |
| Bond Strength (15 Days) | Minimum 5 kg/cm² |
| Flexural Strength (7 Days) | 40-45 kg/cm² |
| Absorption Rate | Maximum 15-18% by weight (Toluene absorption) |
| Application Areas | Reaction vessels, storage tanks, neutralization pits, drains, floors, RCC chimneys |
| Industries Served | Steel, chemical, dye-stuff, thermal power, fertilizer, petrochemical, food processing, brewery, dairy |
| Standard Compliance | IS 4832 Part 1, International export norms |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, GAYREX® Mortar is suitable for bedding and joint filling in RCC chimneys, offering resistance to acidic and high-temperature corrosive gases.
The typical mixing ratio is one part liquid sodium silicate solution to 2.5 to 3 parts powder filler by weight, mixed thoroughly to achieve workable consistency.
Yes, GAYREX® Mortar provides resistance to acids, acidic salts, alkalis, and other corrosive substances including mineral oils and alcohols.
Working time is approximately 20-25 minutes at 27±2°C. Lower temperatures may extend setting time, but it should not be applied below 10°C.
Yes, in less severe conditions it is commonly used as a bedding material; however, for severe corrosive environments, it is recommended for both bedding and jointing.
Country Of Origin: India
GAYREX® - is a sodium Silicate base cement was developed to solve corrosion problem involving oxidizing acids. It is the only cement that will resist high temperatures and highly concentrated solutions. It resists acids, acidic salts, alcohols, grease, fats, mineral oils & alkalis. GAYREX® - K Mortar will resist a temperature up to 8000CUseAcid Resisting Bricks / Tiles Lining based on GAYREX® - Silicate Resin Mortar is recommended for severe corrosive conditions as in reaction vessels, storage tanks, neutralization pits, drains, floors and other areas.GAYREX® - Silicate Mortar is used in different industries like Steel, Dyestuff, Metal Finishing, Thermal Power Plants, Fertilizers, Petrochemicals, Food processing, Beverages, Breweries, Dairies etc.For severe corrosive conditions GAYREX® - Silicate Mortar is used for bedding and jointing of tile / bricks and for less severe conditions, it is used as a Bedding Materials most the time And in some cases like RCC Chimney, it is Used as Bedding – Joint Filling Mortars.PropertiesPROPERTY: Require as per IS 4832 Part 1 GAL ResultsWorking time min, @ 27 0C +- 2 0C: 20 : 25Compressive Strength, min kg/cm2 (@ 7days): 150: 165Bond Strength, min kg/cm2 (@ 15days): 5: 5Flexural Strength, min kg/cm2 (@ 7days): 40: 45Absorption of Toluene, Max% by weight: 18: 15Directions for Use(1) The material is supplied two parts generally mixing at site in small usable lots in recommended. The resin is first taken in weighed quantity and the power filler is slowly mixed in it while stirring with trowel till a working consistency is obtained. This is approximately one part Liquid Solution is 2.5 to 3 parts power. Since the applicability for joints and bedding varies, the vertical joints may need more and workable mortar. Temp. not less than 10o C.(2) Butter the brick/tile with prepared mortar and slide them in place, then tap them firm Engineered for international industrial buyers, this refractory mortar ensures durability, performance, and export compliance.
