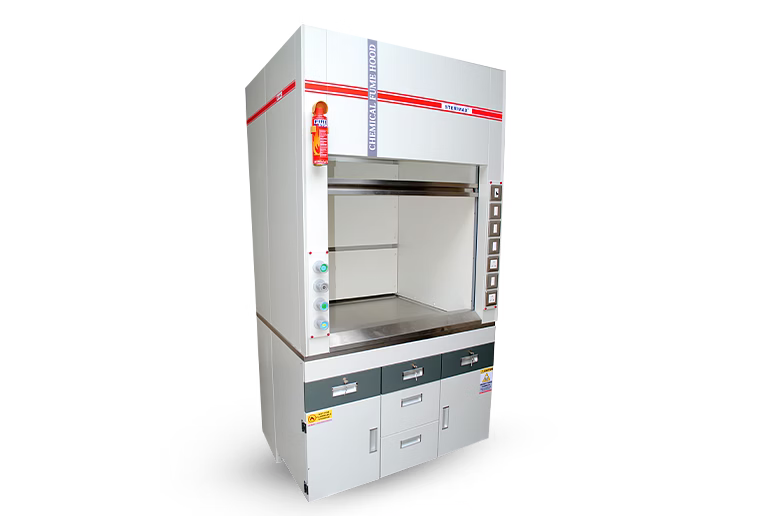

The FUME HOOD (MODULAR) “MAC” MSW-16701(DX) is a high-performance laboratory fume hood designed to meet stringent safety and functionality standards per ASHRAE-110. Engineered with an aerodynamic floor-mounted structure and low constant volume exhaust system, this fume hood ensures optimal containment of hazardous fumes while maintaining low noise emissions. The worktop features an integrated PP or porcelain cup sink specifically designed to safely collect and contain chemical waste streams. Its internal chamber is lined with a 6mm thick PRL panel that offers superior chemical and heat resistance, fire retardance, a smooth finish, and ease of cleaning. The entire structure is powder coated with a highly chemical-resistant epoxy finish for durability in harsh lab environments. A uniquely designed removable back baffle enhances fume extraction efficiency by rapidly capturing and evacuating fumes through a 3-point suction system which efficiently manages light to heavy fumes via a combination of the baffle and finely placed horizontal slots. The ergonomically engineered horizontal fixed airfoil on the worktop provides spill retention and ensures safe ventilation with an aerodynamic airflow design. This model (#STERIMAX-3 DX) is dimensioned at an internal space of 950x750x1200 mm (W x D x H) and an external footprint of 1200x900x2300 mm (W x D x H), making it suitable for various laboratory setups requiring modular, effective, and safe fume extraction solutions.
Key Features
| Features | Description |
|---|---|
| Design Compliance | Complies with ASHRAE-110 standards for face velocity |
| Structure | Aerodynamic floor-mounted modular design |
| Air Flow Type | Low constant volume exhaust system |
| Cup Sink Material | PP (Polypropylene) or Porcelain for chemical waste collection |
| Inner Chamber Liner | 6mm thick PRL integral panel, chemical & heat resistant, fire retardant, smooth finish |
| Surface Finish | Highly chemical resistant epoxy powder coating |
| Baffle Design | Removable back baffle with enhanced fume capturing and rapid evacuation |
| Suction System | 3-point suction for light, normal, and heavy fumes |
| Airfoil | Aerodynamic, fixed horizontal airfoil on worktop for spill retention and ventilation |
| Dimensions (Internal) | 950x750x1200 mm (W x D x H) |
| Dimensions (External) | 1200x900x2300 mm (W x D x H) |
| Attributes | Description |
|---|---|
| Model Number | STERIMAX-3 (DX) |
| Noise Level | Low noise operation at main body |
| Material - Cup Sink | PP or Porcelain |
| Material - Internal Liner | PRL integral panel, 6mm thick |
| Surface Coating | Epoxy powder coating, chemical resistant |
| Air Flow | Low constant volume exhaust |
| Baffle Type | Removable back baffle |
| Suction Points | 3-point suction system |
| Airfoil Design | Aerodynamic horizontal fixed airfoil |
| Installation Type | Floor mounted |
| Internal Dimensions (W x D x H) | 950x750x1200 mm |
| External Dimensions (W x D x H) | 1200x900x2300 mm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It complies with ASHRAE-110 standards which ensure optimal face velocity performance for safe fume containment.
The 3-point suction system targets light, normal, and heavy fumes using a combination of a removable back baffle and horizontal slots to distribute air flow evenly and increase fume capture efficiency.
The cup sink is made from PP (Polypropylene) or Porcelain to safely collect chemical waste while being highly resistant to chemical corrosion.
The epoxy powder coating provides a chemical-resistant finish that protects the fume hood against harsh chemicals and enhances its lifespan in demanding lab environments.
Yes, the back baffle is uniquely designed to be removable facilitating easy cleaning and maintenance without compromising safety.
An aerodynamic horizontal fixed airfoil on the worktop provides spill retention and promotes safe ventilation, supporting an ergonomic working position for users.
Country Of Origin: India
Design Basis : Comply to ASHRAE-110 Standards for face velocity
Fume Hood Structure : Aerodynamic Floor Mounted.
Air Flow Type : Low Constant Volume Exhaust Type
Noise Level (At Main Body) : <60db sound levels (Blower to be mounted on a remote mounting kit)
Construction : Double Skinned
Structure Outer Skin (MOC) : Super Structure Constructed out of CRC Powder Coated.
Cup Sink : Made of PP/Porcelain Sink, to collect chemical waste on Work top.
Inner chamber vertical liner : Chemical & Heat Resistance, Fire retardent , smooth finish, easily cleanable, panel made out of PRL integral work (6mm thick).
Epoxy Powder Coating : Powder coated with highly chemical resistant epoxy colors.
Baffle : Unique designed removeable back baffle captures and removes or slides fumes instantly at much faster speed.
Suction : 3-point suction system (for light, normal and heavy fumes) with baffle and fined horizontal slots aids in distributing the flow of air.
Airfoil : Aerodynamic Design, Horizontal fixed air foil mounted on worktop, provides spill retention and safe ventilation of fumes generated with ergonomic design.
Model : #STERIMAX-3 (DX)
Internal Dimensions (WXDXH) mm : 950x750x1200
External Dimensions (WXDXH) mm : 1200x900x2300
