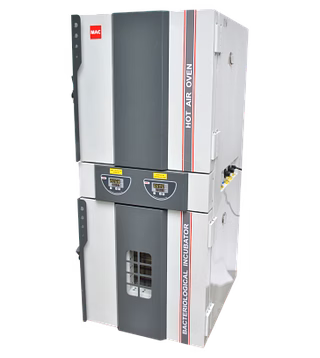

The OVEN AND INCUBATOR COMBINED (OVEN-ATOP-INCUBATOR) “MAC” MSW-221 by MACRO SCIENTIFIC WORKS PVT LTD is a dual-function laboratory appliance designed for precise heating and incubation needs. Featuring adjustable ventilation slides, the unit effectively controls inner air and vapor circulation to ensure optimal experimental conditions. The oven section uses beaded heating elements embedded in ribs at the bottom and sides, providing uniform heat distribution across its chamber. Constructed with a robust CRC sheet outer body with powder coating, and an inner chamber plus perforated trays made of premium stainless steel (SS-304), the device guarantees durability and corrosion resistance. High-grade mineral wool insulation minimizes heat loss by filling the space between the inner chamber and outer walls. Portability is enhanced with sturdy caster wheels, and the door employs heavy-duty hinges and a secure gasket to prevent leakage. Operating on 220/230V, 50/60 Hz power supply, it offers temperature ranges of 50°C to 250°C for the oven and ambient +5°C to 70°C for the incubator, controlled through a microprocessor-based PID digital temperature controller with LED display. Forced convection and an air circulating fan ensure temperature uniformity throughout the chambers. Model OIC-45 is compact yet efficient, with each chamber measuring 355x355x355 mm and providing 45 liters capacity, a total heat load of 1.25 KW, making it an ideal solution for laboratories requiring combined heating and incubation functions.
Key Features
| Features | Description |
|---|---|
| Dual Functional Chambers | Oven and Incubator combined in one unit with independent control |
| Temperature Range (Oven) | 50°C to 250°C |
| Temperature Range (Incubator) | Ambient +5°C to 70°C |
| Heating System | Beaded heating elements placed in ribs for uniform heat distribution |
| Material Construction | Outer body CRC sheet with powder coating, inner chamber and trays SS-304 |
| Ventilation Control | Adjustable two ventilation slides for inner air/vapour circulation |
| Temperature Control | Microprocessor Based PID Digital Temperature Indicator-Cum-Controller |
| Display | Digital LED with SV and PV display |
| Mobility | Mounted on caster wheels |
| Insulation | High grade mineral wool filling for minimal heat dissipation |
| Power Supply | 220/230V AV, 50/60 Hz |
| Door Design | Heavy duty hinges and door handle with leak-proof gasket |
| Model Number | OIC-45 |
| Chamber Size | 355x355x355 mm (each chamber) |
| Capacity | 45 liters per chamber; total 90 liters |
| Heat Load | 1.25 KW |
| Attributes | Description |
|---|---|
| Model | MSW-221 (OIC-45) |
| Type | Combined Oven and Incubator with forced convection system |
| Temperature Accuracy | ± 1°C |
| Controller Type | Microprocessor Based PID Digital Temperature Controller |
| Display Type | Digital LED - Set Value (SV) and Process Value (PV) |
| Material (Outer Body) | CRC Sheet, Powder Coated |
| Material (Inner Chamber & Trays) | Stainless Steel SS-304 |
| Insulation | High grade Mineral Wool |
| Ventilation | Two adjustable ventilation slides |
| Mobility | Caster wheels mounted for portability |
| Electrical Supply | 220/230V Automatic Voltage, 50/60 Hz |
| Chamber Dimensions (WxHxD) | 355 mm x 355 mm x 355 mm (each chamber) |
| Total Capacity | 90 liters (45 liters per chamber) |
| Total Heat Load | 1.25 KW |
| Safety Features | Heavy duty door hinges and rubber gaskets to prevent leakage |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The temperature accuracy is ±1°C, ensured by the microprocessor-based PID digital temperature controller.
Yes, the two ventilation slides control inner air and vapor circulation, providing adaptable ventilation for both oven and incubator chambers as needed.
Yes, the inner chamber and perforated trays are made of SS-304 stainless steel, providing excellent corrosion resistance suitable for laboratory environments.
Yes, the MSW-221 is mounted on caster wheels to allow easy portability across your workspace.
It uses a microprocessor-based PID digital temperature indicator-cum-controller with a solid-state electronic relay and protective heat sink for reliable temperature regulation.
High-grade mineral wool insulation fills the space between the inner chamber and outer wall, minimizing heat dissipation and improving thermal efficiency.
The total heat load is 1.25 KW, optimized for maintaining uniform temperature performance.
Country Of Origin: India
Adjustable two ventilation slides control inner air/vapour circulation.
Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution
Outer body made up of CRC sheet duly powder coated.
Inner chamber and perforated trays made of Stainless Steel (SS-304)
Space between inner chamber and outer wall is filled with high grade mineral wool for minimal heat dissipation.
Mounted on caster wheels for easy portability.
Door fitted with heavy duty hinges and door handle ensuring there are no leakages through the door gasket.
To work on 220/230V AV, 50/60 Hz supply
Temperature Range : 50°C to 250°C (For Oven) & Ambient +5°C to 70°C (for Incubator)
Type : Available with forced convection system.
Temp. Accuracy : ± 1°C
Display : Digital LED with SV and PV display.
Regulator : Solid state electronic relay with protective heat sink.
Temp. Controller : Microprocessor Based PID Digital Temperature Indicator-Cum-Controller and air circulating fan for temperature uniformity.
MODEL : #OIC-45
Internal Dimension mm (Size of each chamber) : 355x355x355
Capacity : 45 ltrs + 45 ltrs
Total Heat Load : 1.25 KW
