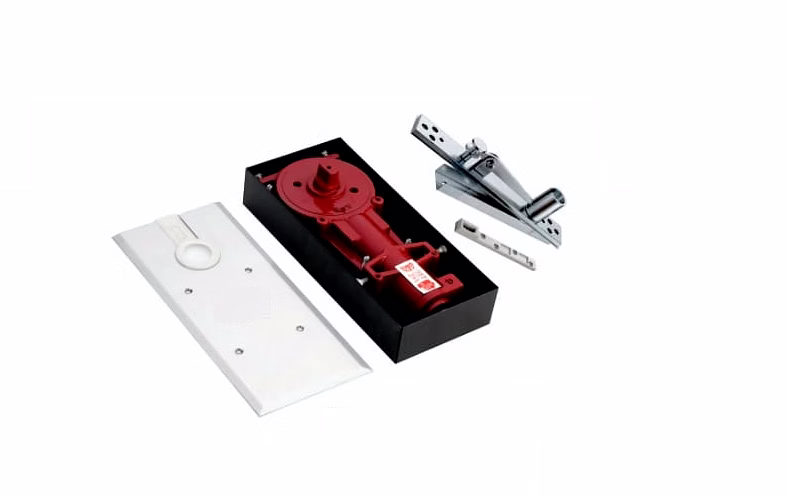

A Floor Spring is a specialized mechanical device designed primarily for controlling and supporting the operation of heavy glass or wooden doors. Installed discreetly within the floor beneath the door, it offers smooth and controlled door closing and opening. Ideal for commercial spaces such as offices, shopping malls, hotels, and public buildings, floor springs enhance the door's durability and functionality by providing adjustable closing speed and hold-open features. They are particularly suitable for heavy and high-traffic doors, ensuring safety and ease of use. This floor spring is compatible with both single and double door setups, supports a wide range of door weights, and is corrosion-resistant for long-term performance.
Key Features
| Features | Description |
|---|---|
| Type | Hydraulic Floor Spring |
| Suitable For Door Weight | Up to 150 kg |
| Door Thickness Compatibility | 35-50 mm |
| Material | Stainless Steel with Anti-Corrosion Coating |
| Closing Speed | Adjustable Hydraulic Control |
| Hold-Open Function | Yes, Adjustable |
| Mounting Position | Floor Mounted, Concealed Installation |
| Door Type Compatibility | Glass Doors, Wooden Doors, Metal Doors |
| Installation Type | Flush with Floor for Aesthetic Finish |
| Corrosion Resistance | High due to Coated Finish |
| Attributes | Description |
|---|---|
| Model | FS-150H |
| Hydraulic Fluid Type | Corrosion-resistant Synthetic Oil |
| Closing Angle | 180 degrees |
| Opening Angle | Up to 180 degrees |
| Operating Temperature Range | -20°C to +60°C |
| Finish | Brushed Stainless Steel |
| Dimensions | 240 mm x 70 mm x 45 mm |
| Mounting Box Included | Yes |
| Adjustability | Closing speed and hold-open position adjustable |
| Compliance | Meets EN 1154 Standards |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, this hydraulic floor spring is compatible with glass, wooden, and metal doors, provided door thickness and weight limits are adhered to.
Yes, it features an adjustable hydraulic mechanism allowing fine-tuning of the door closing speed according to user requirements.
Yes, the floor spring includes an adjustable hold-open feature that can be set to keep the door open at a desired angle.
The floor spring is designed to support doors weighing up to 150 kg.
This product has a corrosion-resistant stainless steel body with special coating, suitable for typical environmental exposures, but may require additional protection in highly corrosive conditions.
Country Of Origin: India
