The End Suction Horizontal Centrifugal Pumps with Semi Open Impeller are precision-engineered to deliver efficient fluid transfer solutions for demanding industrial applications. Designed to handle corrosive, volatile, and chemically aggressive liquids, these pumps accommodate fluids with suspended solids and polluted media, making them perfect for industries requiring robust and reliable pumping solutions. Their semi-open impeller design ensures optimal performance in handling liquids laden with solids and sludge, without compromising on efficiency. Available with a wide range of material options including Cast Iron, Carbon Steel, various grades of Stainless Steel, Bronze, Alloy-20, CD4MCU, and Hastelloy B & C, these pumps are built to withstand high temperatures (up to 250°C) and pressures (up to 4.8 kg/cm²) reliably. Tailored to meet diverse industrial needs including chemical processing, wastewater treatment, pharmaceuticals, and heavy industry applications, these pumps excel in transferring organic and inorganic chemicals, volatile solvents, slurry, effluent, and other complex fluids. With capacities reaching up to 40 m³/hr and heads up to 48 meters, operated at speeds up to 3500 rpm, they offer a versatile yet robust pumping solution capable of handling high-volume, high-demand processes. Their maintenance-friendly design enhances operational uptime, making them an ideal choice for long-term industrial use across sectors such as dye manufacturing, fertilizer production, cement, steel plants, and pulp and paper industry.
Key Features
| Features | Description |
|---|---|
| Pump Type | End Suction Horizontal Centrifugal Pump |
| Impeller Design | Semi Open Impeller |
| Capacity | Up to 40 m³/hr |
| Head | Up to 48 meters |
| Discharge Size | 25 mm to 50 mm |
| Maximum Operating Temperature | Up to 250°C |
| Maximum Speed | Up to 3500 rpm |
| Maximum Pressure | Up to 4.8 kg/cm² |
| Materials of Construction | CI, CS, SS-304/304L, SS316/316L, Bronze, Alloy-20, CD4MCU, Hastelloy B & C |
| Suitable Fluids | Corrosive, volatile, chemically aggressive fluids with suspended solids and polluted media |
| Applications | Chemical transfer, effluent treatment, slurry movement, filter press, pharmaceuticals, textiles, wastewater treatment, fertilizers, cement, steel plants, paper and pulp |
| Attributes | Description |
|---|---|
| Pump Type | End Suction Horizontal Centrifugal |
| Impeller | Semi Open |
| Capacity | Up to 40 m³/hr |
| Head | Up to 48 m |
| Discharge Size | 25 mm to 50 mm |
| Operating Temperature | Up to 250°C |
| Maximum Speed | 3500 rpm |
| Maximum Pressure | 4.8 kg/cm² |
| Material Options | Cast Iron (CI), Carbon Steel (CS), SS-304/304L, SS316/316L, Bronze, Alloy-20, CD4MCU, Hastelloy B & C |
| Applications | Industrial chemical processing, wastewater treatment, slurry and effluent handling, pharmaceuticals, dyes, textiles, solvents (kerosene, diesel), fertilizer plants, cement and steel industries, paper and pulp |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The semi open impeller design is specifically suited to handle fluids containing suspended solids, polluted media, and slurry. It can efficiently pump corrosive, volatile, and chemically aggressive liquids often found in chemical processing, wastewater treatment, and similar industrial applications.
Yes, the pump is designed to operate reliably at temperatures up to 250°C and pressures up to 4.8 kg/cm², accommodating demanding industrial environments such as chemical and pharmaceutical plants.
Materials of construction include Cast Iron (CI), Carbon Steel (CS), Stainless Steel grades (SS-304/304L, SS316/316L), Bronze, Alloy-20, CD4MCU, and Hastelloy B & C, allowing selection based on the chemical compatibility required by the application.
Yes, these pumps are effective in transferring solvents like kerosene and diesel, making them versatile for industries requiring solvent handling including pharmaceuticals and chemical manufacturing.
The semi open impeller design and robust construction enable the pump to handle slurry and solids-laden fluids efficiently without clogging, making it ideal for filter press applications and slurry movement in heavy industrial settings.
The pumps are available with discharge sizes ranging from 25 mm to 50 mm, providing flexibility for different flow requirements in industrial processes.
Country Of Origin: India

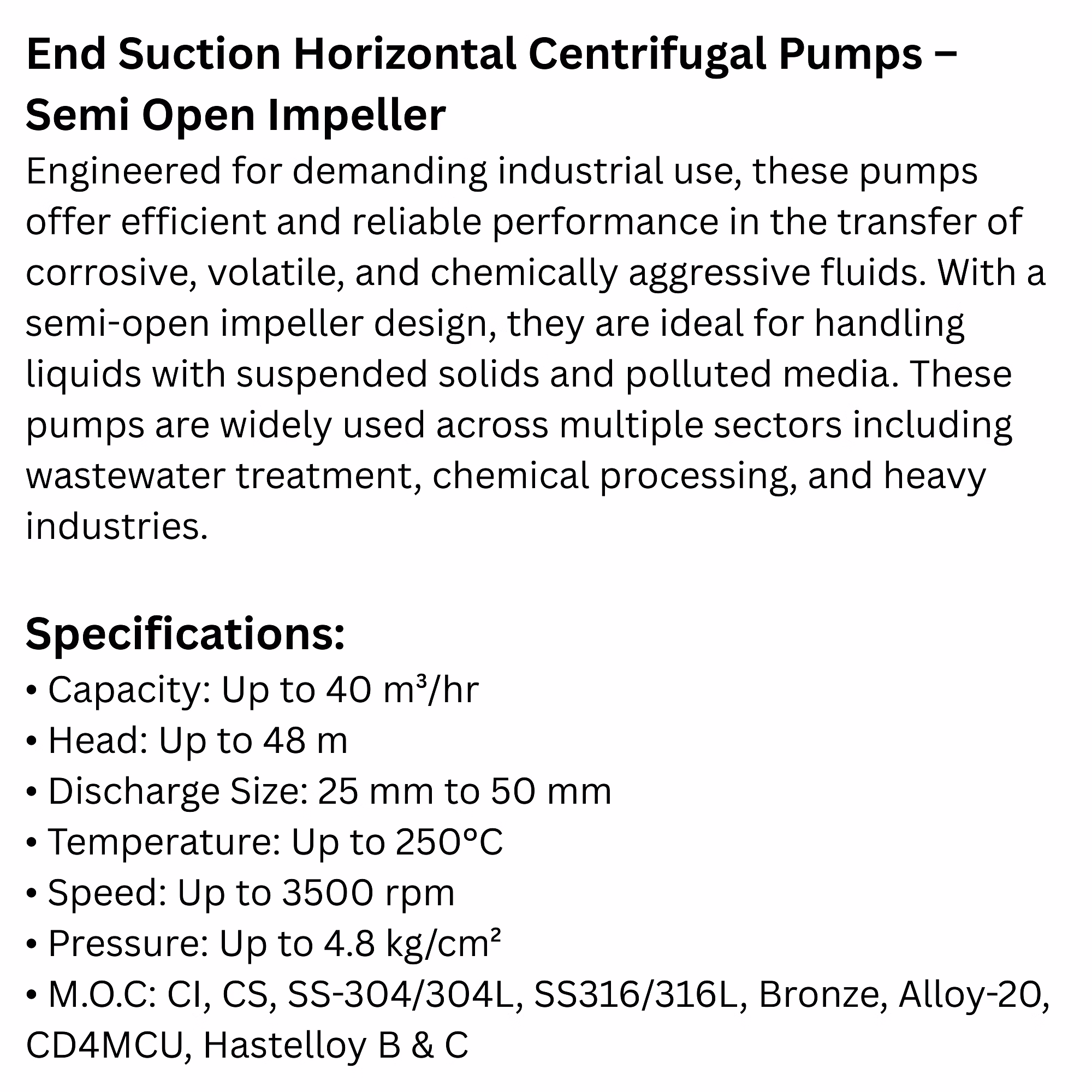

End Suction Horizontal Centrifugal Pumps – Semi Open Impeller
Engineered for demanding industrial use, these pumps offer efficient and reliable performance in the transfer of corrosive, volatile, and chemically aggressive fluids. With a semi-open impeller design, they are ideal for handling liquids with suspended solids and polluted media. These pumps are widely used across multiple sectors including wastewater treatment, chemical processing, and heavy industries.
Specifications:
• Capacity: Up to 40 m³/hr
• Head: Up to 48 m
• Discharge Size: 25 mm to 50 mm
• Temperature: Up to 250°C
• Speed: Up to 3500 rpm
• Pressure: Up to 4.8 kg/cm²
• M.O.C: CI, CS, SS-304/304L, SS316/316L, Bronze, Alloy-20, CD4MCU, Hastelloy B & C
Our pumps are built to deliver consistent performance across a wide range of industrial operations. Designed for the transfer of organic and inorganic chemicals, volatile and corrosive liquids, and caustic substances, they are highly effective in process effluent handling, slurry movement, and filter press applications. Trusted across industries such as pharmaceuticals, dyes, textiles, and chemical processing, these pumps also serve wastewater treatment facilities (ETP/STP), fertilizer units, cement and steel plants, and civil infrastructure projects. Their ability to handle liquids containing suspended solids, polluted media, and solvents like kerosene and diesel makes them a reliable choice for complex fluid transfer. Additionally, the paper and pulp industry benefits from their robust, maintenance-friendly design and high durability.
Applications:
• Organic and inorganic chemicals, caustic and volatile liquids
• Effluent, slurry, and filter press operations
• Pharmaceuticals, dyes, textiles, solvents like kerosene and diesel
• ETP/STP, wastewater treatment, fertilizers, cement, and steel plants
• Chemical transfer with solids in suspension
• Public infrastructure and civil engineering projects
• Paper and pulp processing
