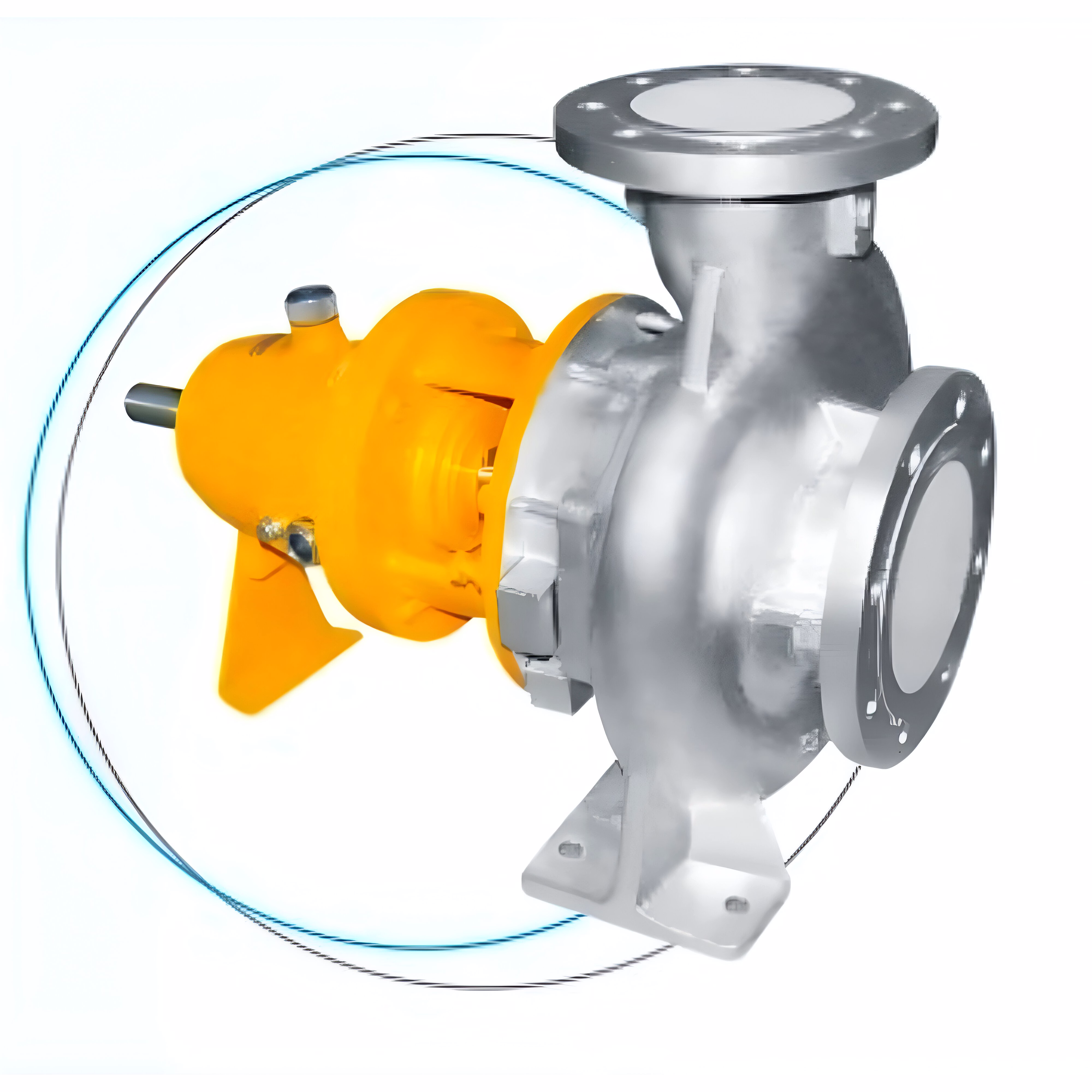

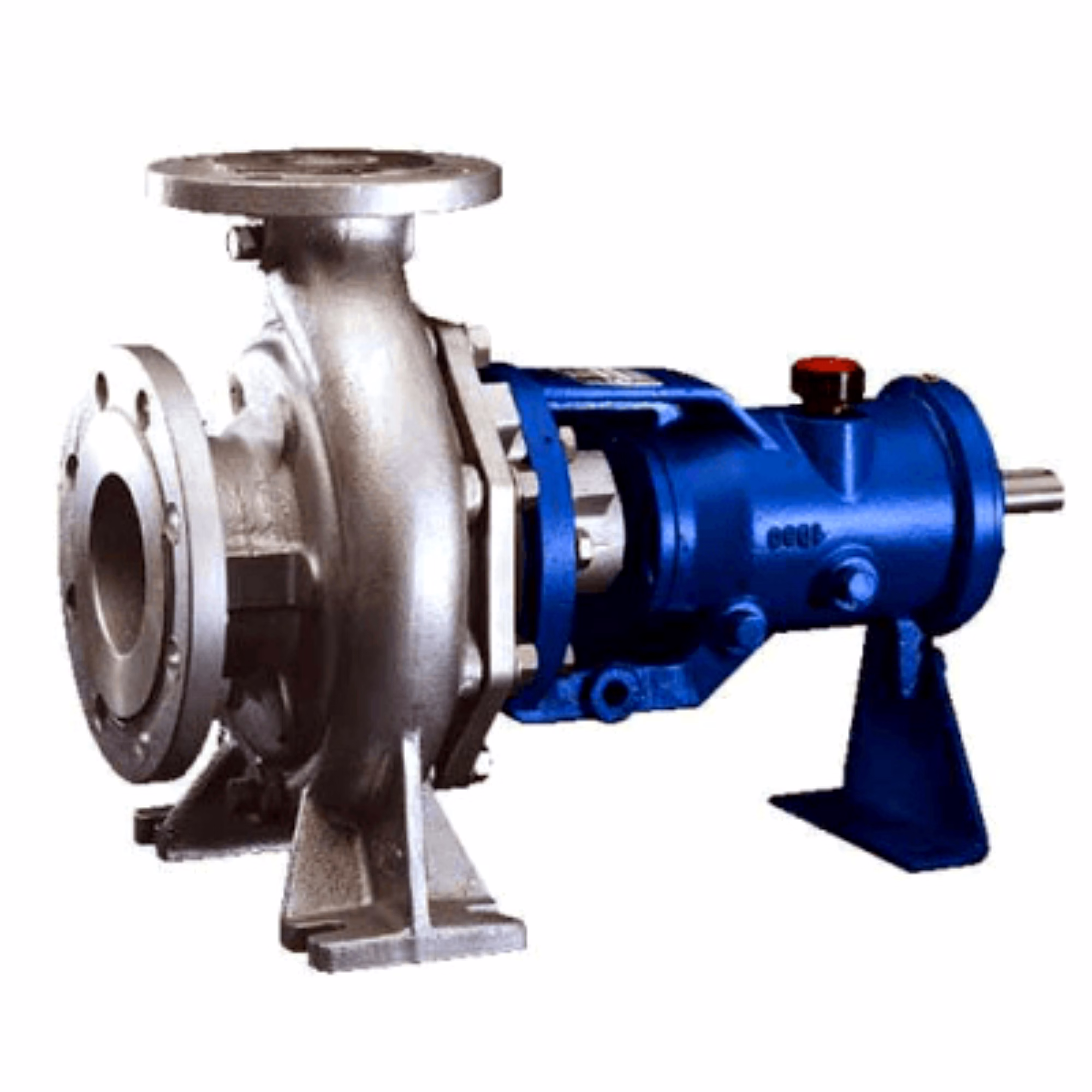

The SHPOP Series comprises single stage end suction pumps specifically engineered for the rigorous requirements of pulp and paper mill operations. Designed to handle high consistency materials up to 70%, these pumps provide reliable, efficient service with capacities reaching 640 m³/hr and heads up to 55 meters. Constructed with robust back pull-out design, SHPOP pumps facilitate maintenance and ensure operational continuity. They operate efficiently at temperatures up to 250°C and pressures up to 5.5 kg/cm², making them suitable for demanding applications including pulp chest transfer, refining, centrifugal cleaning, and fiber recovery. Available with open or semi-open impellers and a wide range of material options—from cast iron and various stainless steels to specialized alloys like Hastelloy and Alloy-20—these pumps deliver exceptional corrosion resistance and durability. The SHPOP Series is ideal for processes such as chest pumping, refiner and fan pumping, back water management, and couch pit feeding, ensuring optimal hydraulic performance in harsh industrial environments.
Key Features
| Features | Description |
|---|---|
| Pump Type | Single Stage End Suction Pump |
| Maximum Capacity | Up to 640 m³/hr |
| Maximum Head | Up to 55 meters |
| Discharge Size Range | 25 mm to 200 mm |
| Operating Temperature | Up to 250°C |
| Operating Pressure | Up to 5.5 kg/cm² |
| Operating Speed | Up to 1500 rpm |
| Impeller Type | Open & Semi-Open Types |
| Maximum Consistency Handling | Up to 70% pulp consistency |
| Material of Construction | CI, CS, SS-304/304L, SS-316/316L, Bronze, Alloy-20, CD4MCU, Hastelloy B & C |
| Design | Robust Back Pull-Out for Easy Maintenance |
| Attributes | Description |
|---|---|
| Capacity | Up to 640 m³/hr |
| Head | Up to 55 m |
| Discharge Size | 25 mm to 200 mm |
| Maximum Operating Temperature | 250°C |
| Maximum Pressure | 5.5 kg/cm² |
| Maximum Speed | 1500 rpm |
| Impeller Type | Open and Semi-Open |
| Maximum Consistency | 70% |
| Materials of Construction | Cast Iron (CI), Carbon Steel (CS), Stainless Steel 304/304L, SS 316/316L, Bronze, Alloy-20, CD4MCU, Hastelloy B and C |
| Design Features | Back Pull-Out Design for Maintenance |
| Industry Applications | Pulp & Paper Mills – Chest, Refiner, Fan, Centri Cleaner, Back Water, Separator, Couch Pit, Turbo Feed Pumps |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The SHPOP Series pumps are engineered to operate efficiently at temperatures up to 250°C, making them suitable for high-temperature pulp and paper mill applications.
Yes, SHPOP Series pumps can reliably handle pulp consistency levels up to 70%, supporting efficient transfer of thick pulp slurries in paper manufacturing.
The SHPOP pumps feature a robust back pull-out design that permits easy removal of the rotating assembly without disturbing the pump casing or piping.
The SHPOP pumps come with both open and semi-open impeller options, optimized for handling fibrous and high-consistency materials in pulp and paper processes.
SHPOP pumps offer a variety of materials including Cast Iron, Carbon Steel, Stainless Steel 304/304L and 316/316L, Bronze, Alloy-20, CD4MCU, and Hastelloy B & C for enhanced corrosion and abrasion resistance.
SHPOP pumps are widely used as chest pumps, refiner pumps, fan pumps, centri cleaner pumps, back water pumps, separator pumps, couch pit pumps, and turbo feed pumps in pulp and paper production lines.
Country Of Origin: India

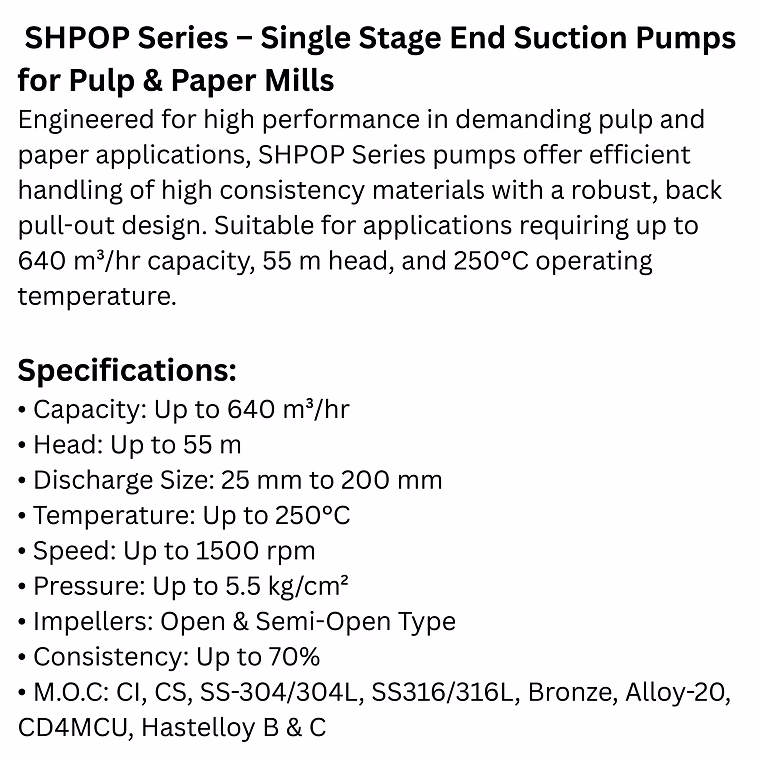

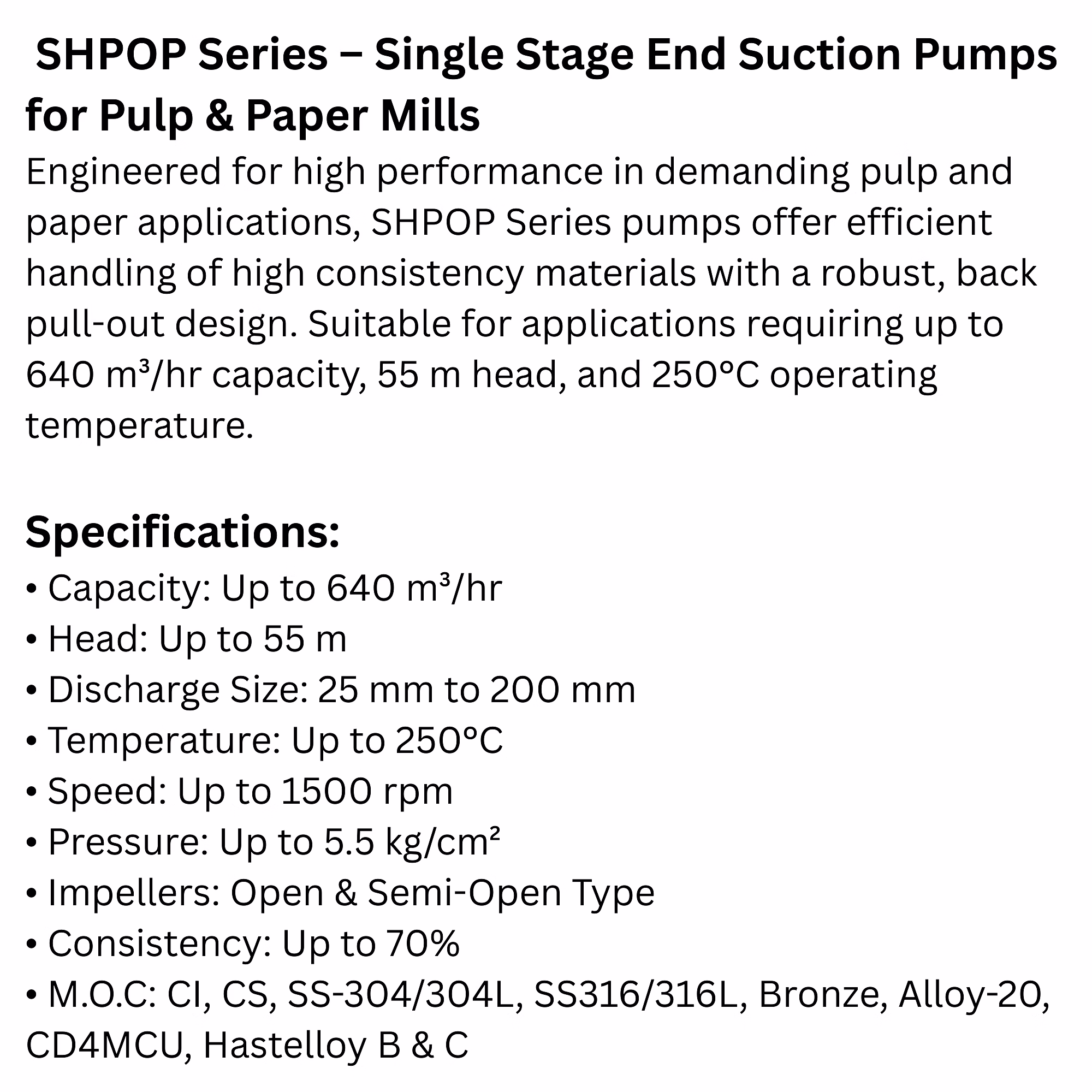

SHPOP Series – Single Stage End Suction Pumps for Pulp & Paper Mills
Engineered for high performance in demanding pulp and paper applications, SHPOP Series pumps offer efficient handling of high consistency materials with a robust, back pull-out design. Suitable for applications requiring up to 640 m³/hr capacity, 55 m head, and 250°C operating temperature.
Specifications:
• Capacity: Up to 640 m³/hr
• Head: Up to 55 m
• Discharge Size: 25 mm to 200 mm
• Temperature: Up to 250°C
• Speed: Up to 1500 rpm
• Pressure: Up to 5.5 kg/cm²
• Impellers: Open & Semi-Open Type
• Consistency: Up to 70%
• M.O.C: CI, CS, SS-304/304L, SS316/316L, Bronze, Alloy-20, CD4MCU, Hastelloy B & C
Applications:
Widely used across pulp and paper mill operations, including:
• Chest pump
• Refiners pump
• Fan pump
• Centri cleaner pump
• Back water pump
• Separator pump
• Couch pit pump
• Turbo feed pump
Specialized Pumps for Pulp & Paper and Process Industries:
We offer a comprehensive range of high-performance pumps designed to meet the demanding needs of the pulp & paper, chemical, and process industries. Our product line includes Chest Pumps, Refiner Pumps, Fan Pumps, Centricleaner Pumps, Back Water Pumps, Separator Pumps, Couch Pit Pumps, and Turbo Feed Pumps, among others. Each pump is engineered for reliability, efficiency, and long service life, ensuring smooth operation even in the most challenging applications such as high-consistency pulp transfer, fiber recovery, process water circulation, and waste handling. Our pumps are trusted by leading manufacturers for their robust construction and superior hydraulic performance.
