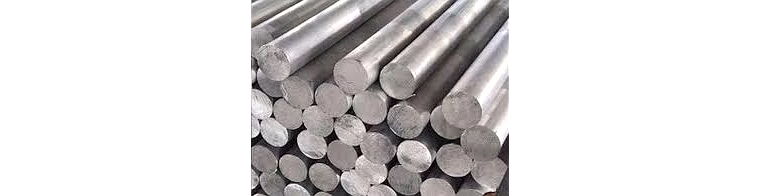

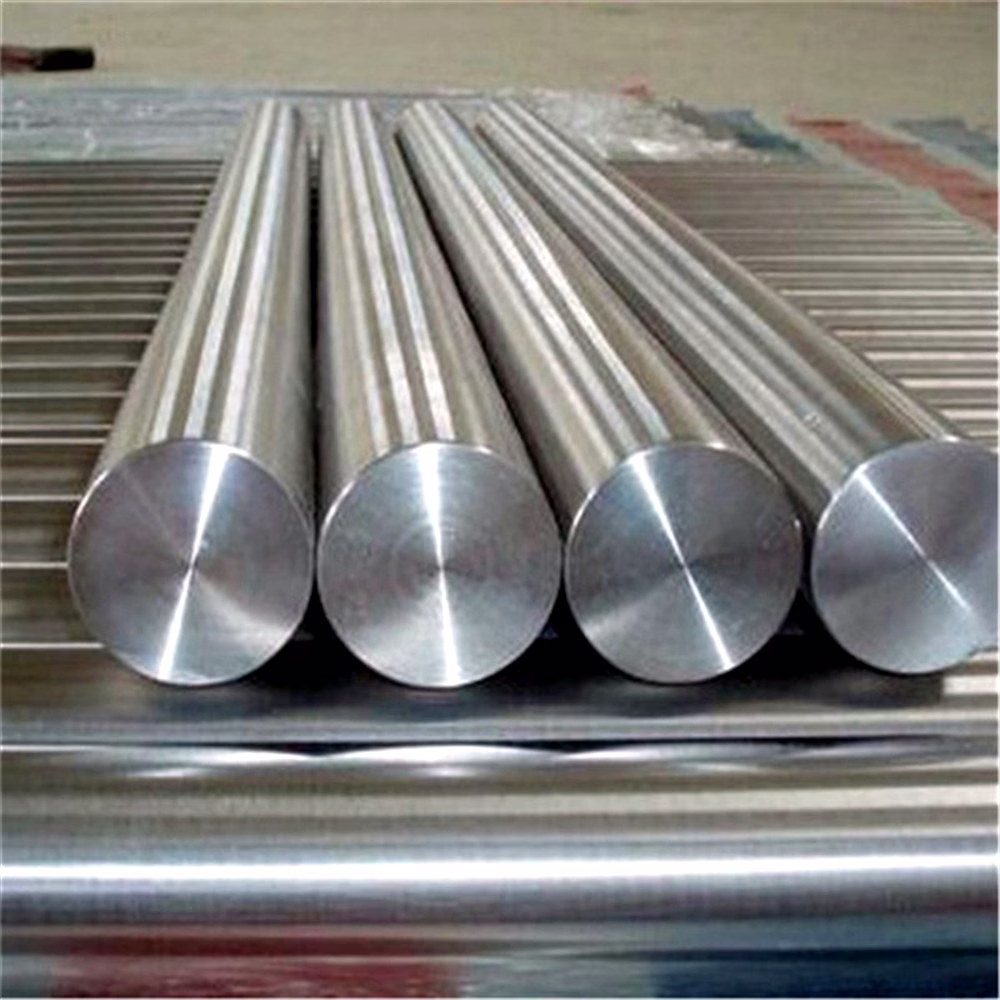

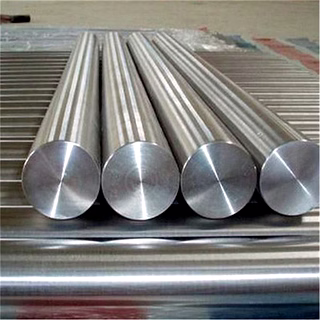

Duplex Steel S31803/S32205 Round Bar & Rods offer exceptional performance in challenging environments due to their balanced microstructure of austenite and ferrite phases. Manufactured per ASTM A276 / A479 and ASME SA276 / A479 standards, these round bars and rods are suitable for a variety of industrial applications requiring high strength and excellent corrosion resistance. Available in dimensions ranging from 14mm to 300mm in diameter and lengths from 50 mm up to 6 meters, these bars are offered in multiple forms including round, square, hex, rectangle, billet, ingot, and forging. Known for superior resistance to chloride stress corrosion cracking, pitting, and crevice corrosion thanks to their chromium, molybdenum, and nitrogen content, Duplex Steel S31803/S32205 bars are ideal for chemical, petrochemical, oil & gas, and marine industries. They provide good weldability and formability but are not recommended for continuous use above 300°C or below -50°C due to potential microstructural brittleness. Hot working is best performed between 954°C to 1149°C to optimize mechanical properties. These rods are widely available in hot rolled, cold rolled, polished, and forged finishes, ensuring adaptability to diverse manufacturing needs.
Key Features
| Features | Description |
|---|---|
| Material Composition | Duplex Stainless Steel S31803 / S32205 with balanced austenite and ferrite phases |
| Standards | ASTM A276, ASTM A479, ASME SA276 / A479 |
| Size Range | Diameter between 14mm to 300mm, Length from 50 mm to 6000 mm (up to 6 meters) |
| Available Forms | Round, Square, Hexagonal (A/F), Rectangle, Billet, Ingot, Forging |
| Corrosion Resistance | High resistance to chloride stress corrosion cracking, pitting, and crevice corrosion |
| Mechanical Properties | High strength with good weldability and formability |
| Operating Temperature Range | Suitable for use between -50°C and 300°C; not recommended outside these limits |
| Hot Working Temperature | Optimal hot working between 954°C - 1149°C (1750°F - 2100°F) |
| Surface Finish Options | Available in hot rolled, cold rolled, polished, bright, and forged finishes |
| Applications | Chemical, petrochemical, oil & gas, marine, and structural industries |
| Attributes | Description |
|---|---|
| Material Grade | Duplex Stainless Steel UNS S31803 / S32205 |
| Chemical Composition | Chromium, Molybdenum, Nitrogen enriched |
| Specification Standards | ASTM A276, ASTM A479, ASME SA276 / A479 |
| Dimensions | Diameter 14mm - 300mm; Length 50 mm to 6000 mm (custom cut available) |
| Form Factors | Round Bar, Square Bar, Hex Bar (A/F), Rectangle, Billet, Ingot, Forging |
| Surface Finishes | Hot Rolled, Cold Rolled, Polished, Bright, Forged |
| Temperature Limitations | Not suitable above 300°C or below -50°C |
| Manufacturing Origin | Manufactured and supplied from India |
| Corrosion Resistance Properties | Excellent chloride stress corrosion cracking resistance |
| Weldability and Formability | Good weldability and ease of forming during fabrication |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Duplex Steel S31803/S32205 round bars are widely used in chemical processing, petrochemical plants, oil and gas pipelines, marine applications, and structural engineering due to their excellent corrosion resistance and high strength.
Yes, these duplex steel bars offer good weldability, making them suitable for fabrications requiring welding without compromising corrosion resistance and strength.
The recommended temperature range is between -50°C to 300°C. Use above 300°C is not advised due to risk of precipitation of brittle phases.
These bars comply with ASTM A276, ASTM A479, and ASME SA276 / A479 standards ensuring quality and dimensional accuracy.
Yes, these bars are available in lengths ranging from 50 mm to 6000 mm and can also be supplied in custom cut lengths as per buyer requirements.
Surface finishes include hot rolled, cold rolled, polished, bright, and forged options to suit different fabrication and aesthetic needs.
Country Of Origin: India
Specification of Duplex Steel S31803/S32205 Round Bar
Duplex Steel Round Bar Specification :ASTM A276 / A479, ASME SA276 / A479
Dimension Standard :EN, DIN, JIS, ASTM, BS, ASME, AISI
Size :14mm-300mm
Length :50 mm to 6000 mm Long, 1 To 6 Meters, Custom Cut Length
Form :Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
ASTM A276 Duplex Steel S32205 Rods Exporter, SAF 2205 Rectangular Bar, ASTM A276 Duplex Stainless Steel S32205 Hex Bar Supplier, Duplex S31803 Square Bar, Duplex Steel S31803 Forged Bar, Duplex ASTM A276 S31803 Flat Bar, Duplex S31803 Bright Bar, Duplex S31803/S32205 Round Bar Manufacturer in India.
Duplex Steel UNS S32205 / S31803 Hex Bar, UNS S31803 Hot Rolled Bar Trader, S31803 Duplex Stainless Steel Polished Round Bar Stockists, SAF 2205 Round Rods, Duplex DIN 1.4462 Flat Bars Dealer, ASTM A276 Duplex S31803 Cold Rolled Round Bars, ASME SA276 Duplex S32205 Round Bar Supplier in India.
Duplex Steel UNS S32205 Rodspossess certain silent characteristics such as high chloride stress corrosion cracking resistance, chloride cracking and ease of handling, high strength, good weldability and formability.The chromium, nitrogen and molybdenum content Duplex Steel UNS S31803 Rods are most important for chloride crevice and pitting corrosion resistance. Duplex Steel 2205 Round Bars are not generally suitable for use at temperatures above 300 degrees C as it suffers from precipitation of brittle micro-constituents, nor below -50 degrees C because of its ductile-to-brittle-transition. Duplex Steel Round Bars are hot worked in the temperature range of 954-1149 degrees C (1750-2100degrees F).
