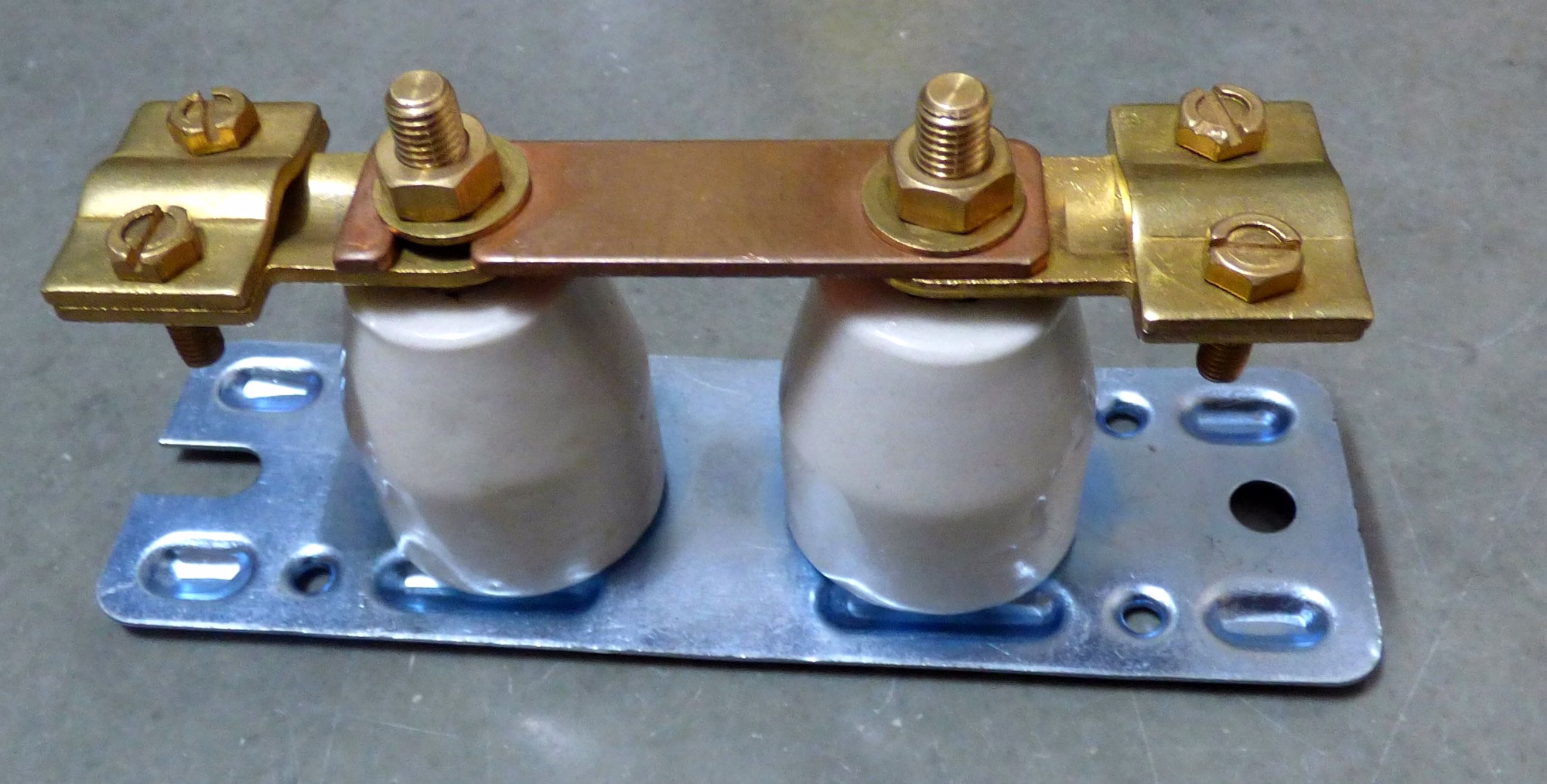

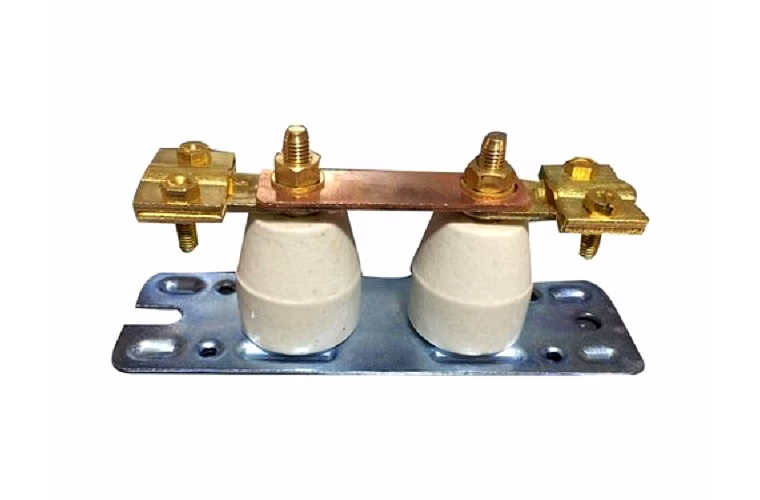

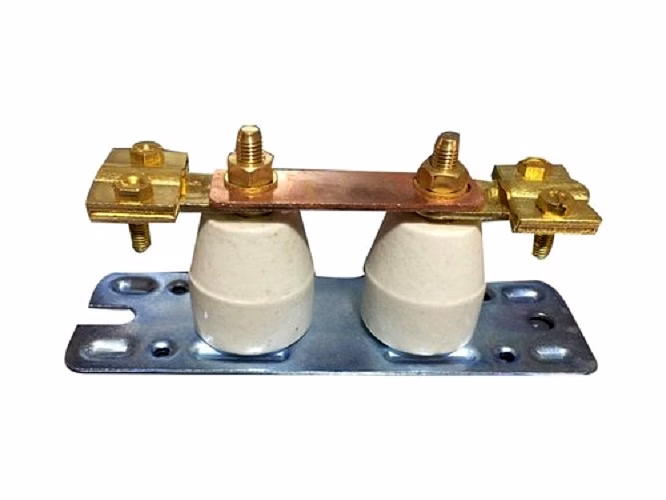

The Disconnecting Link with Ceramic Base is a specialized earth-disconnecting bar designed for high-efficiency electrical grounding systems. Installed at the foot of the earth column, this disconnecting link allows for secure and easy disconnection of the earth circuit to facilitate accurate earth plug measurements. The device features a durable ceramic (porcelain) insulator base that ensures superior electrical isolation and stability. Its construction includes a copper connection link for excellent conductivity, brass clamps and hardware for corrosion resistance, and a blue bichromate steel plated base plate that provides robust mechanical strength. Suitable for both indoor and outdoor applications, this product supports terminal sections ranging from 16mm² to 35mm², making it versatile for various industrial electrical setups. Easy to operate with standard tools like screwdrivers or spanners, the disconnecting link enhances safety and maintenance convenience in electrical grounding systems.
Key Features
| Features | Description |
|---|---|
| Application | Allows opening of the earth circuit for earth plug measurement by disconnecting copper link. |
| Insulator Material | Ceramic (Porcelain) base ensures high electrical insulation. |
| Conductive Link Material | Copper connection link for superior electrical conductivity. |
| Clamp and Hardware Material | Brass, offering corrosion resistance and durability. |
| Base Plate Material | Blue bichromate steel plated for enhanced mechanical strength and protection. |
| Terminal Section Compatibility | Supports 16mm² to 35mm² cable sizes. |
| Mounting Location | Suitable for both indoor and outdoor installations. |
| Operation | Easily disconnected with screwdriver or spanner for maintenance. |
| Standard Packing | Packaged in inner boxes of 2 pieces. |
| Unit Weight | Specified per product unit (exact weight to be confirmed). |
| Attributes | Description |
|---|---|
| Clamp Material | Brass |
| Connection Link Material | Copper |
| Hardware Material | Brass |
| Base Plate Material | Blue bichromate steel plated |
| Porcelain Insulator Material | Ceramic |
| Terminal Section Size | 16mm² - 35mm² |
| Suitable For | Indoor and outdoor earth circuit applications |
| Installation Position | At the foot of the earth column |
| Operation Tool | Screwdriver or spanner to disconnect copper link |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the product is designed for both indoor and outdoor use, with materials like blue bichromate steel plated base plate and brass hardware providing corrosion resistance suitable for outdoor environments.
This disconnecting link supports terminal sections ranging from 16mm² to 35mm², allowing compatibility with a wide range of grounding cables.
The earth circuit can be disconnected by removing the copper link using simple tools such as a screwdriver or spanner, allowing for easy maintenance and earth plug measurements.
The ceramic (porcelain) insulator base offers high electrical insulation, heat resistance, and durability, ensuring stable performance and safety in the grounding system.
Yes, it is designed specifically to be installed at the foot of the earth column in standard grounding setups to facilitate easy earth circuit measurement and disconnection.
Country Of Origin: India
Disconnecting Link with Ceramic Base EARTH-DISCONNECTING BAR - ABOVE GROUND
Application: The earth-disconnecting bar is installed at the foot of the earth column. It enables the opening of the earth circuit to take a measurement of the earth plug. The opening from the earth circuit can be done by disconnecting the copper link with a screwdriver or spanner.
Material Specification:
Clamp Material:
Brass
Connection Link Material:
Copper
Hardware Material:
Brass
Base Plate Material:
Blue bichromate steel Plated
Porcelain insulator:
Ceramic
Terminal Sections:
16mm² - 35mm² High isolation bar
Mounting:
For indoor & outdoor use only
Standard Packing: Inner Box of 02 pieces
Unit weight:
