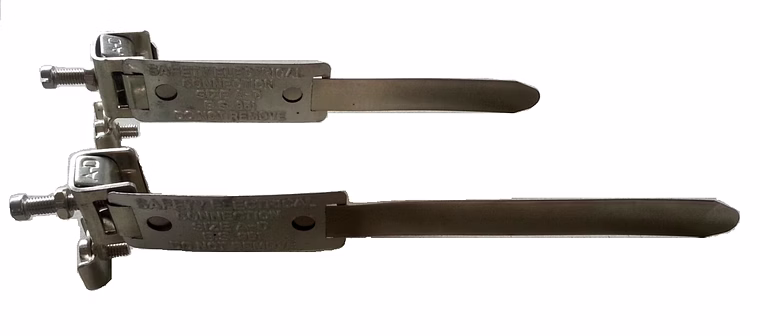

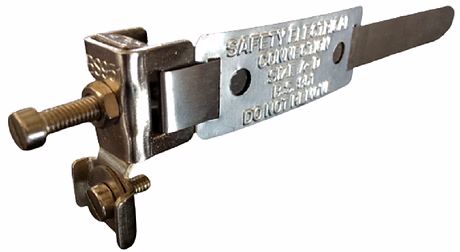

The Adjustable Earth Clamp is a high-performance earthing accessory designed to establish secure, reliable connections between earthing conductors and pipes. Engineered with precision, these clamps are available in multiple size ranges to fit pipe diameters from 12mm up to 75mm, ensuring versatile compatibility for various industrial and commercial earthing applications. This product line features clamps manufactured from durable brass or bronze materials combined with stainless steel 304 tape, nickel plating for enhanced corrosion resistance, and brass screws for secure tightening. The clamps come in three standard band lengths—150mm, 220mm, and 330mm—matched to pipe sizes to ensure optimum clamping force and safety. With color-coded labels (Red, Blue, Green) indicating suitability for different environmental conditions (non-corrosive dry, corrosive, humid), these earth clamps comply with BS-951 standards for safety and performance. Suitable for both indoor and outdoor installations, each clamp supports terminal sections A-D with sizes ranging between 2.5 and 10mm², facilitating easy and secure connection of earthing conductors. The adjustable earth clamp is ideal for electrical systems requiring reliable earth continuity, pipe-mounted earthing, and corrosion-resistant clamp applications. Standard packaging includes inner boxes of 20 pieces and outer cartons of 500 pieces, with unit weight approximately 40g each, making it convenient for bulk procurement and industrial use.
Key Features
| Features | Description |
|---|---|
| Clamp Material | Brass or Bronze |
| Tape Material | Stainless Steel 304 |
| Screw Material | Brass |
| Plating | Nickel Plated |
| Pipe Diameter Range | 12mm to 75mm (varies by model) |
| Strip Length | 150mm, 220mm, 330mm options |
| Color Coding | Red (dry areas), Blue/Green (corrosive/humid environments) |
| Standard Compliance | BS-951 |
| Terminal Section Compatibility | A-D 2.5–10mm² |
| Mounting Environment | Indoor & Outdoor Use |
| Packaging | Inner Box - 20 pieces, Outer Box - 500 pieces |
| Approximate Unit Weight | 40 grams |
| Attributes | Description |
|---|---|
| Code No | EC-14/1, EC-14/2, EC-14/3, EC-15/1, EC-15/2, EC-15/3 |
| Pipe Diameter Covered | 12mm to 32mm, 32mm to 50mm, 50mm to 75mm |
| Strip Length | 150mm, 220mm, 330mm |
| Clamp Material | Brass or Bronze |
| Tape Material | Stainless Steel 304 |
| Screw Material | Brass |
| Label Material & Colors | Aluminum - White, Green, Blue, Red |
| Plating Material | Nickel Plated |
| Standard | British Standard BS-951 |
| Terminal Section | A-D 2.5 – 10mm² |
| Mounting Application | Indoor and Outdoor Use |
| Packing Details | 20 pieces per inner box; 500 pieces per outer box |
| Unit Weight | Approx. 40 grams |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Adjustable Earth Clamp models support pipe diameters in three ranges: EC-14/1 and EC-15/1 fit 12mm to 32mm, EC-14/2 and EC-15/2 fit 32mm to 50mm, and EC-14/3 and EC-15/3 fit 50mm to 75mm diameter pipes.
The clamps are made from brass or bronze which provides excellent conductivity and corrosion resistance. The tape is stainless steel 304 for strength and durability, screws are brass for secure fastening, and the clamps are nickel plated to further enhance corrosion resistance especially in harsh environments.
Color coding helps identify the suitable environmental application for each clamp: Red is for dry, non-corrosive atmospheres; Blue and Green are suitable for corrosive or humid conditions, which helps in selecting the right clamp for the installation environment.
Yes, the clamps are designed for both indoor and outdoor use, with materials and plating selected to withstand environmental conditions encountered outdoors.
These clamps comply with the British Standard BS-951, ensuring they meet internationally recognized safety and performance criteria for earthing equipment.
Country Of Origin: India
ADJUSTABLE EARTH CLAMPS Code No Pipe Diameter Strip Length EC-14/1 12mm to 32mm 150mm EC-14/2 32mm to 50mm 220mm EC-14/3 50mm to 75mm 330mm EC-15/1 12mm to 32mm 150mm EC-15/2 32mm to 50mm 220mm EC-15/3 50mm to 75mm 330mm Application: High performance earth clamp is widely used to connect the pipes to conductor for earthing. Available in three colours - Red for non-corrosive dry atmospheres, Blue or Green for corrosive or humid conditions. Available in three standard band lengths. Characteristics:
Clamp Material:
Brass Or Bronze
Tape Material:
Stainless steel 304
Screw Material:
Brass
Label Material:
Aluminum (White/Green/Blue/Red)
Plating Material:
Nickel Plated
Standard:
BS-951
Terminal Sections:
A-D 2.5 – 10mm²
Mounting:
For indoor & outdoor use only
Standard Packing: Inner Box of 20 pieces and Outer Box of 500 pieces
Unit weight: 40g Approx
-------------------------------------------------------------------------------------------------------------------------------
