The Cryo's Trinocular Microscope by Alco-Cryocell is a precision optical instrument designed for advanced laboratory and research applications. Featuring a mechanical tube length of 160 mm, it is equipped with Din objectives of 5X, 10X, 20X, 40X, and 100X magnifications, all treated with anti-fungal coating to ensure durability and long-term clarity. The microscope features a 450 inclined trinocular head with 360-degree rotatable table, allowing ergonomic viewing and smooth specimen handling. The camera port is HDMI ready, enabling seamless connection to PCs or monitors for high-quality digital imaging and documentation. The built-in coaxial mechanical stage (125 x 150 mm) offers precise slide manipulation through fine vernier graduations with a travel range of 50 x 70 mm, supported by smooth ball bearing guideways. Its dust-proof quadruple ball bearing revolving nosepiece ensures positive click stops for quick and accurate objective switching. The co-axial coarse and fine focusing system comes with a fine motion graduated to .002 mm for meticulous control. Additionally, it includes a sub-stage Abbe condenser with a numerical aperture of 1.25, featuring rack & pinion focusing, a continuously variable iris diaphragm, and a built-in swing-out filter, optimizing light quality and contrast. This trinocular microscope is ideal for professionals in biomedical, pathological, microbiological, and educational research environments needing high-quality imaging, ergonomic design, and digital imaging integration.
Key Features
| Features | Description |
|---|---|
| Model Make | Alco-Cryocell |
| Mechanical Tube Length | 160 mm |
| Objective Lenses | Din 5X, 10X, 20X, 40X, 100X with anti-fungal treatment |
| Trinocular Head | 450 inclined with 360° rotatable table |
| Camera Connectivity | Camera port HDMI ready for PC/monitor connection |
| Mechanical Stage | Co-axial, 125 x 150 mm with fine vernier graduation; travel range 50 x 70 mm |
| Revolving Nosepiece | Dust-proof quadruple ball bearing with positive click stops |
| Focusing System | Co-axial coarse and fine focusing with 0.002 mm fine motion graduation |
| Condenser | Sub-stage Abbe NA 1.25 with rack & pinion focus, variable iris diaphragm, swing-out filter |
| Attributes | Description |
|---|---|
| Inclination Angle | 450 |
| Camera Interface | HDMI Camera option available |
| Stage Guide | Ball bearing guide ways |
| Stage Adjustment | Coaxial adjustment |
| Stage Size | 125 x 150 mm |
| Stage Travel | 50 x 70 mm |
| Objective Lens Type | DIN standard |
| Anti-Fungal Coating | Yes |
| Nosepiece Type | Quadruple ball bearing revolving |
| Focus Graduation | 0.002 mm (fine motion) |
| Numerical Aperture of Condenser | 1.25 |
| Iris Diaphragm | Continuously variable, built-in swing out filter |
| Focusing Mechanism | Rack & pinion for condenser, coaxial for coarse/fine focus |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the microscope is equipped with an HDMI camera port compatible with most PCs and monitors for digital imaging and real-time viewing.
The anti-fungal treatment protects the objectives from mold and fungal growth, especially in humid laboratory conditions, ensuring clearer images and longer lens life.
The microscope features co-axial coarse and fine focusing knobs with a fine motion graduation of 0.002 mm, allowing for highly precise focusing adjustments.
Yes, the coaxial mechanical stage with fine vernier graduations and ball bearing guideways enables smooth and accurate slide movement within the 50 x 70 mm travel range.
The condenser is an Abbe type with NA 1.25, equipped with rack & pinion focusing, a continuously variable iris diaphragm, and a built-in swing-out filter, allowing users to optimize light intensity and contrast.
Country Of Origin: India

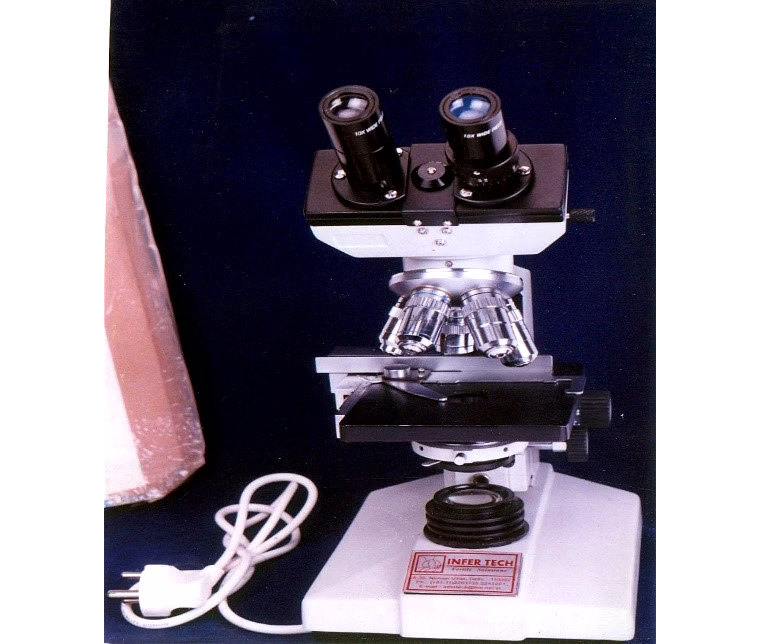

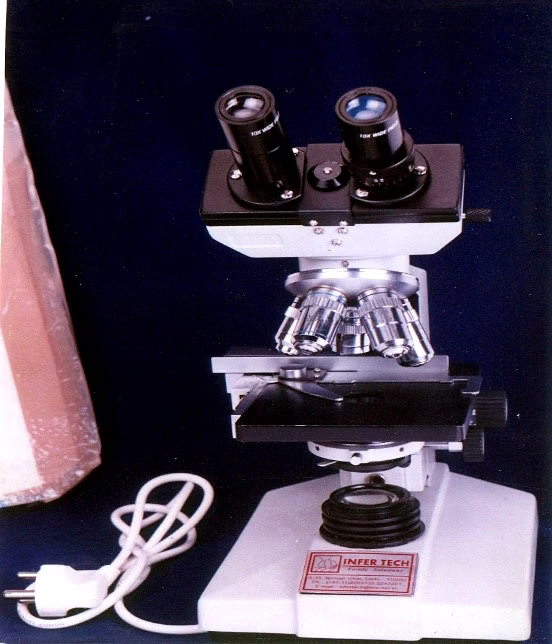

Cryo’s TRINOCULAR MICROSCOPE
• Make – Alco- Cryocell
• Mechanical Tube Length 160 mm.
• Din objectives 5X, 10X, 20X, 40X & 100X, with anti fungal treatment.
• 450 inclined with 3600 Rota table Trinocular head.
• Camera port ready.(can be connected with a PC / monitor) HDMI Camera option also available
• Co- axial built in Mechanical stage 125 x 150 mm with fine vernier graduation, designed with convenient coaxial adjustment on ball bearing guide ways for smooth slide manipulation through 50 x 70 mm.
• Dust proof Quadruple ball bearing revolving nose piece with positive click stops. Co-axial course & fine focusing adjustment knobs. Fine motion graduated to .002 mm. Sub stage abbe type N.A. 1.25 condenser focusable with rack & pinion, continuously variable iris diaphragm with built in swing out filter
