The Binocular Research Microscope is engineered for both educational institutions and research facilities, offering a high-quality optical performance that meets the demands of detailed observation and analysis. It features a durable square base and a streamlined design for ease of use. The binocular head, equipped with top-grade prisms, allows for 360° rotation, ensuring flexible viewing angles. With an adjustable inter-pupillary distance ranging from 55 mm to 75 mm, this microscope accommodates various user preferences. The replaceable straight micro photographic tube enhances versatility for imaging tasks. Its quarter stage measures 115 x 125 mm and integrates a co-axial mechanical stage for precise specimen manipulation. The sub stage movement, facilitated by a rack and pinion system, features an Abbe Condenser with a numeric aperture of 1.25, complete with an iris diaphragm and filter for optimal light control. The dual coarse and fine focusing mechanisms, including a graduated drum type helical screw for fine adjustments, enable exact focusing down to 0.002 mm. With a quadruple revolving nosepiece for diverse objectives (Achromatic 4x, 10x, 40x, and 100x Oil Immersion), this microscope produces total magnifications of 40x, 100x, 400x, and 1000x, making it suitable for a broad range of applications. The robust aluminum cast body ensures durability, while the built-in locking device protects slides from breakage during use. Powering this optical instrument is straightforward with a standard 220V supply, all neatly packaged in a sturdy box for secure transport.
Key Features
| Features | Description |
|---|---|
| Binocular Head | 360° rotatable with high-quality prism |
| Inter-Pupillary Distance | Adjustable from 55 mm to 75 mm |
| Stage Size | Rectangular 115 x 125 mm with co-axial mechanical stage |
| Condenser | Abbe Condenser with 1.25 N.A., iris diaphragm, and filter |
| Focusing Mechanism | Coarse and fine focusing with 0.002 mm precision |
| Nosepiece | Quadruple revolving nosepiece with ball bearing movement |
| Objectives | Achromatic 4x, 10x, 40x, and 100x Oil Immersion |
| Total Magnification | 40x, 100x, 400x, and 1000x |
| Body Material | Durable aluminum cast |
| Power Supply | 220V |
| Attributes | Description |
|---|---|
| Focusing Type | Coarse and fine |
| Fine Focus Adjustment | Graduated drum type helical screw |
| Locking Device | Built-in to avoid slide breakage |
| Power Supply Type | 220V |
| Packing Type | Box |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This microscope is ideal for students in schools and colleges as well as for professionals and researchers in laboratories requiring precise and detailed specimen observation.
The Binocular Research Microscope can achieve a total magnification of up to 1000x, making it suitable for a wide range of applications.
It features a dual focusing mechanism, where coarse focusing is achieved through a rack and pinion system, while fine focusing is adjusted using a graduated drum type helical screw, providing precision adjustments down to 0.002 mm.
The microscope is equipped with a built-in locking device that prevents damage to the slides during use, allowing for both standard and specialized slides to be utilized.
Yes, the binocular head can be rotated through 360 degrees and the inter-pupillary distance can be adjusted from 55 mm to 75 mm to accommodate various users comfortably.
Brand: mayalab
Country Of Origin: India

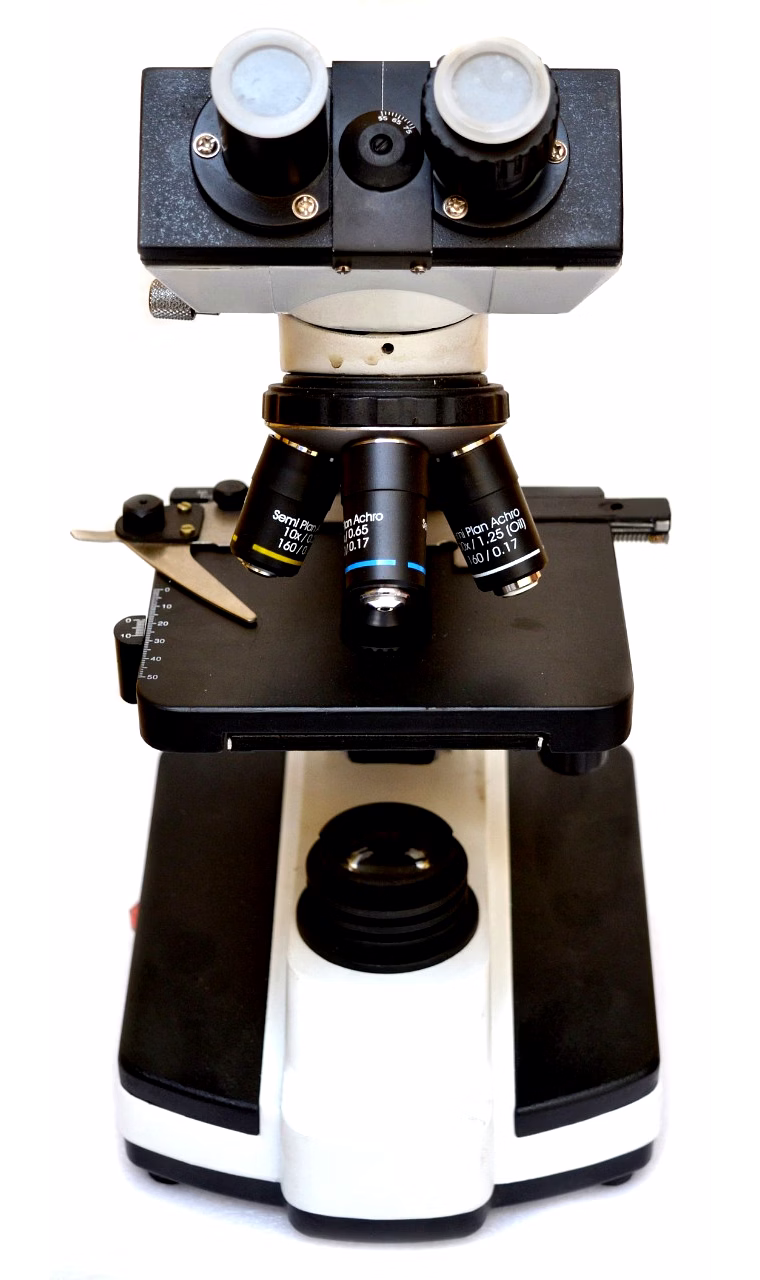

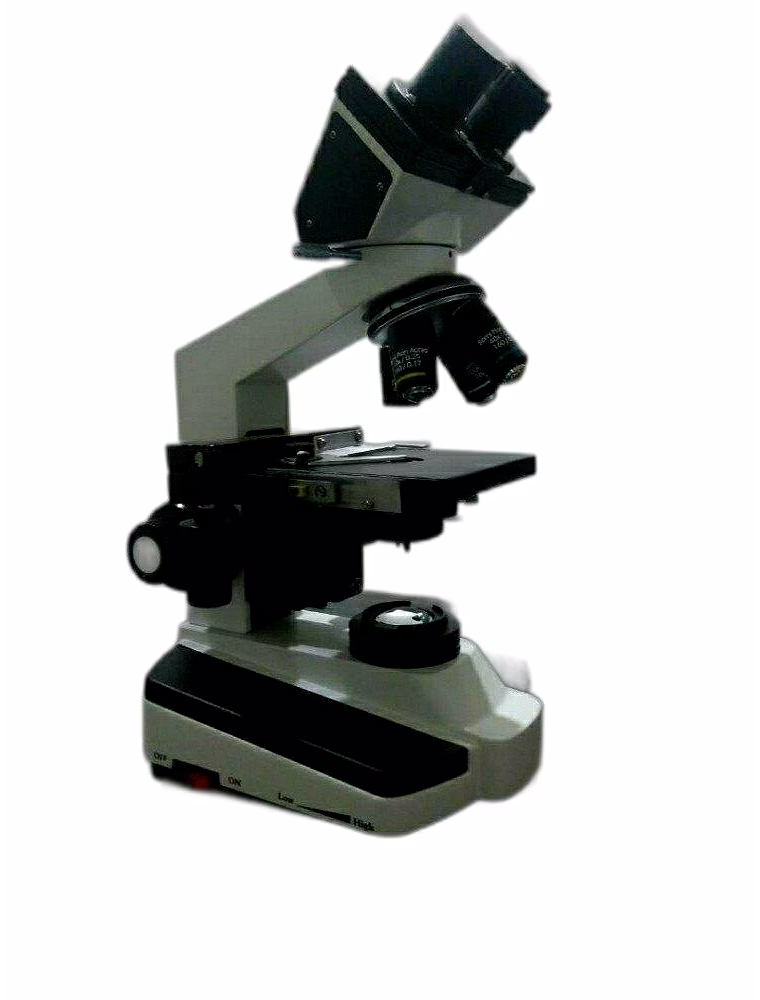

Binocular Research Microscope
High quality Binocular Microscope for schools, colleges and research. Square sturdy base, streamlined design.
binocular head use high quality prism It is rotatable through 360° with inter pupillary distance 55 mm to 75mm and with a straight replaceable micro photographic tube.
Stage and Condenser
Rectangular 115 x 125 mm with co-axial mechanical stage. Sub stage movable by rack and pinion Abbe Condenser of 1.25 N.A. with iris diaphragm and filter.
Coarse and fine focusingFine focusing by graduated drum type helical screw graduated to 0.002 mm. Quadruple revolving nose piece with ball bearing movement.
Optics
Eye piece 10x WF in pair
Objectives Achromatic 4x, 10x, 40x and 100x Oil Immersion spring loaded
Coarse focusing by rack and pinion for stage movement, built in locking device to avoid breakage to Slide.
Objectives Achromatic 4x, 10x, 40x and 100x Oil Immersion spring loaded , total magnifiction:40x,100x,400x, 1000x
Coarse focusing by rack and pinion for stage movement, built in locking device to avoid breakage to Slide.
body matel: aluminim cast
power supply: 220v
packing type : box
