Designed and manufactured as per BS 5155, API 609, MSS Sp 67 & ISO 5752

FEATURES

•  Bi-Directional zero leakage Butterfly valve.
•  An Extremely negligible backlash between Stem & due to square drive.
•  Butterfly Valve (Lined) are designed to fit without gaskets between flanges drilled to ANSI 125 #, ANSI 150 #, DIN, ND 10, 16, BS 10 Table D, E, and F.
• 100% Factory tested under water / Air / Vacuum before the valve is packed and shipped.
• 360° Disc Rotation.

Valve Size: 1½(40 mm) to 36" (900 mm) Rating: ANSI 125 #, ANSI 150 #

Design: Centric Disc, Single To Triple Offset Disc Fully Lined & Double Flanged

End Connection: Wafer, Lugged & Double Flanged

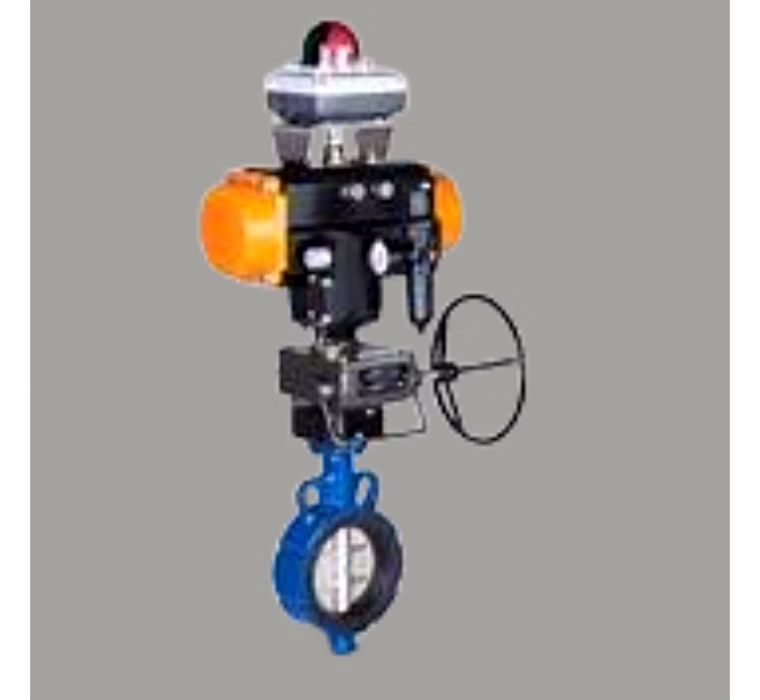

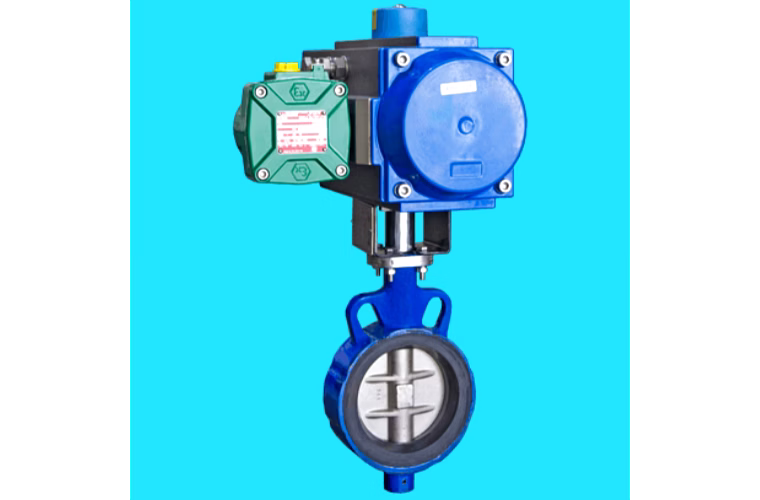

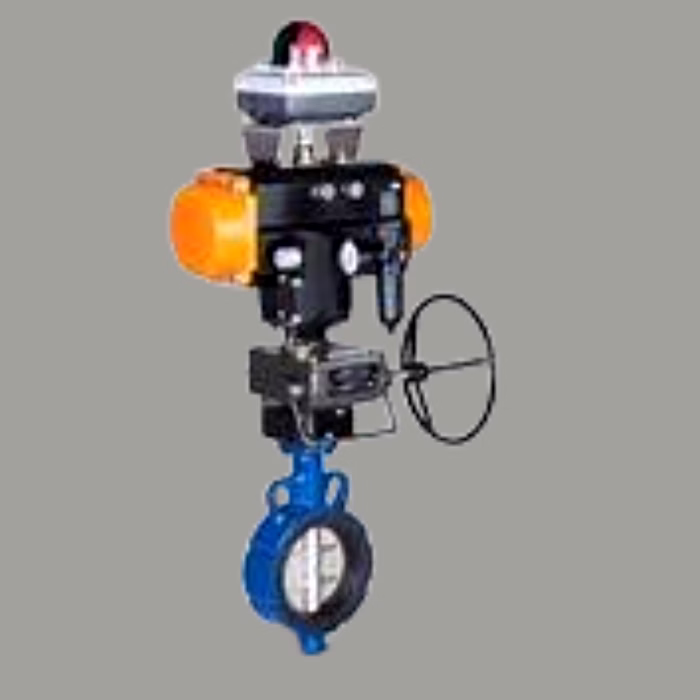

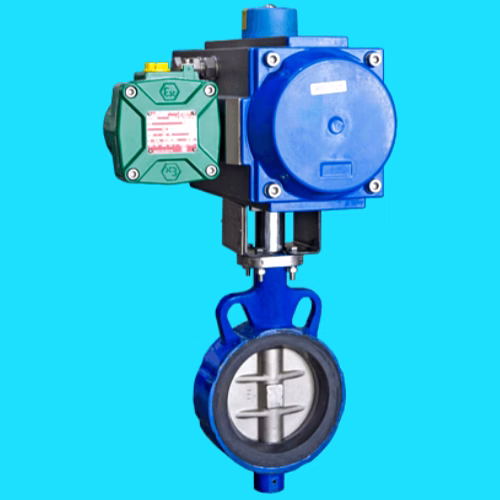

Operation: Pneumatic

Port Opening: Full

Seat: Nitrile EPDM / Neoprene / Silicon / Viton etc.

Disc: Solid Dual Shaft / Single Shaft

Design Code: API -609 / BS -5155

Testing: API 598
